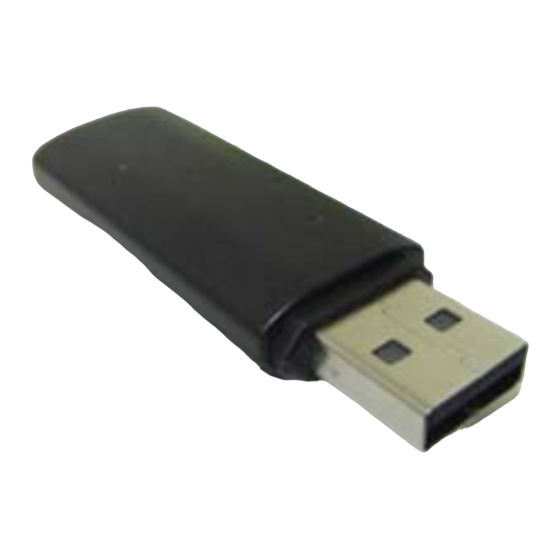

Abocom WU5502S User Manual

Wireless usb adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
802.11 b/g/n 1T1R
Wireless USB Adapter
Abocom
WU5502S
User's Manual

Advertisement

Table of Contents
loading

Related Manuals for Abocom WU5502S

Summary of Contents for Abocom WU5502S

  • Page 1 802.11 b/g/n 1T1R Wireless USB Adapter Abocom WU5502S User’s Manual...
  • Page 2 OET Bulletin 65 Supplement C. This equipment should be installed and operated with minimum distance 2.5cm between the radiator & your body. CE Statement: Hereby, AboCom, declares that this device is in compliance with the essential requirement and other relevant provisions of the R&TTE Driective 1999/5/EC.

  • Page 3: Table Of Contents

    Table of Contents CHAPTER 1: INTRODUCTION ............1 EATURES ....................1 HYSICAL ETAILS ..................1 CHAPTER 2: INSTALLATION............. 2 2000/XP ................2 INDOWS Install Software ......................... 2 Install Hardware ........................ 4 Verification ......................... 4 INDOWS ISTA ................5 Install Software ......................... 5 Install Hardware ........................
  • Page 4 CHAPTER 5: UNINSTALL ..............60 2000/XP ................. 60 INDOWS INDOWS ISTA ................62 7 ..................64 INDOWS...

  • Page 5: Chapter 1: Introduction

    Chapter 1: Introduction WU5502S measures just around 15 mm long and 15mm wide that make it hold the distinction of being the smallest USB dongle in the world at present. WU5502S give mobile workers the freedom of staying connected to the network while roaming around a building or multiple buildings maintaining access to the Internet, e-mail, networked applications with the best convenience in narrow or crowded space for it’s ultra micro size.WU5502S is expected to be able to reach 150Mbps, which is relatively...

  • Page 6: Chapter 2: Installation

    Chapter 2: Installation For Windows 2000/XP Install Software Note: Do not insert the Wireless USB Adapter into the computer until the InstallShield Wizard finished installing. 1. Exit all Windows programs. Insert the included Installation CD into the computer. The CD-ROM will run automatically.
  • Page 7 2. When prompt to the following message, please click Install to begin the installation. 3. When the following screen appears, click Finish to restart the computer to complete the software installation.

  • Page 8: Install Hardware

    Install Hardware Note: Insert the Wireless USB Adapter when finished software installation. Insert the Wireless USB Adapter into the USB Port of the computer. The system will automatically detect the new hardware. Verification To verify the device is active in the computer. Go to Start > Control Panel > System > Hardware> Device Manager.

  • Page 9: For Windows Vista

    For Windows Vista Install Software Note: Do not insert the Wireless USB Adapter into the computer until the InstallShield Wizard finished installing. Exit all Windows programs. Insert the included Installation CD into the computer. The CD-ROM will run automatically. Please click Next to process the installation.
  • Page 10 2. When prompt to the following message, please click Install to begin the installation.
  • Page 11 When the following screen appears, click Finish to restart the computer to complete the software installation.

  • Page 12: Install Hardware

    Install Hardware Note: Insert the Wireless USB Adapter when finished software installation. Insert the Wireless USB Adapter into the USB Port of the computer. The system will automatically detect the new hardware. Verification To verify the device is active in the computer. Go to Start >Control Panel > Hardware and Sound >...

  • Page 13: For Windows 7

    For Windows 7 Install Software Note: Do not insert the Wireless USB Adapter into the computer until the InstallShield Wizard finished installing. 1. Exit all Windows programs. Insert the included Installation CD into the computer. The CD-ROM will run automatically. Please click Next to process the installation.
  • Page 14 2. When prompt to the following message, please click Install to begin the installation When the following screen appears, click Finish to restart the computer to complete the software installation. 10 -...

  • Page 15: Install Hardware

    Install Hardware Note: Insert the Wireless USB Adapter when finished software installation. Insert the Wireless USB Adapter into the USB Port of the computer. The system will automatically detect the new hardware. Verification To verify the device is active in the computer. Go to Start > Control Panel > Device Manager. Expand the Network adapters category.

  • Page 16: Chapter 3: Network Connection

    Chapter 3: Network Connection How to Make a Connection To make a connection with an access point, please follow below steps. Here takes Windows XP OS for example. Step 1: After set up the Wireless USB Adapter successfully, please launch the Configuration Utility.
  • Page 17 Step 2: Please go to the Available Network tab, the system will automatically scan access points nearby, or click Refresh button to site survey again. Step 3: Then, double click preferred access point or click Add to Profile button to make a connection (if the access point has been set up security, please enter passwords and then click OK.) 13 -...

  • Page 18: How To Add A Profile

    How to Add a Profile After launched Wireless LAN Utility and selected preferred access point, please click Add to Profile button to enter Wireless Network Properties windows. If the access point has been set up security, please enter passwords, and then click OK to save profile settings. After finished above settings, please go to Profile tab to check the profile list (Available Profile(s)).

  • Page 19: Chapter 4: Utility Configuration

    Chapter 4: Utility Configuration For Windows 2000/XP Station Mode  Show Tray Icon: Check to show the wireless adapter icon at the tray.  Disable Adapter: Check this to disable the wireless adapter.  Radio off: Check this to turn OFF radio function. ...
  • Page 20 General The General page displays the detail information of current connection. General Tab Shows the current connected status. If there is no connection, it will show Status Not Associated. If been connected, the system will show Associated. When connecting, the system will show checking Status. Shows the current transmitting rate and receiving rate.
  • Page 21 Profile Profile can let users book keeping the favorite wireless setting among home, office, and other public hot-spot. Users may save multiple profiles, and activate the correct one at preference. The Profile manager enables users to Add, Remove, Edit, Duplicate and Set Default profiles. Profile Tab Profile Name Here shows a distinctive name of profile in this column.
  • Page 22 Profile Name: Users can enter profile name at will. Network Name (SSID): The SSID is the unique network name (case-sensitive) shared among all wireless access points in the wireless network. The name must be identical for all devices and wireless access points attempting to connect to the same network.
  • Page 23 Confirm network key: Enter network key again to confirm. When encryption is set to WPA 802.1X/ WPA2 802.1X/ WEP 802.1X… When users use radius server to authenticate client certificate for WPA authentication mode (WPA authentication do not support EAP Method- MD5-Challenge).
  • Page 24 Available Network This page displays the information of surrounding APs from last scan result. The tab lists the information including SSID, Channel, Encryption, Network Authentication, Signal, Type, BSSID, Supported Rate (s), and Mode. Network Tab SSID Shows the network name of the access points. Channel Shows the currently channel in use.
  • Page 25 Supported wireless mode. It may support 802.11b, 802.11g and 802.11n Mode wireless mode. Refresh Click Refresh button to search and rescan the available network. Select an available network (SSID) on the list and then click Add to Profile Add to Profile button to add it into the profile list.
  • Page 26 Statistics The Statistics screen displays the statistics on the current network settings. Statistics Tx OK Shows information of packets successfully sent. Tx Error Shows information of packets failed transmit after hitting retry limit. Rx OK Shows information of packets received successfully. Shows information of packets received successfully.
  • Page 27 The primary goal of Wi-Fi Protected Setup (Wi-Fi Simple Configuration) is to simplify the security setup and management of Wi-Fi networks. The STA as an Enrollee or external Registrar supports the configuration setup using PIN (Personal Identification Number) configuration method or PBC (Push Button Configuration) method through an internal or external Registrar.

  • Page 28: Switch To Ap Mode

    About This page displays the information of the Wireless USB Adapter Version. Switch to AP Mode To access the soft AP mode, please select the Mode on the function list of the Utility to make the Wireless USB Adapter act as a wireless AP. 24 -...

  • Page 29: Soft Ap Mode

    Soft AP mode General General SSID Shows the network name of the AP. BSSID Shows the MAC address of the AP. This table shows the connected client here. Association Table Config Click the Config button to set up the Wireless Network Properties. 25 -...
  • Page 30 Network Name (SSID): User can change the network name of this access point. Channel: User can select the channel form the pull-down list. Wireless network security Network Authentication: There are several types of authentication modes including Open System, Shared Key, WPA-PSK and WPA2-PSK. Data encryption: For Open System and Shared Key authentication mode, the selection of encryption type is WEP.
  • Page 31 Advanced Advanced Beacon Interval The time between two beacons. (The system default is 100 ms.) The delivery traffic indication message (DTIM) is an element included in DTIM Period some beacon frames. User can specify a value from 1 to 255 beacons. Select from the pull-down menu to change the Preamble type into Short Preamble or Long.
  • Page 32 Statistics Statistics Shows information of packets successfully sent. Tx OK Tx Error Shows information of packets failed transmit after hitting retry limit. Rx OK Shows information of packets received successfully. Rx Packet Count Shows information of packets received successfully. Rx Retry Shows information of packets failed transmit after hitting retry limit.
  • Page 33 This page displays setting Internet connection sharing (ICS). Select a sharing public network and click Apply button to make a connection. 29 -...

  • Page 34: For Windows Vista

    For Windows Vista Station Mode  Show Tray Icon: Check to show the wireless adapter icon at the tray.  Disable Adapter: Check this to disable the wireless adapter.  Radio off: Check this to turn OFF radio function.  Close: Click to leave the Intelligent 11n USB Wireless LAN Utility. 30 -...
  • Page 35 General The General page displays the detail information of current connection. General Tab Shows the current connected status. If there is no connection, it will show Status Not Associated. If been connected, the system will show Associated. When connecting, the system will show checking Status. Speed Shows the current transmitting rate and receiving rate.
  • Page 36 Click the Renew IP button to obtain IP address form the connected Renew IP gateway. Profile Profile can let users book keeping the favorite wireless setting among home, office, and other public hot-spot. Users may save multiple profiles, and activate the correct one at preference. The Profile manager enables users to Add, Remove, Edit, Duplicate and Set Default profiles.
  • Page 37 This is a computer-to-computer (ad hoc) network; wireless access points are not used: This function is selected to enable the ad hoc network type that computers should be setup at the same channel to communicate to each other directly without access point, users can share files and printers between each PC and laptop.
  • Page 38 When encryption is set to WPA-PSK/ WPA2-PSK… Network key: Enter network key at least 8 to 64 characters. Confirm network key: Enter network key again to confirm. When encryption is set to WPA 802.1X/ WPA2 802.1X/ WEP 802.1X… When users use radius server to authenticate client certificate for WPA authentication mode (WPA authentication do not support EAP Method- MD5-Challenge).
  • Page 39 Available Network This page displays the information of surrounding APs from last scan result. The tab lists the information including SSID, Channel, Encryption, Network Authentication, Signal, Type, BSSID, Supported Rate(s), and Mode. Network Tab SSID Shows the network name of the access points. Shows the currently channel in use.
  • Page 40 BSSID Shows Wireless MAC address. Shows the transmitting data rate. Supported Rate(s) Supported wireless mode. It may support 802.11b, 802.11g and 802.11n Mode wireless mode. Refresh Click Refresh button to search and rescan the available network. Select an available network (SSID) on the list and then click Add to Profile Add to Profile button to add it into the profile list.
  • Page 41 Statistics The Statistics screen displays the statistics on the current network settings. Statistics Tx OK Shows information of packets successfully sent. Tx Error Shows information of packets failed transmit after hitting retry limit. Rx OK Shows information of packets received successfully. Shows information of packets received successfully.
  • Page 42 The primary goal of Wi-Fi Protected Setup (Wi-Fi Simple Configuration) is to simplify the security setup and management of Wi-Fi networks. The STA as an Enrollee or external Registrar supports the configuration setup using PIN (Personal Identification Number) configuration method or PBC (Push Button Configuration) method through an internal or external Registrar.

  • Page 43: Switch To Ap Mode

    About This page displays the information of the Wireless USB Adapter Version. Switch to AP Mode To access the soft AP mode, please select the Mode on the function list of the Utility to make the Wireless USB Adapter act as a wireless AP. 39 -...

  • Page 44: Soft Ap Mode

    Soft AP mode General General Shows the network name of the AP. SSID BSSID Shows the MAC address of the AP. Association Table This table shows the connected client here. Config Click the Config button to set up the Wireless Network Properties. 40 -...
  • Page 45 Network Name (SSID): User can change the network name of this access point. Channel: User can select the channel form the pull-down list. Wireless network security Network Authentication: There are several types of authentication modes including Open System, Shared Key, WPA-PSK and WPA2-PSK. Data encryption: For Open System and Shared Key authentication mode, the selection of encryption type is WEP.
  • Page 46 Advanced Advanced The time between two beacons. (The system default is 100 ms.) Beacon Interval DTIM Period The delivery traffic indication message (DTIM) is an element included in some beacon frames. User can specify a value from 1 to 255 beacons. Preamble Select from the pull-down menu to change the Preamble type into Short or Long.
  • Page 47 Statistics Statistics Tx OK Shows information of packets successfully sent. Tx Error Shows information of packets failed transmit after hitting retry limit. Rx OK Shows information of packets received successfully. Shows information of packets received successfully. Rx Packet Count Rx Retry Shows information of packets failed transmit after hitting retry limit.
  • Page 48 This page displays setting Internet connection sharing (ICS). Select a sharing public network and click Apply button to make a connection. 44 -...

  • Page 49: For Windows 7

    For Windows 7 Station Mode  Show Tray Icon: Check to show the wireless adapter icon at the tray.  Disable Adapter: Check this to disable the wireless adapter.  Radio off: Check this to turn OFF radio function.  Close: Click to leave the Intelligent 11n USB Wireless LAN Utility. 45 -...
  • Page 50 General The General page displays the detail information of current connection. General Tab Shows the current connected status. If there is no connection, it will show Status Not Associated. If been connected, the system will show Associated. When connecting, the system will show checking Status. Speed Shows the current transmitting rate and receiving rate.
  • Page 51 Click the Renew IP button to obtain IP address form the connected Renew IP gateway. Profile Profile can let users book keeping the favorite wireless setting among home, office, and other public hot-spot. Users may save multiple profiles, and activate the correct one at preference. The Profile manager enables users to Add, Remove, Edit, Duplicate and Set Default profiles.
  • Page 52 This is a computer-to-computer (ad hoc) network; wireless access points are not used: This function is selected to enable the ad hoc network type that computers should be setup at the same channel to communicate to each other directly without access point, users can share files and printers between each PC and laptop.
  • Page 53 must match with the connected AP’s key index. When encryption is set to WPA-PSK/ WPA2-PSK… Network key: Enter network key at least 8 to 64 characters. Confirm network key: Enter network key again to confirm. When encryption is set to WPA 802.1X/ WPA2 802.1X/ WEP 802.1X…...
  • Page 54 Available Network This page displays the information of surrounding APs from last scan result. The tab lists the information including SSID, Channel, Encryption, Network Authentication, Signal, Type, BSSID, Supported Rate(s), and Mode. Network Tab SSID Shows the network name of the access points. Channel Shows the currently channel in use.
  • Page 55 Type Network type in use, Infrastructure or Ad-Hoc mode. Shows Wireless MAC address. BSSID Supported Rate(s) Shows the transmitting data rate. Supported wireless mode. It may support 802.11b, 802.11g and 802.11n Mode wireless mode. Refresh Click Refresh button to search and rescan the available network. Select an available network (SSID) on the list and then click Add to Profile Add to Profile button to add it into the profile list.
  • Page 56 Statistics The Statistics screen displays the statistics on the current network settings. Statistics Tx OK Shows information of packets successfully sent. Tx Error Shows information of packets failed transmit after hitting retry limit. Rx OK Shows information of packets received successfully. Shows information of packets received successfully.
  • Page 57 The primary goal of Wi-Fi Protected Setup (Wi-Fi Simple Configuration) is to simplify the security setup and management of Wi-Fi networks. The STA as an Enrollee or external Registrar supports the configuration setup using PIN (Personal Identification Number) configuration method or PBC (Push Button Configuration) method through an internal or external Registrar.

  • Page 58: Switch To Ap Mode

    About This page displays the information of the Wireless USB Adapter Version. Switch to AP Mode To access the soft AP mode, please select the Mode on the function list of the Utility to make the Wireless USB Adapter act as a wireless AP. 54 -...

  • Page 59: Soft Ap Mode

    Soft AP mode General General Shows the network name of the AP. SSID BSSID Shows the MAC address of the AP. Association Table This table shows the connected client here. Config Click the Config button to set up the Wireless Network Properties. 55 -...
  • Page 60 Network Name (SSID): User can change the network name of this access point. Channel: User can select the channel form the pull-down list. Wireless network security Network Authentication: There are several types of authentication modes including Open System, Shared Key, WPA-PSK and WPA2-PSK. Data encryption: For Open System and Shared Key authentication mode, the selection of encryption type is WEP.
  • Page 61 Advanced Advanced Beacon Interval The time between two beacons. (The system default is 100 ms.) DTIM Period The delivery traffic indication message (DTIM) is an element included in some beacon frames. User can specify a value from 1 to 255 beacons. Select from the pull-down menu to change the Preamble type into Short Preamble or Long.
  • Page 62 Statistics Statistics Tx OK Shows information of packets successfully sent. Tx Error Shows information of packets failed transmit after hitting retry limit. Rx OK Shows information of packets received successfully. Shows information of packets received successfully. Rx Packet Count Rx Retry Shows information of packets failed transmit after hitting retry limit.
  • Page 63 This page displays setting Internet connection sharing (ICS). Select a sharing public network and click Apply button to make a connection. 59 -...
  • Page 64 Chapter 5: Uninstall For Windows 2000/XP To remove the utility and driver, please refer to below steps. (When removing the utility, the driver will be removed as well.) Go to Start All Programs Intelligent Wireless Utility Uninstall –Intelligent. 60 -...
  • Page 65 Click Yes to completely remove the selected application and all of its features. Then click Finish to complete uninstall. 61 -...
  • Page 66 For Windows Vista To remove the utility and driver, please refer to below steps. (When removing the utility, the driver will be removed as well.) 1. Go to Start  Programs Intelligent Wireless LAN Utility Uninstall –Intelligent. 2. Click Yes to complete remove the selected application and all of its features. 62 -...
  • Page 67 3. Finally, click Finish to complete uninstall. 63 -...
  • Page 68 For Windows 7 To remove the utility and driver, please refer to below steps. (When removing the utility, the driver will be removed as well.) 1. Go to Start  Programs Intelligent Wireless Utility Uninstall –Intelligent. 64 -...
  • Page 69 2. Click Yes to complete remove the selected application and all of its features. 3. Finally, click Finish to complete uninstall. 65 -...
