Summary of Contents for Argom Tech T9002

  • Page 1 USER MANUAL T9002...
  • Page 2: Table Of Contents

    1.2 Announcements ......................4 1.3 Safety Tips ........................4 1.4 Acronym/terms ....................... 5 2 Brief Description of T9002 Series of Products ..............6 2.1 T9002 Overall Drawing ....................6 2.2 T9002 Accessories Introduction ..................7 2.3 T9002 Use and preparation ..................... 7 2.4 T9002 State and information ..................
  • Page 3 6.1 Support the file format ....................28 6.2 Music ..........................28 6.3 Camera .......................... 30 6.4 Gallery..........................31 7 Internet ..........................33 7.1 Browser.......................... 33 8 Other applications ......................34 8.1 Alarm clock ........................34 8.2 Calculator ........................35 8.3 Explorer ......................... 35 9 Troubleshooting .........................
  • Page 4: Foreword

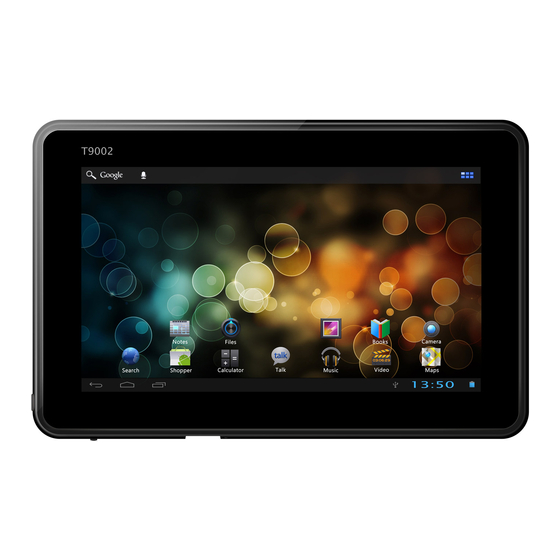

    1 Foreword 1.1 Acknowledgements Thank you for choosing our products. Argom Tech T9002 is a kind of mobile Internet equipment, delicate and cabinet, easy to carry. Equipped with a high resolution 800x480 capacitive 5- touch screen,T9002 supports high-definition videos, images and installation of multiple Office Micro Software, entertainment and other applications.
  • Page 5: Acronym/Terms

    In medical sites, please follow the relevant regulations by turning off your T9002 when you are in medical sites.  Please turn off your T9002 or turn on planes mode when you are boarding, to avoid wireless signals jamming aircraft control signal. ...
  • Page 6: Brief Description Of T9002 Series Of Products

    2 Brief Description of T9002 Series of Products 2.1 T9002 Overall Drawing Camera Power Key Home Key Micro USB port...
  • Page 7: T9002 Accessories Introduction

    2.3 T9002 Use and preparation Battery Management and charging Before using T9002, please charge up the battery. 1. Use the AC adapter to charge up your T9002 battery. This tablet adopt built-in lithium polymer battery, must be choose standard adaptor for charging.
  • Page 8: T9002 State And Information

    3. Device charging should be in standby status for each normal charging time. With device and screen consumption, it may cause longer charging time. 2.4 T9002 State and information Notice Icon Please click column frame and slide to right on the screen to unlock notice icon.
  • Page 9: Quick Start

    Open notice panel When new notice icons appear in notice bar, please hold notice bar and slide down to open notice panel. 3 Quick start 3.1 Button function Key functions illustration:  Power key Long press for 3 seconds this button for booting ...
  • Page 10: The Use Of Touch Screen

    Enter locked condition after opening it, press "lock "icon and slide up for unlocking, and holding up “voice ” icon and slide down for mute condition. 3.4 The use of touch screen T9002 operation mode There are several ways you can browse screen, menu and application, etc on the T9002.
  • Page 11: Page Interface

    When dragging it to the position you want, you can loosen your finger. Rotating For most pictures, you can only turn to T9002 then screen will translate from lateral direction to straight. Such as in the input text, watch movies, etc. 3.5 Page interface The main menu screen shows all the applications.
  • Page 13: Status Bar Describe

    3.6 Status bar describe The status bar is on the bottom of the screen. In the lower left corner, display main interface software, ESC, home page, files running in the background, reduce volume, increase volume, menu. In the lower right corner, display USB connected, USB debugging connected, Insufficient SD card space , current time, Wi-Fi signal strength and battery charging sign etc.
  • Page 14: Equipment Basic Settings

    3.8 Equipment basic settings Settings: Click settings icons, enter settings interface.
  • Page 15 3.8.1 Silent mode, volume, notification, ringtone, audible selection, screen lock sounds.
  • Page 16 3.8.2 Application Manage applications Unknown sources: Click “Unknown Sources”, then click “OK”. Manage application: manager and uninstall application. 【Remark】: When you firmware upgrade, please close the USB connect. How to uninstall? “Settings”>”Application”>”Manage application” and then there will be 1. Enter...
  • Page 17 3. Click Uninstall, then you can delete the application. 3.8.3 Privacy Restore to factory settings When there are great errors in your T9002 or you forget the passwords, you can use Restore to factory Settings to restore them to Initial State. Methods: 1.
  • Page 18 3.8.4 Storage Remove TF card, view of the available storage space. 【Remark】: Please hit “Unmount shared storage”, so that you can remove SD card safely. 3.8.5 Language & Keyboard Settings: Language, text input and automatic error correction options.
  • Page 19 Select Language: 60 kinds of national languages are available. Android keyboard: Android keyboard setting Sound on Key-press Auto-capitalization Show suggestions: Display suggested words while typing. Auto-complete: Spec bar and punctuation automatically insert highlighted word. 3.8.6 Date & time setting Set date, set time, select time zone and select date format.
  • Page 20: Apps Install And Uninstall

    3.8.7 About device 3.9 APPS install and uninstall 3.9.1 APPS install This Tablet can support Android APPS in market by third party, most APPS can install in network, can copy to NAND FLASH or SD card. Click ES File Explorer icon.
  • Page 21: Input Text

    1. On the homepage interface, press menu button and click "Settings". 2. Click the Language& input. 3. List all installed input methods of T9002 in the text setup area. 4. Tick the input method you want. Use and switch input method 1.
  • Page 22: Establish Connections

    4.0 Establish connections 4.1 USB connection 1. Use USB cable to connect T9002 with computer. Notice massage will appear in Notice bar. 2. Drag up the icon in the lower left corner. 3. In the notification panel, click on the USB connected, then click Turn on USB storage.
  • Page 23 4.1.1 Copy files to memory cards. 1. Use a USB cable to connect T9002 with computer. 2. After setting the store setting, connect T9002 with computer successfully. 3. Open My Computer of your computer, "portable disk (x)" can be seen.
  • Page 24: Wifi Connection

    3.The above mentioned two storage devices can connect your computer by using USB. Note: When you connect the USB cable with T9002, enabling the USB storage device, you will not get access to Internal Memory; If you want to get access to Internal Memory, please disconnect the USB device.
  • Page 25: Connection

    4.3 3G connection You can connect T9002 to network via 3G USB Dongle: Insert a 3G USB Dongle.
  • Page 26: Communication

    5 Communication 5.1 E-MAIL E-mail Settings E-mail applications accompany with email settings guide, it can add the common Web email service providers (e.g. Gmail, Yahoo, Hotmail and 163 etc) except for POP3 or IMAP email account. Note: Before setting the email, please ensure that the network has been linked. Mailbox setting guide 1.
  • Page 27 Delete email accounts You can delete the POP3 or IMAP email account having been set in your mobile phone 1. Click E-mail 2. Enter to your E-mail box 3. Press Menu key 4. Click accounts 5. Hold the mail account you want to delete. 6.
  • Page 28: Multimedia

    6 Multimedia 6.1 Support the file format Your T9002 supports the following formats. Music file format  MP3  AAC(AAC, AAC+ and AAC-LC)  OGG  WMA  WAV  FLAC Video format  AVI(H.264)  RMVB  MKV  WMV ...
  • Page 29 Visit and broadcast music 1. Click music. 2. Click songs, also can click artist, album or song list. 3. Choose one song to play. Add songs to the new playlist 1. Click music. 2. Click songs. 3. Hold the song you want to add to the playlist. 4.
  • Page 30: Camera

    3. Hold the song you want to add to the playlist. 4. With music setting menu being pop up, click add to play lists. 5. Click New. 6. Input a name for the playlist. 7. Click Save. Delete songs in the playlist 1.
  • Page 31: Gallery

    6.4 Gallery Using the Gallery application program, you can automatically search all photos and video files in T9002 and in USB device (including TF card). Moreover, the Gallery will classify such photos and video files by these folders. You can use the Gallery program to view and edit photos, take photos as wallpapers as well as viewing videos.
  • Page 32 Gallery. Video preview and play Operating the Gallery application, you can scan all video files in the T9002 and in the USB device (including TF card), as well as previewing playable video files. Click one of them to play.
  • Page 33: Internet

    7 Internet 7.1 Browser Enter into homepage The browser always habitually shows the last homepage visited by user, the homepage will appear when it enters into the browser on boot. Change your home page 1. Click browser. 2. Press the Menu button, menu of browser settings pops up. 3.
  • Page 34: Other Applications

    1. When browsing the web, press menu button and menu options pop up. 2. Click more. 3. Click a homepage you want to visit. 4. Enter your search projects. 5. When you input characters, words will change from white to green. 6.
  • Page 35: Calculator

    3. There were pictures, music, alarm clock and page buttons. 4. Pressing the Menu button, alarm setting menu will pop up. 8.2 Calculator 1. Click calculator. 2. Enter into the basic calculator panel. 3. Press the Menu button, and click the advanced panel. 4.
  • Page 36 Cut and copy files 1. On the ES File Explorer, press operation documents. 2. Operation menu pops up, including Copy Open As, Cut, Copy, Rename, Delete, Select All and Shortcut. Copy or Move the file 1. Use fingers to hold the intended file in the file browser. 2.
  • Page 37: Troubleshooting

    3.You feel a little bit hot of your T9002. If you operate many programs at the same time or the brightness of the screen is very high, it is normal to feel a little bit hot of your T9002 because of costing more electricity.
  • Page 38 Camera 0.3MP(front), 1.3MP(rear) Standard Built-in lithium polymer battery, 3.7V, 2350mAh batteries Power adaptor Input voltage at AC 110~240V 50/60Hz, 0.4A and output voltage at Output: DC5.0V/2.0A) SD card Supporting 32G maximum Visual pattern Body color Black Master screen 7-inch TFT liquid crystal touch (Capacitive 5-touch) liquid Product visual crystal screen at the resolution of 800x480...
  • Page 39: Fcc Statement

    FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.
