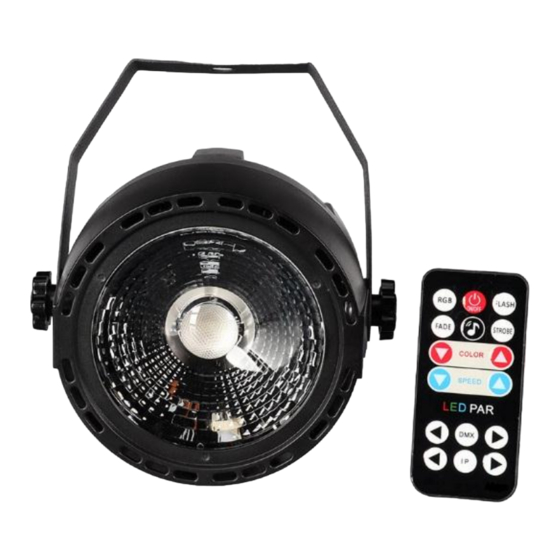

HQLP10026
USER MANUAL
HANDLEIDING
MODE D'EMPLOI
MANUAL DEL USUARIO
BEDIENUNGSANLEITUNG
INSTRUKCJA OBSŁUGI
MANUAL DO UTILIZADOR
4
10
16
22
28
34
40

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HQLP10026 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HQ Power HQLP10026

  • Page 1 HQLP10026 USER MANUAL HANDLEIDING MODE D'EMPLOI MANUAL DEL USUARIO BEDIENUNGSANLEITUNG INSTRUKCJA OBSŁUGI MANUAL DO UTILIZADOR...
  • Page 2 HQLP10026 V. 01 – 25/02/2019 ©Velleman nv...
  • Page 3 HQLP10026 7 CH channel from function no function macro A1 macro A2 macro A3 macro A4 macro A5 all colours green blue yellow cyan purple red + green red + blue green + blue red + green + blue adjustable speed...
  • Page 4: Safety Instructions

    HQLP10026 USER MANUAL Introduction To all residents of the European Union Important environmental information about this product This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste;...
  • Page 5: General Guidelines

    HQLP10026  Do not install the device on a flammable surface (linoleum, carpet, wood, paper, cardboard, plastic, etc.).  Protect this device from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. ...
  • Page 6: Overhead Installation

    HQLP10026 Installation General Guidelines  Have the device installed by a qualified person, respecting all applicable norms.  Install the device on an even, fire-resistant, scratch-resistant, water-resistant and non-slippery surface.  The carrying construction must be able to support 10 times the weight of the device for 1 hour without deforming.
  • Page 7: Operation

    HQLP10026 Overview Refer to the illustrations on page 2 of this manual. DMX input control panel power input display DMX output Operation The device can be used in the following modes:  stand-alone mode  master/slave  with a DMX-512 controller.
  • Page 8 HQLP10026 Stand-Alone Mode The device starts running in stand-alone mode after connection to the mains. This mode allows you to use the device without controller. Master/Slave Mode  The master/slave mode allows for connecting several devices to a single master device in a daisy chain.
  • Page 9: Cleaning And Maintenance

    HQLP10026 Cleaning and Maintenance Before starting any cleaning or maintenance activities: Unplug the device's power cord from the outlet. Let the device cool down. Cleaning  Use normal glass cleaner and a soft cloth to wipe off the outside casing.
  • Page 10 HQLP10026 HANDLEIDING Inleiding Aan alle ingezetenen van de Europese Unie Belangrijke milieu-informatie betreffende dit product Dit symbool op het toestel of de verpakking geeft aan dat, als het na zijn levenscyclus wordt weggeworpen, dit toestel schade kan toebrengen aan het milieu. Gooi dit toestel (en eventuele batterijen) niet bij het gewone huishoudelijke afval;...
  • Page 11: Algemene Richtlijnen

    HQLP10026  Verwijder alle brandbare materialen in de nabijheid van het toestel voordat u het inschakelt.  Plaats het toestel niet op een brandbaar oppervlak (bv. linoleum, tapijt, hout, papier, karton, plastic, enz.).  Houd dit toestel uit de buurt van warmtebronnen zoals radiatoren, verwarmingselementen, fornuizen of andere toestellen (incl.
  • Page 12: Montage

    HQLP10026 Montage Algemene richtlijnen  Laat het toestel door een vakman installeren, conform de toepasselijke normen.  Plaats het toestel op een vlak, brandwerend, krasvrij, waterbestendig en slipvrij oppervlak.  De draagconstructie waaraan het toestel wordt bevestigd, moet gedurende 1 uur 10 x het gewicht van dit toestel kunnen dragen zonder te vervormen.
  • Page 13 HQLP10026 Omschrijving Raadpleeg de afbeeldingen op pagina 2 van deze handleiding. DMX-ingang controlepaneel voedingsingang display DMX-uitgang Gebruik Het toestel kan in verschillende modi gebruikt worden:  autonome modus (standalone)  master/slave-modus  met een DMX-512-controller. Controlepaneel Bedien het controlepaneel met de vier knoppen onderaan de display.
  • Page 14 HQLP10026 Autonome modus (standalone) Het toestel start op in autonome modus, nadat u het gekoppeld hebt aan het lichtnet. In deze modus kunt u het toestel zonder controller gebruiken. Master/slave-modus  In master/slave-modus kunt u meerdere toestellen aansluiten op één mastertoestel in een reeks.
  • Page 15: Reiniging En Onderhoud

    HQLP10026 Reiniging en onderhoud Voor het reinigen of onderhoud: Trek de stekker uit het stopcontact. Laat het toestel afkoelen. Reiniging  Gebruik een glasreiniger en een zachte doek om de behuizing te reinigen.  Zorg ervoor dat alle onderdelen volledig droog zijn voordat u het toestel opnieuw aansluit.
  • Page 16: Consignes De Sécurité

    HQLP10026 MODE D'EMPLOI Introduction Aux résidents de l'Union européenne Informations environnementales importantes concernant ce produit Ce symbole sur l'appareil ou l'emballage indique que l’élimination d’un appareil en fin de vie peut polluer l'environnement. Ne pas jeter un appareil électrique ou électronique (et des piles éventuelles) parmi les déchets municipaux non sujets au tri sélectif ;...
  • Page 17: Directives Générales

    HQLP10026  Ne pas installer l'appareil sur une surface inflammable (p. ex. linoleum, moquette, bois, papier, carton, plastique, etc.).  Protéger l'appareil des sources de chaleur telles que les radiateurs, climatiseurs, poêles ou toutes autres unités (y compris les amplificateurs) produisant de la chaleur.
  • Page 18 HQLP10026 Installation Directives générales  L'appareil doit être installé par un technicien qualifié et conformément aux normes en vigueur.  Installer l'appareil sur une surface stable, ignifuge, résistante aux rayures, résistante à l'eau et antidérapante.  La construction portante de l’appareil doit être capable de supporter 10 fois le poids de l’appareil pendant une heure, sans qu’une déformation de la construction en résulte.
  • Page 19: Panneau De Contrôle

    HQLP10026 Description Se référer aux illustrations en page 2 de ce mode d'emploi. entrée DMX panneau de contrôle entrée d'alimentation afficheur sortie DMX Emploi Il y a plusieurs modes de fonctionnement :  mode autonome  maître/esclave  avec un contrôleur DMX 512.
  • Page 20 HQLP10026 Mode autonome L'appareil se met en marche en mode autonome après la connexion au réseau. Ce mode vous permet d'utiliser l'appareil sans contrôleur. Mode maître/esclave  Le mode maître/esclave permet de connecter plusieurs appareils à un appareil maître dans une série.
  • Page 21: Nettoyage Et Entretien

    HQLP10026 Nettoyage et entretien Avant tout nettoyage ou entretien : Débrancher l'appareil. Laisser refroidir l'appareil. Nettoyage  Utiliser un nettoyant à vitres normal et un chiffon doux pour nettoyer le boîtier.  S'assurer que toutes les pièces sont sèches avant de reconnecter l'appareil.
  • Page 22: Manual Del Usuario

    HQLP10026 MANUAL DEL USUARIO Introducción A los ciudadanos de la Unión Europea Importantes informaciones sobre el medio ambiente concerniente a este producto Este símbolo en este aparato o el embalaje indica que, si tira las muestras inservibles, podrían dañar el medio ambiente. No tire este aparato (ni las pilas, si las hubiera) en la basura doméstica;...
  • Page 23: Normas Generales

    HQLP10026  No instale el aparato en una superficie inflamable (linóleo, alfombra, madera, papel, cartón, plástico, etc.).  No instale el aparato cerca de fuentes de calor (p.ej. radiadores, calentadores, hornos u otros aparatos (incluso amplificadores) que generen calor. ...
  • Page 24: Instalación En El Techo

    HQLP10026 Instalación Normas generales  Deje que un técnico cualificado que respete todas las normas aplicables instale el aparato.  Instale el aparato en una superficie ignífuga, antideslizante y resistente a los arañazos y al agua.  El soporte donde irá el aparato, debe ser capaz de sostener 10 veces el peso de éste durante una hora, sin que se produzca una deformación de dicho soporte.
  • Page 25: Panel De Control

    HQLP10026 Descripción Véase las figuras en la página 2 de este manual del usuario. entrada DMX panel de control entrada de alimentación pantalla salida DMX Funcionamiento Hay varios modos de funcionamiento:  modo autónomo (stand-alone)  modo maestro/esclavo  con un controlador DMX-512.
  • Page 26: Modo Maestro/Esclavo

    HQLP10026 Modo autónomo (stand-alone) El aparato se inicia en el modo autónomo (stand-alone) después de haberlo activado. Este modo le permite utilizar el aparato sin controlador. Modo maestro/esclavo  El modo maestro/esclavo le permite conectar varios aparatos en serie a un solo aparato maestro.
  • Page 27: Limpieza Y Mantenimiento

    HQLP10026 Limpieza y mantenimiento Antes de iniciar cualquier actividad de limpieza o mantenimiento: Desconecte el aparato de la red eléctrica. Deje que el aparato se enfríe. Limpieza  Utilice limpiacristales y un paño suave para limpiar la caja.  Asegúrese siempre de que todas las partes están secas antes de volver a enchufar el aparato a la red eléctrica.
  • Page 28 HQLP10026 BEDIENUNGSANLEITUNG Einführung An alle Einwohner der Europäischen Union Wichtige Umweltinformationen über dieses Produkt Dieses Symbol auf dem Produkt oder der Verpackung zeigt an, dass die Entsorgung dieses Produktes nach seinem Lebenszyklus der Umwelt Schaden zufügen kann. Entsorgen Sie die Einheit (oder verwendeten Batterien) nicht als unsortierter Hausmüll;...
  • Page 29: Allgemeine Richtlinien

    HQLP10026  Das Gerät sollte von entflammbaren Materialien entfernt sein.  Installieren Sie das Gerät nicht auf einer entflammbaren Oberfläche (Linoleum, Teppich, Holz, Papier, Karton, Kunststoff usw.).  Stellen Sie das Gerät nicht in der Nähe von Hitzequellen auf wie z.B. Radiatoren, Heizkörpern, Öfen oder anderen Geräten, die Hitze erzeugen (auch Verstärkern).
  • Page 30 HQLP10026 Installation Allgemeine Richtlinien  Lassen Sie das Gerät von einem Fachmann und gemäß allen zutreffenden Normen installieren.  Installieren Sie das Gerät auf einer ebenen, feuer-, kratz-, wasser- und rutschfesten Oberflächen.  Die Konstruktion muss während einer Stunde eine Punktlast von maximal 10 x dem Gewicht des Gerätes tragen können, ohne dass Verformung verursacht wird.
  • Page 31 HQLP10026 Beschreibung Siehe Abbildungen, Seite 2 dieser Bedienungsanleitung. DMX-Eingang Bedienfeld Netzeingang Display DMX-Ausgang Anwendung Nachfolgende Betriebsmodi können ausgewählt werden:  Autonomer Modus (Stand-Alone)  Master/Slave-Modus  mit einem DMX-512-Controller. Bedienfeld Bedienen Sie das Bedienfeld mit den vier Tasten im Display.
  • Page 32 HQLP10026 Autonomer Modus (Stand-Alone) Das Gerät startet im Stand-Alone-Modus, nachdem Sie es mit dem Netz verbunden haben. In diesem Modus können Sie das Gerät ohne Controller verwenden. Master/Slave-Modus  Im Master/Slave-Modus können Sie verschiedene Geräte mit einem einzigen Master-Gerät in Serie verbinden.
  • Page 33: Reinigung Und Wartung

    HQLP10026 Reinigung und Wartung Vor dem Reinigen oder Warten: Trennen Sie das Gerät vom Netz. Lassen Sie das Gerät abkühlen. Reinigung  Verwenden Sie einen Glasreiniger und ein sanftes Tuch, um das Gehäuse zu reinigen.  Beachten Sie, dass alle Teile trocken sind, bevor Sie das Gerät wieder mit dem Netz verbinden.
  • Page 34: Instrukcja Obsługi

    HQLP10026 INSTRUKCJA OBSŁUGI Wstęp Przeznaczona dla mieszkańców Unii Europejskiej. Ważne informacje dotyczące środowiska. Niniejszy symbol umieszczony na urządzeniu bądź opakowaniu wskazuje, że utylizacja produktu może być szkodliwa dla środowiska. Nie należy wyrzucać urządzenia (lub baterii) do zbiorczego pojemnika na odpady komunalne, należy je przekazać...
  • Page 35: Informacje Ogólne

    HQLP10026  Przed włączeniem urządzenia należy usunąć wszystkie znajdujące się w pobliżu łatwopalne materiały.  Nie montować urządzenia na łatwopalnej powierzchni (linoleum, wykładzina, drewno, papier, tektura, plastik, itp.).  Urządzenie należy chronić przed źródłami ciepła, takimi jak grzejniki, nawiewy ciepłego powietrza, piece lub inne urządzenia (np. wzmacniacze), które wytwarzają...
  • Page 36 HQLP10026 Montaż Informacje ogólne  Urządzenie powinna zamontować wykwalifikowana osoba, zgodnie z odnośnymi normami.  Zamontować urządzenie na równej, ogniotrwałej, odpornej na zadrapania i działanie wody oraz antypoślizgowej powierzchni.  Konstrukcja nośna musi utrzymać przez godzinę bez odkształcania obciążenie 10 razy większe niż...
  • Page 37: Panel Sterowania

    HQLP10026 Przegląd Patrz rysunki na stronie 2 niniejszej instrukcji. wejście DMX panel sterowania wejście zasilania wyświetlacz wyjście DMX Obsługa Urządzenie można stosować w następujących trybach:  Stand-Alone (tryb niezależny)  Master/Slave (nadrzędny/podrzędny)  ze sterownikiem DMX-512. Panel sterowania Funkcje panelu sterowania są dostępne przy użyciu czterech przycisków umieszczonych wokół...
  • Page 38: Tryb Master/Slave

    HQLP10026 Tryb Stand-Alone Po podłączeniu do sieci urządzenie zaczyna pracować w trybie Stand-Alone. Tryb ten pozwala na użytkowanie urządzenia bez sterownika. Tryb Master/Slave  Tryb Master/Slave umożliwia łańcuchowe podłączenie kilku urządzeń do pojedynczego urządzenia Master.  Wszystkie urządzenia Slave będą pracować synchronicznie z urządzeniem Master.
  • Page 39: Specyfikacja Techniczna

    HQLP10026 Czyszczenie  Do wytarcia zewnętrznej obudowy użyć normalnego środka do czyszczenia szkła i miękkiej szmatki.  Przed ponownym podłączeniem urządzenia należy sprawdzić, czy wszystkie jego części są całkowicie suche.  Częstotliwość czyszczenia zależy od warunków środowiskowych, w których urządzenie jest eksploatowane (tj. dym, mgła, pył, rosa).
  • Page 40: Manual Do Utilizador

    HQLP10026 MANUAL DO UTILIZADOR Introdução Aos cidadãos da União Europeia Importantes informações sobre o meio ambiente no que respeita a este produto Este símbolo no aparelho ou na embalagem indica que, enquanto desperdícios, poderão causar danos no meio ambiente. Não coloque a unidade (ou as pilhas) no depósito de lixo municipal;...
  • Page 41: Normas Gerais

    HQLP10026  Não instale o dispositivo numa uma superfície inflamável (linóleo, tapetes, madeira, papel, papelão, plástico, etc.).  Proteja o dispositivo de fontes de calor, como radiadores, registadores de temperatura, fogões ou quaisquer outros aparelhos (incluindo amplificadores) que produzam calor.
  • Page 42 HQLP10026 Instalação Normas gerais  O dispositivo deve instalado por uma pessoa qualificada, respeitando todas as normas aplicáveis.  Instale o dispositivo numa superfície uniforme, resistente ao fogo, resistente a riscos, à prova de água e não escorregadia.  A estrutura de transporte tem de ser capaz de suportar 10 vezes o peso do dispositivo durante 1 hora sem se deformar.
  • Page 43: Painel De Controlo

    HQLP10026 Descrição Veja as imagens na página 2 deste manual. entrada DMX painel de controlo entrada da alimentação ecrã saída DMX Utilização O aparelho pode ser usado nos seguintes modos:  modo autónomo  mestre/escravo  com um controlador DMX-512.
  • Page 44: Modo Autónomo

    HQLP10026 Modo Autónomo O aparelho começa a funcionar no modo autónomo assim que à ligado à corrente. Este modo permite ao utilizador usar o aparelho sem controlador. Modo Principal/Secundário  O modo principal/secundário permite ligar vários dispositivos a uma unidade principal em sistema de cadeia.
  • Page 45: Limpeza E Manutenção

    HQLP10026 Limpeza e manutenção Antes de qualquer operação de limpeza ou manutenção: Desligue o cabo de alimentação da corrente elétrica. Deixe o aparelho arrefecer. Limpeza  Use um limpa-vidros vulgar e um pano macio para limpar o exterior do aparelho.
  • Page 46 levering, of een vervangend product tegen 50% van de kostprijs of terugbetaling van 50 % bij ontdekking na één jaar tot 2 jaar. Velleman® Service and Quality Warranty • Valt niet onder waarborg: Since its foundation in 1972, Velleman® acquired extensive experience in - alle rechtstreekse of onrechtstreekse schade na de levering veroorzaakt the electronics world and currently distributes its products in over 85 aan het toestel (bv.
  • Page 47 - tout dommage à cause d’une utilisation commerciale, professionnelle ou • Consejo: Lea el manual del usuario y controle los cables, las pilas, etc. collective de l’appareil (la période de garantie sera réduite à 6 mois lors antes de devolver el aparato. Si no se encuentra un defecto en el artículo d’une utilisation professionnelle) ;...
  • Page 48 nossas precauções, é possível invocar a nossa garantia. (ver as condições de garantia). Velleman ® usługi i gwarancja jakości Condições gerais com respeito a garantia sobre os produtos grande Od czasu założenia w 1972, Velleman® zdobył bogate doświadczenie w público (para a UE): dziedzinie światowej elektroniki.
