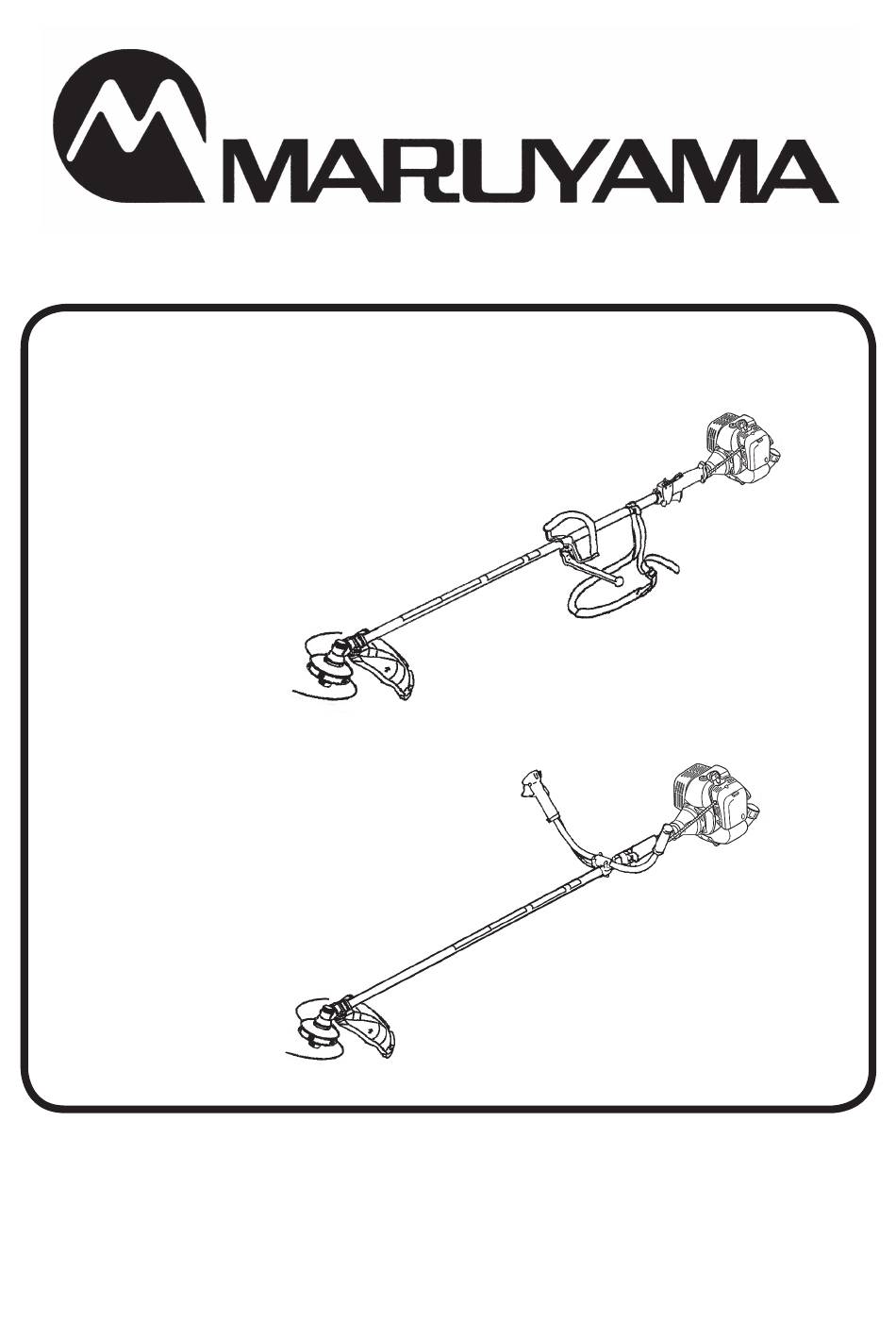

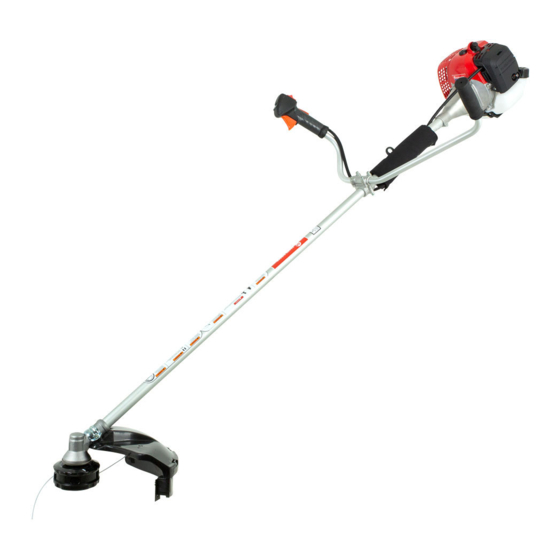

- Page 1 String Trimmer / Brushcutter BC3601RS BC3601H-RS Owner’s/ Operator’s Manual Completely read and understand this manual before using this product.
-
Page 2: Table Of Contents
It is essential that any operator of this Trimmer/Brushcutter reads and understands the contents this manual before using the Trimmer/Brushcutter. For additional assistance, contact any local authorized MARUYAMA dealer. Important Notice The benefits to the consumer given by this warranty are in addition to other rights and remedies of the consumer under a law in relation to the goods or services to which this warranty relates. -
Page 3: Product Description
Product Description BC3601RS 1. Gearcase 2. Shaft Assembly 3. Safety Decal 4. Model Name 5. Loop Handle 6. Attachment Ring for Shoulder Strap 7. Throttle Trigger and Stop Switch 8. Shaft Grip 9. Clutch Drum Housing 10. Engine 11. Air Filter BC3601H-RS 12. -
Page 4: Safety Instructions
6. Make sure the cutting attachment blade is installed and positioned correctly before using the Trimmer/Brushcutter. 7. Never use a cutting attachment or replacement parts that are not approved by a MARUYAMA service dealer. 8. Maintain the Trimmer/Brushcutter according to the recommended maintenance intervals and procedures in the Maintenance section beginning on page 18. -
Page 5: Fuel Safety
Swing Swing CORRECT INCORRECT 10. Keep a firm footing and balance. Do not overreach. 11. Use the right tool for the job. Do not use the Trimmer/ Brushcutter for any job that is not recommended by MARUYAMA. ＿ 4 ＿... -
Page 6: Assembly
Shaft Assembly Clutch Drum Housing Loop Handle Installation [Model BC3601RS] 1. Place the loop handle and the bottom clamp on the shaft approximately 28cm from the end of the stop switch/throttle trigger assembly. 2. Install the four screws and nuts. Tighten the screws evenly. -
Page 7: Connecting Throttle Cable And Stop Switch Wires
Connecting Throttle Cable and Stop Switch Wires Cable Adjuster Sleeve Throttle Cable 1. Insert the throttle cable through the carburetor bracket, then screw a cable adjuster sleeve into the carburetor bracket fully. 2. Position the slotted fitting on the carburetor so the recessed hole Carburetor for the cable lug is away from the cable adjuster sleeve. -
Page 8: Installing Guard
Installing Guard WARNING POTENTIAL HAZARD ・ F oreign objects can be thrown by Trimmer/Brushcutter. WHAT CAN HAPPEN ・Contact with thrown objects can cause personal injury. HOW TO AVOID THE HAZARD ・ N ever operate the Trimmer/Brushcutter without the guard in place. M6×30 Screw(2) Blade Guard Gearcase... -
Page 9: Installing Cutting Attachment
Installing Cutting Attachment Trimmer Head WARNING POTENTIAL HAZARD ・ If the trimmer head is not adequately tightened, it can come loose from the Trimmer/ Brushcutter during use. WHAT CAN HAPPEN ・ This may cause damage to property or personal injury. HOW TO AVOID THE HAZARD ・... -
Page 10: Attaching Shoulder Strap/Harness
Snap the Hook into the ring on the shaft assembly. To detach the shoulder strap/ harness quickly from the Trimmer/ Brushcutter, pull upward on the Red Band/Tab. Shoulder Strap Red Band Shoulder Harness Pull Pull Red Tab Hook Hook Ring Ring [BC3601RS] [BC3601H-RS] ＿ 9 ＿... -
Page 11: Before Operation
Before Operation Oil and Fuel 1. Mix and pour fuel outdoors and where there are no sparks or flames. 2. Always shut off the engine before refueling. Never remove the Trimmer/Brushcutter fuel tank cap while the engine is running or immediately after stopping the engine. WARNING POTENTIAL HAZARD ・... -
Page 12: Mixing Petrol And Oil
Recommended Oil Type Only use a two-stroke engine oil formulated for use in high-performance, air-cooled two-stroke engines. IMPORTANT: Do not use two-stroke oil intended for water cooled outboard motors. This type of two-stroke engine oil does not have the additives for air-cooled two-stroke engines and can cause engine damage. -
Page 13: Starting And Stopping
Starting and Stopping Before Starting the Engine 1. Fill the fuel tank as instructed in the Before Operation section of this manual. 2. Rest the Trimmer/Brushcutter on the ground. 3. Make sure the cutting attachment is clear of any broken glass, nails, wire, rocks or other debris. 4. -
Page 14: Idle Speed Adjustment
4. If the engine fails to start after three to four pulls, follow the instructions in the Cold Starting Procedure section above. If the engine fails to start after you follow the above procedures, contact an authorized MARUYAMA dealer. To Stop the Engine 1. -
Page 15: Trimmer Operation
Trimmer, and the Trimmer should be on operator’s right side. Shoulder Strap [Model BC3601RS] 2. The operator’s right hand should be holding the shaft grip, with his or her fingers on the throttle trigger. The right arm should be slightly bent. -
Page 16: Cutting With Trimmer Head
Cutting with Trimmer Head ・The tip of the line does the cutting. The line should stay extended while cutting. ・ D o not force the line into the material. Forcing the line will cause it to slap against the material, increasing line usage and causing poor cutting results. -
Page 17: Brushcutter Operation
Brushcutter, and the Brushcutter must be on the operator’s right side. [Model BC3601RS] 2. The operator’s right hand should be holding the shaft grip, with his or her fingers on the throttle trigger. The right arm should be slightly bent. -
Page 18: Cutting Direction Of Brushcutter Blade
INCORRECT Cutting Blades 1. Use only the correct blade (MARUYAMA genuine part) approved for the application and model Brushcutter. 2. Carefully check the condition of the blades before and after operation. 3. Sharpen dull blades. Replace any blade that is worn, cracked or damaged. -
Page 19: Maintenance
Maintenance Air Filter Maintenance Interval Air Filter Cover Element ・The air filter should be cleaned daily, or more often when working in extremely dusty conditions. ・Replace after every 100 hours of operation. Air Filter Cleaning 1. Remove the filter cover and foam element. 2. -
Page 20: Spark Plug
Spark Plug Maintenance Interval ・ The spark plug should be removed from the engine and checked after each 25 hours of operation. 0,6-0,7mm ・ R eplace the spark plug after every 100 hours of operation. Spark Plug Maintenance 1. Twist the high tension lead boot on the spark plug back and forth a couple of times to loosen the boot, then pull the boot off of the spark plug. -
Page 21: Spark Arrester
Spark Arrester WARNING POTENTIAL HAZARD ・ Muffler surface becomes hot when Trimmer/Brushcutter is in operation and remains hot for sometime after the engine is shut off. WHAT CAN HAPPEN ・ Contact with hot muffler surface could cause a burn. HOW TO AVOID THE HAZARD ・... -
Page 22: General Cleaning And Tightening
・ Always turn off your Trimmer/Brushcutter before you clean or perform any maintenance on it. The MARUYAMA Trimmer/Brushcutter will provide maximum performance for many, many hours if it is maintained properly. Good maintenance includes regular checking of all fasteners for correct tightness, and cleaning the entire machine. -
Page 23: Troubleshooting
・Clean or replace air filter ・Dirty air filter when cutting ・Clean spark arrester or exhaust port ・Clogged spark arrester or exhaust port If further assistance is required, contact your local authorized MARUYAMA service dealer. Specifications Model BC3601RS BC3601H-RS Weight , kg ※ 1... - Page 24 Manufacturing: Maruyama Mfg. Co., Inc. 4-15 Uchi-kanda 3-Chome, Chiyoda-ku Tokyo 101-0047 Japan Tel. 81-3-3252-2285 http://www.maruyama.co.jp P/N.242626-00 GB 2003 IN...
