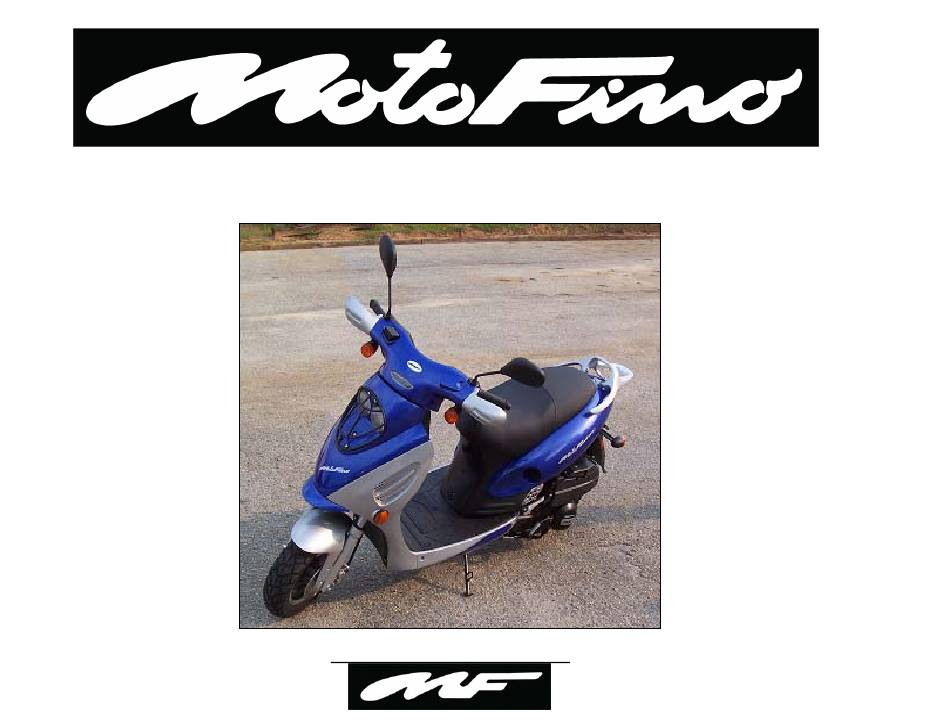

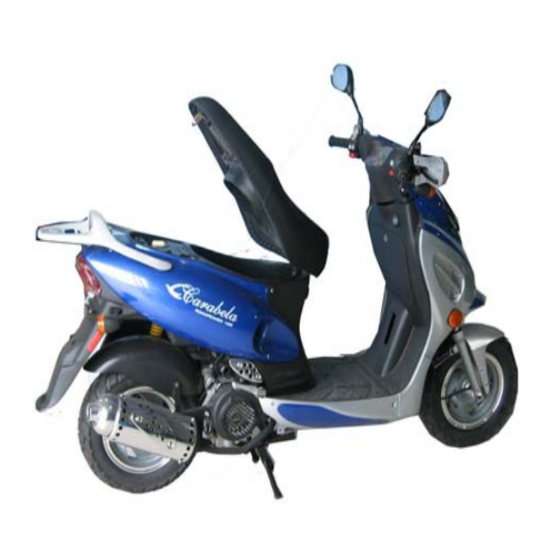

- Page 1 MF125QT-7 / MF150QT-7 www.motofino.com...
-
Page 2: Table Of Contents
I. VARIOUS PART NAMES:--------------------------------------- 1.L:----------------------------------------------------------------------------- II: OPERATION DESCRIPTIONS OF SYSTEMS:----------- 2.R:---------------------------------------------------------------------------- A. INSTRUMENT PANEL COMPONENTS:---------------- H. UNDER SEAT STORAGE BOX: ------------------------------------- I. STEERING HANDLE LOCK:---------------------------------------- 1.Speedometer: ----------------------------------------------- 2.Odometer:---------------------------------------------------- 1.Locking: ------------------------------------------------------------------- 3.Turn Signal Indicator:-------------------------------------- 2.Unlocking: ----------------------------------------------------------------- 4.High Beam Indicator ---------------------------------------- III. HOW TO START ENGINE :-------------------------------------------- A. - Page 3 K.BACK MIRROR INSPECTION:--------------------21 E. BE EXTREMELY CAUTIOUS VII.PERIODICAL INSPECTOION:----------------------- 21 ON WET SURFACES:----------------------------------14 V.HOW TO STOP:---------------------------------------------- 14 A.OIL AND FILTER:------------------------------------- 22 1.Air cleaner replacement:-------------------------------22 A. PARKING THE SCOOTER:-------------------------15 2.Oil change and filter cleaning:------------------------22 B. CHOOSE A FLAT PLACE:-------------------------- 15 3.How to change oil and clean filter:-------------------22 VI.
-
Page 4: Various Part Names
I. VARIOUS PART NAMES: TURN SIGNAL, HORN, AND HEADLIGHT SWITCHES HEADLIGHT HELMET HOOK AIR FILTER BATTERY KICK STARTER COMPARTMEN CENTER STAND... - Page 5 UNDER SEAT STORAGE BOX FRONT BRAKE LEVER IGNITION TAIL LIGHT TURN SIGNAL LIGHT MAIN STAND MUFFLER...
-
Page 6: Ii: Operation Descriptions Of Systems
II. Operation Descriptions of Systems A. Instrument panel components : Typical dashboard display 1. Speedometer: ● MPH and / or KPH (miles and kilometers per hour) 2. Odometer : ● Total forward distance is indicated in miles The black number with white background indicates tenth of miles. -
Page 7: Main Switch
1.OFF: ● All systems are off. B. MAIN SWTTCH: ● Remove or insert key in this position. 2.ON: ● The electric power is connected ● Starter switch is functional. ● You cannot remove the key. 3.LOCK: ● The handle bars are locked. ●... -
Page 8: Starter Switch Button
C. STARTER SWITCH BUTTON: ● Hold brake and press starter switch to engage electric starter. ● Do not engage the starter for more than 4 seconds at a time. ● After engine starts, release the starter button at once. ● When engine is in operation, do not press the starter button . Doing so will damage the electric starter. -
Page 9: Headlight Switch
D.HEADLIGHT SWITCH: E.DIMMER SWITCH: 1. High 2. Low Beam Headlights and Tail Lights Switch 1.Headlights should remain in the on position at all times while operating your scooter. 2. Headlight switch has three positions to accommodate optional lighting features. Please take time to familiarize yourself ●... -
Page 10: Horn Switch Button
F. HORN SWITCH BUTTON G. TURN SIGNAL SWITCH ● When key is on, pressing button will sound horn. ← 1.L. Turning switch to the left will cause left signals to illuminate. 2.R. → Turning switch to the right will cause right signals to illuminate. *When signals are on, symbol on instrument panel will illuminate. -
Page 11: Under Seat Storage Box
Unlocking under seat storage box: H. Under Seat Storage Box ● Turn key (on main switch) to far right. (Open position.) HINT: ● Applying gentle pressure (up and down) to seat will facilitate opening. NOTICE: Carrying capacity should not exceed 6 pounds. CAUTION: Interior of box can be very hot. -
Page 12: Steering Handle Lock
I. STEERING HANDLE LOCK: ● To prevent theft, a locking handle bar has been installed. NOTICE: Park in legal parking spaces only. HINTS: ● After locking, turn handle bars gently to make sure handle bars are locked. ● Turning handle bars gently will facilitate unlocking also. 1. -
Page 13: How To Start Engine
III. HOW TO START ENGINE There are two ways to start your engine. A. STARTING ENGINE USING ELECTRIC STARTER: ● Turn main switch to "ON". ● Turn secondary emergency cut off switch to the run/on position.** ● Hold brake and press starter switch to engage electric starter. ●... -
Page 14: Starting Engine With Kick Starter
B. STARTING ENGINE WITH KICK STARTER: REMINDER: ●After using kick starter pedal, fold it back to its original position. ●Carbon dioxide exhaust from engine is harmful. Vehicle is for exterior use only. ● Place scooter/motorcycle on center stand. ● Turn main switch to "ON". ●... -
Page 15: Basic Motorcycle Operations
IV. BASIC MOTORCYCLE OPERATIONS: We recommend all beginners take lessons from experienced riders. Some States have motorcycle schools. Contact your local State Department of Vehicle and Motor safety. A. TO START RIDING: ● Inspect vehicle before operation. ● Turn on turn lights before moving. ●... -
Page 16: Lengthen The Life Of The Motorcycle
PROPER BREAK IN AND RIDING WILL LENGTHEN THE LIFE OF THE MOTORCYCLE: WARNING: ●Release throttle before applying brakes. ●Failure to use both brakes may cause skidding. ●Hard and sudden stops cause premature brake wearing. ●Always check brakes for proper function before accelerating to high speeds. -
Page 17: Do Not Apply Brakes And Make Sharp Turns
●When braking, use both brake levers. ●Increase presure evenly, as needed. D. DO NOT APPLY BRAKES AND MAKE SHARP TURNS ●Avoid sudden, abrupt stops. ● WARNING: Turning while braking can cause falls, skidding, and serious injury. FRONT BRAKE REAR BRAKE LEVER E. -
Page 18: Parking The Scooter
A. PARKING THE SCOTER. B. CHOOSE A FLAT PLACE: ●Turn the signal switch off. ●Choose a flat surface not blocking traffic and ●Turn main switch to "OFF". push down the center stand. Scooter will fall down or tip over if placed on unlevel ground. ●Grasp left handle with left hand to make scooter straight. -
Page 19: Inspection Before Riding
VI. INSPECTION BEFORE RIDING: ●Always inspect before riding. ●Turn main switch to "OFF". a pre-check up is necessary before each ride. ●Periodic Inspections every 1,000 miles by a trained professional or Service Center is recommended. NOTICE: NOTICE: ●Check oil and brake fluidbefore each operation. ●Turn off engine when refilling with gasoline. -
Page 20: Handle Bar Inspection
B. HANDLE BAR INSPECTION: C. BRAKE INSPECTION: Check steering bar. Applying pressure up and down, forward ● 1.Drum brake series: ●Turn main switch to "OFF". ● Check steering functions. Check for rubbing or abnormal sounds. ● The brake levers should be properly adjusted. ●... -
Page 21: Disk Brake Series
NOTICE: ●Always check the free play of front and rear 2. Disk brake series: brakes. Make adjustments with adjusting nut when BRAKE OIL INSPECTION: ●Turn main switch to "OFF". ●Normal fluid level is between "UPPER" and REAR WHEEL BRAKE ADJUSTMENT: "LOWER". -
Page 22: Brake Light Inspection
E. TURN SIGNAL LIGHT INSPECTION: ●Turn main switch to "ON" ●Operate turn signal switch to make sure turn signal lights and turn signal indicators blink. ●Check turn signal lights for any dirt or damage. D. BRAKE LIGHT INSPECTION: ●Turn main switch to "ON". ●Operate front and rear brakes one by one to made sure brake lights work. -
Page 23: F.tire Inspection
F. TIRE INSPECTION: G. SHOCK ABSORBER INSPECTION: ●Check tire pressure while tires are cool before operation. ●Add weight on the handle and seat, swing ●Turn main switch to "OFF". motorcycle up and down and check the grooves of tires. front and rear shock absorbers if work well. ●If there are any cracks or wearing replace the tire at once. -
Page 24: J.inspect Speedometer
VII. PERIODICAL INSPECTION: J. INSPECT SPEEDOMETER: K. INSPECT MIRRORS: ●For safe and comfortable riding have periodic inspections ●Turn main switch to "OFF". ●Sit on the seat and adjust mirrors. made by a professional certified mechanic. ●Keep mirrors clean. ●The following is a recommend partial list of maintenance times and inspections. -
Page 25: A.oil And Filter
A. OIL AND AIR FILTER: 2.Oil Change: ●Change oil and clean filter every 750 miles. 1.Air cleaner replacement: Oil Capacity: 0.9 liters (almost 1 quart) ●Remove left side cover. ●Remove attaching screws and air cleaner cover. WARNING: Do not over fill. ATTENTION: ●Dirty air filters cause premature engine wear, loss of engine power, 3.How to change oil and clean filter:... -
Page 26: Gear Oil Change
NOTICE: ●Please use Castrol 10W-40 Semisenthetic oil. ●Operating in the following conditions will require oil being changed more frequently: ●Frequent riding on gravel roads. ●Riding short distances never reaching higher speeds. ●Excessive stop and go traffic. ●Riding in cold weather. ●When refilling oil do not exceed the upper level on the dip stick. -
Page 27: How To Change Gear Oil
BRAKE FLUID TANK 1.How to change gear oil: ●Remove drain plug to allow the oil to flow out. When engine is warm, it is easier to remove oil flow out. ●Re install drain plug. ●Fill with new gear oil. (110c.c.) ●Tighten up filler nut. -
Page 28: Spark Plug Inspection
D. SPARK PLUG INSPECTION: WARNING: ●Large gaps, thick deposits and electrode erosion will result in poor spark plug performance. ●Engine is still very hot after engine stops. Be careful not to burn yourself. ●Turn spark plug finger tight, then tighten with 1.Cleaning: spark plug wrench. -
Page 29: E.battery And Electrolyte
E. BATTERY AND ELECTROLYTE INSTALL: ●Install the fuse into fuse case and fasten the cap. INSPECTION: ●Try to pull the fuse after installation. If loose, the ●This series uses a sealed battery so you do not have fuse can overheat and breakdown. to inspect electrolytes. - Page 30 MOTOFINO USA, INC. 4450 NW 126th Ave. #102 Coral Springs, FL 33065 Reporting Safety Defects If you believe that your vehicle has a defect which could cause a wreck, injury, or death; you should immedietly inform the National Highway Traffic Safety Administration (NHTSA) in addition to Motofino USA, Inc. If NHTSA receives similar complaints it may open an investigation.
