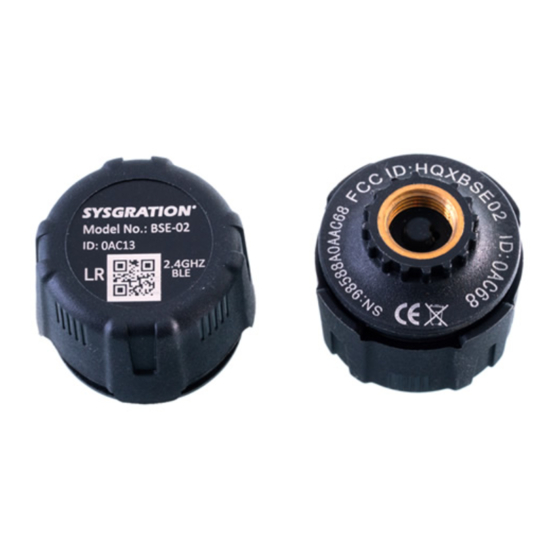

Sysgration BSE-02 User Manual

Bluetooth low energy tire pressure monitoring system

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Bluetooth Low Energy

Tire Pressure Monitoring System

User Manual

Model: BSE-02

Table of Contents

Need help?

Do you have a question about the BSE-02 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sysgration BSE-02

Page 1 Bluetooth Low Energy Tire Pressure Monitoring System User Manual Model: BSE-02...
Page 2: Table Of Contents
Table of Contents 1. PRODUCT INTRODUCTION............................ 3 2. NOTICE ..................................3 3. BLE TPMS SPECIFICATION............................ 5 4. BLE TPMS PACKAGE ............................... 6 5. BLE TPMS SENSOR INSTALLATION ........................6 6. APP DOWNLOAD AND INSTALLATION ......................8 7. SETTING & ADD DEVICE ............................10 8.
Page 3: Product Introduction
1. Product Introduction With the new technology product: Bluetooth Low Energy Tire Pressure Monitoring System Retrofit Kit (hereinafter referred to as BLE TPMS), the driver could get the accurate tire pressure and temperature at any time through smart phone by using this kit while driving. When the system detects abnormal status, it will alarm the driver actively, and show the abnormal data and its tire location on the BLE TPMS APP (hereinafter referred to as APP).
Page 4 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 5: Ble Tpms Specification
3. BLE TPMS Specification BLE Sensor Specification Operating Voltage Operating Humidity 95 % MAX ＜15 mA at DC 3V Operating Current -40℃ to 85 ℃ Storage Temperature -20℃ to 85 ℃ Operating Temperature Passenger: 0 to 92 psi (0 to 640 kPa) Monitored Pressure Range Truck: 0 to 185 psi (0 to 1280 kPa) -20 ℃...
Page 6: Ble Tpms Package
4. BLE TPMS Package Part Name Quantity BLE TPMS Sensor 4 pcs CR 1632 Battery 4 pcs Anti-theft part 4 pcs Lock-Nut 4 pcs User Manual 1 pcs Voice Dongle 1 pcs Spanner 1 pcs 5. BLE TPMS Sensor Installation 5.1 BLE TPMS Sensor Accessories...
Page 7 1.Battery(CR1632) 2.Tire Sensor 3.Anti-theft part 4.Lock-Nut 5. Spanner 5.2 Installation Steps...
Page 8: App Download And Installation
After installation, please download the APP to your smart phone, and proceed with all settings. (Please check the 7 Initial Setting) 6. APP Download and Installation 6.1 Operation System Required TPMS system supports both smartphone for Android & iOS operation system. (Bluetooth 4.0)。 APP Download Operation System Compatible Smartphone...
Page 9 6.2 How to Download Search in the Google Play Store or APPLE APP Store by keyword “BLE” or ”TPMS” , in order to find the free APP.( After you install the APP, please reboot and make sure Bluetooth is enabled. Open the APP after installation is completed.
Page 10: Setting & Add Device
7. Setting & Add Device 7.1 Introduction of Contents Please make sure the “Bluetooth” & “Location Service” Setting functions are enabled when you start to use the APP. iOS version Android version Start-up Page of the APP...
Page 11 iOS version Android version Main Menu: Driving: Displays the pressure, temperature and voice warning of the four tires. (Note 1) Setting: System settings. Add Device Setting: Enter the learning setting when using for the first time. (p.11). Exchange: Tire exchange setting.
Page 12 7.2 New Device Setting iOS version Android version New Device Setting Manual Learning: 1. Select Manual Learning. (Pic 1) Pic 1 Pic 1 Pic 2 Pic 2...
Page 13 iOS version Android version 2. Choose tire 1 and key in the five-character sensor ID (Please refer to last page: ID sticker), which might include “0-9”, “A-F”, or ”a- f”, when a blank space pops up. (Pic 3) Pic 3 Pic 3 3.
Page 14 7.3 Rapid Deflation Setting iOS version Android version Rapid Deflation Setting : 1. Select Rapid Deflation Setting. (Pic 1) Pic 1 Pic 1 2. Choose tire 1 (LF) and deflate the tire pressure. The APP will look for the deflation signal, showing new ID number on the dialogue display.
Page 15 iOS version Android version 3. Rapid Deflation completed. (Pic 3) Using the same method, set up the ID learning for tire 2(RF), tire 3(RR) and tire 4(LR) in sequence. Pic 3 Pic 3...
Page 16 7.4 QR Code Setting iOS version Android version QR Code Setting : 1. Select QR Code Setting. (Pic 1) Pic 1 Pic 1 2. Choose tire 1 (LF) The APP will scan qr code, showing new ID number on the dialogue display.
Page 17 iOS version Android version 3. QR Code completed. (Pic 3) Using the same method, set up the ID learning for tire 2(RF), tire 3(RR) and tire 4(LR) in sequence. Pic 3 Pic 3...
Page 18: Alarms And Warnings
8. Alarms and Warnings iOS version Android version System Warning： When abnormal tire system status occurs, the value of the corresponding tire turns red, and it alarms with a sound and warning symbol. The warning symbols on each tire display, from the left to the right, are: tire pressure warning, rapid deflation, no signal, tire temperature warning and low...
Page 19: System Setting
9. System Setting iOS version Android version System Setting: Unlock the system setting by clicking on the “lock” icon on the upper-right side of the main display. Change settings on “front wheel” and “rear wheel” then press the “Save” button to save the settings.
Page 20: Exchange Setting
10. Exchange Setting iOS version Android version Tire Exchange Setting: 1.Unlock the system setting by clicking on the “lock” icon on upper- right side of the main display. Pic 1 Pic 1 2.Tire positions are displayed in sequence (1, 2, 3, and 4), meaning left-front, right-front, right-rear and left-rear with ID.
Page 21 iOS version Android version Drag the dialogue display of the tire to the desired location for all desired exchanged tires, then press the “Save” icon. It will display the new tire positions in sequence (1, 2, 3, and 4). Pic 3 Pic 3 iOS version: Click the “lock”...
Page 22: Voice Dongle Setting
11. Voice Dongle Setting iOS version Android version Voice Dongle Setting: Recommend for 5V/2A car USB power charger adapter for voice dongle. Pic 1 Pic 1 1. Press the red voice dongle button for 1.5 seconds. When you hear “beep,” you will go into the Bluetooth pairing mode (LED : flicker of Red and Blue light ).
Page 23 iOS version Android version 2.Enter menu ->click ”Dongle” function ->click “TPMS_Dongle_sn” (random serial number), “TPMS_Dongle_sn Connected” will be shown in blue color. (Pic 3) Pic 3 Pic 3 3. iOS version: The APP will automatically download the settings when you hear “Setup completed.” You can start using after “Voice dongle Setting OK”...
Page 24: About
12. About iOS version Android version About: “Product Information” is displayed. It describes the definition of “Warning Symbol” and shows the link to the “Company Website”. You can press the link to go to the company’s website.
Page 25: Frequently Asked Questions
13. Frequently Asked Questions 1. After inserting the sensor ID number into the APP, the dialogue display remains without a value. A: TPMS sensor only transmits data when the sensor is on a car that is going over 20 km per hour, is started after parked for over ten minutes, or the tire pressure difference at the moment is 30 kPa.
Page 26 If the tire has been damaged or traffic accident resulting from improper driving behavior occurs, the company will not be responsible for any civil or criminal liabilities. Other relevant latest information of SYSGRATION TPMS is available at our website ) and our Facebook Page ( ) for latest http://www.sysgration.com/...
Page 27 BLE TPMS MODEL: SBT-20 WARRANTY CERTIFICATE SERIAL NUMBERS Sensor’s ID stickers: ID stickers here ID stickers here ID stickers here ID stickers here WARRANTY PERIOD: One (1) Year PURCHASE DATE: DISTRIBUTOR STAMP: http://www.sysgration.com/...
