LED World SR-2100AMP Quick Start Manual

DMX512 Signal Amplifier/Repeater
Model: SR-2100AMP
BEFORE YOU BEGIN, READ ALL WARNINGS AND INSTALLATION INSTRUCTIONS (AS THEY MAY HAVE BEEN UPDATED FROM PREVIOUS VERSIONS ).
IMPROPER INSTALLATION(S) PRESENT HAZARDS, WHICH CAN RESULT IN PERSONAL INJURY OR PROPERTY DAMAGE.
SAFETY & WARNINGS
This product is intended to be installed and serviced by a qualied licensed electrician. Install in accordance with the National Electric
·
Code, and local regulations. Disconnect power before installing or servicing. Only power with a regulated (listed) constant
voltage Class 2 power supply (12-24V DC). Never use this product with dimmable or magnetic dimmable power
source(driver).
Ensure applicable wire is installed between driver, xture, and any controls in between. When choosing wire, factor in voltage drop,
·
amperage rating and type (in-wall rated, wet location rated, etc.). Inadequate wire installation could overheat wires and cause re.
This product is rated for indoor dry locations installation. Avoid the direct sun light.
·
Do not modify this product beyond the instructions in this guide or the warranty will be voided.
·
Wiring Diagrams in this installation guide for basic installations. Please carefully review your installation before proceeding.
·
Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
·
Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.
·
Never connect any cables while power is on and always assure correct connections to avoid short circuits before switching on.
·
Please ensure that the cable is secured tightly in the connector
·
:
Warning Input voltage must be identical to output voltage of the
LED Fixture!
WIRE 6-8MM (0.25-0.30")
Exposed wire should not be more than 6- 8 mm long tinned. Do not
allow Wires to cross and insure all exposed wire is fully inserted into
the terminals. Use 22 to 16 AWG gauge wire for output terminals.

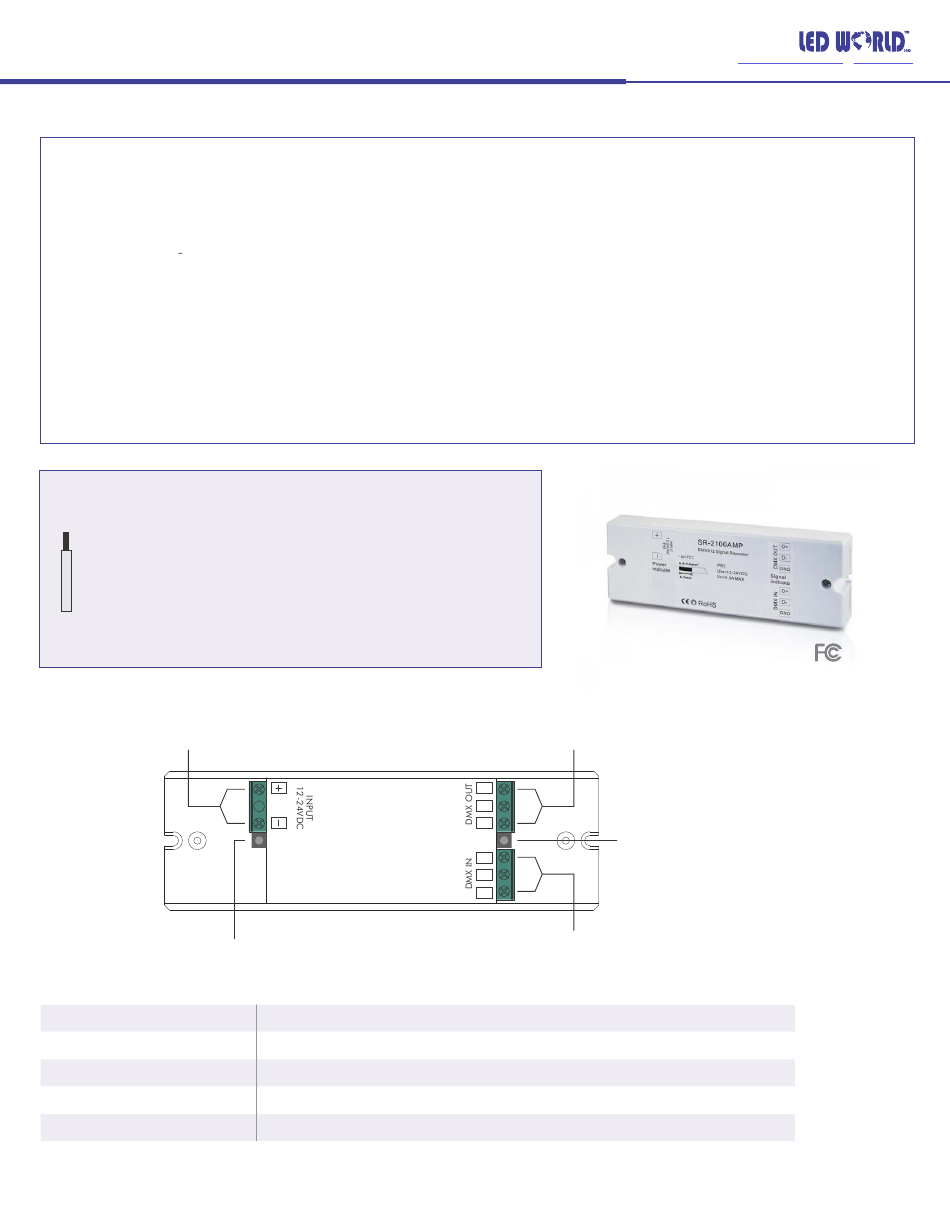

PRODUCT OPERATION OVERVIEW

DC Power input
Power input LED indicator

PRODUCT PARAMETERS

Part No.
Input Voltage
Current
Output
Working Environment
1/3
Copyright © 2019 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
DMX512 Signal
Repeater
Power indicator
SR-2100AMP
12V~24V DC
0.5A max
DMX512 signal
Indoor dry location use
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 1.0 11/22/19
DMX512 signal output and expanding
D+
D-
GND
DMX512 signal LED
Signal
indicator indicator
D+
D-
CH 3:B output(-)
GND
DMX512 signal input
