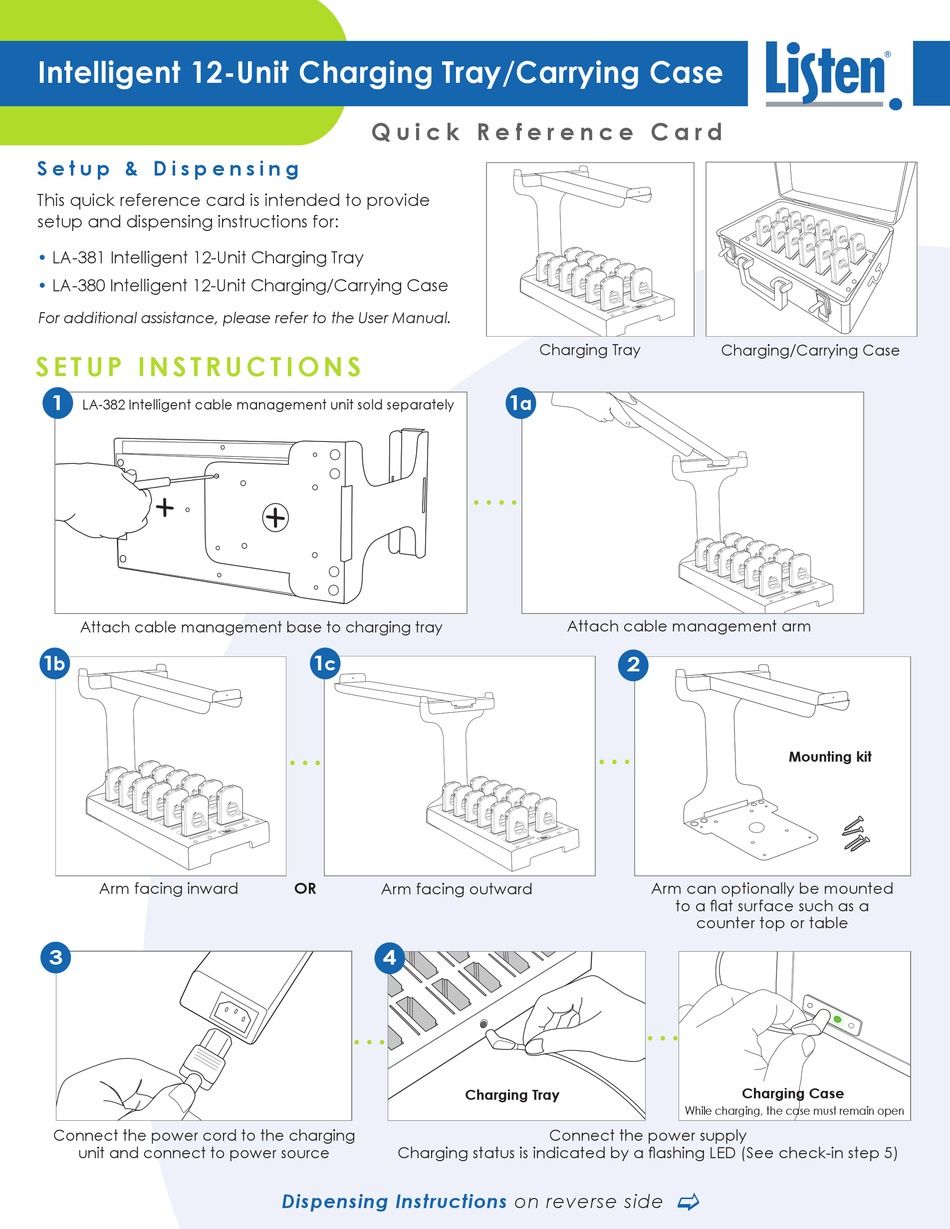

Listen LA-380 Quick Reference Card

Intelligent 12-Unit Charging Tray/Carrying Case
S e t u p & D i s p e n s i n g
This quick reference card is intended to provide
setup and dispensing instructions for:
• LA-381 Intelligent 12-Unit Charging Tray

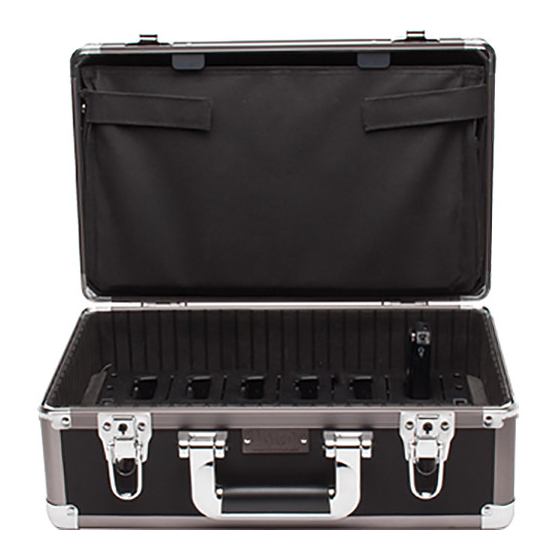

• LA-380 Intelligent 12-Unit Charging/Carrying Case
For additional assistance, please refer to the User Manual.
S E T U P I N S T R U C T I O N S
1
LA-382 Intelligent cable management unit sold separately
Attach cable management base to charging tray
1
b
Arm facing inward
3
Connect the power cord to the charging
unit and connect to power source
Q u i c k R e f e r e n c e C a r d
1
c
OR
Arm facing outward
4
Charging status is indicated by a flashing LED (See check-in step 5)

Dispensing Instructions

Charging Tray
1
a
Attach cable management arm
2
Charging Tray
Connect the power supply
on reverse side
Charging/Carrying Case
Mounting kit
Arm can optionally be mounted
to a flat surface such as a
counter top or table
Charging Case
While charging, the case must remain open
c
