impact RST-001 Assembly Instructions

RST-001

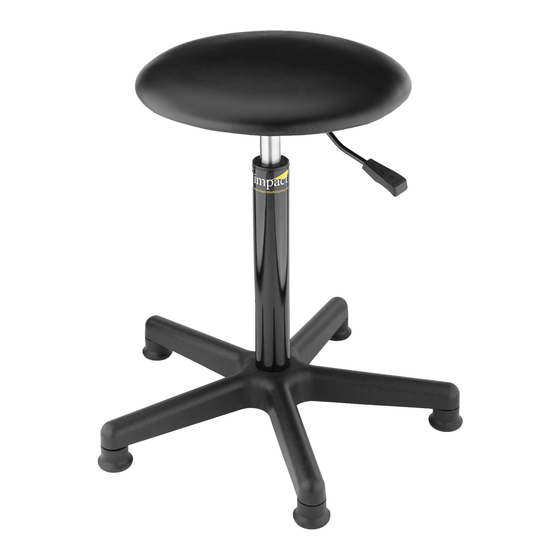

Posing Stool
ASSEMBLY INSTRUCTIONS
seat cushion
mounting
plate
1/2˝ screws
pneumatic
cylinder
pedestal
base
pedestal
feet

Parts List

1 – seat cushion
1 – mounting plate
4 – 1/2˝ screws
1 – pneumatic cylinder
1 – pedestal base
5 – pedestal feet

Step One

Remove all the parts from the carton and make
certain you have all the items in the parts list
above and in the correct quantity.

Step Two

Insert the pedestal feet into the pedestal base.
Be sure all feet are inserted securely.

Step Three

Insert the pneumatic cylinder into the
pedestal base.

Step Four

Attach the mounting plate to the seat
cushion using the four 1/2˝ screws.
Tighten the screws rmly.

Step Five

Push the mounting plate and the seat
cushion down onto the pneumatic cylinder
until it is secure.
To adjust the seat height, pull up on the lever and
either push down on the seat to lower or pull up
to raise the height. Make certain all screws are
tightened fully before using this stool.
Speci cations
Weight capacity: 220.5 lb. (100 kg)
Height: 20 to 30 in. (50.8 to 76.2 cm)
Base diameter: 22 in. (55.9 cm)
Seat diameter: 14 in. (35.6 cm)
Feet type: Pedestal
Material: Chrome-plated steel cylinder,
high-impact nylon
www.impactstudiolighting.com
