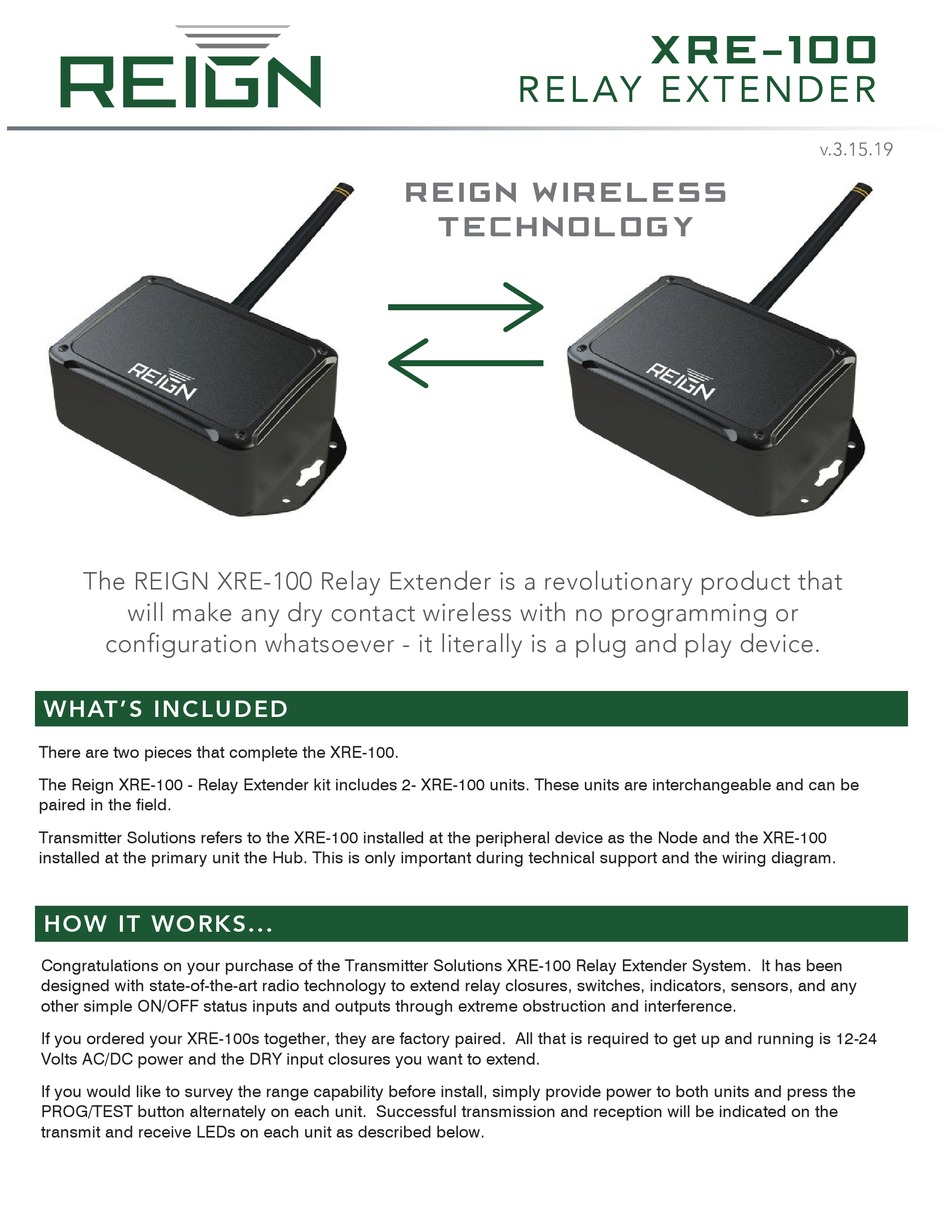

The REIGN XRE-100 Relay Extender is a revolutionary product that
will make any dry contact wireless with no programming or
configuration whatsoever - it literally is a plug and play device.
WHAT'S INCLUDED
There are two pieces that complete the XRE-100.
The Reign XRE-100 - Relay Extender kit includes 2- XRE-100 units. These units are interchangeable and can be
paired in the field.
Transmitter Solutions refers to the XRE-100 installed at the peripheral device as the Node and the XRE-100
installed at the primary unit the Hub. This is only important during technical support and the wiring diagram.
HOW IT WORKS...
Congratulations on your purchase of the Transmitter Solutions XRE-100 Relay Extender System. It has been
designed with state-of-the-art radio technology to extend relay closures, switches, indicators, sensors, and any
other simple ON/OFF status inputs and outputs through extreme obstruction and interference.
If you ordered your XRE-100s together, they are factory paired. All that is required to get up and running is 12-24
Volts AC/DC power and the DRY input closures you want to extend.
If you would like to survey the range capability before install, simply provide power to both units and press the
PROG/TEST button alternately on each unit. Successful transmission and reception will be indicated on the
transmit and receive LEDs on each unit as described below.
R E L AY E X T E N D E R
R E I G N w i r e l e s s
t e c h n o l o g y
X R E – 1 0 0
v. .
.1
