1
USER MANUAL
OT-208C
English- CJB228001AAA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OT-208C and is the answer not in the manual?

Questions and answers

Related Manuals for Alcatel OT-208C

Summary of Contents for Alcatel OT-208C

  • Page 1 USER MANUAL OT-208C English- CJB228001AAA...

  • Page 2: Table Of Contents

    14. Safety and use ........................... 20 Friendly reminder: This user manual applies to the OT-208C mobile phone. If there are minor differences in the description or illustrations between the manual and the actual product shall take precedence. Customers will not be notified separately of any upgraded model of this mobile phone. Please contact our Customer service.
  • Page 3 Item Specifications Message 350 entries Rated capacity: 650mAh Standard voltage: 3.7V Talk time: 210 minutes Li-ion battery Standby time: 160 hours (approx.) Operating temperature: -10℃ to +55℃ Explanation: Standby time refers to the time when the phone although in operating mode is not used for making calls or remains idle.

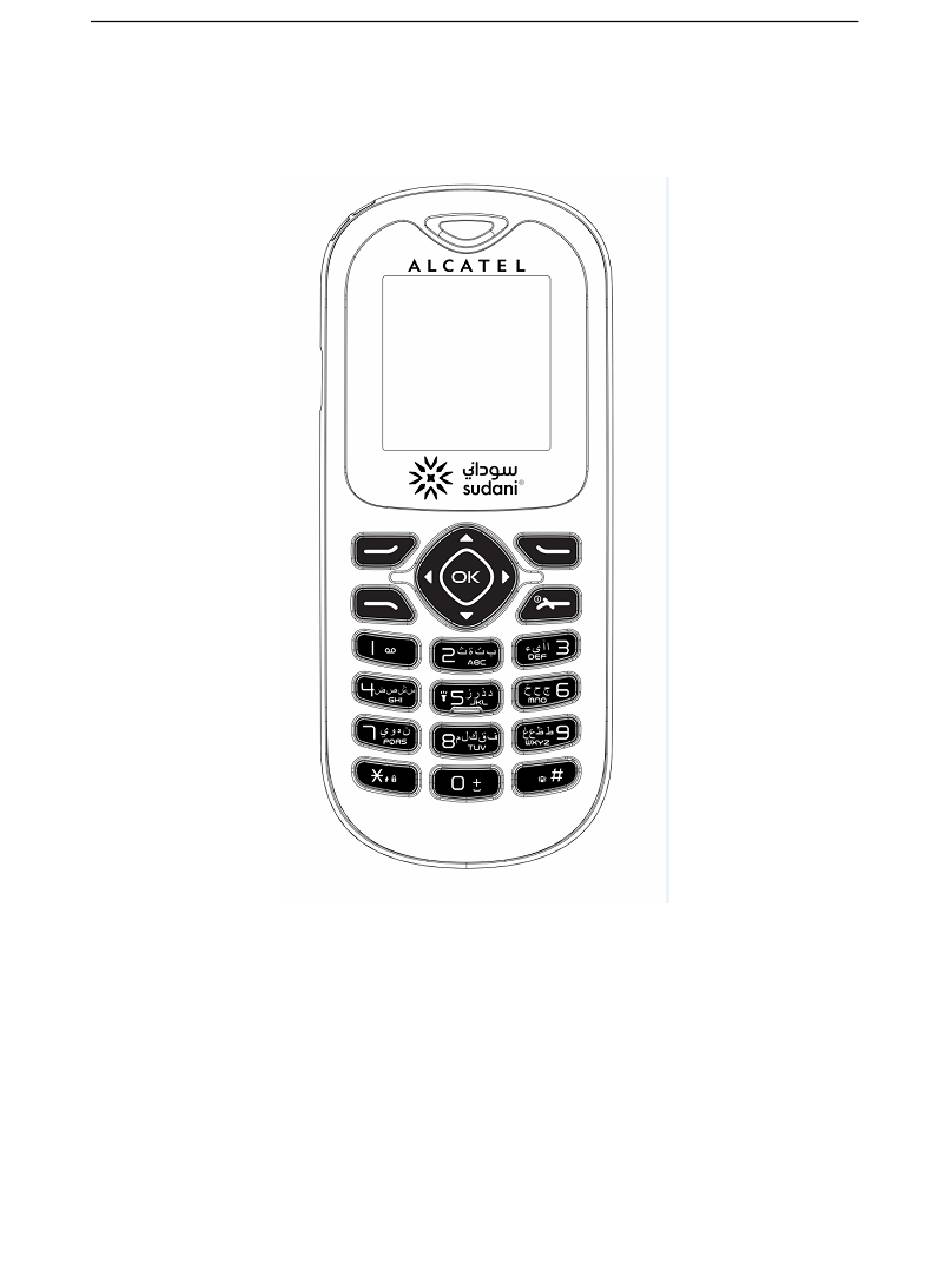

  • Page 4 ⑧ ① ⑤ ② ⑥ ③ ⑨ ④ ⑩ ⑦ Left soft key End a call Enter menu Back to the idle screen Confirm an option Meeting mode (long press in idle) Send key Change Text Input mode Recent Call Navigation key Answer/Send a call Left: Alarm...
  • Page 5 Messages FM Radio Contacts Contacts List Create Alarm Search Inbox Settings Display Add New Outbox Phone Groups Draft Call Speed Dial Reserved Message Auto Power On Contacts Management Templates Auto Power Off Delete Messages Profiles Security Normal Settings Silent Memory Status Recent Calls Missed Calls Meeting...

  • Page 6: Getting Started

    Indicate the phone have set Voice privacy You are using FM radio Indicate the phone is roaming 2. Getting started 2.1 Removing and installing the back cover 2.2 Installing and removing the battery 2.3 Inserting and removing the UIM card 3.
  • Page 7 When power is sufficient, press and holds the end key to power on. If you have activated a password, you will be prompted to enter it. Normally the phone is ready for use as soon as you enter the password, please refer to Menu/Settings/Security settings. When the phone is power on, press and holds the key end to turn it off.
  • Page 8 and other text input circumstances. 3.5.1 Text input operating sequence Select the Text input mode. Enter the text. You can change the input mode while entering the text. 3.5.2 Changing the text input mode In the text input mode, press “#” key to change the input mode. Press “*” key to turn the upper case into the lower case characters when you need.

  • Page 9: Fm Radio

    Character input mode (subdivided into upper case and lower case modes) Single characters or numbers can be entered. Their distribution on the keypad is shown below: 0，space 1，commonly-used symbols a，b，c，A，B，C，2 d，e，f，D，E，F，3 g，h，i，G，H，I，4 j，k，l，J，K，L，5 m，n，o，M，N，O，6 p，q，r，s，P，Q，R，S，7 t，u，v，T，U，V，8 w，x，y，z，W，X，Y，Z，9 Number input mode (123) Press the number key to enter the corresponding number, press “*”...

  • Page 10: Alarm

    Minimize: Select Option/Minimize to make FM screen invisible, meanwhile you can use other functions (SMS, Games, Add names, and etc). The quality of FM radio depends on the coverage of the radio station in that particular area. 5. Alarm Users can edit up to six alarm clocks. From the standby screen, press Menu/Alarm to display the Alarm clock editing screen.
  • Page 11 yy/mm/dd. Auto Key Guard: you can turn on/off the key guard. 6.3 Call Answer Mode: You may access to following options to answer incoming calls: Any Key, Send Key, and Headset Auto. Minute Beep: You will hear the alert sound at the 50th second of every minute during the call if you activate this function.

  • Page 12: Recent Calls

    code for 3 times, you should enter PUK code to reset PIN code. PIN code and PUK code are supplied by operator for UIM card. Contacts Lock: setting protective code to Contacts, the default code is the same as phone code.

  • Page 13: Contacts

    Select Recent Calls/Delete All you can clear all Missed Calls, Received Calls, Dialed calls and All Calls. 8. Contacts The phone can store up to 500 contacts. From the idle screen press the right soft key to display the list of contacts. The contact list can also be accessed through Menu/Contacts. 8.1 Contacts List Select Menu/Contacts/Contacts List to access the contacts list.

  • Page 14: Profiles

    You can select any group to view all the contacts in that group; you can also rename the group. 8.5 Speed dial Select Menu/Contacts/Speed Dial to set keys 2 to 9 for speed dialling, except 5(Key 5 used for torch). If the number key has not been set, press the left soft key and select a phone number from Contacts.

  • Page 15: Entertainment

    Select left soft key to enter the operation submenu, you can see the following operations: Activate: active the present mode Personalize: Set the volume or the ring tone of incoming call, SMS, Alarm, and the alert mode of incoming call, SMS, alarm, missed call and power on/off. Restore Factory Setting: Choose the mode as it was initially in the factory settings.
  • Page 16 Delete: Delete a message. Copy to UIM Card/Copy to Phone: Copy a phone message to UIM card or copy a UIM card message to phone. Move to UIM Card/Move to Phone: Move a phone message to UIM card or move a UIM card message to phone.
  • Page 17 for new templates). It has 10 message templates in factory reset mode, and you may edit it optionally or add more templates accordingly. 11.7 Delete message Select Menu/ Messages/Delete Messages to access delete function. You may delete the messages in Inbox, Outbox, Draft, Reserved Messages, and also clear all the messages. 11.8 Settings Select Menu/ Messages/Settings to access submenu with below options: Send Mode, Priority, Delivery reports, Callback number, Prefer Save, Message Validity, and Reserved Messages.

  • Page 18: Tools

    Voice Mail Number: Set the voice mail number Tools 12.1 Stopwatch Press the left soft key to start counting and the right soft key to stop it. While counting, press the left soft key to record the previous count. Up to ten recordings can be stored. When the counting is stopped, press the left soft key to reset and the right soft key to exit the stop watch function.
  • Page 19 Item to be checked The telephone does not Make sure that the charger is correctly connected to the charge properly phone and the power socket. Make sure you are using a charger specifically designed for this phone. The phone does not Check the battery charge level.

  • Page 20: Safety And Use

    Safety and use Please read carefully and observe the following regulations to avoid damaging your telephone or using it against the law. Electronic devices/Health care facilities. Turn off your phone when you are near high-precision electronic devices in use to avoid causing malfunction or interfering with their operation (fire alarms, automatic doors and automatic control equipment).
  • Page 21 Do not place your phone on the dashboard or within an airbag deployment area to avoid causing injury to passengers in the car when the bag inflates or bursts. Using the phone on an airplane is strictly forbidden. Turn off your phone before you board an aircraft.
  • Page 22 battery and charger away from water and water vapour and do not clean the phone with a wet cloth to avoid short circuits, malfunction due to corrosion and electric shocks. Do not turn in or off the phone against your ear to avoid your ears and body from being impaired.
  • Page 23 on all networks; you should never rely on your mobile phone for emergency calls. Using the battery/charger Only use batteries and chargers approved by the manufacturer. Do not use batteries or chargers that are not compatible with your model to avoid any explosion. Do not throw a battery in a fire as it might catch fire or explode.
  • Page 24 Warning: The manufacturer disclaims any liability for damage, which may result as a consequence of improper use of this mobile phone or use contrary to the instructions contained in this manual. Alcatel logo and Alcatel name are Trademark of Alcatel-Lucent used under license by TCT Mobile Limited All rights reserved ©...
  • Page 25 determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
