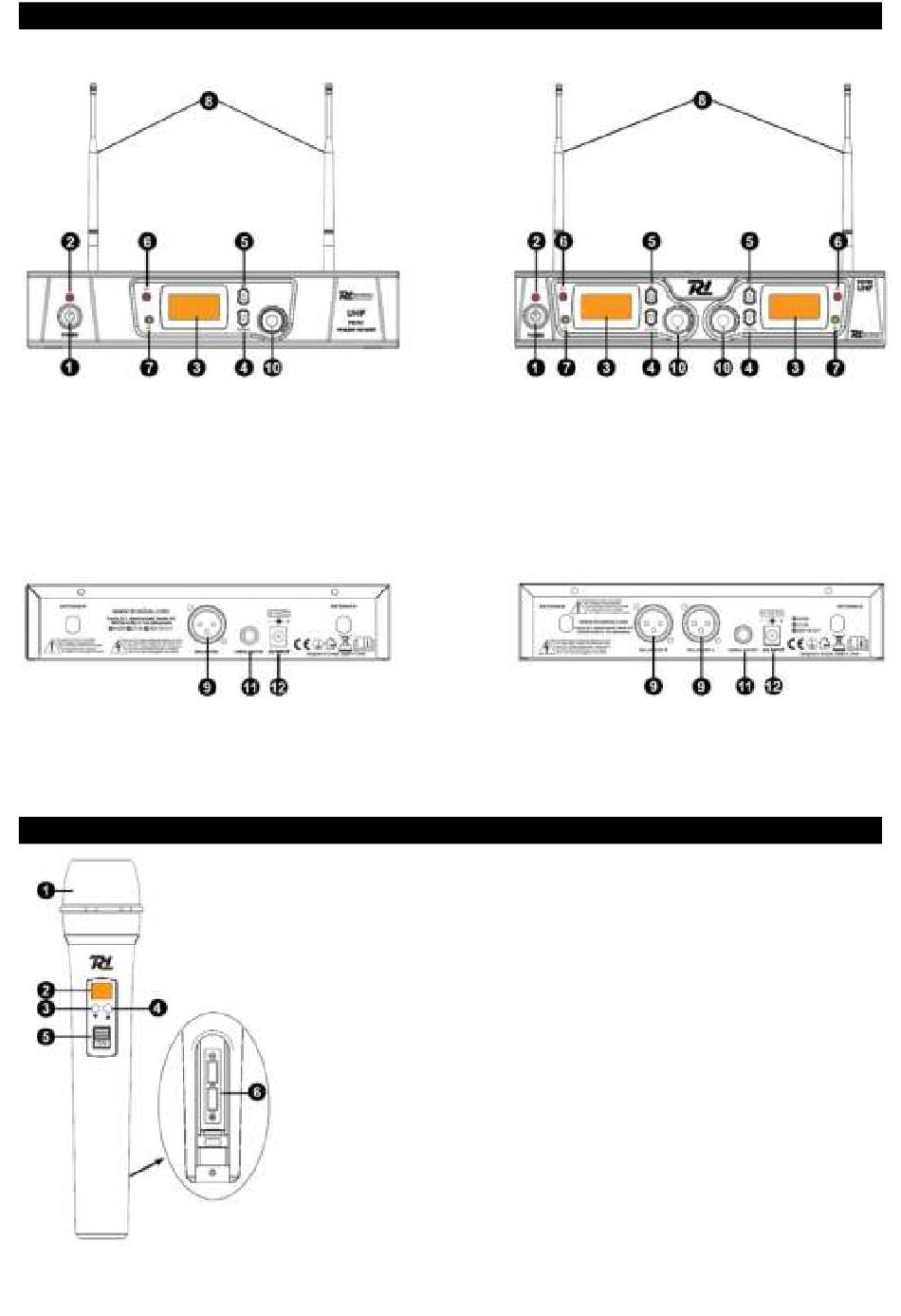

FRONT- AND BACKSIDE

179.193 PD781 Wireless Microphone UHF 1x8Ch 1 Microphone
179.196 PD782 Wireless Microphone UHF 2x8Ch 2 Microphone
1. Power switch to switch ON/OFF the system
2. Power indicator ON/OFF
3. LCD Information Display: Show the receiver frequency channel ect.
4. Down button: Sets channel data.
5. Up button: Sets channel data.
6. "AF" Audio level indicator: Indicate the wireless system audio signal level.
7. "RF" signal Indicator: Indicate when receive RF signal from transmitter.
8. Antenna.
9. XLR- connector balanced: Connect the audio cable from this jack to the input port of amplifier, mixer.
10. Volume knob
11. 1/4" Jack connector: Connect the audio cable from this jack to the input port of amplifier, mixer.
12. Power inlet, 12-15Vdc

HANDHELD TRANSMITTER

1. Grille: Protects the cartridge and help reducing the breath sounds and
wind noise.
2. LCD Information Display: Show the transmitter frequency channel ect.
3. Down button: Sets channel data.
4. Up button: Sets channel data.
5. Power ON/OFF and Audio Mute Switch.
6. Battery Cover: Open it to install the battery. remove batteries in case
of long time no use (prevent leakage).
