MFJ-263 Dummy Load
The MFJ-263 Dummy Load is a very wide frequency range air-cooled dry load. This dry
dummy load uses a large air-cooled heatsink. It does not use hazardous messy oil or other
bothersome liquid coolants. The MFJ-263 is capable of handling up to 300 watts carrier
or short term average power for brief periods of time. The de-rating curve in this manual
also conveniently appears on the dummy load bottom.
Operation
1. To prevent damaging or overheating the resistor, please familiarize yourself with the
power de-rating curve.
2. The input connector is a standard 50-ohm "N" style female connector. Your cable
must use a 50-ohm type N male.
3. Allow at least 2 minutes with a fan (not included) and 10 minutes without a fan or
forced air cooling when operating the dummy load at its maximum duty cycle ratings.
NOTE: If ratings are exceeded the load resistor may be permanently damaged.
Load surfaces may become hot. Allow the load to cool before touching it.

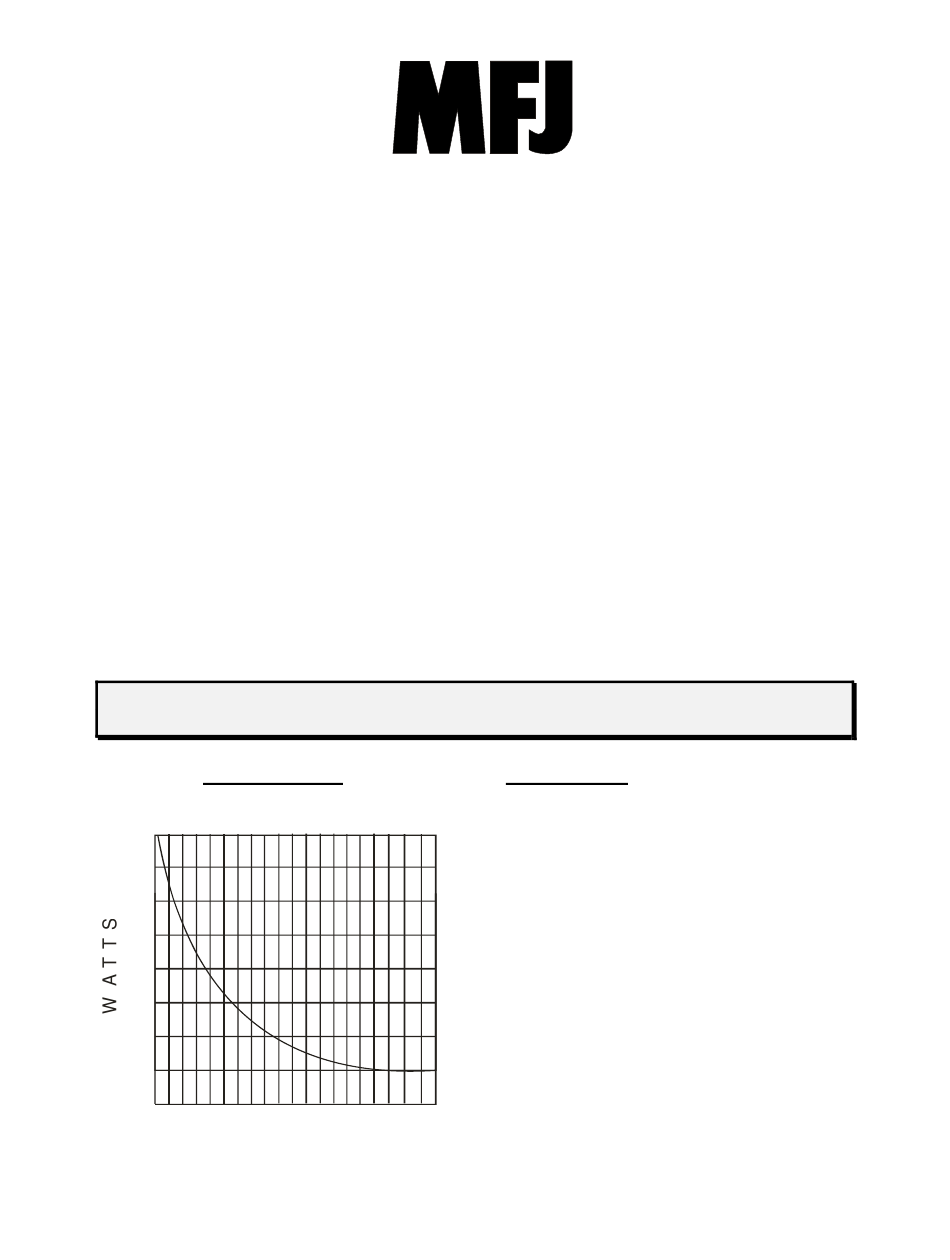

De-rating curve
300
275
250
225
200
175
150
125
100
1
2
3
4
M I N U T E S
Version A
MFJ Dummy Load
model MFJ-263
10
9
5
6
7
8
Specifications
IMPEDANCE:
50 ohms
VSWR:
Less than 1.1 to 1GHz
1.2 at 1.5 GHz
1.5 at 3 GHz
POWER
300 watts for 10 seconds
RATING:
(2-10 min cool down)
125 watts continuous
DIMENSIONS:
10 ¾Wx 2 ¼Hx 5 ¼D
Instruction Manual
