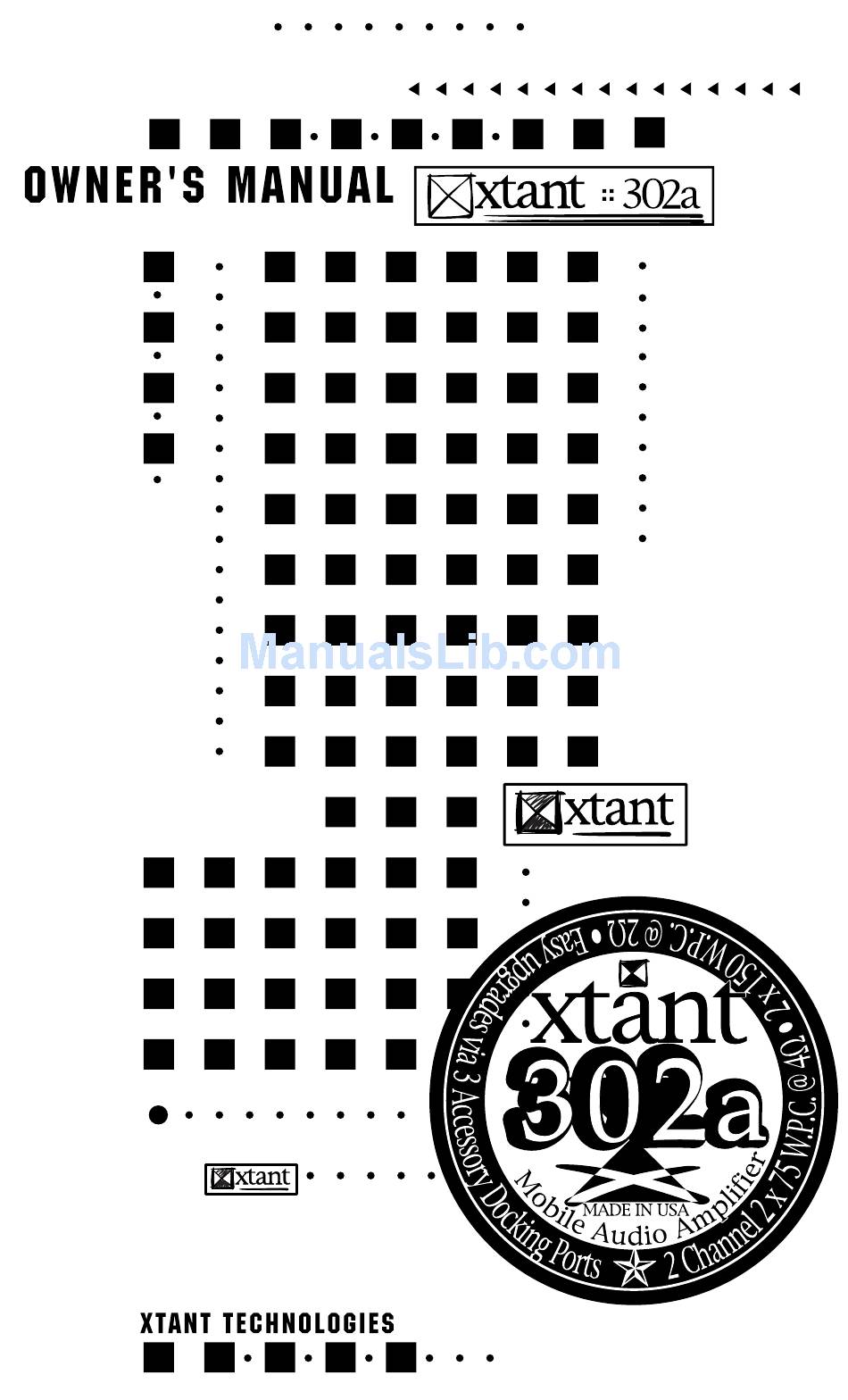

Summary of Contents for Xtant 302A
- Page 2 (ikst`ænt, e`kstent) 1. adj. still in existence, especially. of enduring excellence.| |e.g. of xtant quality that stands the test of time and the passing of fads. Standing out or above, as in out- standing, the quality or state of being original.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Safeguards Xtant 302a Specifications ADDING ACCESSORY MODULES Optional Accessory Modules Maintenance Customer Relations / Technical Services Warranty Owner’s Installation Log Installer’s Reference Insert... -
Page 5: Safeguards
Reference for recommended wire gauges. Fusing Requirements The 302a is not fuse protected! For safety, an outboard 50 amp fuse may be added close to the amplifier. A 50 amp fuse must be installed in-line with the power wire at the battery. In the case of a multi-amp system, use a fuse value equal to the combined total demand of all amplifiers in the system. -
Page 6: Xtant 302A
-12, or -16 dB. Protection Circuitry: Both Thermal and Overcurrent protection are incorporated into the 302a. In the event of a problem, either thermal or over- current protection will reduce amplifier power to maintain operation. Status LEDs: Three LEDs, visible through the cover, indicate operational status of all Xtant amplifiers. -
Page 7: Specifications
Xtant 302a SPECIFICATIONS Frequency Response Number of Channels Watts per Channel @ 4Ω Watts per Channel @ 2Ω Bridged Mono @ 4Ω Distortion (THD) Signal to Noise Ratio Damping Factor Input Sensitivity 100 mV to 8.5 V RMS 100 mV to 17 V RMS... -
Page 8: Adding Accessory Modules
Vert/Horiz Acc Port and Amp Vert Acc Port. The third port is dedicated to the RCA line outputs and is labeled Line Out Vert Acc. Port. Xtant offers two types of accessory modules which are designed for either “Horizontal” or “Vertical” mounting. The docking port, located behind the RCA line outputs, labeled Amp Vert/Horiz Acc Port will accept any module, while the ports labeled “Vert”... -
Page 9: Optional Accessory Modules
High-Pass function (CM12H) or Low-Pass function (CM12L). Each module is designed to be plugged into any accessory port on Xtant’s 301a and 302a amplifiers. Frequency adjustment is via a 12 pin plug- in resistor SIP (Single In-line Package) and 13 different frequency SIPS are available from your authorized Xtant Dealer. -
Page 10: Maintenance
C l e a n i n g t h e fa n / C i r c u i t B oa r d – E v e ry 9 0 Day s The internal fan in all Xtant amplifiers need periodic cleaning. -
Page 11: Customer Relations Technical Services
This commitment is not taken lightly or just for today; it is our way of doing business. We believe there is no other way. Xtant’s policies and procedures are designed, in the event of a problem, to minimize the amount of your “down-time” and inconvenience. It is our commitment that the product will be at our facility for no more than four (4) days. -
Page 13: Owner's Installation Log
OWNER’S INSTALLATION LOG Upon installation of your mobile audio sound system, your Authorized Xtant Select Dealer will complete this log. Keep this owners manual with your vehicle as a reference for all amplifier settings. OWNERS NAME: VEHICLE: MAKE/MODEL: XTANT AMPLIFIER SERIAL NO.
