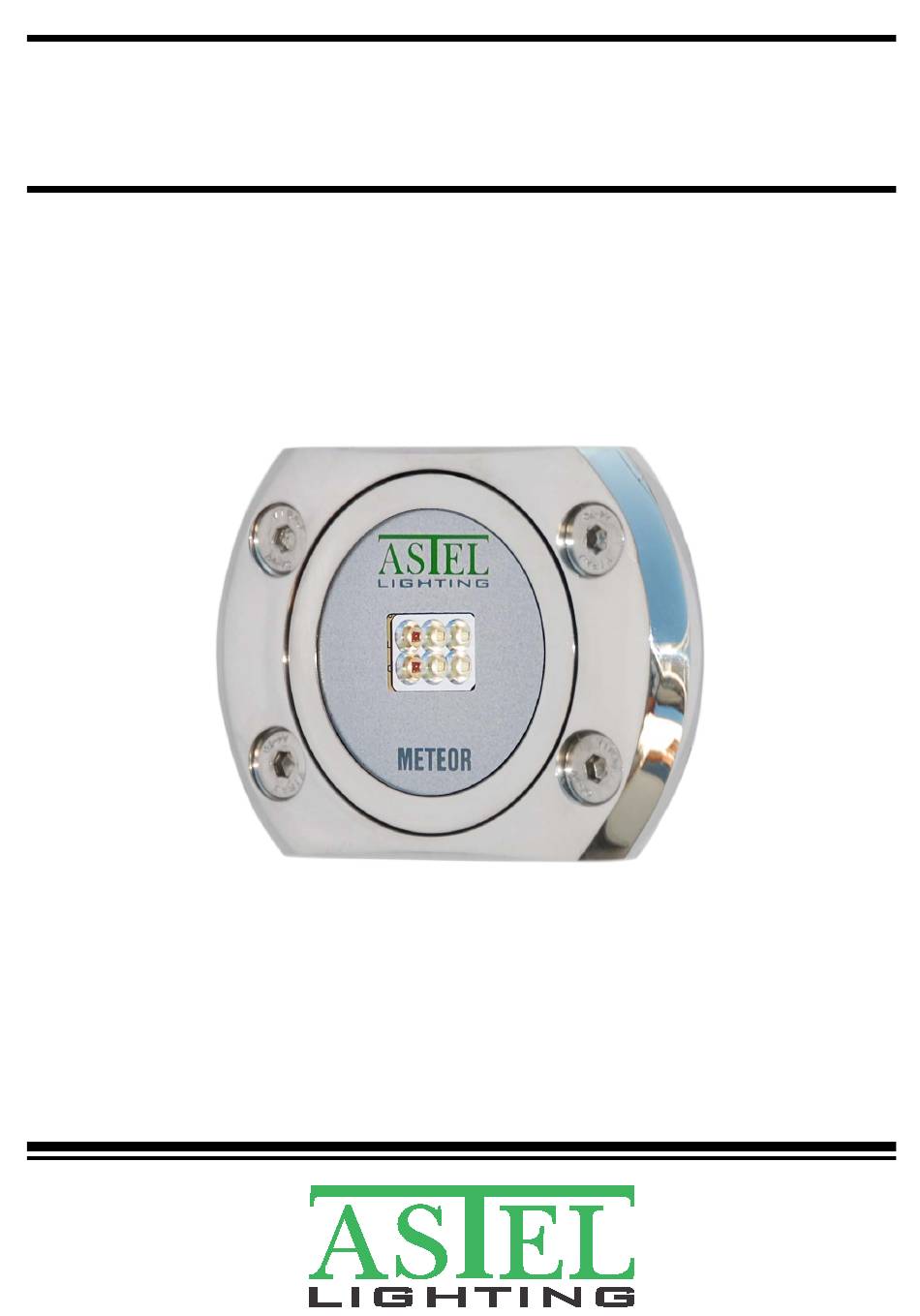

- Page 1 METEOR LSR0640EQ UNDERWATER POOL LIGHT Operating Instructions...
-
Page 2: Table Of Contents
CONTENTS Preface ................................3 Features ................................3 Precautions ................................3 Components and Connectors ..........................4 Installation ................................5 Controls ................................7 Appearance ................................9 Technical Specifications .............................9 Warranty ................................10 _________________________________________________________________________________... -
Page 3: Preface
The METEOR LSR0640EQ series is available contacting it, the luminaire shall be installed in stainless steel casings. The lighting is in or on a wall of the pool, with the top of available in white, blue, green, RGB, WGB or the lens opening not less than 0.2m below... -
Page 4: Components And Connectors
COMPONENTS AND CONNECTORS (1) Optical window High-grade polycarbonate glass optical window. (2) Underwater pool light casing Stainless steel casing with fixing holes and cable gland. (3) Cable The 4-pole multi-core cable to connect the 12-24Vdc power supply and optional remote control or switch. -
Page 5: Installation
INSTALLATION The underwater light kit consists of the following components: • Underwater Light METEOR LSR0640EQ • 4 x fixing screw 5.5x50 with wallplugs • Operating Instructions with Declaration of Conformity and Warranty conditions The METEOR LSR0640EQ has to be installed on a flat surface on the pool wall under water line. Do not try to install the underwater pool light while the pool is filled with water. - Page 6 Connection The power supply has to be connected through the main switch (not included) with correct polarity and protected by a fuse (not included). The power supply voltage has to be from 10 - 30Vdc. Note: • The power supply has to be switched off before installation. The underwater light has to be connected as described in the table below: METEOR LSR0640EQ FUNCTION...
-
Page 7: Controls
CONTROLS Single-color cool white (W), warm white (WW), blue (B) or green (G) models Remote control can be used to turn-on and turn-off the underwater pool light. Multi-color RGB (M), WGB (WM), RGBW (MW) models: Remote control has to be used to turn-on and turn-off the underwater pool light and to control the mode of lighting and luminosity. - Page 8 DMX512 control The built-in ASTEL protocol enables the network connection to control the lights with the standard DMX512 protocol by using optional LXU01 interface.
-
Page 9: Appearance
APPEARANCE TECHNICAL SPECIFICATIONS Power supply 12 – 24 Vdc, max. 800 mA/12 Vdc or 410 mA/24 Vdc Lens angle 60°(standard) Optical window High-grade polycarbonate glass Luminous flux max. 950 lm ASTEL protocol default address Operating temperature -10°C - +50°C Casing Stainless steel (SAE316L) Protection IP 68... -
Page 10: Warranty
WARRANTY 1. The equipment manufactured by ASTEL d.o.o. is warranted to be free from defects in workmanship and materials under normal use and service. 2. This Warranty is in effect for of two years from the date of purchase by the user. Proof of purchase must be included, to establish that it is inside the warranty period. - Page 12 ASTEL d.o.o., Dutovlje 138, 6221 Dutovlje, Slovenia Tel: +386 5 7310771, +386 5 7310772 Fax:+386 5 7310789 info@astel-lighting.com E-mail: www.astel-lighting.com Web:...
