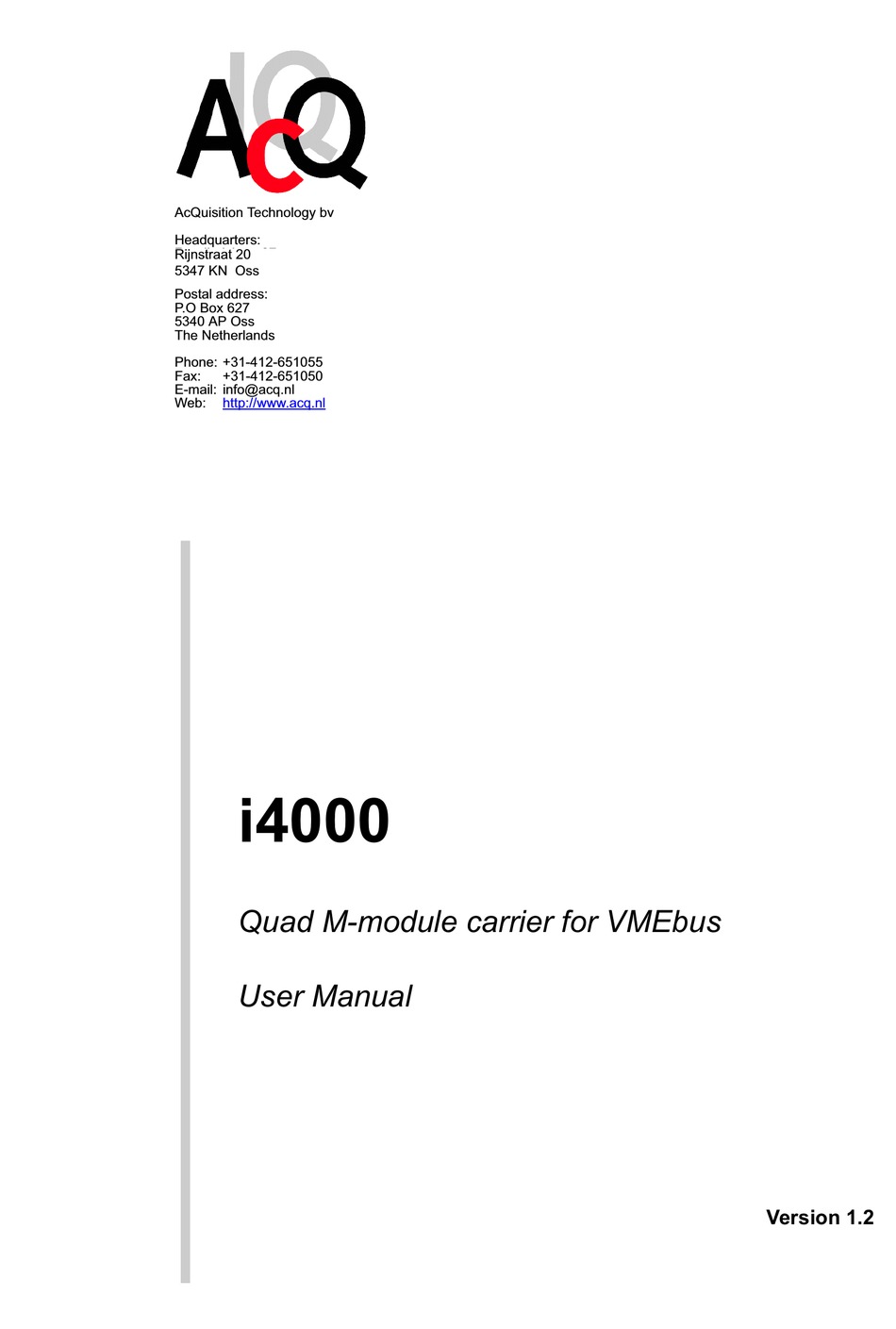

i4000
Quad M-module carrier for VMEbus

User Manual

Version 1.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quad M-module Carrier i4000 and is the answer not in the manual?

Questions and answers

Related Manuals for AcQuisition Technology Quad M-module Carrier i4000

Summary of Contents for AcQuisition Technology Quad M-module Carrier i4000

  • Page 1: User Manual

    AcQuisition Technology bv Headquarters: Rijnstraat 20 Raadhuislaan 27a 5347 KN Oss 5341 GL Oss Postal address: P.O Box 627 5340 AP Oss The Netherlands Phone: +31-412-651055 Fax: +31-412-651050 E-mail: info@acq.nl Web: http://www.acq.nl i4000 Quad M-module carrier for VMEbus User Manual Version 1.2...
  • Page 2 i4000 - Quad M-module carrier for VMEbus User Manual Copyright statement: Copyright ©2005 by AcQuisition Technology bv - OSS, The Netherlands All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language, in any form or by any means without the written permission of AcQuisition Technology bv.

  • Page 3: Table Of Contents

    i4000 - Quad M-module carrier for VMEbus User Manual ..............5 NTRODUCTION 1.1.
  • Page 4 i4000 - Quad M-module carrier for VMEbus User Manual Version: 1.2 AcQuisition Technology bv P.O. Box 627, 5340 AP Oss, The Netherlands...

  • Page 5: Validity Of The 1.2. Purpose

    i4000 - Quad M-module carrier for VMEbus User Manual NTRODUCTION 1.1. ALIDITY OF THE ANUAL This is edition 1.2 of the i4000 user manual and applies to the following boards: • The i4000 VME M-module carrier board without P2 of revision R4 ( i4000 Rev 4 ) •...
  • Page 6 i4000 - Quad M-module carrier for VMEbus User Manual Page 6 of 25 Version: 1.2 AcQuisition Technology bv P.O. Box 627, 5340 AP Oss, The Netherlands...

  • Page 7: Product Overview

    i4000 - Quad M-module carrier for VMEbus User Manual RODUCT VERVIEW 2.1. NTRODUCTION The i4000 provides a compact high-performance VMEbus gateway to the M-module interface. The i4000 has a 6U form factor. Four M-modules can be mounted on the i4000. The M-module interface of the i4000 complies with the M-module Specification.
  • Page 8 i4000 - Quad M-module carrier for VMEbus User Manual Page 8 of 25 Version: 1.2 AcQuisition Technology bv P.O. Box 627, 5340 AP Oss, The Netherlands...

  • Page 9: Nstallation And 3.1. Unpacking The

    i4000 - Quad M-module carrier for VMEbus User Manual NSTALLATION AND 3.1. NPACKING THE ARDWARE The hardware is shipped in an ESD protective container. Before unpacking the hardware, make sure that this takes place in an environment with controlled static electricity. The following recommendations should be followed: •...

  • Page 10: Connectors

    i4000 - Quad M-module carrier for VMEbus User Manual 3.2. ONNECTORS 3.2.1. M OUNTING AN MODULE Four M-modules can be fitted on the i4000 carrier board. To plug in a module, position the 2-row 40 pole or 3-row 60-pole M-module interface connector of the module above the 2-row header P1 of the i4000. Then push the module until the header connector is positioned and press the module with care in its place.
  • Page 11 i4000 - Quad M-module carrier for VMEbus User Manual 3.2.2. P2 C ONNECTOR SSIGNMENTS Peripherals can be connected to M-modules in two ways. On the front of the M-module a 25-pole sub-D connector (or mechanically equivalent) can be used to connect cables on the front panel of the VMEbus base board.
  • Page 12 i4000 - Quad M-module carrier for VMEbus User Manual Corresponding pins on the 96-way P2 to 24-way header connector on the module Page 12 of 25 Row c Row b Row a (24) (23) (22) (24) (23) (22) (24) (23) (22) (24) (23)

  • Page 13: Module Interface Connector

    i4000 - Quad M-module carrier for VMEbus User Manual 3.2.3. M- MODULE NTERFACE The following table provides signal names for the M-module male connector that is used by the i4000. The connector consists of two rows of pins labelled rows A and B. The M-module specification also defines a third row (C).
  • Page 14 i4000 - Quad M-module carrier for VMEbus User Manual Page 14 of 25 Version: 1.2 AcQuisition Technology bv P.O. Box 627, 5340 AP Oss, The Netherlands...

  • Page 15: Vme Bus Interface

    i4000 - Quad M-module carrier for VMEbus User Manual NTERFACE 4.1. DDRESS NTERFACE The i4000 can be selected to accept either short addressing, using 16-bit addresses (A16) or standard addressing, using 24-bit addresses (A24). When using short addressing up to 32 i4000 boards can be put in a single VMEbus system since the lower 11 address lines (A0-A10) are used internally on the i4000.

  • Page 16: The Interrupter

    i4000 - Quad M-module carrier for VMEbus User Manual 4.2. NTERRUPTER The i4000 has a interrupter which is largely compatible with the MC68C153. The interrupter is a so called D08(O) type interrupter which means that the interrupter during an interrupt acknowledge cycle will put a status byte on the data lines D0-D7.

  • Page 17: Dipswitchl

    i4000 - Quad M-module carrier for VMEbus User Manual 4.3. IPSWITCH OCATIONS The location of the dip switches to select the base address (SW2 and SW3) and the dip switch to select the interrupt request level (SW1) can be found at the following locations: Figure 6 AcQuisition Technology bv P.O.

  • Page 18: Vme P1 C

    i4000 - Quad M-module carrier for VMEbus User Manual 4.4. P1 C ONNECTOR The following table provides signal names for the VMEbus P1 connector as used by the i4000. The connector consists of three rows of pins labelled rows A, B and C. Page 18 of 25 SSIGNMENTS Row A...

  • Page 19: Functional Description

    i4000 - Quad M-module carrier for VMEbus User Manual UNCTIONAL ESCRIPTION 5.1. LOCK IAGRAM Figure 7 i4000 block diagram The interrupt controller used on the i4000 is largely compatible with the MC68153 interrupt controller from Motorola. The interrupt controller provides means for the modules to ask for an interrupt of the processor activity and receive service from the processor.

  • Page 20: Address Mapping

    i4000 - Quad M-module carrier for VMEbus User Manual 5.1.2. A DDRESS APPING As mentioned before the address space occupied by the i4000 board is 0x800 bytes (A0-A10). These 0x800 bytes are divided into 4 identical spaces. Every 0x200 bytes block is assigned to a module slot. The first 0x100 bytes address space are assigned to the module itself and the second 0x100 bytes are used for the access part of the interrupt controller.

  • Page 21: Ontrol Egister

    i4000 - Quad M-module carrier for VMEbus User Manual 5.1.3. C ONTROL EGISTER Control Register Reset: Write only L2-L0 (Interrupt level) The least significant 3-bit field of the register determines the level at which an interrupt will be generated. These three bits are only used in the i4000/NP2 interrupt controller, if the interrupt level dipswitches are set to software irq level (all “on”).
  • Page 22 i4000 - Quad M-module carrier for VMEbus User Manual Page 22 of 25 Version: 1.2 AcQuisition Technology bv P.O. Box 627, 5340 AP Oss, The Netherlands...

  • Page 23: Annex

    i4000 - Quad M-module carrier for VMEbus User Manual NNEX 6.1. OMPONENT MAGE Figure 8 i4000/NP2 component view 6.2. IBLIOGRAPHY M-Module Standard: ANSI/VITA 12-1996, M-Module Specification; VITA, PO Box 19658, Fountain Hills, AZ 85269, USA Phone (1)(480)8377486 http://www.vita.com APIS Programmer’s Manual AcQuisition Technology P.O.

  • Page 24: Ata

    i4000 - Quad M-module carrier for VMEbus User Manual 6.3. ECHNICAL Slots on the base-board: Up to four modules can be plugged onto the baseboard. A huge number of baseboards in one VME system is supported. Connection: To base-board via VME connector. 4 x M-module interface.
  • Page 25 i4000 - Quad M-module carrier for VMEbus User Manual AcQuisition Technology bv P.O. Box 627, 5340 AP Oss, The Netherlands Version: 1.2 Page 25 of 25...
