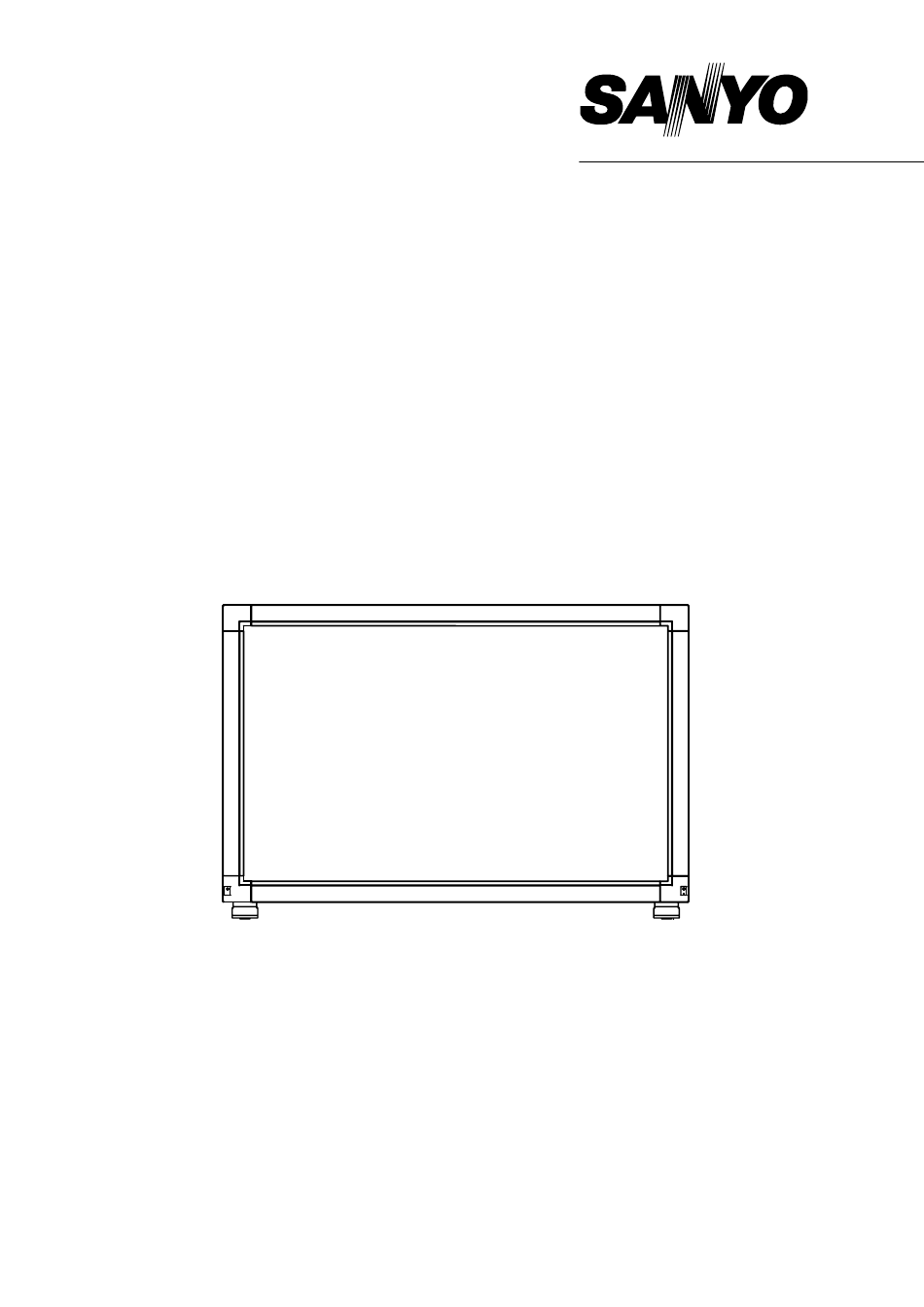

- Page 1 INSTRUCTION MANUAL PLL404W-B0X1 40inch Multimedia LCD monitor...
- Page 2 FCC DECLARATION OF CONFORMITY This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device has been tested and found to comply with the limits for Class B Personal Computers and peripherals, pursuant to Part 15 of the FCC Rules.
-
Page 3: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ..............1 SAFETY PRECAUTIONS ........... 1 SPECIAL NOTES ON LCD MONITORS ....... 3 CLEANING ................. 3 BEFORE YOU OPERATE THE MONITOR ........4 FEATURES ................. 4 CHECKING THE CONTENTS OF THE PACKAGE ....4 INSTALLATION .............. -
Page 4: For Your Safety
FOR YOUR SAFETY SAFETY PRECAUTIONS WARNING STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer immediately. Further use may be dangerous and can cause fire or electric shock. - Page 5 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 6: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitors and do not indicate a problem. NOTE When you first turn on the LCD monitor, the picture may not fit in the display area because of the type of computer that is used. In this case, adjust the picture position to its correct position. -
Page 7: Before You Operate The Monitor
BEFORE YOU OPERATE THE MONITOR FEATURES u 39.6” Wide Screen TFT Color LCD Monitor u Supports Resolutions up to 1280 × 1024 (down scale) u Super Wide Viewing Angle and High Contrast u Digital Character Smoothing u Automatic Set-up u Plug & Play VESA DDC2B Compliant, Windows 95/98/2000/Me/XP Compliant ®... -
Page 8: Installation
INSTALLATION CAUTION The monitor is heavy. Two person handling is recommended. Install the stand on a stable surface. The monitor may cause injury or damage if it falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. Unplug the monitor before installation to avoid electric shock or damage. -
Page 9: Controls And Connectors
CONTROLS AND CONNECTORS <Front> A Input Button (INPUT) B Auto Button (AUTO) Adjusts Clock, Phase, H Position and V Position automatically. NOTE n For best results, use the Auto Set-up in conjunction with the test pattern Test.bmp. (See page 26 for SCREEN ADJUSTMENTS.) C Menu Button (MENU) D Volume / Cursor Left/Right Button ( E Cursor Down / Up Button (... - Page 10 <Back> Handles NOTE Composite Video Connector (VIDEO)* Alternative connectors of Composite Video Connector (VIDEO)* Signal from one of connectors Component Video Connector (Y, Pb, Pr) connected to the signal source is D-SUB mini 15pin Connector (D-SUB) output. DVI-D 24pin Connector (DVI) Active signal from one of connectors RS-232C Connector (RS-232C) is output.
- Page 11 A AUDIO / VIDEO / PC (Video / Audio Input Signal Select) <Remote Control> B V.MODE (Video Mode) This is switched as follows when you successively press the button when PC or AV equipment is connected. Standard Movie Game C Auto Button (AUTO) Only Analog Input of PC Adjusts Clock, Phase, H Position and V Position automatically.
-
Page 12: Preparing The Remote Control
PREPARING THE REMOTE CONTROL To use the remote control, insert the two dry batteries. Do not use any other batteries other than those specified in this manual for the CAUTION Remote Control. Do not insert old and new batteries together in the Remote Control. Make sure that the terminals match the “+”... -
Page 13: Connecting Your Monitor
CONNECTING YOUR MONITOR A Ensure that both the computer and the monitor are switched off. B Connect the computer to the monitor with the signal cable. (See page 32 for CONNECTOR PIN ASSIGNMENT.) C Connect the RS-232C cable to the computer while using the RS-232C control feature. D Connect the monitor to the audio equipment with the Audio Cable for computer when using the audio features. -
Page 14: Computer Setting
COMPUTER SETTING n Signal Timing Change to the desired signal timings listed on page 31 in COMPLIANT TIMING, after you confirm that the picture appears normally. n Windows 95/98/2000/Me/XP Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 15: Basic Operation
BASIC OPERATION n Turn on the monitor Press the Main Power Switch of back on the monitor. The [ Remote Control ] monitor is turned ON when you press the Power Button Press the Power Button. on the monitor or the Remote Control. Press again to turn OFF the monitor. - Page 16 n Move the cursor vertically Select adjustment by pressing the cursor Down/Up Button [ Remote Control ] ) or the cursor Button ( ) while the menu page P r e s s t h e cursor ( is displayed on the screen. Button.
- Page 17 n Switch the input signal [ Monitor ] Press the Input Button. [ Remote Control ] Press the AUDIO/VIDEO/PC Button. This is switched when you successively press the Input Button on the monitor or AUDIO/VIDEO/PC Button on the Remote Control as follows: Signal Select Sound Select ! Audio input are switched as follows by...
-
Page 18: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 31. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 26 for SCREEN ADJUSTMENTS. ( ( ( ( ( Press the Menu Button on the monitor or the Remote Control to start the On Screen Display feature. -
Page 19: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS PC Input Menu : Picture Control Picture Control (PC) Standard Video Mode Brightness Contrast Sharpness Adjustment Item Problem / Option Button to Press Standard Normal Movie Suitable for a dark screen such as movie Video Mode Game Suitable for Games Too dark Brightness... - Page 20 Menu : PIP/PBP PIP/PBP (PC) Adjustment Item Problem / Option Button to Press PIP/PBP function is turned off. Mode Sub screen is too small. PIP Size Sub screen is too large. PIP= Picture in Picture: Sub screen is too far to the left. H Position With this function, you Sub screen is too far to the right.
- Page 21 Menu : Function Function (PC) Center OSD Position Economy Mode Power Indicator Language English Auto Gain Reset Adjustment Item Problem / Option Button to Press OSD Position UL/BL/Cent./UR/BR Cent. You can move the OSD display area to any one of the following 5 positions within the overall display: Press the Button to move the OSD in numerical order.
- Page 22 Menu :Extended Control Extended Control (PC) Color Control User Green Blue Auto Dimmer User Dimmer Gamma Normal Adjustment Item Problem / Option Button to Press Too weak Color Control* User Green Too strong Blue 9300K Bluish white (Approx. 9300K) 7500K Yellowish white (Approx.
- Page 23 Menu : Image Control Image Control (PC) H Position Digital input of PC is Full V Position Screen only. Clock Phase Full Screen Full Auto Set-up Adjustment Item Problem / Option Button to Press Too far to the left H Position* Too far to the right Too low V Position*...
- Page 24 Video Component Input Menu : Picture Control Picture Control (Video Component) Video Mode Standard Brightness Contrast Color Tint Sharpness Adjustment Item Problem / Option Button to Press Standard Normal Movie Suitable for a dark screen such as movie Video Mode Game Suitable for Games Too dark...
- Page 25 Menu : PIP/PBP PIP/PBP (Video Component) Adjustment Item Problem / Option Button to Press PIP/PBP function is turned off. Mode Sub screen is too small. PIP Size Sub screen is too large. PIP= Picture in Picture: Sub screen is too far to the left. H Position With this function, you Sub screen is too far to the right.
- Page 26 Menu : Function Function (Video Component) Center OSD Position Economy Mode Power Indicator Language English Noise Reducer Film Mode Reset Adjustment Item Problem / Option Button to Press OSD Position UL/BL/Cent./UR/BR Cent. You can move the OSD display area to any one of the following 5 positions within the overall display: Press the Button to move the OSD in numerical order.
- Page 27 Menu :Extended Control Extended Control (Video Component) Color Control User Green Blue Auto Dimmer User Dimmer Gamma Normal Adjustment Item Problem / Option Button to Press Too weak Color Control* User Green Too strong Blue 9300K Bluish white (Approx. 9300K) 7500K Yellowish white (Approx.
-
Page 28: Screen Adjustments
Menu : Image Control Image Control (Video Component) H Position V Position Full Screen Full Adjustment Item Problem / Option Button to Press Too far to the left H Position* Too far to the right Too low V Position* Too high Full Expansion display. -
Page 29: Screen Adjustments
SCREEN ADJUSTMENTS Adjust the image by following the procedure below to get the desired picture when selecting Analog input. n The screen adjustments described in this manual are designed to set image position and minimize flicker or blur for the particular computer in use. n The monitor is designed to provide the best performance at resolution of 1280 ×... - Page 30 C C C C C Press the Auto Button. (Auto Set-up) D D D D D Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Set-up.
-
Page 31: Power Management Feature
G G G G G Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern. n In case the strong flicker or blurs remain on a part of the screen, repeat steps F and NOTE G because the Clock may not be adjusted correctly. -
Page 32: Trouble Shooting
TROUBLE SHOOTING If the monitor fails to operate correctly, please follow the steps below for a possible solution. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem you have. If the monitor does not get a picture, skip to 2. 2. -
Page 33: Appendix
APPENDIX SPECIFICATIONS Driving system a-Si TFT Active Matrix Panel Size Diagonal: 100.5cm / 39.6" Pixel pitch 0.6735mm H × 0.6735mm V Brightness 450cd/m (Typical) Contrast ratio 700 : 1 (Typical) Viewable angle Right / Left / Up / Down: 85 degrees each Response time 22ms (Black, white, black) Display Colors... -
Page 34: Dimensions
DIMENSIONS 951mm/37.4" 143mm/5.6" 865mm/34.1" 52mm/2.0" COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 37.861kHz 72.809Hz 640 × 480 31.500MHz 37.500kHz 75.000Hz 31.500MHz 37.879kHz 60.317Hz 40.000MHz SVGA 800 × 600 48.077kHz 72.188Hz 50.000MHz 46.875kHz 75.000Hz 49.500MHz VESA 48.363kHz 60.004Hz... -
Page 35: Connector Pin Assignment
CONNECTOR PIN ASSIGNMENT D-SUB mini 15pin Input Signal Input Signal Connector 5V in Red video Green video Ground Blue video Ground Data line (SDA)* H-Sync Red video ground V-Sync Green video ground Clock line (SCL)* Blue video ground * Compliant to VESA DDC. DVI-D 24pin Connector Input Signal Input Signal... - Page 36 n PC BNC Connectors Input Signal Green Blue H-Sync V-Sync Separate Sync Green Blue Composite Sync HV-Sync Green/ Sync On Green Blue HV-Sync n Component Video Connectors Input Signal Brilliance Signal Chrominance Difference Signal Chrominance Difference Signal n S-Video Connectors Input Signal n Composite Video Connectors (RCA) Input Signal...
- Page 37 Part No. 870Z277A03R SANYO Electric Co., Ltd.
