Summary of Contents for GENERAL COOKING GEW Series

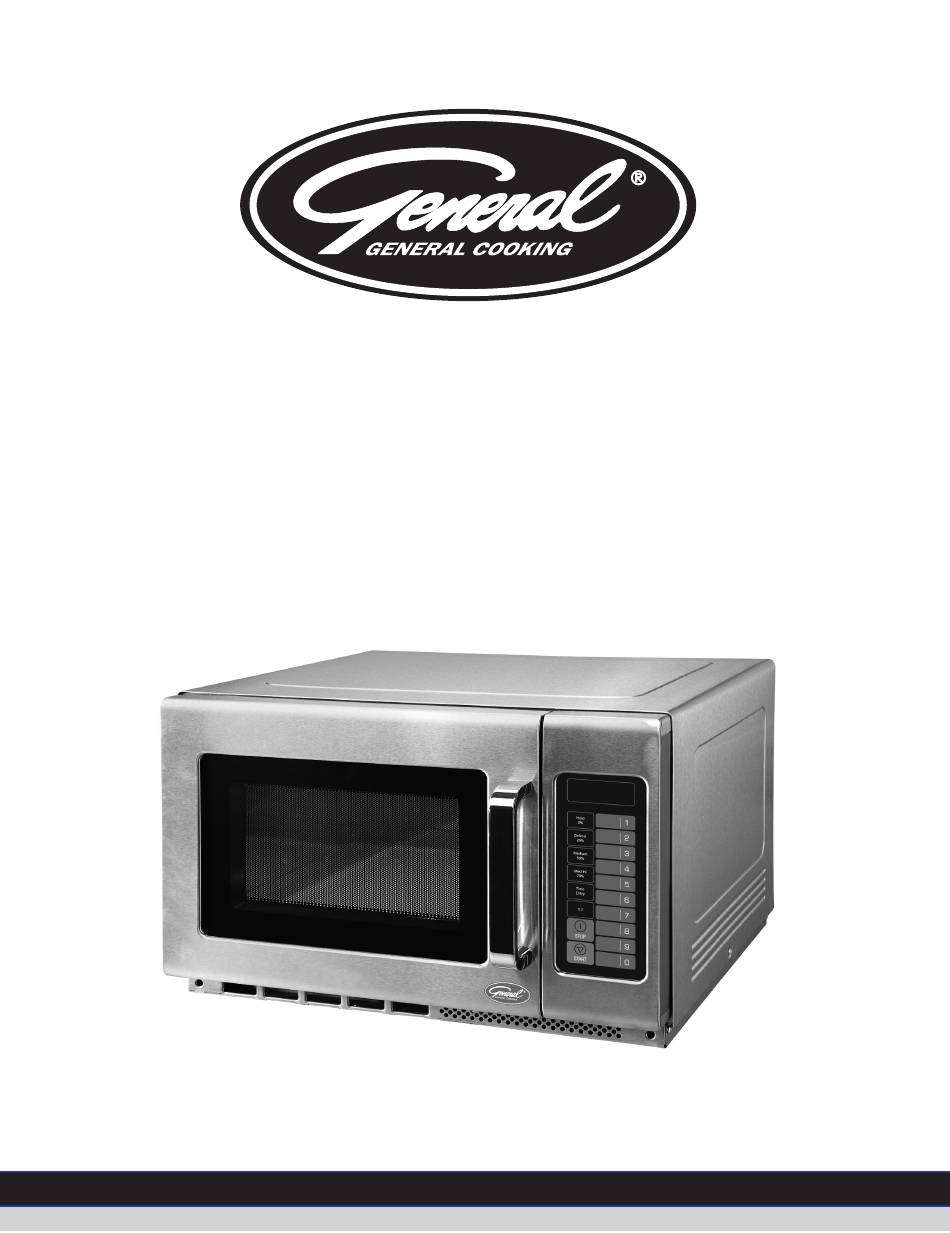

- Page 1 INSTRUCTION MANUAL GEW SERIES MICROWAVES GEW1100E, GEW1800E-C, GEW2100E 2014May...
- Page 2 Model:GEW1100E, GEW1800E, GEW2100E Read these instructions carefully before using your microwave oven, and keep it carefully. If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS CAREFULLY...
-
Page 3: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allows soil or cleaner residue to accumulate on sealing surfaces. - Page 4 SAFETY 1. The oven must be on a leveled surface. 2. The turntable and turntable roller rest must be in the oven during cooking. Place the cookware gently on the turntable and handle it carefully to avoid possible breakage. 3. Incorrect use of browning dish may cause the turntable to break. 4.
-
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances basic safety precautions should be followed, including following: To reduce the risk of burns, electric shock, fire, injury to persons or exposure WARNING - to excessive microwave energy: 1. Read all instructions before using the appliance. 2. -
Page 6: Grounding Instructions
THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons: 1) Do not overheat the liquid. 2) Stir the liquid both before and halfway through heating it. 3) Do not use straight-sided containers with narrow necks. -
Page 7: Radio Interference
RADIO INTERFERENCE 1. Operation of the microwave oven may cause interference to your radio, TV or similar equipment. 2. When there is interference, it may be reduced or eliminated by taking the following measures: 1) Clean door and sealing surface of the oven 2) Reorient the receiving antenna of radio or television. -
Page 8: Materials You Can Use In Microwave Oven
Materials you can use in microwave oven Utensils Remarks Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls. -
Page 9: Setting Up Your Oven
Metal twist ties May cause arcing and could cause a fire in the oven. Paper bags May cause a fire in the oven. Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood Wood will dry out when used in the microwave oven and may split or crack. -
Page 10: Countertop Installation
Countertop Installation Remove all packing material and accessories. Cabinet: Remove any protective film found Examine the oven for any damage such as on the microwave oven cabinet surface. dents or broken door. Do not install if oven is Do not remove the light brown Mica cover damaged. -
Page 11: Cleaning Instructions
Cleaning Instructions Always keep the oven clean 1. Cleaning the glass viewing window, the inner door panel and oven front face. For best performance and to maintain the high degree of safety, the inner door panel and oven front face should be free of food or grease build-up. Wipe these parts with a mild detergent, rinse and wipe dry. -
Page 12: Control Panel And Features
OPERATION Control Panel and Features (1) Power Buttons (2) Time Entry Button (3) Double Quantity Button (4) Stop/Reset Button (5) Start Button (6) Number Keyboard... -
Page 13: Appendix. A User Options
OPERATION INSTRUCTION Appendix. A User Options Items bolded below are the default values. Option Discription Setting 3 seconds beep OP:10 Continuous beep OP:11 EOC Tone 5 quick beeps,Repeating OP:12 Beeper Off OP:20 OP:21 Beeper Medium OP:22 Volume High OP:23 Keybeep Off OP:30 Beeper Keybeep On... - Page 14 Appendix. B Default Cook Times The oven shall ship with the following Preset Cook Times unless otherwise noted in the product Specification. Button Display (Time) Cook Factors Power 0:10 100% 0:20 100% 0:30 100% 0:45 100% 1:00 100% 1:30 100% 2:00 100% 2:30...
-
Page 15: Idle Mode
1. Power Up _ _ _ _ _ _ _ " " displays when the oven is electrified for the first time. If " " button pressed, the oven will change to idle mode. Note: Under idle mode, no button can be pressed. 2. - Page 16 5. Pause Mode 1) This mode allow the users to temporarily stop the cooking cycle to inspect or stir the food item. 2) While in Manual Cook Mode, or Preset Program Cook Mode, if the door is open or closed, or if the " "...
- Page 17 3) If either User Option OP:11 or OP:12 is selected, the oven shall continue to sound until the user acknowledges this by either opening and closing the door or pressing the " " pad. If User Option OP:10 is selected, after the 3 second beep, the oven shall go into Idle Mode.
- Page 18 5) After setting the time and power, press " ", the cooking program will be saved. When the program saved, "PROGRAM" display 6) If all the cooking time exceeds the MAX.time User Option 7, when press " " to save the program, the buzzer will sound three times briefly tell you the time is no use.
-
Page 19: Stage Cooking Programming
3) Press "X2", "DOUBLE" displays. When press number buttons, the screen will display the quantity preset time. For example, number button "5" and its preset time is 1 minute. Then press "X2", then time will change to 1:00*(1+0.8)=1:48(1 minute and 48 seconds). 4) When cooking program finish, the oven will enter End of Cook Cycle Mode. -
Page 20: Service Mode
The screen displays "OP: - -". 3) Press any number button to enter related mode setting. For example: to set the voice of the buzzer to medium. Press " 2 ", "OP:22" displays. If you want to change, keep pressing "2", the screen displays "OP:20", "OP:21","OP:22", "OP:23","OP:20"... - Page 21 How to remove and install the filter Pull up the plastic nail cap Take off the fil er . To restall,align the base plate mounting holes, insert the plastic nails,press the plastic nail cap...
- Page 22 How to remove and install the blockage Warning:Before remove and install the oil blockage, be sure to unplug the appliance from the power supply,and avoid high temperature scald. thumb pressed here 1 hands with oil blockage ,pressed on 1.Hands to take the oil blockage ,after alignment arrow shown,pushed back slamly, then...
-
Page 23: Maintenance
MAINTENANCE Troubleshooting Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center. TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY a. Electrical cord for oven is a. - Page 24 Installation (supplement) 1. The switching operation of this microwave oven can cause voltage fluctuations on the supply line. The operation of this oven under unfavorable voltage supply conditions can have adverse effects. This device is intended for the connection to a power supply system with a maximum permissible system impedance Zmax of 0.2 Ohms at the interface point of the user’s supply.
- Page 25 NOTES...
- Page 26 A DIVISION OF THE LEGACY COMPANIES 3355 Enterprise Ave. Suite 160 Fort Lauderdale, FL 33331 Tel: 954.202.7419 Fax: 954.202.7337 www.generalfoodservice.com PN:261800317690...
