C&H Technologies EM405D100 Specification Sheet

Specifications:

Number of Channels: 32, 64 or 128
Sample Rate: up to 5 Msps
Input Debounce:
Software selectable
Input Specifications:
Threshold Resolution
Threshold Range
Threshold Accuracy
Max. Input Voltage
Input Hysteresis
Input Impedance
Input Current
Input Masking:
Allows selection of bits to be
monitored
Local Memory:
32K deep (data and 31–bit
timestamp)
Input Polarity: Software Selectable
C&H Technologies, Inc.
(512) 733-2621
Sampling Strobe:
• Internal: to 5 MHz
• Front Panel: to 5 MHz
• Backplane Trigger: to 5 MHz
• Source and prescaler software
0 to 128 ms
programmable
Interrupts:
• Data Stored
100mV
• FIFO Half-Full
0 to 25.6V
• FIFO Full
±0.5% of FS
• Time-Stamp Rollover
48V
• Change of State
25mV
• Level Transition
>100K_
• Bit Pattern
<300_A
I/O Connectors:
• 44 pin DSUB
Indicators:
Temperature:
Operating
Storage
445 Round Rock West Drive
•
FAX (512) 733-2629
•
Power
Module Access
LAN Status
0° C to 50° C
-40° C to 70° C
Round Rock, TX 78681-5012
•
www.chtech.com
•
Ethernet
Event Detector
Instruments

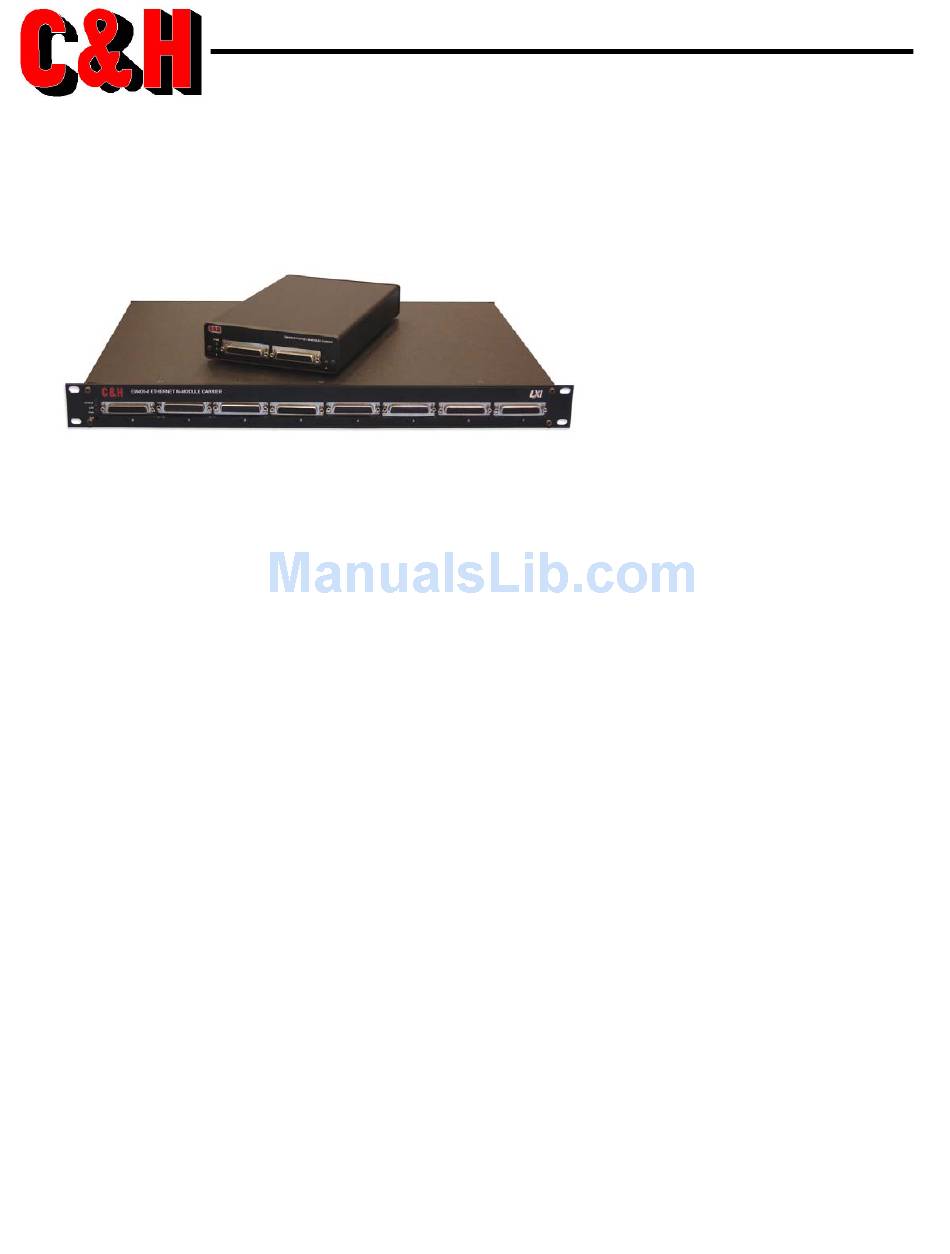

The EM405D100, EM405-8x106
and EM405-8x107 are 32, 64, and
128 channel input modules that
sample and selectively store up to
128 bits of data along with a 31 bit
time tag at rates up to 5 MSPS.
These instruments have the ability
to store all data at the specified
sample rate or to selectively store
input values based upon changes in
state on one or more of the inputs.
Each version is 1U high with the 32
channel unit designed for bench
applications and the 64 and 128
channel version for rack mounting.
Networking
• Easy network configuration
through web based interface
• TCP/IP and UDP/IP supported
for M-module communication
• Static IP, DHCP, and AutoIP
addressing supported
• Ethernet 10Base-T or 100Base-
TX (Auto Sensing)
Applications
• Acquisition of transient signals
• Real-time data compression
• Logic Analysis
• Event counting

Additional Information

User Manuals for this carrier and
C&H M-modules can be found on
our website at www.chtech.com.
Rev. *
