BT-523 Dongle Specification
<Product Descriptions>

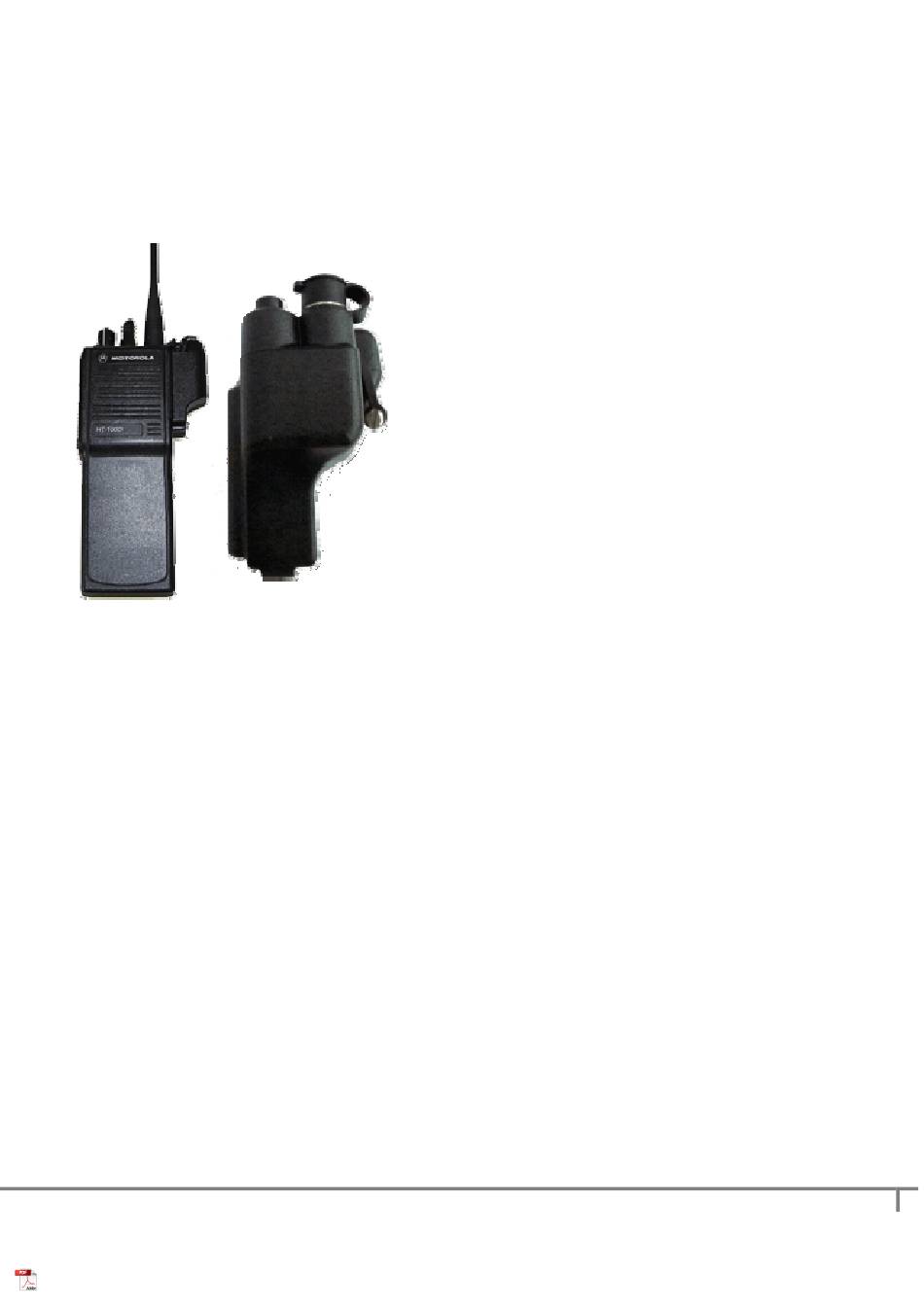

• The dongle fits for Motorola HT-1000
multi-pins radio.
• The dongle is compatible with many
Bluetooth headsets on the aftermarket.
• Just one-time pairing with wireless
headset/accessory
<Specification>
Type: Bluetooth Dongle for Portable Radio
Temp: -20℃±2℃ ~ 50℃±2℃
Approx. Weight: 30g
• Fully Qualified Bluetooth 5.0.
• Echo cancellation, noise reduction, also
extended features.
• High-Quality DAC, Qualcomm CVC built-in.
• 80MHz RISC MCU and 80MIPS Kalimba
DSP.
• No battery, no need charging.
• RoHS compliant.
• HSP / HFP / BLE profile support.
• PTT function: built-in.
• Talking Range: Bluetooth class 2, 10 meters.
• Display LED: Blue and Red.
• TX Current: 16 mA (Average).
• Talk time based on radio.
1
Advertisement
Table of Contents
Related Manuals for PRYME BT-523
Summary of Contents for PRYME BT-523
- Page 1 BT-523 Dongle Specification <Product Descriptions> • The dongle fits for Motorola HT-1000 multi-pins radio. • The dongle is compatible with many Bluetooth headsets on the aftermarket. • Just one-time pairing with wireless headset/accessory <Specification> Type: Bluetooth Dongle for Portable Radio Temp: -20℃±2℃...
- Page 2 This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna during transmitting. FCC ID:XTS-BT-523...
- Page 3 Uer Manual <Procedure for Pairing Bluetooth headset device to Dongle> (Note: The Bluetooth-PTT needs to switch off before performing the following steps if it has been connected to the dongle) 1. Switch the dongle power on while pressing and holding the PTT button at the same time for about 3 seconds.
