olympia electronics i-OLEG LumiGate GR-7610/V2 Manual

GR-7610/V2 i-OLEG Olympia Electronics LumiGate

TECHNICAL CHARACTERISTICS

OPERATION VOLTAGE
POWER CONSUMPTION
BATTERY TYPE
BATTERY PROTECTION
CPU
RAM / FLASH MEMORY
INDICATION LEDS
BUTTONS
1x USB 2.0 port, 1x USB 3.0 port, 1x Ethernet port (RJ-45),
CONNECTIVITY
DISPLAY
DURATION
HOUSING MATERIALS
COLOUR
IP RATING
EN 62479:2010, EN 62311:2008, EN 62368-1:2014 +AC:2015,
PRODUCED IN ACCORDANCE WITH
EN 55032:2013 +AC:2013, EN 55024:2010, ETSI EN 300 328 V2.1.1
MOUNTING METHODS
AMBIENT TEMPERATURE RANGE
STORAGE TEMPERATURE RANGE
MAXIMUM RELATIVE HUMIDITY
WEIGHT
DIMENSIONS (L x W x H)
Warranty

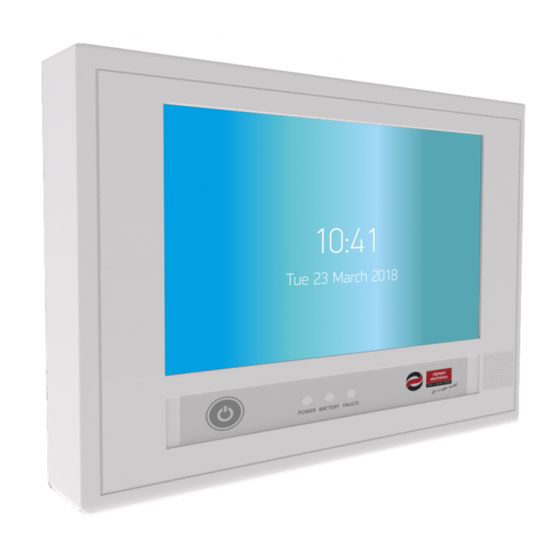

The GR-7610/V2 is the control device of the Wireless
Emergency Lighting. The Phos4.0 software is pre-installed in the
GR-7610/V2.

Features:

• Status indication LEDs (Power, Battery, Fault)
• 1x Ethernet connection (RJ45)
• 2x USB connection
• 1x HDMI connection
• WiFi Connection (802.11 b/g/n)
• System buzzer (alert on system fault)
• 1 hour of emergency duration
Button functions - BT1:
• Long press (>3s): Turn-on and turn-off the device.
Button function - BT2:
• Reset the system.
Page 1 of 3
220-240VAC / 50-60Hz
23VA
SPA 6V/1.3Ah (Lead acid)
over-charge / deep-discharge
quad-core 1.8GHz
2GB / 32GB
Power / Battery / Faults
Power ON / Reset
1x HDMI port, Wi-Fi 802.11 b/g/n
7" capacitive touch IPS display (1024x600)
1Hour
ABS/PC
White
IP20
ETSI EN 301 489-1 V1.9.2, ETSI EN 301 489-17 V2.2.1,
Wall mounting / Desktop
o
5 to 40 C
o
-40 to 70 C
Up to 95%
1002gr.
220 x 66 x 145 mm
2 years (1 year for the battery)
POWER BATTERY FAULTS
923761001_09_001
