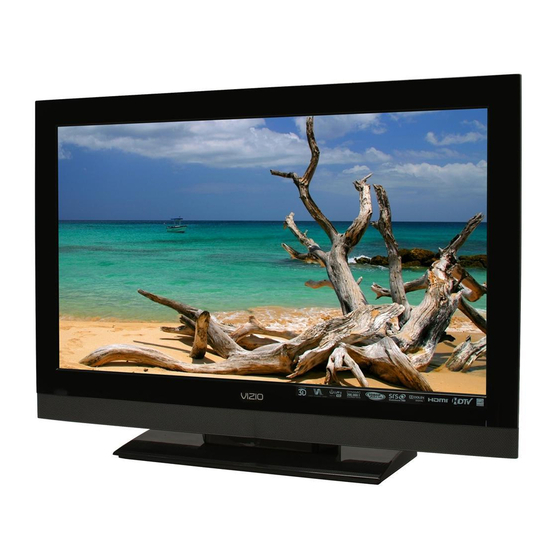

Vizio E3D420VX User Manual
Theater 3d™ lcd hdtv with vizio internet apps
Hide thumbs
Also See for E3D420VX:
- Quick start manual (25 pages) ,
- User manual (66 pages) ,
- Quick start manual (21 pages)
Related Manuals for Vizio E3D420VX
Summary of Contents for Vizio E3D420VX

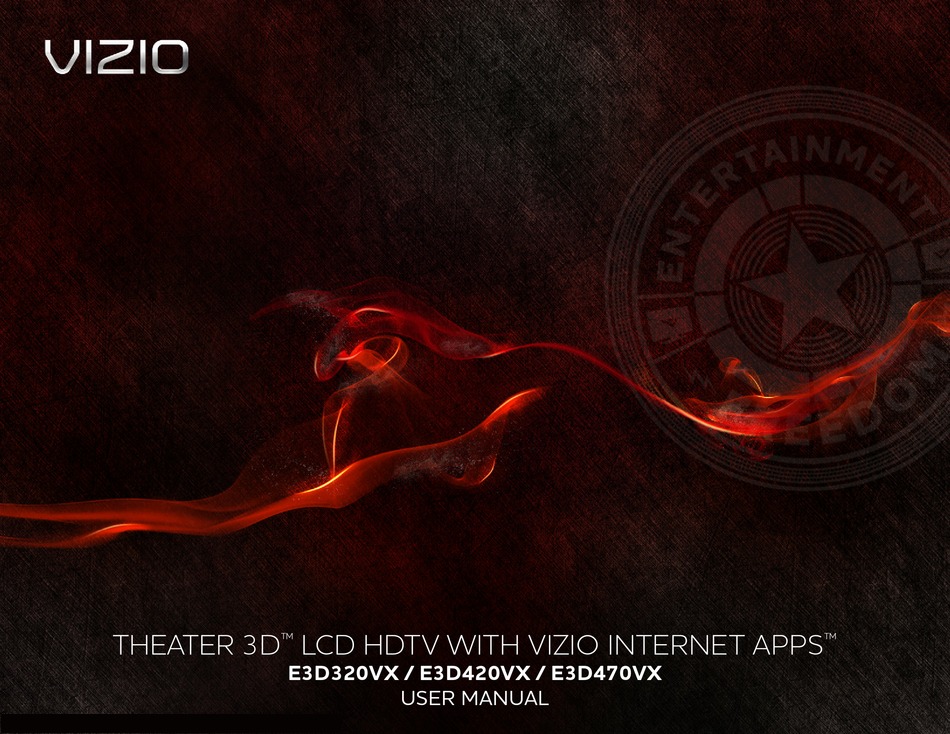

- Page 1 THEATER 3D LCD HDTV WiTH Vizio inTERnET Apps ™ ™ E3d320vx / E3d420vx / E3d470vx user manual...
- Page 2 SRS StudioSound HD is a trademark of SRS Labs, Inc. StudioSound HD technology is incorporated under license from SRS Labs, Inc. This product qualifies for ENERGY STAR in the “factory default” setting and this is the setting in which power savings will be achieved.
- Page 3 Thank You for Choosing VIZIO And congratulations on your new VIZIO HDTV. To get the most out of your new VIZIO product, read these instructions before using your product and retain them for future reference. Be sure to inspect the package contents to ensure there are no missing or damaged parts.
- Page 4 • Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of your TV and to protect it from overheating, be sure these openings are not blocked or covered. Do not place your TV in a bookcase or cabinet unless proper ventilation is provided. • Never push any object into the slots and openings on your TV cabinet. Do not place any objects on the top of your TV. Doing so could short circuit parts causing a fire or electric shock. Never spill liquids on your • Your TV should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. • Do not apply pressure or throw objects at your TV. This may compromise the integrity of the display. The manufacturer’s warranty does not cover user abuse or improper installations. • The power cord must be replaced when using different voltage than the voltage specified. For more information, contact your dealer. • Your TV is equipped with a three-pronged grounded plug (a plug with a third grounding pin). This plug will fit only into a grounded power outlet. This is a safety feature. If your outlet does not accommodate the three-pronged, have an electrician install the correct outlet, or use an adapter to ground your TV safely. Do not defeat the safety purpose of the grounded plug. • When connected to a power outlet, power is always flowing into your TV. To totally disconnect power, unplug the power cord. • The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of un-isolated, dangerous voltage within the inside of your TV that may be of sufficient magnitude to constitute a risk of electric shock to persons. E3D320VX / E3D420VX / E3D470VX...
- Page 5 E3D320VX / E3D420VX / E3D470VX • Do not overload power strips and extension cords. Overloading can result in fire or electric shock. • The wall socket should be installed near your TV and easily accessible. • Only power of the marked voltage can be used for your TV. Any other voltage than the specified voltage may cause fire or electric shock. • Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms. • Unplug your TV during a lightning storm or when it will not be used for long period of time. This will protect your TV from damage due to power surges. • Do not attempt to repair or service your TV yourself. Opening or removing the back cover may expose you to high voltages, electric shock, and other hazards. If repair is required, contact your dealer and refer all servicing to qualified service personnel. • WARNING: Keep your TV away from moisture. Do not expose your TV to rain or moisture. If water penetrates into your TV, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock. • Do not use your TV if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your dealer immediately. Do not try to repair your TV yourself. • Avoid using dropped or damaged appliances. If your TV is dropped and the housing is damaged, the internal components may function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of your TV may cause fire or electric shock. • Do not install your TV in an area with heavy dust or high humidity. Operating your TV in environments with heavy dust or high humidity may cause fire or electric shock.
- Page 6 Antenna Lead In Wire List of US Television Stations: www.high-techproductions.com/usTVstations.htm Antenna Discharge Unit (NEC Section 810-20) Grounding Conductors (NEC Section 810-21) Ground Clamps E3D320VX / E3D420VX / E3D470VX Your TV comes with a built-in tuner capable of processing digital broadcasts. No extra converter box is needed.
- Page 7 E3D320VX / E3D420VX / E3D470VX Important Safety Information for Viewing 3D Content You may experience discomfort while watching 3D content. You may feel symptoms of eye strain, vision fatigue, color or depth distortion, motion sickness, nausea, dizziness, disorientation, or other discomforts. If you experience any of these symptoms, stop watching and take a break for at least thirty minutes before resuming.
-
Page 8: Table Of Contents
Resetting the Content Locks ... 25 Changing the Names of the Inputs ... 26 Changing the On-Screen Menu Language ... 26 Setting the Time Zone ... 27 Adjusting the CEC Settings ... 27 Turning the VIZIO Logo On or Off ... 28 Table of Contents... - Page 9 E3D320VX / E3D420VX / E3D470VX Using the Help Menu ... 28 Displaying System Information ... 28 Resetting the TV Settings ... 28 Restoring the TV to Factory Default Settings ... 29 Using Guided Setup ... 29 Using the Digital Episode Guide ... 30 Using the Info Window ...
-
Page 10: Installing The Tv
Before installing your new TV, take a moment to inspect the package contents. Use the images below to ensure nothing is missing or damaged. When you have completed your inspection, install the TV. VIZIO 3D LED LCD HDTV with Stand User Manual and 1 Pair Basic... -
Page 11: Installing The Tv On A Wall
4. Attach your TV and wall mount to the wall, carefully following the instructions that came with your mount. Use only with a UL-listed wall mount bracket rated for the weight/load of this TV. See Appendix A - Specifications for the weight of this TV. E3D320VX / E3D420VX / E3D470VX... -
Page 12: Installing Your Tv For 3D Viewing
E3D320VX / E3D420VX / E3D470VX Installing Your TV for 3D Viewing For the best viewing experience, VIZIO recommends that you install the TV with the viewing distance and viewing angle in mind. When viewing 3D content, it is important that you view the TV straight-on, or some of the 3D effect may be lost. -
Page 13: Controls And Connections
Rear Panel PC Audio In Ethernet RGB PC HDMI (1, 2) HDMI (3) E3D470VX ONLY Component RCA Audio In (For use with HDMI ports) AC IN RGB PC: Connect RGB cable from computer. PC Audio In: Connect 3.5mm connector from computer. Ethernet: Connect ethernet cable from home network. -
Page 14: Remote Control
V Button Volume Up/Down Mute Number Pad QWERTY Keypad Arrow Power/Standby: Turn the TV on or off. App Launcher: Launch the VOD (VIZIO On-Demand), Netflix, or Power/Standby A/V Controls: Control external device (CEC-enabled devices only). A/V Controls Info Menu Arrow Arrow: Navigate the on-screen menu and episode guide. -
Page 15: Via Shortcut Buttons
• Keep batteries away from children and pets. Front Panel View Settings for Active VIA App VIA Shortcut Buttons Remote Control Sensor Remote Control Sensor: When using the remote, point it directly at this E3D320VX / E3D420VX / E3D470VX Front Panel sensor. -
Page 16: Connecting Your Devices
Connecting Your Devices Your HDTV can be easily connected to an external device: • DVD or Blu-Ray player • Video game console • Cable box • External antenna • Or other device Before You Begin To connect a device to the HDTV: 1. Verify that the device has one of the following types of video ports available: HDMI Component... - Page 17 Select one of the connection types. Use the cable(s) shown to connect the TV to your device. BEST BETTER GOOD HDMI COAXIAL COMPONENT COMPOSITE E3D320VX / E3D420VX / E3D470VX Select One: DIGITAL DIGITAL / ANALOG ANALOG ANALOG ANALOG Device Connection Chart...
-
Page 18: Setting Up Your Network Connection
E3D320VX / E3D420VX / E3D470VX Setting Up Your Network Connection Your TV is internet-ready, and can be connected to your home network in two ways: • Wired, using the RJ45 (ethernet) connector on the back panel • Wirelessly, using your home wireless network Once you have connected to your home network and the Internet, you can use VIA apps to deliver popular online content to your TV. -
Page 19: Completing The First-Time Setup
The first time you turn on the TV, the Setup App will guide you through each of the steps necessary to get your TV ready for use. Before you begin the first-time setup: • Your TV should be installed and the power cord should be connected to an electrical outlet. See Installing the TV on page 1. • Your devices should be connected. See Connecting Your Devices on page 7. -
Page 20: Using The On-Screen Menu
Using the On-Screen Menu Your TV features an easy-to-use on-screen menu. To open the on-screen menu, press the MENU button on the remote. You can also open the on-screen menu by pressing the VIA button and selecting HDTV Settings from the VIA Dock, then pressing OK. From this menu, you can: • Change the 3D mode • Set the screen aspect radio... -
Page 21: Setting The Screen Aspect Ratio
Stretch. Each mode displays content according to the content’s original format. Original Content Format 480p/480i (4:3) Normal Wide Zoom Panoramic Stretch Use the table below to determine the best aspect ratio for your content type. Areas in red will not be visible on your TV screen. 720p (16:9) 1080p/1080i (16:9) E3D320VX / E3D420VX / E3D470VX RGB (4:3) RGB (16:9) -
Page 22: Changing The Screen Aspect Ratio
E3D320VX / E3D420VX / E3D470VX Changing the Screen Aspect Ratio The TV can display images in four different modes: Wide, Zoom, Normal, and Stretch. Each mode displays the picture differently. To change the screen aspect ratio: 1. Press the MENU button on the remote. 2. Use the Arrow buttons to highlight the Wide icon. Press OK. -
Page 23: Changing The Appearance Of Digital Closed Captions
OK. The Timers menu is displayed. 4. Use the Up/Down Arrow buttons on the remote to highlight the period of time after which you want the TV to turn off: 30, 60, 90, 120, or 180 minutes. 5. Press OK, then press EXIT. E3D320VX / E3D420VX / E3D470VX... -
Page 24: Adjusting The Picture Settings
E3D320VX / E3D420VX / E3D470VX Adjusting the Picture Settings Your TV display can be adjusted to suit your preferences and viewing conditions. To adjust the picture settings: 1. Press the MENU button on the remote. The on-screen menu is displayed. 2. Use the Arrow buttons on the remote to highlight the TV Settings icon and press OK. -
Page 25: Adjusting The Picture Size And Position
Red/Green/Blue Offset - Adjusts the position of each color in the display. 4. If you want to reset the color temperatures to the factory default settings, highlight Reset Color Temperature and press OK. 5. When you have finished adjusting the color temperature, press the EXIT button on the remote. E3D320VX / E3D420VX / E3D470VX... -
Page 26: Adjusting The Advanced Picture Settings
E3D320VX / E3D420VX / E3D470VX Adjusting the Advanced Picture Settings To adjust the advanced picture settings: 1. From the Picture Settings menu, use the Arrow buttons on the remote to highlight More, then press OK. 2. Use the Arrow buttons on the remote to highlight Advanced Picture, then press OK. -
Page 27: Adjusting The Audio Settings
Surround or Standard. • SRS TruVolume - TruVolume™ intelligently normalizes volume fluctuations due to television commercials or channel changes. Select On or Off. • Digital Audio Out - Changes the type of processing for the Optical output when connected to a home theater audio system. Select Dolby Digital, PCM, or Off. • Analog Audio Out - Sets the volume control properties for the analog RCA (red/white) connectors when connected to a home theater audio system. Select Variable to control the external speakers’ volume from the TV’s volume controls, or select Fixed to control the external speakers’ volume from your home theater system controls. 3. When you have finished adjusting the advanced audio settings, press the EXIT button on the remote. E3D320VX / E3D420VX / E3D470VX... -
Page 28: Resetting The Audio Settings
E3D320VX / E3D420VX / E3D470VX Resetting the Audio Settings To reset the audio settings to the factory default settings: 1. Press the MENU button on the remote. The on-screen menu is displayed. 2. Use the Arrow buttons on the remote to highlight Audio and press OK. The Audio Settings menu is displayed. -
Page 29: Changing The Advanced Network Settings
1. From the Network Connection menu, highlight Test Connection and press 2. The Test Connection screen displays the connection method, network name, signal strength, and download speed of your network connection. 3. Press the EXIT button on the remote. E3D320VX / E3D420VX / E3D470VX... -
Page 30: Changing The Tv Settings
E3D320VX / E3D420VX / E3D470VX Changing the TV Settings Using the TV settings menu, you can: • Change the input source • Set up the TV tuner • Name the TV inputs • Set up parental controls • Change the on-screen menu language • Set the time • Adjust the CEC settings • Turn the VIZIO logo on or off Changing the Input Source External devices such as DVD players, Blu-Ray Players, and video game consoles can be connected to your TV. -
Page 31: Scanning For Channels
Number Pad on the remote to enter the number of the channel you are adding. 3. Highlight Add Channel and press OK. The TV scans for the channel. 4. When the TV is done scanning for the channel, press the EXIT button on the remote. E3D320VX / E3D420VX / E3D470VX... -
Page 32: Skipping Channels
E3D320VX / E3D420VX / E3D470VX Skipping Channels After a channel scan is completed, you may find that some channels are too weak to watch comfortably. There may also be some channels you do not want to view. You can remove these channels from the TV’s memory with the Skip Channel feature. -
Page 33: Using The Parental Controls
2. Highlight the channel you want to lock or unlock and press OK. 3. When a channel is locked, the Lock icon appears locked. The channel is not accessible unless the parental passcode is entered. 4. When a channel is unlocked, the Lock icon appears unlocked. The channel is accessible. E3D320VX / E3D420VX / E3D470VX... -
Page 34: Blocking And Unblocking Content By Rating
E3D320VX / E3D420VX / E3D470VX Blocking and Unblocking Content by Rating A channel may sometimes broadcast programs that are meant for children, and at other times broadcast programs that are meant for mature audiences. You may not want to block the channel completely using a channel lock, but you may wish to block certain programs from being viewed. -
Page 35: Changing The Names Of The Inputs
3. Use the Arrow buttons on the remote to highlight Menu Language and press OK. The Menu Language menu is displayed. 4. Highlight your preferred language (English, French, or Spanish) and press OK. 5. Press the EXIT button on the remote. E3D320VX / E3D420VX / E3D470VX... -
Page 36: Setting The Time Zone
E3D320VX / E3D420VX / E3D470VX Setting the Time Zone To ensure the correct time is displayed when you press the INFO button, set the TV’s time zone: To have the TV display the correct time, you must be connected to the internet via an Ethernet cable or a wireless network. -
Page 37: Turning The Vizio Logo On Or Off
Turning the VIZIO Logo On or Off The VIZIO logo on the front of your TV is set to light up when the TV is on. You can change this setting if you prefer the logo to be off. When the TV is off, the VIZIO logo will be a dim orange color. This is not affected by the LED Logo Settings menu. -
Page 38: Restoring The Tv To Factory Default Settings
E3D320VX / E3D420VX / E3D470VX Restoring the TV to Factory Default Settings All of the on-screen menu settings can be reset to the factory defaults. If you restore the TV to the factory default settings, all changes you have made to the settings will be lost! To restore the TV to its factory default settings: 1. -
Page 39: Using The Digital Episode Guide
Current Channel Previous Channel Upcoming Programs Program Description Using the Info Window The Info Window can be displayed by pressing the INFO button on the remote: • Press the INFO button one time to display channel and input • Press the INFO button two times to display the program title and • Press the INFO button three times to display the program description. Program Title/CC Information Program Description E3D320VX / E3D420VX / E3D470VX information. closed captioning information. Date/Time Next Channel Closed Captioning/ Channel Lock Information Channel/Input Information Digital Episode Guide & Info Window... -
Page 40: Using The Usb Media Player
Using the USB Media Player Using the USB Media Player The USB Media Player allows you to connect a USB thumb drive to your TV and play music or photos. Connecting a USB Thumb Drive to the TV 1. Turn the TV off. Connect your USB thumb drive to the USB port on the side of the TV. - Page 41 If your USB thumb drive has more files than can be displayed on a single screen, you can move between pages by highlighting this area and pressing Left/Right Arrow. E3D320VX / E3D420VX / E3D470VX Album Art If included on the USB thumb drive and...
- Page 42 E3D320VX / E3D420VX / E3D470VX Back Button Highlight this button and press OK if you would like to return to the previous screen. Connected Sources Displays connected USB devices. To change source, highlight it and press OK. Current Folder Start Fullscreen Slideshow...
-
Page 43: Using Vizio Internet Apps
VIZIO Internet Apps (VIA) delivers popular online content to your TV. VIA features a selection of Apps that allow you to watch movies and TV shows, listen to music, get weather and news information, and more–all on demand! A high-speed internet connection is required to receive product updates and to access online content. -
Page 44: Adding A New App To The Via Dock
E3D320VX / E3D420VX / E3D470VX Adding a New App to the VIA Dock Though your TV arrives pre-loaded with featured VIA Apps, new Apps are continually being added to the Widget Gallery. The VIA Dock can hold a total of 17 Apps. -
Page 45: Creating A New User Profile
16. If you would like to prevent the user of this new profile from installing new Apps, turn Limit Profile to On. (You need an Owner PIN. Enter it after turning Limit Profile to On.) 17. Highlight Done and press OK. E3D320VX / E3D420VX / E3D470VX... -
Page 46: Removing A User Profile
E3D320VX / E3D420VX / E3D470VX Removing a User Profile To remove a user profile: 1. Press the V Button on the remote. 2. Highlight the Profile App by scrolling left and right using the Left/Right Arrow buttons on the remote. (The highlighted App is in the lower left corner of the screen.) -
Page 47: How To View 3D
We never notice, because we are able to combine these pictures into one three-dimensional image. The VIZIO Theater 3D HDTV takes advantage of this phenomenon to create a stunning 3D image. When displaying 3D content, the 3D HDTV actually displays two separate images at the same time—one for each eye. -
Page 48: Getting The Best 3D Picture
E3D320VX / E3D420VX / E3D470VX Getting the Best 3D Picture For the best 3D viewing experience, VIZIO recommends that you install the TV with the viewing distance and viewing angle in mind. When viewing 3D content, it is important that you view the TV straight-on, or some of the 3D effect may be lost. -
Page 49: Troubleshooting & Technical Support
If you are experiencing a problem when using your TV, try to fix the issue using this troubleshooting guide. If, after using this troubleshooting guide, you are still experiencing an issue with your TV, contact VIZIO’s Support Department. Quality customer support and service are integral parts of VIZIO’s commitment to service excellence. Phone:... -
Page 50: The Picture Is Distorted
E3D320VX / E3D420VX / E3D470VX The picture is distorted. • Nearby electrical devices may be interfering with the TV. Separate the TV from electrical appliances, cars, or flourescent lights. • Ensure all cables are securely attached. The display image does not cover the entire screen. -
Page 51: Specifications
RF/Coaxial Input: USB Ports: RGB Inputs: OSD Language: English, Spanish, French Audio Outputs: Optical, Stereo RCA Number of Speakers E3D320VX E3D420VX 32” Class 42” Class 32.00” 40.23 x 27.56 x 9.03” 40.23 x 25.89 x 3.31” 20.06 lbs 18.96 lbs CCFL... - Page 52 E3D320VX / E3D420VX / E3D470VX E3D320VX Watts/Channel SRS StudioSound, Simulated Surround: Dolby Digital Volume Normalizer: SRS TruVolume Energy Star Certifications/Compliance: FCC Class B HDMI v1.4 100~240 VAC Voltage Range: @ 50/60Hz Power Consumption: Standby Power Consumption: Ethernet Ports: Wireless (WiFi):...
-
Page 53: Limited Warranty
Covers units purchased as new in United States and Puerto Rico Only. VIZIO provides a warranty to the original purchaser of a new Product against defects in materials and workmanship for a period of one (1) year of non-commercial usage and ninety (90) days of commercial use. -
Page 54: Legal & Compliance
Open Source Software Notice Your VIA device may contain GPL executables and LGPL libraries that are subject to the PL2.0/LGPL2.1 License Agreements. VIZIO offers to provide source code to you on CD-ROM for a processing fee covering the cost of performing such distribution, such as the cost of media, shipping and handling upon request made to VIZIO at www.VIZIO.com. - Page 56 TRADEMARKS SHOWN ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. IMAGES USED ARE FOR ILLUSTRATION PURPOSES ONLY. VIZIO, THE V LOGO, WHERE VISION MEETS VALUE, AND OTHER VIZIO TRADEMARKS ARE THE INTELLECTUAL PROPERTY OF VIZIO INC. PRODUCT FEATURES AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. © 2011 VIZIO INC. ALL RIGHTS RESERVED.
