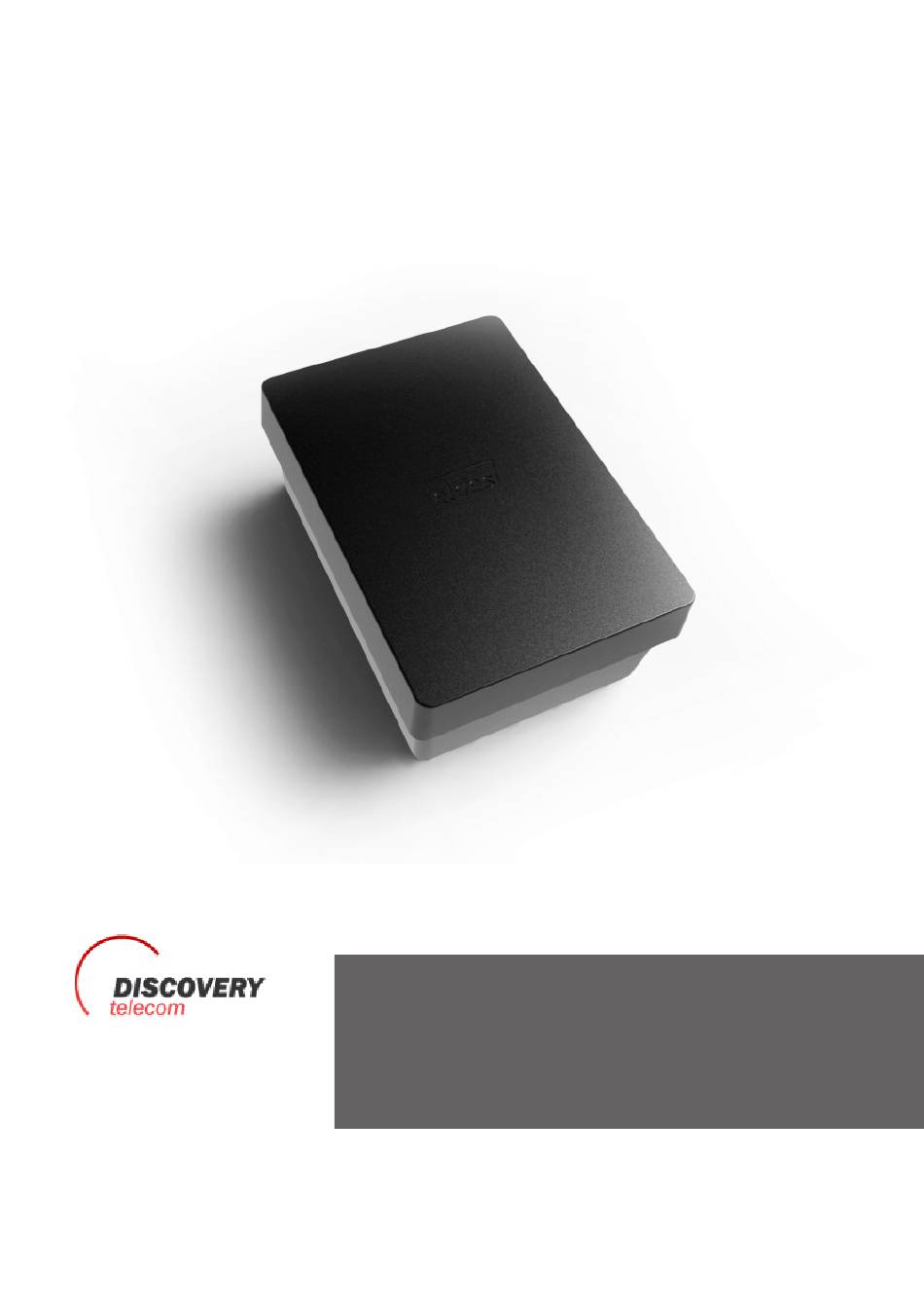

ESIM022

GSM DIALLER

Table of Contents

Need help?

Do you have a question about the ESIM002 and is the answer not in the manual?

Questions and answers

Summary of Contents for Discovery Telecom ESIM002

Page 1 ESIM022 Тел: +7 495 7907870 Моб: +7 965 4429948 Skype: Discoverytelecom GSM DIALLER Mail: info@discoverytelecom.ru www.discoverytelecom.ru...
Page 2 User Manual v1.1 SAFETY INSTRUCTIONS Please read and follow these safety guidelines to safeguard yourself and others: • GSM dialler ESIM022 (later referred to as “the system” or “the device”) contains a built-in radio transceiver operating in GSM 900/1800 MHz bands. •...
Page 3 To switch the system off, unplug the external electric power supply, disconnect the back-up battery or any other linked device that the system is powered from. A blown fuse cannot be replaced by the user. The replacement fuse has to be of the kind indicated by the manufacturer (Fuse F1 model –...
Page 4: Table Of Contents
Contents 1. GENERAL INFORMATION ....................7 2. TECHNICAL SPECIFICATIONS ..................8 2.1. Electrical & Mechanical Characteristics ..................8 2.2. Wiring Diagrams .......................... 10 3. INSTALLATION ......................11 4. GENERAL OPERATION DESCRIPTION ................. 13 5. CONFIGURATION METHODS ..................14 5.1. SMS Text Messages ........................14 5.2.
Page 5 Тел: +7 495 7907870 Моб: +7 965 4429948 Skype: Discoverytelecom Mail: info@discoverytelecom.ru www.discoverytelecom.ru ESIM022 User manual v1.1...
Page 6 Limited Liability The buyer agrees that the system will reduce the risk of fire, theft, burglary or other danger but that it does not guarantee against the occurrence of such events. “ELDES UAB” will not take any responsibility for the loss of personal effects, property or revenue whilst using the system.
Page 7: General Information
1. GENERAL INFORMATION ESIM022 is a micro-controller based device intended to receive alarm/restore events by SMS text message or phone call and control an electrical appliance via the GSM network. Examples of using the system: • Notification of system events, such as arming/disarming, alarm/restore from non-GSM alarm system.
Page 8: Technical Specifications
2. TECHNICAL SPECIFICATIONS 2.1. Electrical & Mechanical Characteristics Supply voltage .............12-15 V 300 mA max Average current used in idle state ....16 mA Supported back-up battery (optional) ....8.4V 250mAh rechargeable Ni-Mh 6HR61 (IEC)/7.2H5 (ANSI/NEDA) GSM modem frequency ........900/1800 MHz Number of outputs ..........1 Output circuit ............Open collector output.
Page 9 Main Unit Functionality GSM antenna Pins for firmware update TAMPER Tamper switch GSM MODEM GSM network 900/1800 MHz modem RESET Button for restoring default settings SIM CARD SIM card slot / holder Light-emitting diode indicating system status Mini USB port Microphone connector Backup battery slots 0.5A fuse...
Page 10: Wiring Diagrams
2.2. Wiring Diagrams General wiring Temperature sensor wiring ESIM022 ESIM022 Z2 DC DATA DS18S20, DS18B20 Temperature sensor DATA +12V Alarm system or other appliance Output wiring ESIM022 Z2 DC Electrical appliance +12 V Alarm system or other appliance ESIM022 User manual v1.1...
Page 11: Installation
3. INSTALLATION • The system should be installed indoors, in stationary environment ONLY. • For the connection of input/output terminals, use 0.50 mm thread unshielded cable of up to 100 meters length. 1. Wire up the system in accordance with the wiring diagrams (see 2.3 Wiring Diagrams for more details).
Page 12 network and system operation (see 2.2. Main Unit, LED Indicator & Connector Functiona- lity for more details). 7. Set the phone number for User 1. 8. Set system date and time. 9. Once the system is fully configured, it is ready for use. ATTENTION: The system is NOT compatible with pure 3G SIM cards.
Page 13: General Operation Description
4. GENERAL OPERATION DESCRIPTION GSM dialler ESIM022 uses the GSM network for event transmission by SMS text message. When one of the two available preset numbers dials the system, it answers the call and the user can listen for up to 60 seconds to what is going on in the premises. This function operates only when a microphone is connected.
Page 14: Configuration Methods
5. CONFIGURATION METHODS !!! In this user manual the underscore character ”_” represents one space character. Every underscore character must be replaced by a single space character. There must be no spaces or other unnecessary characters at the beginning and at the end of the SMS text message.
Page 15 • International (with 00) – The phone numbers must be entered starting with 00 and an international country code in the following format: 00[international code][area code][local number], example for UK: 004417091111111. • Local – The phone numbers must be entered starting with an area code in the following format: [area code][local number], example for UK: 017091111111.
Page 16: Date And Time
7. DATE AND TIME The system comes equipped with internal real-time clock (RTC) that keeps track of the current date and time. Once the system is up and running, the user must set the correct date and time, otherwise the system will not operate properly. After shutting down and starting up the system, the date and time must be set again.
Page 17: Inputs
8. INPUTS The system comes equipped with 2 inputs identified as Z1 and Z2. Depending on the input and selected mode, the inputs are designed for different detection device connection, such as motion detectors, door contacts, temperature sensors etc. (see 8.1. Input Z1 and 8.2. Input Z2).
Page 18: Input Z2
SMS text message content: Set input as NO ZONE1:NO (normally open) Example: ZONE1:NO Config This operation may be carried out from the PC using the Tool ELDES Configuration Tool software. SMS text message content: View input state STATUS Example: STATUS Config This operation may be carried out from the PC using the Tool...
Page 19 SMS text message content: Set input mode ZONE2:TEMP as Temperature Sensor Example: Z2:TEMP Config This operation may be carried out from the PC using the Tool ELDES Configuration Tool software. SMS text message content: Set input mode as ZONE2:DIG Digital Example: Z2:DIG Config This operation may be carried out from the PC using the...
Page 20 SMS text message content: Z2VLEV:vthr Set threshold Value: vthr – threshold, range - [0... 3000] mV Example: Z2VLEV:1390 Config This operation may be carried out from the PC using the Tool ELDES Configuration Tool software. SMS text message content: Set input as NC ZONE2:NC (normally closed) Example: ZONE2:NC...
Page 21 View input Config This operation may be carried out from the PC using the parameters Tool ELDES Configuration Tool software. For more details on how to manage the alarm/restore notifications, please refer to 10. ALARM/ RESTORE NOTIFICATIONS. For more details on how to view system’s information that may include input state, please refer to 13.
Page 22 To view the temperature value of the temperature sensor, please refer to the following configu- ration methods. View SMS text message content: temperature STATUS value and temperature Example: STATUS sensor name Config This operation may be carried out from the PC using the Tool ELDES Configuration Tool software.
Page 23 SMS text message content: Enable TEMPt1mnn:mxx:temp-name temperature sensor and set Value: mnn – MIN temperature threshold, range - MIN and MAX [-55... 125] C; mxx – MAX temperature threshold, temeprature range - [-55... 125] C; temp-name – up to 8 characters thresholds and temperature sensor name.
Page 24: Tamper
ATTENTION: Colon, dash, comma characters are NOT allowed in temperature sensor name. NOTE: If the MIN or MAX temperature threshold is exceeded, the system will NOT send the Tem- perature Info SMS text message to the preset user phone number before the current temperature value has been updated.
Page 25: Alarm/Restore Notifications
10. ALARM/RESTORE NOTIFICATIONS The system can notify the preset user phone number by the following methods that can be used only individually: • SMS text message – in the event of input Z1, input Z2 or tamper alarm or restore. This method is selected by default.
Page 26 To manage input and/or tamper alarm and restore notifications by SMS text message, please refer to the following configuration methods. SMS text message content: SAZi:OFF Disable input alarm notification Value: i – input number, range – [1... 2]. Example: SAZ1:OFF Config This operation may be carried out from the PC using the Tool...
Page 27 SMS text message content: Enable SRZi:ON input restore Value: i – input number, range – [1... 2] notification Example: SRZ1:ON Config This operation may be carried out from the PC using the Tool ELDES Configuration Tool software. SMS text message content: TRZi:in-restore-text Set input restore text...
Page 28 View alarm/ Config restore This operation may be carried out from the PC using the Tool notification ELDES Configuration Tool software. parameters ATTENTION: Colon, dash, comma characters are NOT allowed in the input alarm/restore notifi- cation texts. For more details on how to set the tamper name that is included in the tamper alarm/restore noti- fications by SMS text message, please refer to 9.
Page 29 To manage calls in the event of input or tamper alarm, please refer to the following configuration methods. SMS text message content: Enable call in the CAZi:ON event of input Value: i – input number, range – [1... 2]. alarm Example: CAZ1:ON Config This operation may be carried out from the PC using the...
Page 30 Config View alarm This operation may be carried out from the PC using the Tool notificaiton ELDES Configuration Tool software. parameters ATTENTION: Input alarm/restore notifications do NOT apply when input Z2 is set up to operate in Temperature Sensor mode. For more details, please refer to 8.2.2. Temperature Sensor Mode. ESIM022 User manual v1.1...
Page 31: Output
11. OUTPUT The system comes equipped with 1 open collector output C1 designed for electricalal appliance connection. Normally, the output can be used to arm/disarm a non-GSM alarm panel that has a zone configured as key-switch. The ouptut can also be used to open/close garage doors, activate lights, heating, watering and much more.
Page 32: Turning Output On And Off
11.2. Turning Output ON and OFF By default, the output is turned OFF. To instantly turn ON/OFF the output, please refer to the fol- lowing configuration methods. SMS text message content: OUT:ON Turn ON output Example: OUT:ON Config This operation may be carried out from the PC using the Tool ELDES Configuration Tool software.
Page 33: Back-Up Battery And Mains Power Supply Status Monitoring
12. BACK-UP BATTERY AND MAINS POWER SUPPLY STATUS MONITORING The system may come equipped with a back-up battery maintaining the power supply of the sys- tem for up to 12 hours when the mains power supply is temporally lost. The implemented feature allows to perform a self-test on the backup battery every 6 seconds and notify the user by SMS text message under the following conditions: •...
Page 34 SMS text message content: Enable Battery BATDIS:ON Disconnected notification Example: BATDIS:ON Config This operation may be carried out from the PC using the Tool ELDES Configuration Tool software. Set Battery Config This operation may be carried out from the PC using the Disconnected Tool ELDES Configuration Tool software.
Page 35 SMS text message content: Disable BLOW:OFF Low Battery notification Example: BLOW:OFF Config This operation may be carried out from the PC using the Tool ELDES Configuration Tool software. If the household electricity is unstable in the system installation area, the system may temporally lose its power supply and continue operating on the back-up battery power.
Page 36 Enable Mains SMS text message content: Power Supply PWRREST:ON Restore Example: PWRREST:ON notification Config This operation may be carried out from the PC using the Tool ELDES Configuration Tool software. Set Mains Power Config This operation may be carried out from the PC using the Supply Restore Tool ELDES Configuration Tool software.
Page 37: System Information. Status Sms
13. SYSTEM INFORMATION. STATUS SMS The system supports an informational SMS text message identified as the Status SMS, which can be delivered upon request. Once requested, the system will reply with Status SMS that may pro- vide the following: • System name.
Page 38: Periodic Status Sms
13.1. Periodic Status SMS Once enabled, the system sends Status SMS to preset user phone number periodically every 1 hour. Typically, this feature is used to verify the online status of the system. By default, periodic Status SMS is disabled. To enable/disable periodic Status SMS and/or set a different frequency, please refer to the following configuration methods.
Page 39: System Notifications
14. SYSTEM NOTIFICATIONS When an event occurs, the system will follow this pattern: a) The system attempts to send an SMS text message to the first preset user phone number only. b) If the user phone number is unavailable and the system fails to receive the SMS delivery report within 20 seconds, it will attempt to send the SMS text message to the next preset user phone number.
Page 40 Seq. No. Event Description Mains Power SMS text message sent to the user in case the mains power Restore supply is restored. For more details on how to manage this notification, please refer to 12. BACK-UP BATTERY AND MAINS POWER SUPPLY STATUS MONITORING. Battery Connected SMS text message sent to the user in case the battery level reaches the back-up battery is connected.
Page 41 By default, Device Started notification is disabled. To enable/disable it and set the text for this notification, please refer to the following configuration methods. SMS text message content: Enable Device SSMS:start-text Started Value: start-text – up to 23 characters System Star- notification and ted notifi cation text.
Page 42 SMS text message content: Disable Device ALLOFF:OFF Shutdown notification Example: ALLOFF:OFF Config This operation may be carried out from the PC using the Tool ELDES Configuration Tool software. View system Config This operation may be carried out from the PC using the notification Tool ELDES Configuration Tool software.
Page 43: On-Board Temperature Sensor
15. ON-BOARD TEMPERATURE SENSOR The system features an on-board temperature sensor (by default – enabled) allowing to be no- tified when the device temperature exceeds the set up minimum (MIN) (by default – -10 °C) or maximum (MAX) (by default – 25 °C) temperature threshold values. If one of the thresholds is exceeded, the system will automatically deliver an SMS text message identified as the Internal Temperature SMS, to the preset user phone number.
Page 44: Remote Listening
16. REMOTE LISTENING ESIM022 may be equipped with a microphone that allows the user to listen on his mobile phone to what is happening in the area surrounding the microphone. Remote listening feature can operate under the following conditions: • The system makes a phone call to a preset user phone number in case of input alarm/re- store and the user answers the call (see also 10.
Page 45 SMS text message content: Set microphone MIC:mg gain Value: mg – microphone gain, range - [1... 15]. Example: MIC:10 Config This operation may be carried out from the PC using the Tool ELDES Configuration Tool software. Config View remote This operation may be carried out from the PC using the Tool listening ELDES Configuration Tool software.
Page 46: Technical Support
17. TECHNICAL SUPPORT 17.1. Troubleshooting Indication Possible reason LED indicator is OFF · Power supply fault (if back-up not in use) · No mains power (if back-up not in use) · Micro-controller fault The device does not continue running · Back-up battery not connected when mains power supply is lost ·...
Page 47: Updating The Firmware Via Usb Cable
17.3. Updating the Firmware via USB Cable 1. Disconnect the power supply, and back-up battery (if any). 2. Short circuit (connect) FW pins. 3. Connect the device via USB cable to the PC. 4. The new window must pop-up where you will find the .bin file. Otherwise open My Computer and look for CRP DISABLED drive.
Page 48: Related Products
18. RELATED PRODUCTS DC power supply DS18S20 - temperature sensor Microphone Тел: +7 495 7907870 Моб: +7 965 4429948 Skype: Discoverytelecom Mail: info@discoverytelecom.ru www.discoverytelecom.ru ESIM022 User manual v1.1...
