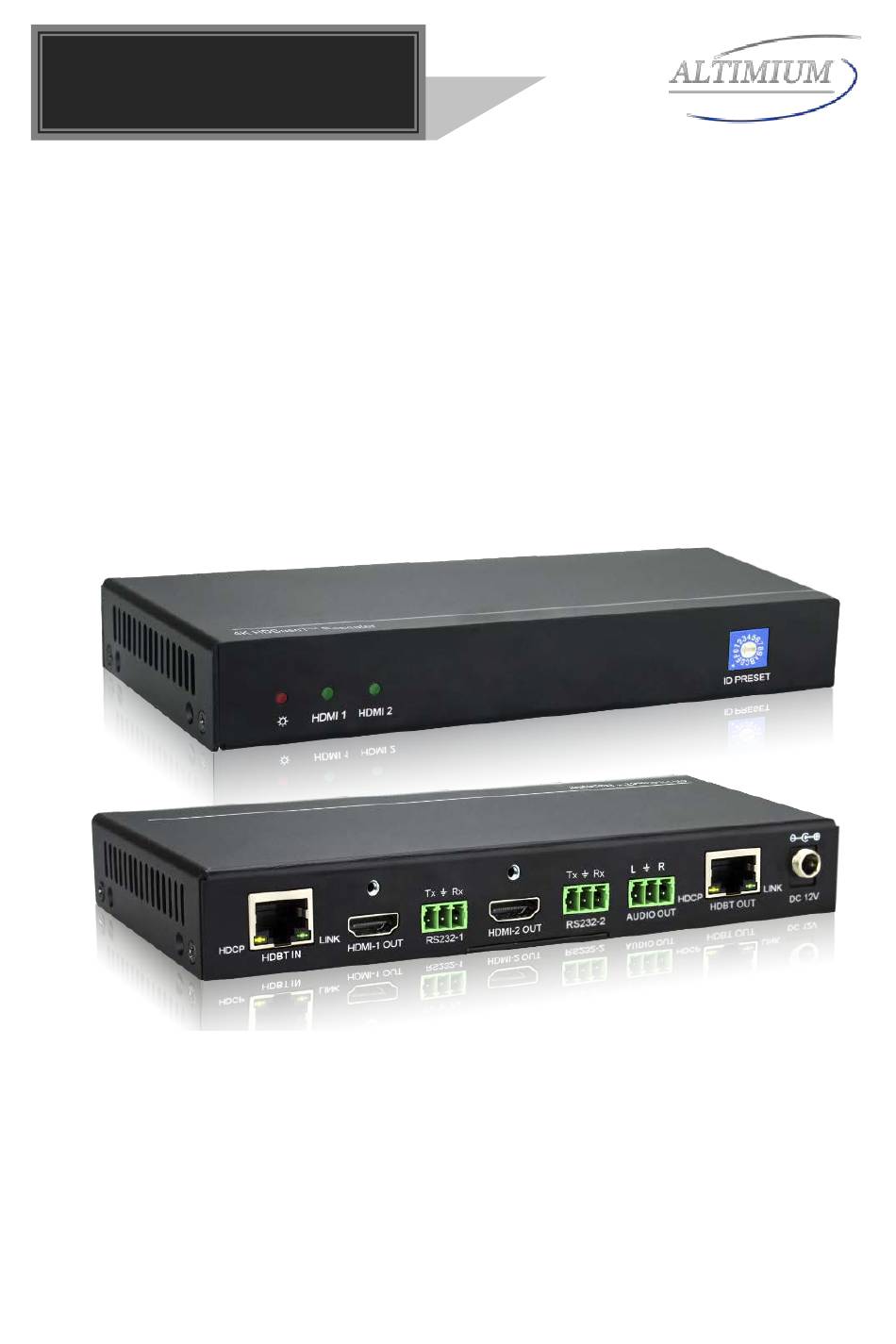

- Page 1 User Manual TP423P-4K 4K HDBaseT Repeater All Rights Reserved Version: TP423P-4K_2016V1.0...
- Page 2 Altimium 4K HDBaseT Repeater Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till September 2016.
- Page 3 Altimium 4K HDBaseT Repeater SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment ...
-
Page 4: Table Of Contents
4K HDBaseT Repeater Table of Contents 1. Introduction ......................... 1 1.1 Introduction to 4K HDBaseT Repeater ............1 1.2 Features ......................1 1.3 Package Contents ..................... 1 2. Product Appearance ....................2 2.1 Front Panel ......................2 2.2 Rear Panel ......................2 3. -
Page 5: Introduction
Altimium 4K HDBaseT Repeater 1. Introduction 1.1 Introduction to 4K HDBaseT Repeater 4K HDBaseT Repeater is designed to extend the signal transmission distance of Matrix system and our Extender sets by repeating the HDBaseT signals up to 4K@70m & 1080p@100m over CAT5e/6/7 cable for each unit. User can connect up to 6 repeaters for each output by daisy-chain connection. -
Page 6: Product Appearance
Altimium 4K HDBaseT Repeater 2. Product Appearance 2.1 Front Panel HDMI 1 HDMI 2 ID PRESET Figure 2-1 Front Panel Name Description Power ① Illumine red when powered on. indicator ② HDMI 1 Illumine green when the HDMI 1 signal output normally. - Page 7 Altimium 4K HDBaseT Repeater 3-Pin phoenix connector for bidirectional RS232 control, ③ RS232-1 connects with control device (e.g. PC) or the third-party device (e.g. Projector) needed to be control. ④ HDMI-2 OUT Connects with HDMI display. 3-Pin phoenix connector for bidirectional RS232 control, ⑤...
-
Page 8: System Connection
Altimium 4K HDBaseT Repeater 3. System Connection 3.1 Usage Precautions System should be installed in a clean environment and has a prop temperature and humidity. All of the power switches, plugs, sockets and power cords should be insulated and safety. -
Page 9: Application
Altimium 4K HDBaseT Repeater Step3. Connect HDBT output port of 4K HDBaseT Repeater and HDBT input port of HDBaseT Receiver or next 4K HDBaseT Repeater with CAT5e/6/7 cable. With the daisy chain connection, user can connect with up to 6 repeaters for each source output. -
Page 10: Twisted Pair Cable Connection
Altimium 4K HDBaseT Repeater 3.5 Twisted Pair Cable Connection The twisted pair used in this extender must be a straight-through cable. TIA/EIA T568A TIA/EIA T568B Cable color Cable color green white orange white green orange orange white green white blue... -
Page 11: Operation
Altimium 4K HDBaseT Repeater 4. Operation 4.1 Unit ID setup 4K HDBaseT Repeaters can be cascaded up to six in this system. Through the DIP switcher “ID PRESET” to set their ID for distinguishing. For example, the Unit ID of the first 4K HDBaseT Repeater is set as 0, and then the second one is set as 1 and so on. -
Page 12: Installation/Uninstallation Of Rs232 Control Software
Altimium 4K HDBaseT Repeater RS232 Control Mode Description In this mode, control one of the devices which are connected to RS232 ports of 4K HDBaseT Repeaters. For example: Point-to-Point F1 AA 1F 32 ..Send this command to control the device which is connected to the “RS232-2”... -
Page 13: Basic Settings
Altimium 4K HDBaseT Repeater 4.2.3 Basic Settings Double-click the software icon to run RS232 Control Software. Here we take the software CommWatch.exe as example. The icon is showed as below: The interface of the control software is showed as below:... -
Page 14: Edid Management
Altimium 4K HDBaseT Repeater 4.3 EDID Management An essential part of operation is the EDID table, which is transmitted to the source from the HDBaseT Transmitter input. The 4K HDBaseT Repeater features advanced built-in EDID management function, and it should follow the below rules: When the “HDMI-1 OUT”, “HDMI-2 OUT”... -
Page 15: Specification
Altimium 4K HDBaseT Repeater 5. Specification Input & Output Input Port HDBT IN Input Connector One (1) RJ45 Receptacle The max resolution is up to 4Kx2K/60Hz 4:2:0, Input Video Signal compatible with HDCP2.2 Output Port HDMI-1 OUT; HDMI-2-OUT; HDBT OUT; AUDIO OUT Two (2) HDMI Type A Receptacle;... -
Page 16: Panel Drawing
Altimium 4K HDBaseT Repeater 6. Panel Drawing HDCP LINK HDCP LINK HDBT IN HDMI-1 OUT RS232-1 HDMI-2 OUT RS232-2 AUDIO OUT HDBT OUT DC 12V 9 mm 4K HDBaseT Repeater 200 mm HDMI 1 HDMI 2 ID PRESET www.altimium.com... -
Page 17: Troubleshooting & Maintenance
Static becomes stronger Check the grounding and Bad grounding when connecting the video make sure it is connected connectors well. If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support. www.altimium.com... -
Page 18: After-Sales Service
Altimium 4K HDBaseT Repeater 8. After-sales Service If there appear some problems when running the Scaler Switcher, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. - Page 19 ALTIMIUM 587 Avenue Blaise Pascal 77550 MOISSY-CRAMAYEL Tél : 01.64.13.31.00 Fax: 01.60.29.62.70 Mail: contact@tesca-audio.com Web: www.altimium.com...
