ADVANTAGE SENTRY SERIES
OPERATOR'S MANUAL
CAUTION
BEFORE INSTALLING AND
USING THIS FILTER FAN, IT IS
IMPORTANT THAT THIS MANUAL
BE READ AND UNDERSTOOD
THOROUGHLY
900-057-05 (11/21)
(CDR: 20367)
Keep This Manual

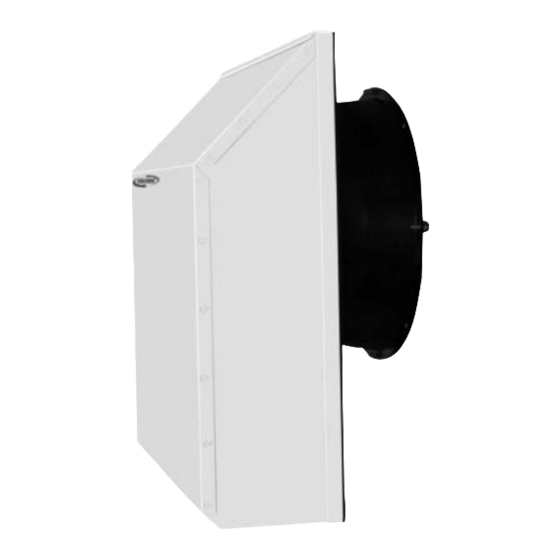

FILTER FAN
READ AND SAVE THESE INSTRUCTIONS
With Fan
Advantage Sentry Series
NEMA 3R Filter Fans
Find additional information on
this model at kooltronic.com or
use the Technical Documents
QR code below.
Technical
Documents
KOOLTRONIC, INC.
30 Pennington-Hopewell Road
Pennington, NJ 08534
FAX: 609 • 466-1114
www.kooltronic.com
609 • 466-3400
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kooltronic Advantage Sentry Series
Summary of Contents for Kooltronic Advantage Sentry Series
- Page 1 Advantage Sentry Series NEMA 3R Filter Fans Find additional information on this model at kooltronic.com or Keep This Manual use the Technical Documents QR code below. With Fan Technical Documents ADVANTAGE SENTRY SERIES FILTER FAN OPERATOR'S MANUAL CAUTION KOOLTRONIC, INC.
-
Page 2: Table Of Contents
Packing Procedure for Warranty Return Maintenance Warranty I. Introduction This Manual provides you with the necessary general information for properly installing and operating Advantage Sentry Series Filter Fans. Unit specific technical data and mounting instructions are presented later in the Manual. -
Page 3: Cautions And Warnings
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY, OBSERVE THE FOLLOWING: Use this unit only in the manner intended by Kooltronic. If you have questions, contact Kooltronic. Before servicing or cleaning this unit, switch power off at the service panel and lock service panel to prevent power from being switched on accidentally. -
Page 4: Incoming Inspection
VI. Installation Instructions The Advantage Sentry Series NEMA 3R Filter Fans have been engineered to be installed easily. These NEMA 3R filter fans have been designed for indoor or outdoor use. Prior to mounting, refer to pages 6 for the mounting drawings showing dimensions and locations of mounting holes and cutouts. -
Page 6: Drawings And Dimensions
VII. Drawings and Dimensions TAMPER-PROOF SCREW INSIDE VIEW (4) .25 [6.0] DIA. HOLES MOUNTING PLAN imensions, inches[mm] are for reference only and subject to change BOTTOM VIEW Model KNP40F 6.50 [165.0] 7.00 [178.0] 4.88 [124.0] 6.00 [152.0] .81 [21.0] [6.0] 10.90 [277.0] 8.03 [204.0] KNP60F... -
Page 7: Specific Model Data
VIII. Specific Model Data Technical Data Unit Operating Approximate Frequency Imput Imput Airflow Temp. ºF Weight Model Voltage Amps Watts Min. Max. (lbs.) KNP40F 115 VAC 50/60 .22/.22 18/17 60/69 K2NP40F 230 VAC 50/60 .10/.11 15/17 50/51 K6NP40F 12 VDC K7NP40F 24 VDC K8NP40F... -
Page 8: Maintenance
If the accumulated dirt is oily, washing in a detergent bath is recommended, followed by a warm water rinse as above. 4) The aluminum mesh filters may be sprayed with Kooltronic A-16 Filter Recoating Adhesive to trap fine, airborne contaminants, or they may simply be dried and reinstalled as strainer-type filters. - Page 9 THIS WARRANTY CONSTITUTES THE ENTIRE WARRANTY WITH RESPECT TO THE PRODUCT AND IS IN LIEU OF ALL OTHERS, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY AND WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND IN NO EVENT IS KOOLTRONIC RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER.
