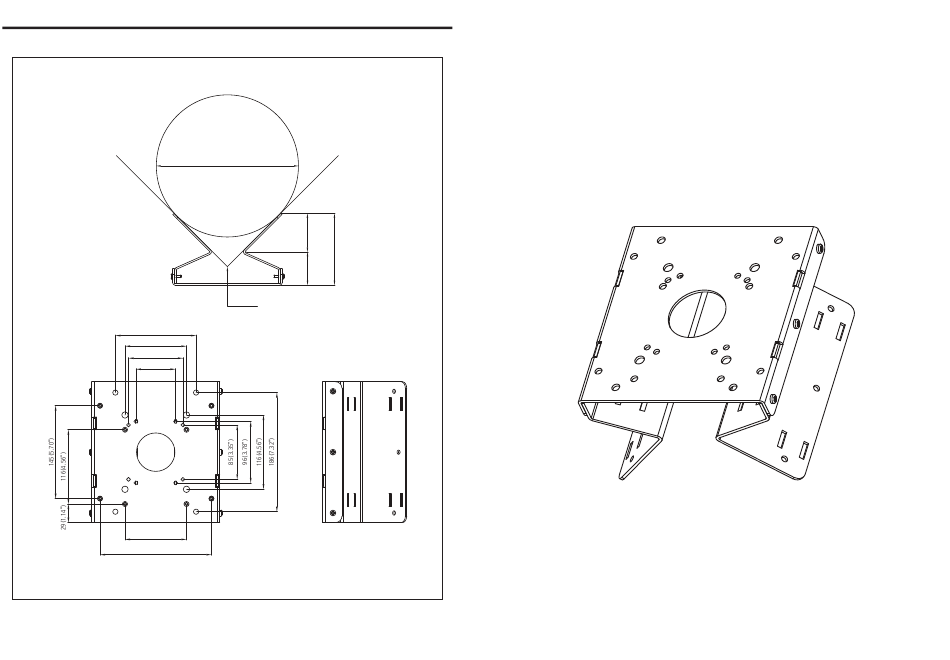

DIMENSIONS
126(4.96")
96(3.78")
85(3.35")
62(2.44")
96(3.78")
174(6.85")
Pole
70.5
(2.78")
131.2
(5.16")
60.7
(2.39")
Corner
Printed In Korea
50304217A
HCPM230W
POLE & CORNER MOUNT BRACKET
Before installing and using this product, please read the instructions fully and carefully,
And be sure to keep it handy for late use.
