Summary of Contents for Ronds RH560-WL

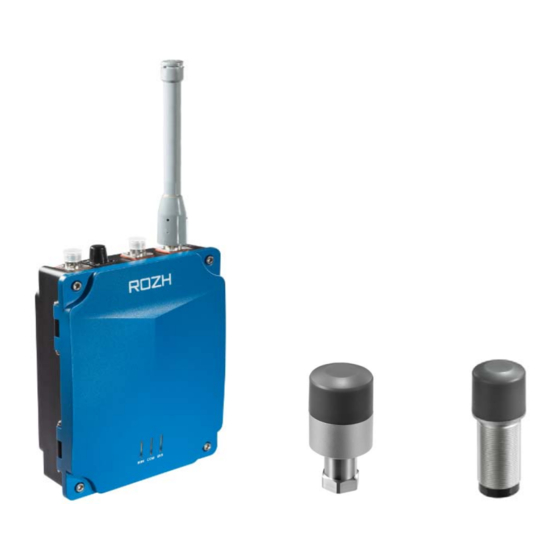

- Page 1 RH560WIRELESS CMS OPERATION MANUAL RH560-WL Wireless CMS User Manual ANHUI RONG ZHI RI XIN INFORMATION TECHNOLOGY CO., LTD. 2016.03 第 1 页 共 15 页...
-
Page 2: Table Of Contents
RH560WIRELESS CMS OPERATION MANUAL Content Preface..........................3 Welcome......................3 Statement......................3 Product introduction......................3 Summarize......................3 General structure of system................4 System operating procedure................4 Product features and outlooking................5 Technical specifications..................5 Security introduction......................6 Summarize......................6 Operating regulations..................6 Installation...........................6 Summarize......................6 Out of box audit....................6 Installation announcements................ -
Page 3: Preface
RH560WIRELESS CMS OPERATION MANUAL 1. Preface 1.1 Welcome Welcome to use RONDS products. Before any operating, please read this manual carefully and keep it appropriately in case of any query. 1.2 Statement When you read this manual, please pay attention at the following marked content, and make sure the equipment will be used properly. -
Page 4: General Structure Of System
RH560WIRELESS CMS OPERATION MANUAL 2.2 General structure of system 2.3 System operating procedure 1) In MOS3000 software of the server, configure relative organization, machine, measuring points, and data collection, alarm strategy, then send DAQ parameter. MOS3000 support for multiple DAQ parameter sending. 2) Wireless collection station will update the DAQ parameter after receiving from MOS3000 software. -
Page 5: Product Features And Outlooking
EXIA intrinsic safety certified, can be sued for special industries like petrochemical and mining field. Internal antenna, more reliable in industrial field. 2.5 Technical specifications RH560-WL Wireless data collector Input and output 2.4GHz IEEE 802.15.4 Communication with Sensor Indicator LED... -
Page 6: Security Introduction
People without professional training is not allowed to disassemble and repair this equipment, RONDS is not responsible for the accidents that caused by this kind of operating. Correctly configure parameter with products and connect power supply. ... -
Page 7: Installation Announcements
Please follow the security regulations strictly when installation, operate everything carefully in case of any equipment damage or human injury. 【 Notice 】 ： This equipment should be installed by RONDS application engineers or other people with professional training. 【Danger】 ：Please make sure the security when using 220V power supply in case of any human injury. -
Page 8: Rh505 Installation
RH560WIRELESS CMS OPERATION MANUAL Fixation though holder： Antenna installation： Install the HG‐2404U gray antenna in RF port, connection type is N. System connection： The power supply is go through the PWR port from RH560‐WL bottom, and fixed with PG screw. 【... -
Page 9: Announcement For The First Time Using
【Warning】 ：Please follow this manual strictly to operate this equipment, make sure all of the steps were finished correctly. 5.3 RH560-WL Switch and LED description Open RH560‐WL cabinet cover, there is a switch with ON and OFF mark on main board, it is power switch. -
Page 10: Software User Manual
RH560WIRELESS CMS OPERATION MANUAL Quick Flicker(0.2s each ) Abnormal communication with server Slow Flicker (1S) Normal communication with server Flicker Network disconnected 6. Software user manual 6.1 Summarize The wireless monitoring system should be used together with RONDSMOS3000 online monitoring software, this software shall be installed on server, users can visit it from browser or client program. -
Page 11: Software Configuration
1) Choose “System configuration”, right click “Root” to create “Organization”, “Machine”, “Measuring point” and “DAQ definition”. The information of “Organization”, “Machine” and “Measuring point” can be edited. RH560-WL system support for 3 measurement definition maximally, data length and Fmax can reach to 256K and 20KHz respectively. - Page 12 RH560WIRELESS CMS OPERATION MANUAL 2) Click “Online management”, create “collection station” Collection station type: RH560-WL Server name: choose the right database to store data; or create new database in the popup windows Collection station code: input the last four number Collection method: variable speed or constant speed, test mode is forbidden.
-
Page 13: Data Diagnosis And Analysis
RH560WIRELESS CMS OPERATION MANUAL Time waveform: time interval to collect normal time waveform Sampling value: time interval to collect RMS value Long time waveform: the longest wave can reach to 2M Speed strategy: associate speed measuring point in speed channel 3). -
Page 14: Product Maintenance And Fault Elimination
7.2 Fault analysis and elimination When there is problem with the equipment, please check it according to the following table, if the problem still can’t be solved, please contact technical department of RONDS company. Fault type Possible reason solution RH560‐WL RUN LED is not... - Page 15 RH560WIRELESS CMS OPERATION MANUAL more of the following measures: * Reorient or relocate the receiving antenna. * Increase the separation between the equipment and receiver. * Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
