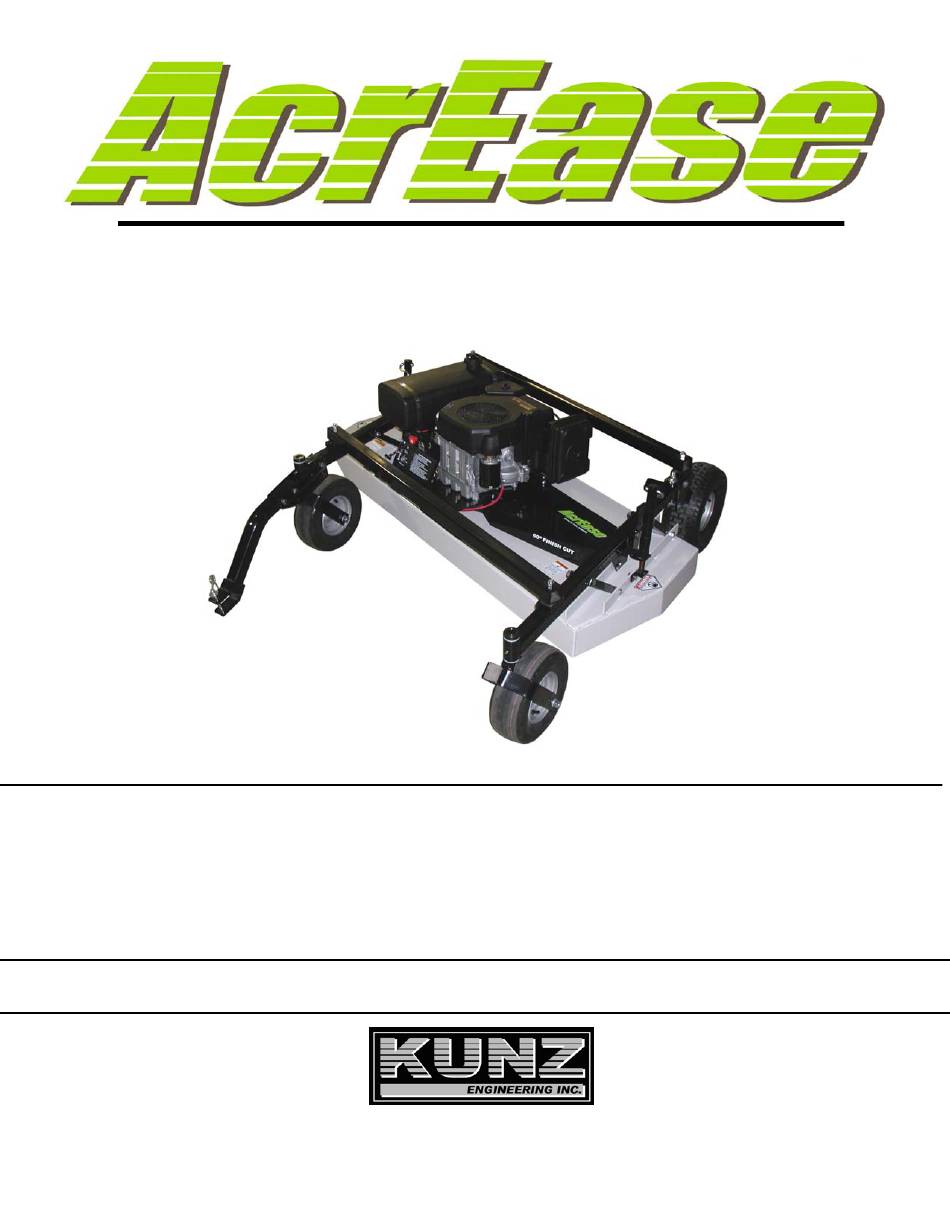

60" PRO FINISH CUT
OWNER'S MANUAL
With Assembly Instructions
For Models: Pro60K & Pro60V
KUNZ ENGINEERING, INC. / MENDOTA, IL 61342 / PH (815) 539-6954
5/11

Advertisement

loading

Summary of Contents for Kunz AcrEase Pro60K

  • Page 1 60” PRO FINISH CUT OWNER’S MANUAL With Assembly Instructions For Models: Pro60K & Pro60V KUNZ ENGINEERING, INC. / MENDOTA, IL 61342 / PH (815) 539-6954 5/11...
  • Page 2: Safety Introduction

    SAFETY INTRODUCTION Your safety, and the safety of others, is very important. To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING: Do not allow anyone to operate this equipment who has not fully read and comprehended the safety manual and who has not been properly trained in the safe operation of the equipment. WARNING: Operator should be familiar with all functions of the unit. DANGER: Keep hands, feet, hair and clothing away from moving parts.
  • Page 4 275002 – Warning Decal, General Serial # & Model # Decal Clean or Replace Any Safety Signs That Are not Readable or Damaged Replacement decals can be purchased from your local dealer or Kunz Engineering Inc. Mendota, IL 61342 (815) 539-6954 www.kunzeng.com...
  • Page 5 ASSEMBLY INSTRUCTIONS READ THE COMPLETE ASSEMBLY INSTRUCTIONS BEFORE STARTING THE ASSEMBLY. You should have: one mower deck assembly two carrier arm assemblies two cross brace tubes one tongue assembly (Lawn & Garden Hitching or ATV Tongue) one tow vehicle hitch assembly (only included on Lawn & Garden Hitching) Optional hitches: one tongue extension one rear hitch assembly...
  • Page 6 the pivot arms. Mount the height adjust screw on the deck assembly in the hole provided. Secure with the 1/2”x1” hex head bolt and lock nut provided on the height adjust screw. Note: Tighten 1/2” x 3-1/2” and 1/2” x 1” hex head bolts until just snug. This area needs to pivot when adjusting the height.
  • Page 7 Adjust Stop Bolt to Back of Tow Vehicle Telescoping Hitch - Install to Left or to Right or in Both Directions Hitch Stop Angle When Pulling Two Wing Mowers. Figure 2: Installation of Tow Vehicle Hitch Screw Pin Hitch Pivot – Attach Tongue Shackle Clevis to either Left or R...
  • Page 8: Operations And Adjustments

    D. INSTALLATION OF OPTIONAL HITCHES 1. When a long tongue is needed, remove the tongue pivot angles and spacer from the tongue assembly and attach to the tongue extension. See figure 4. Slip the tongue in between the two flats on the tongue extension and secure with 1/2” x 3-1/2” hex head bolts, lock washers, and nuts provided.
  • Page 9 A. HITCH CONFIGURATIONS (Refer to Figure 5) WARNING: Shut off the engine and allow the mower blades to come to a complete stop before adjusting the spreader hitch on the tow vehicle. Tow Vehicle without a Mower Deck 1 & 2 combined 1, 2, &...
  • Page 10 The hitching system is designed so that the wing mower can be pulled directly behind a tow vehicle without a mower deck or as a left or right wing mower when towed behind a tow vehicle with or without a mower deck. If more than one wing mower is towed, they can be pulled in tandem or one on the left and one on the right or a combination of the above conditions until the desired cutting width is obtained.
  • Page 11 C. ADJUSTING CUTTING HEIGHT WARNING: Shut off all engines and allow the mower blades to come to a complete stop on the wing mowers and on the tow vehicle before adjusting the cutting height. The mower deck must first be leveled from front to back before the height can accurately be adjusted.
  • Page 12 Adjust the mower as follows: 1. Pull the mower on to a smooth, level surface. 2. Adjust the mower evenly from side to side by measuring to the ground from the lower edge of the mower deck. The desired height will be the distance from the ground to the outside lower edge of the mower deck plus 5/16”.
  • Page 13 Adjustment Crank Adjustment Nut Tube Carrier Arm Upper Pivot Support Figure 8: Securing Crank While Not In Use D. STARTING ENGINE WARNING: Set parking brake on tow vehicle. Attach wing mower tongue to tow vehicle. WARNING: Do not start wing mower unless it is attached to the tow vehicle. Turn on fuel shut off valve which is located on the underside of the gas tank.
  • Page 14 E. SHUTTING OFF WING MOWER WARNING: Shift to neutral, disengage power to the mower deck, and set the parking brake before dismounting the tow vehicle. Slow the engine speed down and disengage the clutch by pushing inward on the PTO switch. Allow engine to cool down for a short time before moving the ignition switch to the off position.
  • Page 15 WARNING: Look down, to the sides, and behind before and while backing to avoid backing over something or someone. Care should also be taken while backing so that the wing mower or mowers do not jackknife and damage hitches. WARNING: Stop the mower blades on both the tow vehicle and all wing mowers if the tow vehicle becomes stuck or stops going forward because of loss of traction.
  • Page 16 The Models Pro60K and Pro60V use the Kunz Engineering Part # (202136) blade bolt. This particular hex head bolt is a 1/2” – 20NF x 1.00” long, grade 5 and it’s proper torque is 85 ft-lbs.
  • Page 17 / fuel vapor valve, carbon canister (California Only) and hose clamps are prohibited. Replacement evaporative components should be purchased from Kunz Engineering. Any questions about EPA regulations or evaporative components can be directed to Kunz Engineering Inc. at 815-539-6954.
  • Page 18 WING MOWER SPECIFICATIONS Model Model Pro60K Pro60V ENGINE: Engine Make Kohler Command Pro Briggs & Stratton Commerical Engine Model CV 493 Vanguard Cylinders Cycles Crankshaft Vertical Vertical Engine HP Bore 3.54" 2.97" Stroke 3.03" 2.76" Displacement 29.9 cu.in. 38.26 cu.in. Oil Capacity 2 U.S.
  • Page 19 Contr ol Panel Decal, Starting Instr uctions 275002 Warn ing Decal General 275003 Danger Decal, Cut Finger 275007 Warn ing Decal, Bel t Sheild 275019 Name Decal, Kunz 275021 Name Decal, AcrEase 275023 Name Decal, 60" Finish Cut 277002 Rubber G rommet 277010 Fuel Tank, 3.75 Gal .
  • Page 20 Item Part # Description Pro Models 600201 Engine Support Br acket 600212 Upper Pivot Suppor t 600229 Tube Spacer ( Clutch) 900025 Idler Arm Assy. 24 3000 Bronze Bearing, 1/2"I.D. x 3/4" O.D. x 1- 1/2" Long 900049 Battery Box Assy. 900051 Dep th Gage 900052...
  • Page 21 MODELS Pro60K & Pro60V...
  • Page 22 LAWN & GARDEN HITCH PARTS PARTS LIST Quantity Item Part # Description 202135 Hex Head Bolt, 3/8" x 3" Fully Threaded 216006 Wire Lock Pin, 3/8" x 2-1/4" Opening 216011 Wire Lock Pin, 1/2" x 3-1/2" Opening 900050 Hitch Draw Bar 600044 Hitch Adaptor Plate 600009...
  • Page 23 ATV TONGUE PARTS PARTS LIST Item Part # Description Quantity 216002 Wire Lock Pin .31" X 2.50" 216009 Screw Pin Shackle Clevis 900058 Hitch Pivot 900082 Tongue OPTIONAL HITCH PARTS PARTS LIST Item Part # Description Quantity 600195 Clamping Flat 900131 Long Tongue Extension 900132 Hitch Draw Bar 900133 Rear Hitch...
  • Page 24: Optional Equipment

    OPTIONAL EQUIPMENT OPTIONAL FLOATATION KIT This optional floatation kit features an extra front and back tire that can be bolted along the center section of the mower deck. This is a great anti-scalp feature that helps to carry the center section of the mower deck and works well in the following applications: •...

This manual is also suitable for:

Acrease pro60v
