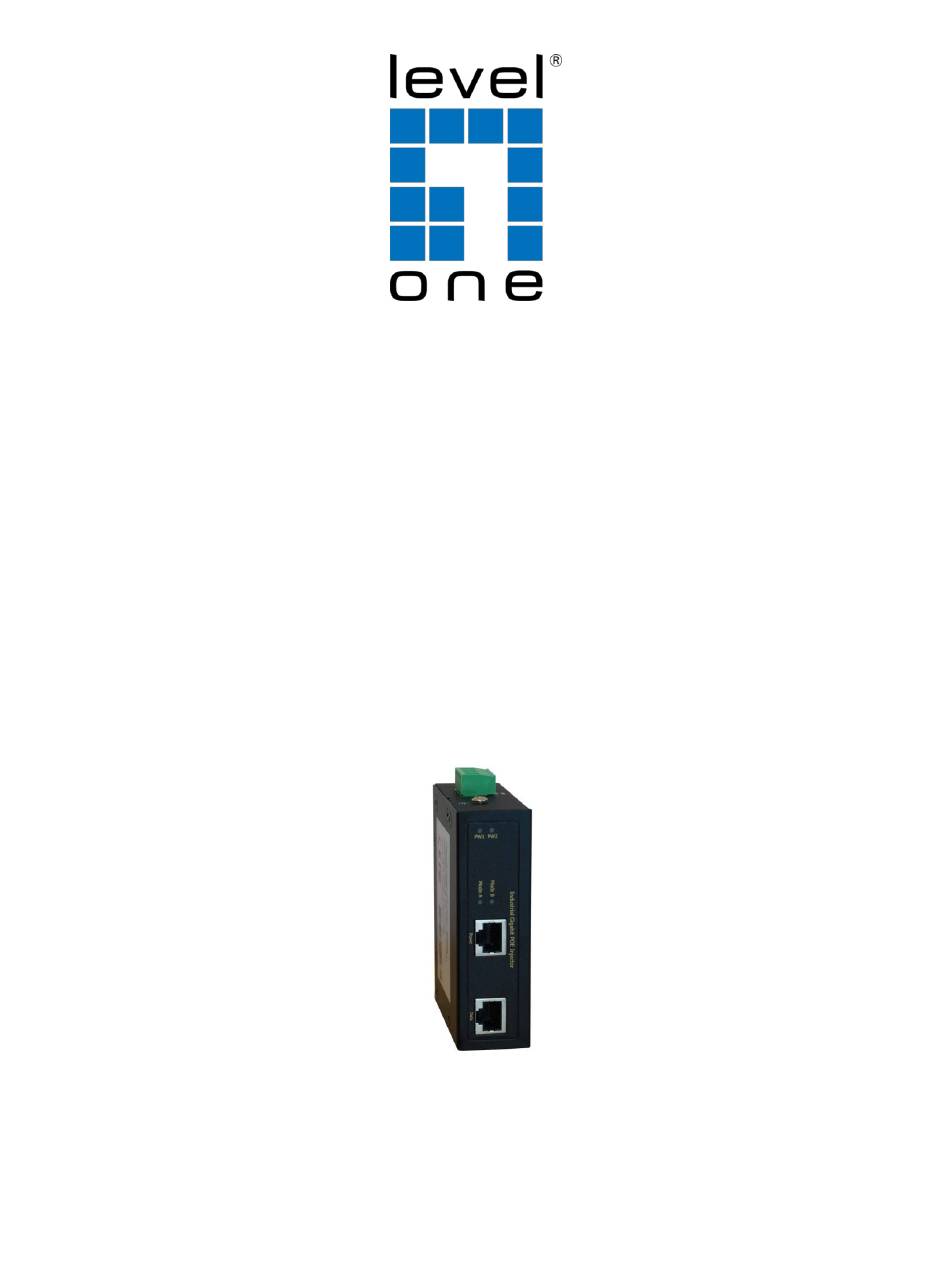

- Page 1 IGP-0102 Industrial Gigabit POE Injector, 802.3at PoE+, 36W, 12 to 56 VDC User Manual...
- Page 2 FCC MARKING This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 3 NOTE: Always make sure the total length of the TX cable DOES NOT exceed 100meter. Total length is defined as length A + length B Length A + Length B < 100 meter Length A + Length B < 100 meter Remote Switch Maximum total cable length is 100meter.
-
Page 4: Installation Package
Installation package This unit can be installed by din-rail mounted or wall-mounted. Din-rail brackets and wall- mounted bracket are included. Din Rail Bracket x 1 Din Rail Bracket x 1 Wall mount bracket x 2 4 pin Terminal Block x1 4 pin Terminal Block x1 Power connection The provided 4 pin terminal block can be connected with 48VDC to 56VDC power source. -
Page 5: Led Indicator
LED indicator PW—Power 1, Power 2 Mode A Green LED ON -- For End-Span POE power 1,2,3,6 NOTE: Mode B Green LED is only for Mode B End-Span model. with pin assignment 4,5,7,8. This LED will not lit on for this model. -
Page 6: Specification
Specification: IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE Standard IEEE802.3af for POE IEEE802.3at for POE+ 1xRJ-45 10/100/1000BaseT(X) Data 1xRJ-45 10/100/1000BaseT(X) Data with POE Network Connector : Output power UTP/STP above Cat.5e Cable Network Cable EIA/TIA-568 10-ohm (100m) Protocol... - Page 7 Provide 4 pin terminal block Wire range: 0.34mm^2 to 2.5mm^2 Solid wire (AWG):12-24/14-22 Removable Terminal Block Stranded wire(AWG): 12-24/14-22 Torque:5lb-In/0.5Nm/0.56Nm Wire Strip length: 7-8mm Operating Temperature -40℃~75℃fully tested. 5% to 95% (Non-condensing) Operating Humidity Storage Temperature -40℃~85℃ 510,304 hrs ( MIL-HDBK-217F) at 25°C MTBF (mean time between failure) Housing Rugged Metal ,IP30 Protection...
-
Page 8: Housing Dimension
Housing Dimension...
