3. Hooking the Display onto the Wall Plate
wall
Pull downward two safety straps at the same time then slowly release the straps to lock the display brackets.
Maintenance
• Check that the bracket is secure and safe to use at regular intervals(at least every three months).
• Please contact your distributor if you have any questions.
7
wall

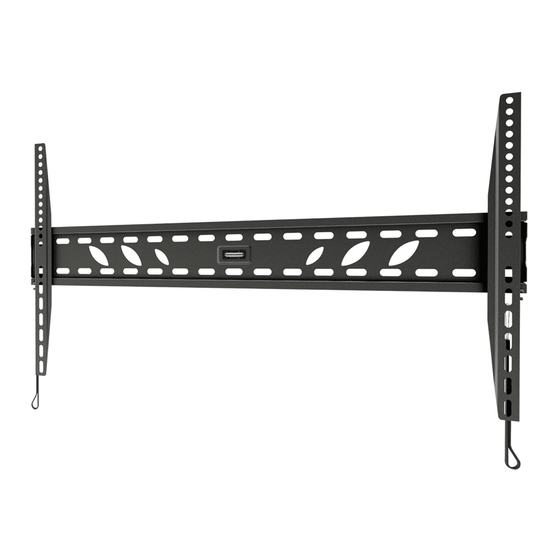

Fixed Wall Mount
200x200/300x300
AS1048F
400x200/400x400
600x400/800x400
INSTALLATION MANUAL
CAUTION:
DO NOT EXCEED RATED
LISTED WEIGHT CAPACITY. SERIOUS
INJURY OR PROPERTY DAMAGE MAY
OCCUR!
70"
50kg
50kg
MAX
(110lbs)
(110lbs)
RATED
RATED
ISSUED: APR.2013
Advertisement
Table of Contents
Summary of Contents for AllMounts AS1048F
- Page 1 • Check that the bracket is secure and safe to use at regular intervals(at least every three months). • Please contact your distributor if you have any questions. CAUTION: DO NOT EXCEED RATED LISTED WEIGHT CAPACITY. SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR! 200x200/300x300 70" AS1048F 400x200/400x400 50kg 50kg 600x400/800x400 (110lbs) (110lbs) RATED RATED...
- Page 2 Component Checklist NOTE: Read the entire instruction manual before you start installation and assembly. IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, telephone your local distributor for a replacement. WARNING •...
- Page 3 (16") (17.7") (23.6") (24") Model AS1048F WARNING • Make sure that mounting screws are anchored into the center of the studs. The use of a stud finder is highly recommended. WARNING • Installers are responsible to provide hardware for other types of mounting situations.
- Page 4 2. Installing the Adapter Brackets 2-2. For Recessed Back screens or to Access A/V Inputs Top of the display 2-1. For Flat Back Screens M-A/M-B/M-C Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen. ·...
