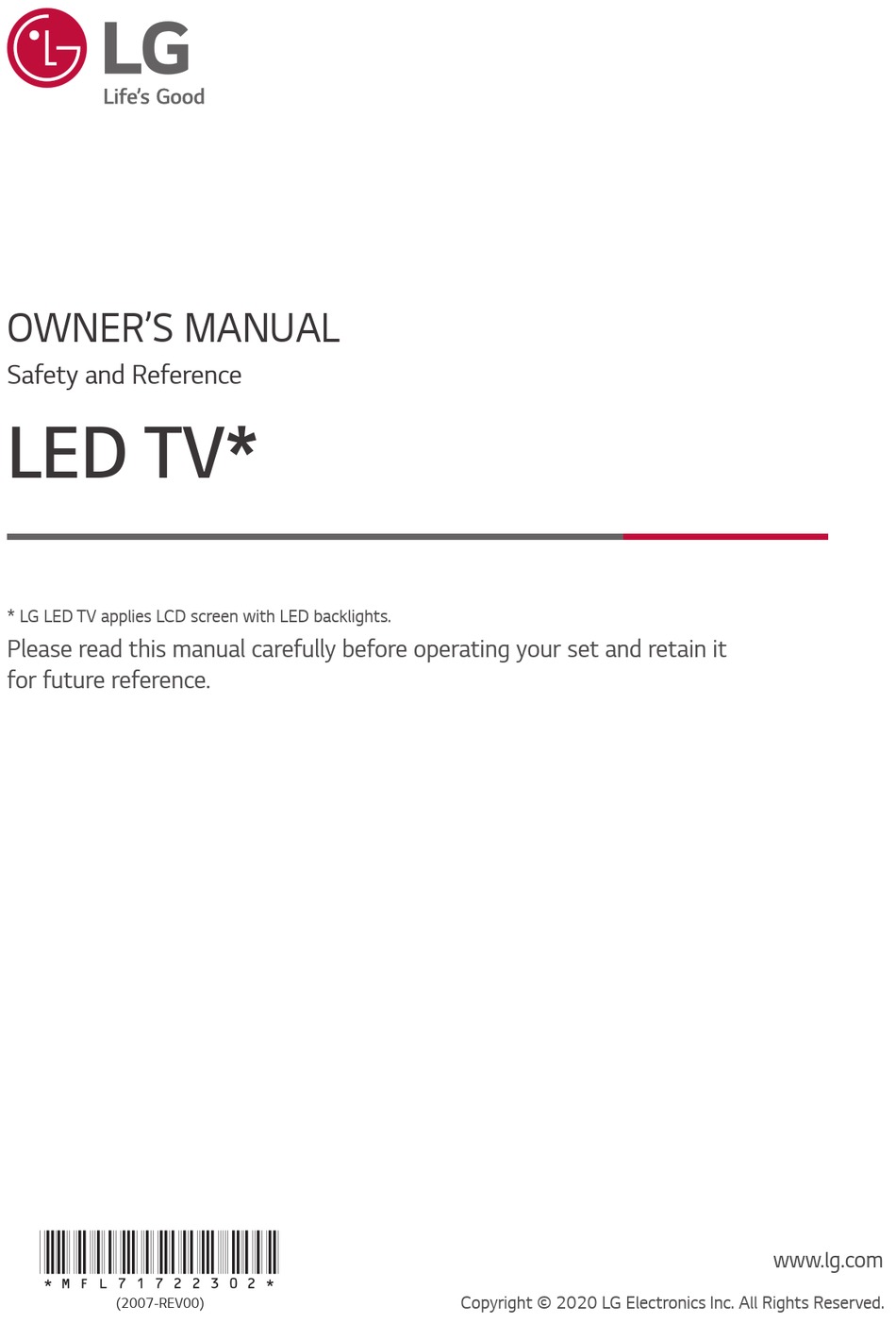

- Page 1 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. *MFL71722302* www.lg.com Copyright © 2020 LG Electronics Inc. All Rights Reserved.
- Page 2 Warning! Safety Instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while unit is plugged in.
- Page 3 Unauthorised modification could void the user’s authority to operate this product. • Use only an authorised attachments / accessories approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage. • Never disassemble the AC adapter or power cord. This may result in fire or electric shock.
-
Page 4: Separate Purchase
Preparing Separate Purchase Separate purchase items can be changed or modified for quality • If the TV is turned on for the first time after it was shipped from the improvement without any notification. Contact your dealer to buy these factory, initialization of the TV may take a few minutes. -
Page 5: Lifting And Moving The Tv
Lifting and moving the TV • Avoid touching the screen at all times, as this may result in damage to the screen. • Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the Please note the following advice to prevent the TV from being scratched TV may occur. -
Page 6: Attaching The Tv To A Desk
Attaching the TV to a Desk Using the Kensington security system (Depending on model) The TV should be attached to a desk so it cannot be pulled in a forward/ (Depending on model) backward direction, potentially causing injury or damaging the product. The Kensington security system connector is located at the rear of the TV. -
Page 7: Mounting To The Wall
LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please... -
Page 8: Other Connections
Connections Other connections Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Connect various external devices to the TV and switch input modes to Some separate cable is not provided. select an external device. -
Page 9: External Devices
External Speakers External Devices Available external devices are: Blu-ray player, HD receivers, DVD players, (Depending on model) VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. • The external device connection may differ from the model. •... -
Page 10: Wired Network Connection
Network Method of volume control port (Depending on model) (Depending on model) • Cable Spec. Wired network connection This TV can be connected to a Pro:Centric server via the port. After Each up/down pins making the physical connection, the TV needs to be set up for network are connected to CPU communication. -
Page 11: Using Button
Using Button Adjusting the Angle of the TV to suit view You can simply operate the TV functions, using the button. (Depending on model) Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view. -
Page 12: Using Remote Control
Using Remote Control * To use the button, press and hold for more than 3 seconds. (POWER) Turns the TV on or off. Adjusts the brightness of the screen to reduce The descriptions in this manual are based on the buttons on the remote energy consumption. -
Page 13: Troubleshooting
• Do not mix new batteries with old batteries. This may cause Abnormal display the batteries to overheat and leak. • If the product feels cold to the touch, there may be a small “flicker” • Failure to match the correct polarities of the battery may when it is turned on. -
Page 14: Specifications
Specifications (Depending on country) Broadcasting Specifications Digital TV Analogue TV DVB-S/S2 DVB-C PAL/SECAM B/G, D/K, I Television system DVB-T SECAM L DVB-T2 DVB-S/S2 DVB-C DVB-T/T2 VHF III: 174 ~ 230 MHz Channel coverage UHF IV: 470 ~ 606 MHz 46 ~ 862 MHz (Band) 950~2,150 MHz 46 ~ 890 MHz... -
Page 15: Operating Temperature
Wireless module (LGSBWAC72) specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 14 dBm 5,150 to 5,725 MHz 16.5 dBm 5,725 to 5,850 MHz (Not for EU) 11.5 dBm Bluetooth Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 8.5 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency. -
Page 16: Supported Photo Formats
HDMI-DTV supported mode Component port connecting information Horizontal Vertical Resolution Frequency (kHz) Frequency (Hz) Component ports on the TV 31.469 59.94 640 x 480p 31.5 60.00 31.47 59.94 720 x 480p Video output ports on DVD player 31.5 60.00 720 x 576p 31.25 50.00 44.96... -
Page 17: Supported Audio Formats
Supported Audio Formats Supported Video Formats File Extension Codec Item Info Format VC-1 Advanced Profile (except for Bit rate 32 Kbps - 320 Kbps Video .asf WMVA), VC-1 Simple and Main Profiles Sample freq. 16 kHz - 48 kHz .wmv WMA Standard (except for WMA v1/ .mp3 Audio... -
Page 18: Supported External Subtitles
Reserved. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com. - Page 19 IR CODES • This feature is not available for all models. Code (Hexa) Function Note Remote control Button (POWER) (Power On/Off) Remote control Button Remote control Button Remote control Button Remote control Button Number Key 0-9 10-19 Alphabet buttons Remote control Button (SPACE) Remote control Button Remote control Button...
- Page 20 Code (Hexa) Function Note Remote control Button Remote control Button (BACK) Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button...
-
Page 21: External Control Device Setup
EXTERNAL CONTROL Phone jack Type DEVICE SETUP (Depending on model) • You need to purchase the phone-jack to RS-232C cable required for the connection between the PC and the TV, which is specified in the manual. RS-232C Setup * For other models, connect to the USB port. •... -
Page 22: Communication Parameters
RS-232C Configurations Communication Parameters • Baud rate: 9,600 bps (UART) 7-Wire Configurations • Data length: 8 bits (Standard RS-232C cable) • Parity: None • Stop bit: 1 bit • Communication code: ASCII code • Use a crossed (reverse) cable. Set ID For [Set ID] number, see "Real data mapping". -
Page 23: Transmission / Receiving Protocol
Command Reference List Transmission / Receiving Protocol (Depending on model) (Depending on Model) Data Transmission Command1 Command2 (Hexadecimal) (Command1)(Command2)( )([Set ID])( )([Data])(Cr) 1 Power 00 to 01 (Command1) : First command to control the TV. (j, k, m or x) 2 [Aspect Ratio] (See p. - Page 24 1 Power (Command: k a) 3 Screen Mute (Command: k d) ►To control Power On/Off of the set. ►To select screen mute on/off. Transmission Transmission (k)(a)( )([Set ID])( )([Data])(Cr) (k)(d)( )([Set ID])( )([Data])(Cr) [Data] 00 : [Off] [Data] 00 : Screen mute off (Picture on) / Video mute off [Data] 01 : [On] [Data] 01 : Screen mute on (Picture off) [Data] 10 : Video mute on...
- Page 25 6 [Contrast] (Command: k g) 9 [Tint] (Command: k j) ►To adjust screen contrast. ►To adjust the screen tint. You can also adjust contrast in the picture settings. You can also adjust tint in the picture settings. Transmission Transmission (k)(g)( )([Set ID])( )([Data])(Cr) (k)(j)( )([Set ID])( )([Data])(Cr) [Data] Min : 00 to Max : 64 [Data] Red : 00 to Green : 64...
- Page 26 12 Remote Control Lock Mode (Command: k m) 15 [Energy Saving] (Command: j q) ►To lock the front panel controls on the monitor and remote control. ►To reduce the power consumption of the TV. You can also adjust Energy Saving in picture settings. Transmission Transmission (k)(m)( )([Set ID])( )([Data])(Cr)
- Page 27 17 [Equalizer] (Command : j v) 18 Tune Command (Command: m a) ►To adjust equalizer. ►Select channel to following physical number. Transmission Transmission (j)(v)( )([Set ID])( )([Data])(Cr) (m)(a)( )([Set ID])( )([Data] 00)( )([Data] 01)( )([Data] 02)(Cr) [Data] 00 : High channel data [Data] 01 : Low channel data ex.
-
Page 28: External Input
19 Programme [Skip] / [Add] (Command: m b) 22 Input select (Command: x b) (Main Picture Input) ►To set skip status for the current Programme. ►To select input source for main picture. Transmission Transmission (m)(b)( )([Set ID])( )([Data])(Cr) (x)(b)( )([Set ID])( )([Data])(Cr) [Data] 00 : [Skip] [Data] Structure... - Page 29 * Real data mapping 00 : Step 0 Step 10 ([Set ID] 10) Step 15 ([Set ID] 15) 10 : Step 16 ([Set ID] 16) 64 : Step 100 6E : Step 110 73 : Step 115 74 : Step 116 CF : Step 199 FE :...
- Page 30 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. Model Serial no.
