Installation (Desk Mount)

A desk installation allows for an analog data (CPU) connection, composite video
connection (VCR, camera, etc.), audio connection, and a USB connection. The steps
for a desk installation of the VP181 are presented on pages 7 and 8.
1 Connect power cord
Connect the small DC power
cord from the base of the
ViewPanel ® to the head.
NOTE: for first time installation,
this step will be completed by
the factory.
2 Connect DFP cord
Connect the digital flat panel
(DFP) cord from the base of
the ViewPanel to the head.
3 Connect DC power supply
Connect the cord from the DC
Power Supply to a properly
grounded AC outlet using the
proper cord adapter for your
region.

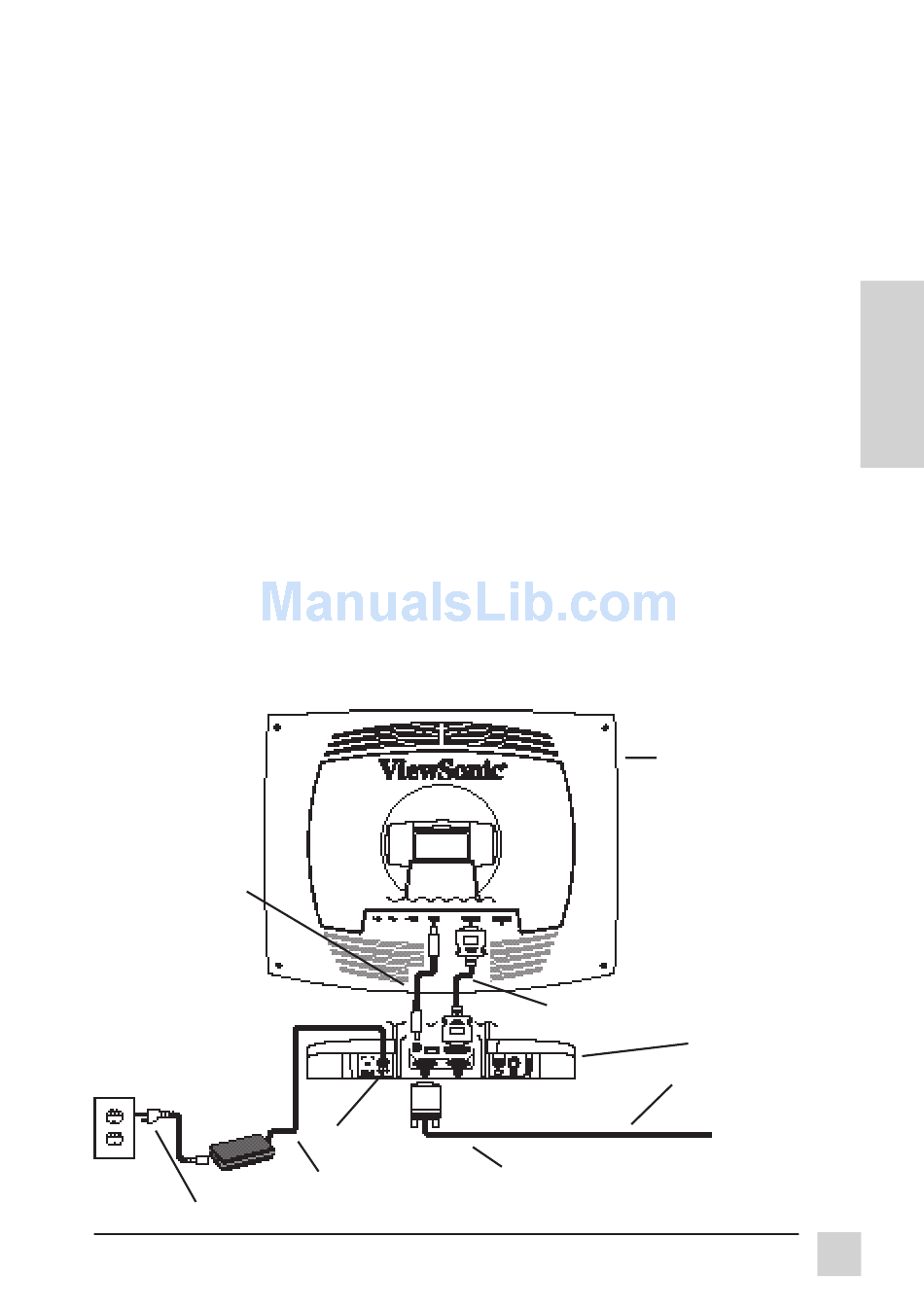

small DC Power
cord (step 1)
DC Power supply
(steps 3,4)
ViewSonic VP181 ViewPanel
4 Connect DC power to
ViewPanel
Connect the cord from the DC
Power Supply to the DC input on
the rear left side of the base.
5a Connect video cable
PC users: Connect the video cable
from the back of the computer to
the back of the ViewPanel base as
shown below.
5b Connect video cable
Macintosh
video cable to the computer using
a Macintosh adapter, if required.
Adapter is included with the
VP181.
DC Input
®
®
users: Connect the
LCD Digital
Head
small DFP
cable (step 2)
To computer
Video cable
(step 5)
Getting Started
Analog
Base
7
