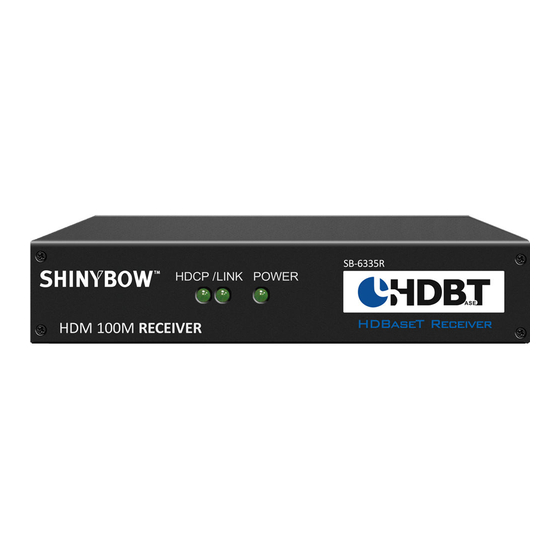

Shinybow USA SB-6335R Instruction Manual

Hdmi hdbaset receiver & transmitter kit
Hide thumbs Also See for SB-6335R:

Advertisement

Quick Links

Download this manual
SB-6335R & SB-6335T
HDMI HDBaseT
RECEIVER & TRANSMITTER KIT
™
up to 330 Ft (100M) (2-way IR, RS-232, HDMI)
Receiver
Transmitter

Advertisement

loading
Need help?

Need help?

Do you have a question about the SB-6335R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shinybow USA SB-6335R

Summary of Contents for Shinybow USA SB-6335R

  • Page 1 SB-6335R & SB-6335T HDMI HDBaseT RECEIVER & TRANSMITTER KIT ™ up to 330 Ft (100M) (2-way IR, RS-232, HDMI) Receiver Transmitter...
  • Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.

  • Page 3: Table Of Contents

    ™ weight to be placed upon it or any person walk on it. Receiver (SB-6335R) via a single category LAN cable for long • To protect the unit from overheating, do not block any vents or distances of up to 328 feet (100M) maximum. These Transmitter openings in the unit housing that provide ventilation and allow for &...

  • Page 4: Package Contents

    PACKAGE CONTENTS RECEIVER Check that you have the following components; • SB-6335R HDBaseT Receiver console ™ • (2) SB-100C IR Receiver w/ attached cable • (2) SB-101C IR Emitter w/ attached cable • (2) SB-100 IR Receiver w/ assembly plug •...

  • Page 5: Features

    FEATURES RECEIVER • HDBaseT HDMI Receiver over a single CAT6/6a/7 category LAN cable ™ • Extends HDMI, IR in/out, RS-232 in/out and Ethernet ports, HDCP compliant • Uses CAT6, CAT6a and CAT7 UTP/FTP category cable • Supports link speeds of up to 3.4 Gbps •...

  • Page 6: Specifications

    SPECIFICATIONS RECEIVER • Type of Extender: HDBaseT Receiver for HDMI signal over one category LAN Cable ™ • Input Signals: HDMI with Digital Video (TMDS)/Audio 0.5~1.0Vpp, DDC 5Vpp • HDBaseT Supports: HDMI Standard, DVI and HDCP Compliant ™ • Video Support: HDMI and DVI TMDS format for 1920x1200 resolution up to 3.4 Gbps Digital RGB 36bits deep color, 3D 1.4a HDMI format • HDMI Audio Out Supports: Multi-channel Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) • RS-232 Series Support: 1x RS-232 series interface port (Terminal Block 3pin female socket)

  • Page 7: Typical Hookup & Operation

    TYPICAL HOOKUP AND OPERATION SB-6335R RECEIVER RECEIVER FRONT: 1. STATUS VIA LED SHOW OUT : POWER, LINK & HDCP RECEIVER BACK: 5. DC INPUT : DC12V, 2A 6. IR IN : Sends IR signal to HDBaseT Transmitter ™ 7. IR OUT : Receives IR signal from HDBaseT Transmitter via IR External Receiver SB-100) ™...
  • Page 8 TYPICAL HOOKUP AND OPERATION SB-6335T TRANSMITTER TRANSMITTER FRONT: 1. STATUS VIA LED SHOW OUT : POWER, LINK & HDCP TRANSMITTER BACK: 5. DC INPUT : DC12V, 2A 6. IR IN : Sends IR Signal to HDBaseT Receiver ™ 7. IR OUT : Receives IR signal from HDBaseT Receiver ™...
  • Page 9 TYPICAL HOOKUP AND OPERATION...

  • Page 10: Ir Extender

    IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT .
  • Page 11 IR EXTENDER IR EXTENDER 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 IR in DC 12V R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300M) 2.

  • Page 12: Rack Mount

    RACK MOUNT SB-6069 SB-6335T/SB-6335R 19 INCH 4U-10P RACK MOUNT Model No. : #4U-10p-L130MM SB-6335T/SB-6335R 4U Ear mount pairs Parts No.: MEER6069ER13000 Model No. : #4U-10p-L130MM-COV SB-6335T/SB-6335R 4U Ear mount pairs Parts No.: MEER6069ER11000 Model No. : #4U-10p-L80MM-EAR SB-6335T/SB-6335R 4U Ear mount pairs...
  • Page 13 RACK MOUNT SB-6069 Complete 19 inch 4U rack mount Install Application : SB-6335T/SB-6335R SB-6335T/SB-6335R : Wall mount accessories Model No. : #WM-1INCH-L80MM SB-6335T/SB-6335R Wall mount pairs Parts No.: MEER6320ER11000...
  • Page 14 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
  • Page 15 THIS PAGE IS INTENTIONALLY LEFT BLANK.
  • Page 16 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...

This manual is also suitable for:

Sb-6335t
