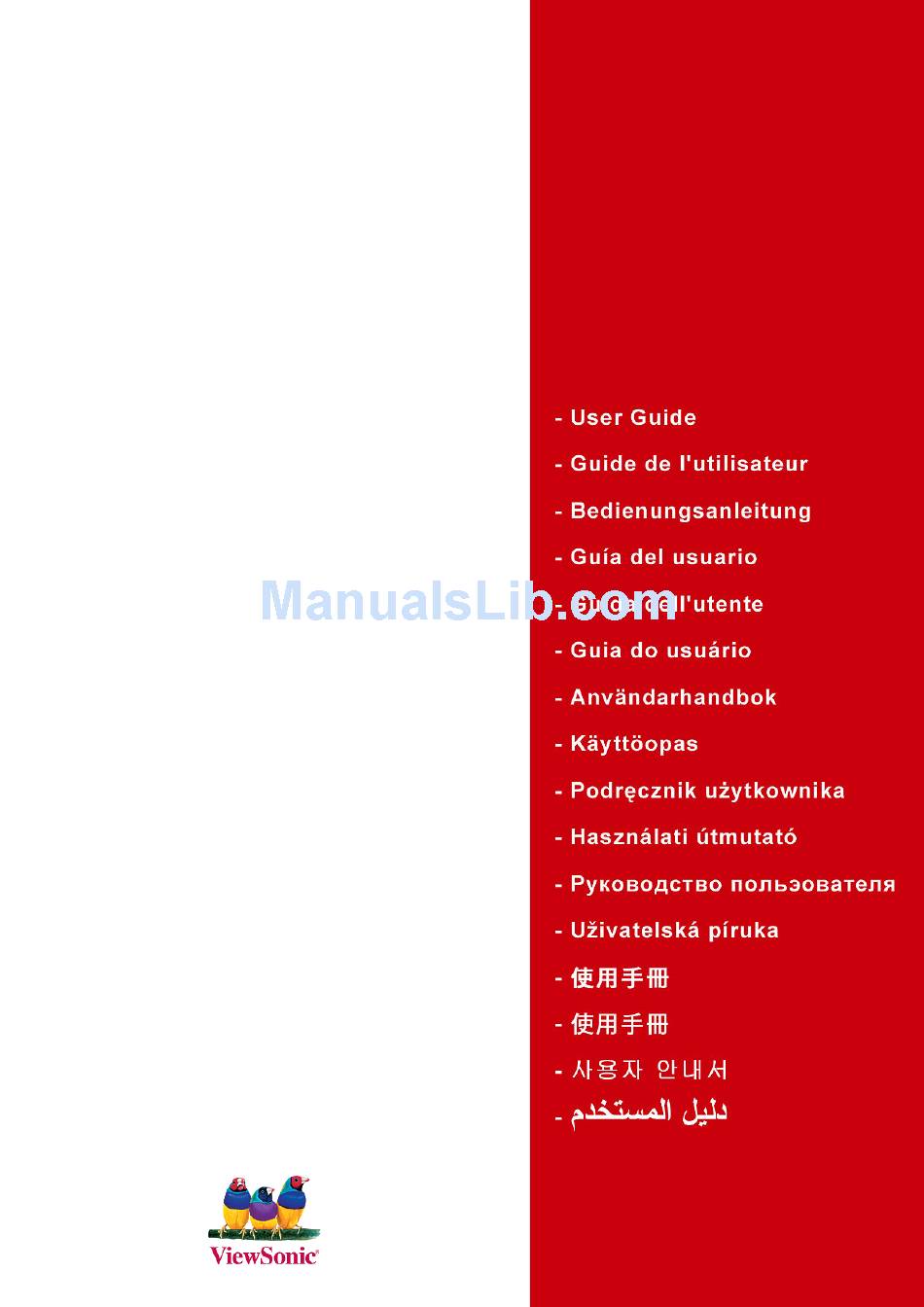

- Page 1 ® ViewSonic VG510b/VG510s LCD Display...
-
Page 2: Table Of Contents
OSD and Power Lock Settings ... 7 Adjusting the Screen Image ... 8 Main Menu Controls ... 10 Other Information Specifications ... 13 Troubleshooting... 14 Customer Support ... 15 Cleaning the LCD Display ... 16 Limited Warranty ... 17 ViewSonic VG510b/VG510s... -
Page 3: Compliance Information
92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility,” and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety.” User Information for all Countries Notice: Use the cables which are included with the unit or specified. ViewSonic VG510b/VG510s... -
Page 4: Important Safety Instructions
ViewSonic VG510b/VG510s... -
Page 5: Copyright Information
® NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use of this product. -
Page 6: Getting Started
NOTE: The CD includes the User Guide PDF files and INF/ICM display optimization files. The INF file ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both the INF and ICM files. -
Page 7: Quick Installation
NOTE: Windows users may receive a message asking them to install the INF file. This is on the CD. 5. Insert the ViewSonic Wizard CD into the computer’s CD drive. Follow the on-screen instructions. If your computer does not have a CD-ROM drive, see “Customer Support”... -
Page 8: Wall Mounting (Optional)
Wall Mounting (Optional) To obtain a wall-mounting kit, contact ViewSonic instructions that come with the base mounting kit. To convert your LCD display from a desk- mounted to a wall-mounted display, do the following: Four VESA screw holes ViewSonic VG510b/VG510s or your local dealer. -
Page 9: Using The Lcd Display
Power Button Locked will display for few seconds. With or without this setting, after a power failure, your LCD display’s power will automatically turn ON when power is restored. • Power Button Unlock: Press and hold [1] and the down arrow again for 10 seconds. ViewSonic VG510b/VG510s... -
Page 10: Adjusting The Screen Image
Decreases or increases volume Audio Mute button turns the sound off ViewSonic VG510b/VG510s Main Menu with OSD controls Front Control Panel shown below in detail Speaker Scrolls through menu options and adjusts the displayed control. - Page 11 (The black border around the edge of the screen should barely touch the illuminated “active area” of the LCD display.) ViewSonic VG510b/VG510s The line at the bottom of the screen shows the current functions of buttons 1...
-
Page 12: Main Menu Controls
1. To select color (R, G or B) press button [2]. 2. To adjust selected color, press or . Important: If you select RECALL from the Main Menu when the product is set to a Preset Timing Mode, colors return to the 6500K factory preset. ViewSonic VG510b/VG510s... - Page 13 Information displays the timing mode (video signal input) coming from the graphics card in the computer, the LCD model number, the serial number, and the ViewSonic instructions on changing the resolution and refresh rate (vertical frequency). NOTE: VESA 1024 x 768 @ 60Hz (recommended) means that the resolution is 1024 x 768 and the refresh rate is 60 Hertz.
- Page 14 Memory Recall returns the adjustments back to factory settings if the display is operating in a factory Preset Timing Mode listed in the Specifications of this manual. Exception: This control does not affect changes made with the User Color control, Language or Power Lock setting. ViewSonic VG510b/VG510s...
-
Page 15: Other Information
Preset Timing Mode (pre-adjusted to VESA Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD display. Macintosh computers older than G3 require a ViewSonic ViewSonic. ViewSonic VG510b/VG510s 15”... -
Page 16: Troubleshooting
Loose or broken pins in the cable connector could cause an improper connection. • Connect the LCD display to another computer. • If you have an older graphics card, contact ViewSonic Control buttons do not work • Press only one button at a time. -
Page 17: Customer Support
Southeast www.viewsonic.com.sg Asia, and India South Africa and other www.viewsonic.com countries Hong Kong www.hk.viewsonic.com ViewSonic VG510b/VG510s T = Telephone Email F = FAX T= (800) 688 6688 service.us@viewsonic.com F= (909) 468 1202 T= (886) 463 4775 service.ca@viewsonic.com F= (909) 468 1202 T= (0800) 833 648 service.eu@viewsoniceurope.com... -
Page 18: Cleaning The Lcd Display
LCD display screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD display. • ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol- based cleaners. ViewSonic VG510b/VG510s... -
Page 19: Limited Warranty
ViewSonic warrants its products to be free from defects in material and workmanship during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
