Summary of Contents for Gomax MS-5005

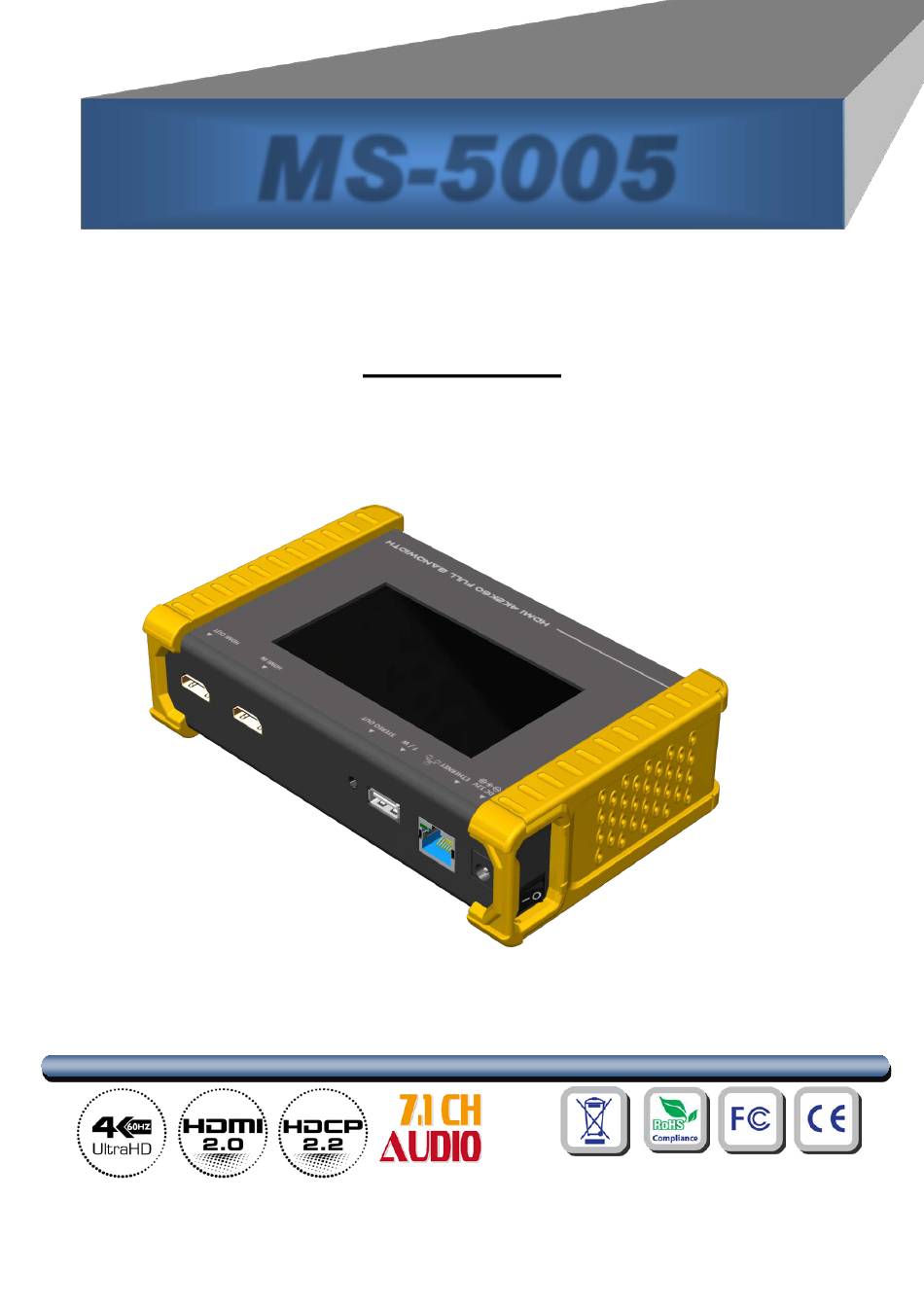

- Page 1 MS-5005 HDMI 2.0 Generator / Analyzer User Manual rev: 170125 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the MS-5005 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
HDMI 2.0 toolbox with full bandwidth and HDCP 2.2 support. For ease of HDMI 2.0 installations, MS-5005 is equipped with both HDMI 2.0 pattern generator and analyzer. With this handy and portable gadget, users will appreciate at the built-in long hour operation chargeable battery, video patterns, touch panel control, cloud based firmware upgrade access and many other features such as HDCP analyzer or loop test in single piece of device. -
Page 4: Specifications
SPECIFICATIONS Model Name MS-5005 Technical Role of usage Generator / Analyzer Video bandwidth Single link 600MHz [18Gbps] HDMI compliance HDMI 2.0 and below HDCP compliance HDCP 2.2 and below Video Support Up to 4K2K60 4:4:4 8bit, 4K2K60 4:2:0 16bit (HDR) -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS MS-5005 OUTPUT: HDMI output INPUT: HDMI input Stereo Out: Analog audio output USB: Connect to USB device for control or firmware update Ethernet: Ethernet control +12V DC: 12V 5A DC power jack Power Switch: Power ON/OFF switch Touch Panel: Touch screen for control... -
Page 6: Application Diagram
APPLICATION DIAGRAM... -
Page 7: Menu Operation
MENU OPERATION The major functions of the device are listed below HDMI Generator HDMI Receiver HDCP Test EDID Test Loop Test Please refer the table below and the following section to know how to operate these functions. OUTPUT SETTING Menu Items... -
Page 8: Generator
The HDTV resolution is up to 4K2K 60Hz and PC resolution is up to 1920x1200 60Hz. 2. Rendering Test Patterns on an HDTV MS-5005 provides multiple test patterns for user select to test HDTV. User can select the desired test pattern from the video pattern menu. -
Page 9: Receiver
HDMI source device. 2. Testing the Video from the HDMI source MS-5005 supports the incoming video from HDMI source/device to ensure user is receiving a valid video signal by displaying the information of incoming signal. The video information also will inform user whether the HDCP is encrypted or not. -
Page 10: Hdcp Test
When MS-5005 set as receiver, it can verify HDCP of video player or other DUT (Device Under Test). MS-5005 provides three options (HDCP 1.4 / HDCP 2.2 / no HDCP) for users to select and confirm the HDCP authentication of DUT. -
Page 11: Edid Analysis
EDID ANALYSIS MS-5005 offers the most convenient way for user to analyze the EDID. You can verify, view and learn the EDID of an HDMI HDTV or other devices. Procedure of EDID Analyze: Make sure the connections between the MS-5005 HDMI output port and the device. -
Page 12: Loop Test
MS-5005 offers the unique estimator for evaluating the quality of cables or DUT. Users can simply connect the cable or DUT to MS-5005 to form a loop, the monitor will examine the HDMI bitstream pixel by pixel. The measurement statistics will be displayed on screen and offer useful information for building up robust A/V system. -
Page 13: Ethernet Control (Tcp/Ip)
ETHERNET CONTROL (TCP/IP) MS-5005 also provides user control through Ethernet. The Ethernet control includes many major functions, it can offer user develop software to do advance setting. (TCP Port: 6133) Reply Format: Received = ACK + Feedback Date ACK: 0xaa 0xbb 0xcc Feedback Date: Data0 Data1 Data2…. - Page 14 Resolution: Index Resolution Index Resolution Index Resolution 720x480i@60 0x13 1920x1080p@24 0x26 1920x1200pRB 720x576i@50 0x14 1920x1080p@23.976 0x27 3840x2160p@60 720x480p@60 0x15 640x480p@60 0x28 3840x2160p@59.94 720x576p@50 0x16 640x480p@75 0x29 3840x2160p@50 1280x720p@60 0x17 800x600p@60 0x2a 3840x2160p@30 1280x720p@59.94 0x18 800x600p@75 0x2b 3840x2160p@29.97 1280x720p@50 0x19 1024x768p@60 0x2c 3840x2160p@25 1280x720p@30...
- Page 15 Default Pattern: Index Default Pattern Index Default Pattern Index Default Pattern Ramp Green H 1 0x17 Stair Blue 2 0x27 V Stripe Blue Ramp Blue H 1 0x18 Stair White 1 0x28 H Stripe Red Ramp Red H 2 0x19 Stair White 2 0x29 H Stripe Green...
- Page 16 Rate Index 48 KHz 96 KHz 192 KHz 32 KHz 44.1 KHz Rate Number Index 2 Ch 2.1 Ch 5.1 Ch 6.1 Ch 7.1 Ch Number TX HDCP Index HDCP 1.4 HDCP 2.2 Type0 HDCP 2.2 Type 1 TX HDCP RX HDCP Index HDCP 1.4...
-
Page 17: Upgrade Ms-5005
MS-5005. Procedure of Firmware Upgrade: *Before updating the firmware of MS-5005, please ensure the file of new firmware files are in the root directory of USB Flash Drive. The file suffix is .dat. - Page 18 3~5 seconds. While updating, please do not remove the USB Flash Drive. After completing the firmware update, please reboot the MS-5005. Make sure the arm.dat file is in the root directory of USB. Connect the USB Flash Drive on MS-5005 USB interface.
- Page 19 Create a folder (folder name is usr_pic) on USB Flash Drive. Ensure the file of pattern which user desire to update on the MS-5005 is in the usr_pic directory of USB Flash Drive. The file suffix is .jpg. ...
-
Page 20: Eye Pattern
The test result of this device (with Simplo battery) is shown as below: *This result is representative of the MS-5005. Each MS-5005’s performance is closed to these results but not exactly the same. Summary of Results... - Page 21 Clock Jitter and eye pattern...
-
Page 22: Limited Warranty
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the MS-5005 features and specifications is subject to change without further notice...
