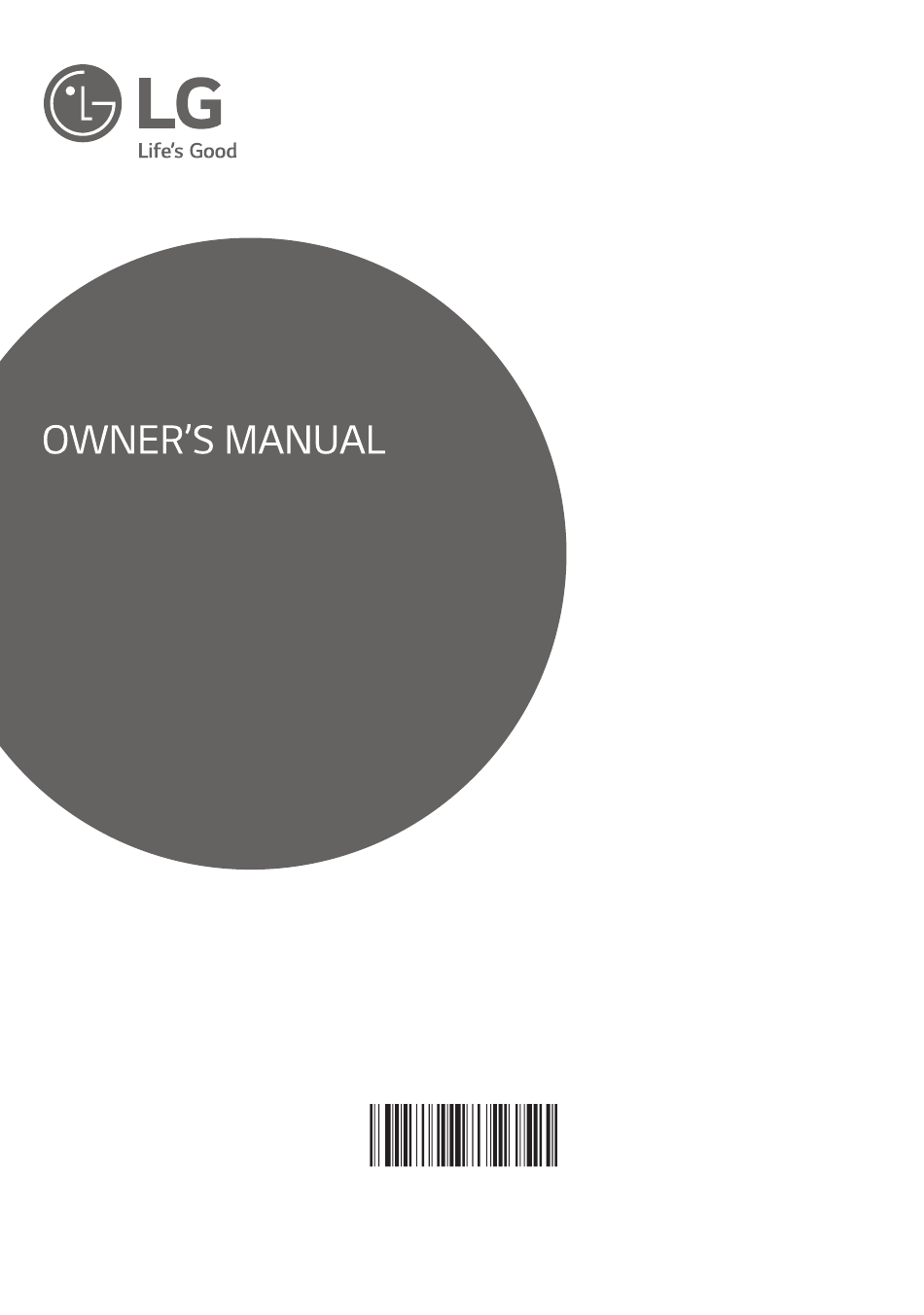

- Page 1 ROOM AIR CONDITIONER Please read this manual carefully before operating your set and retain it for future reference. TYPE : WALL MOUNTED For Split AC Export Models P/No. MFL39754873 MFL39754873 www.lg.com...
- Page 2 Indoor air purification Dimmer Preparing for operation Usage Cleaning & Maintenance Service Symbols used in this manual Components Using the remote control - Inserting battery - Installing the remote control holder Cleaning the air filter BASIC FUNCTIONS Cleaning the anti-allergy filter Cleaning the plasma (+HAF) filter (Optional) Cleaning the Microprotection Filter (Optional)
- Page 3 Avoid excessive cooling reduce the cooling/ dehumidification functions...
- Page 4 shall hazards. instructions confirming result...
- Page 5 unit may effect product performance or ON or OFF enter water...
- Page 6 may effect product performance. not cause in health complications or solvents for air conditioner cleaning it may effect product performance or result in product failure. Always insert the filter securely after cleaning. Clean the filter in every two weeks or more often if necessary.
- Page 7 Prior to Operation Preparing for Operation Cleaning and Maintenance 1.Contact an installation specialist for 1.Do not touch the metal parts of the unit when removing the filter injury may occur. installation. 2.Do not use water to clean inside the air 2.Plug in the power plug properly.
- Page 8 Air Inlet Signal Receiver Air Filter Front Panel Product look and picture are for reference only, actual product may vary depending on model of the air conditioner. Air Intake Vents Connecting Wires Piping Air Outlet Vents Drain Hose Base Plate Electrical Safety WARNING •...
- Page 9 Using the remote control You can operate the air conditioner more conveniently with the remote control. Wireless remote control Signal Transmitter Used to circu- Air Circulation button late the room air without cooling or heating. Used to Mosquito Away operation button start or stop Mosquito Away operation Display Screen...
-
Page 11: Basic Functions
BASIC FUNCTIONS Cooling your room Removing humidity (Cooling Mode Only) (Cooling operation) (Monsoon operation) Press to turn on the power. This mode removes excess moisture from environment with high humidity or in the rainy Press repeatedly to select the cooling season, in order to prevent mold from setting operation. - Page 12 Airing your room Adjusting the air flow direc- (Air Circulation operation) tion This mode only circulates the indoor air To adjust the direction of the flow verti- without changing the room temperature. cally, press change the air flow direc- tion automatically. - This function is apply for only turn air deflector Press to turn on the power.
- Page 13 Canceling the timer setting Press to select desired time. Press to select the timer setting Press to finish. to cancel. Press Turning on the air conditioner auto- - To cancel all timer settings, press matically at a set time (The timer lamp on the air conditioner and the remote symbol will go off).
-
Page 14: Advanced Functions
ADVANCED FUNCTIONS - If you turn off the power, the fan oper- The air conditioner offers some additional ad- ates for 30 minutes and cleans the inside vanced functions. of the indoor unit. Changing room temperature NOTE quickly Some buttons cannot be used while the H’COOL Mode auto cleaning function is in operation. - Page 15 Auto operation (Optional) Auto Changeover (Optional) (Artificial inelligence) Cooling-only models Heat pump models In this mode, the fan speed and the This operation is basically heating or cooling function temperature adjust automatically, of the air conditioner. But during this operation the controller change the operation mode automatically based on the room temperature.
- Page 16 (Forced Operation) ON/OFF Disabling auto restart (Optional) The feature can be changed according to the type of model. ON/OFF The feature can be changed according to the type of model. ON/OFF Open the front panel upward ON/OFF button The feature can be changed according to the Open the front type of model.
- Page 17 Micro Protection filter* Micro Protection filter. Micro Protection filter* Use steam to clean the heat exchanger coils and the panel vents (consult with technician).
- Page 18 Cleaning the air filter Cleaning the plasma (+HAF) filter (Optional) The feature can be changed according to the after type of model. Caution Do not press the mesh The feature can be changed according to the The feature can be changed according to the type of model.
- Page 19 Filter every 6 months. The location of the filters may differ, depending on the model. For more filters, Please contact the LG service center. The feature can be changed according to type of model. Outdoor Unit The heat exchanger coils and panel vents of the outdoor unit should be checked regularly.
-
Page 20: Troubleshooting
TROUBLESHOOTING... - Page 21 In summer, it may take some time to cool indoor air. In this case, select the H’COOL operation to cool indoor air quickly. In some operation modes, such as the H’COOL The auto operation, or dehumidification operation modes, you cannot H’COOL operation or adjust the fan speed.
- Page 33 connecting the indoor and outdoor housing connector (male - female housing matching). 9K, 12K, Cooling model (9K,12K,18K,24K) 22K, 24K, (Optional) 1(L) 2(N) IDU Terminal Color of Wires BLACK GREEN YELLOW inter Color of Wires BLACK GREEN YELLOW 1(L) 2(N) ODU Terminal If a power plug is not to be used, provide a circuit breaker between power source and the unit as shown below.
