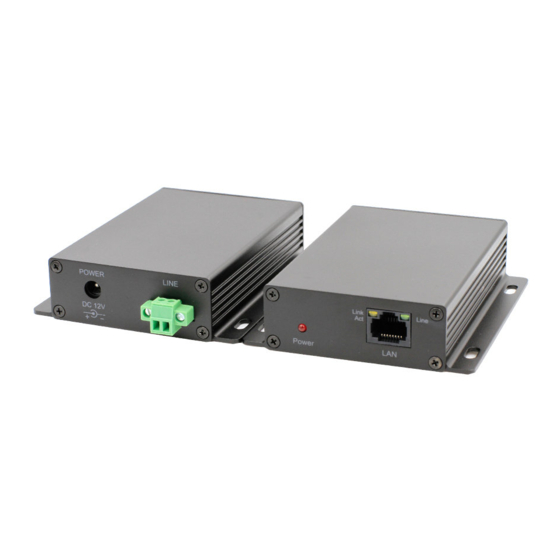

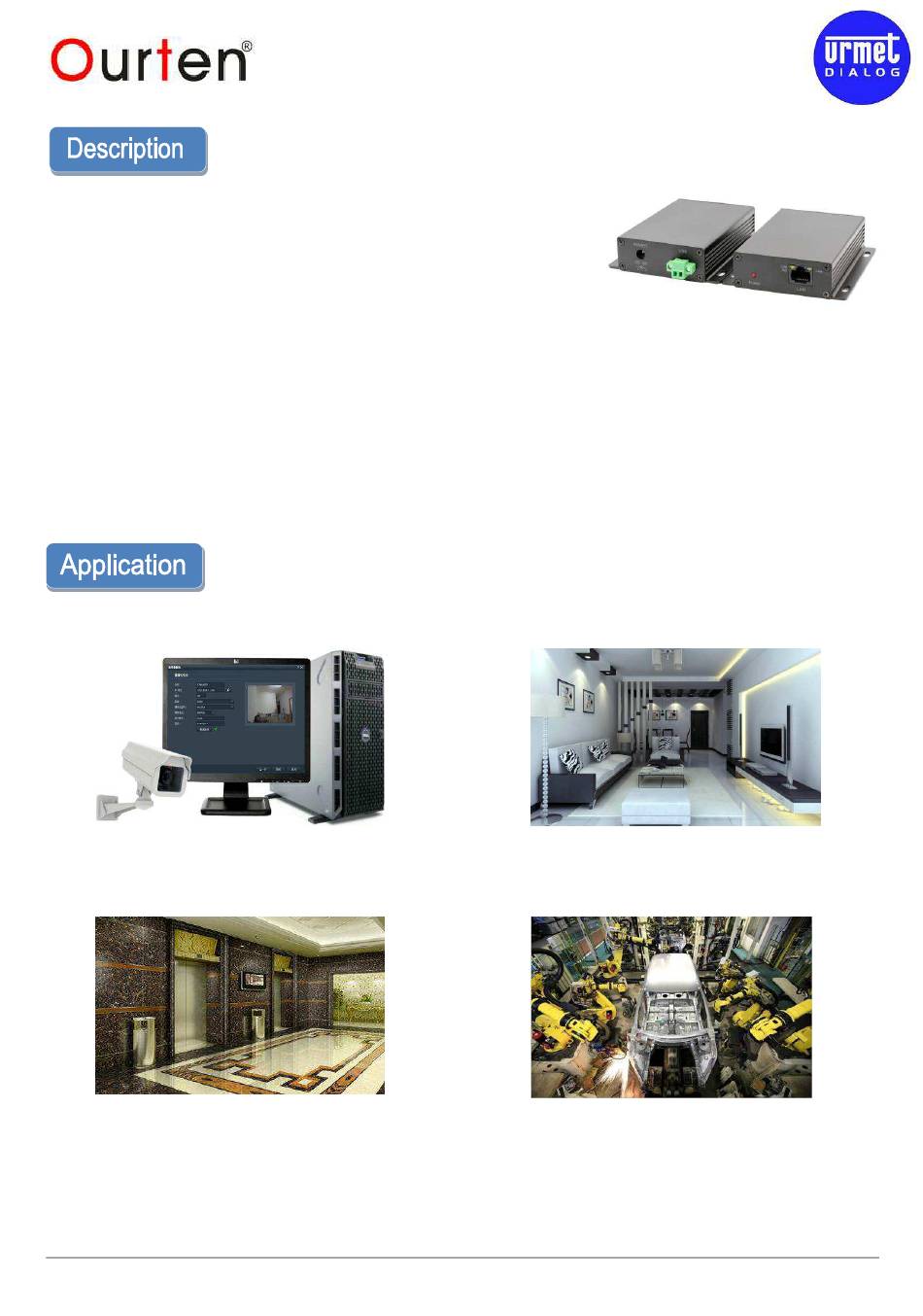

OT-PLC602 Ethernet Extender is a high-speed Ethernet transmission device.

It can transmit Ethernet signal over any 2-wire cable such as coax cable,

Cat5 cable, telephone cable, power line and so on. The max distance can reach

1,000 meters and the max physical bandwidth can reach 500Mbps.

This device contains the Master unit and Slave unit, which supports point-to-point and point to multi-point network

transmission. It can greatly simplify the project cabling and apply to expand network system and transmit Ethernet

signal for long distance.

IP Video Surveillance

Elevator IP Surveillance

Model OT-PLC602

Ethernet Extender

Page 1 of 7

Network Smart Home

Intelligent Network Industry

Table of Contents

Need help?

Do you have a question about the Ourten OT-PLC602 and is the answer not in the manual?

Questions and answers

Summary of Contents for Urmet Dialog Ourten OT-PLC602

Page 1 Model OT-PLC602 Ethernet Extender OT-PLC602 Ethernet Extender is a high-speed Ethernet transmission device. It can transmit Ethernet signal over any 2-wire cable such as coax cable, Cat5 cable, telephone cable, power line and so on. The max distance can reach 1,000 meters and the max physical bandwidth can reach 500Mbps.
Page 2 Max transmission distance can reach 1,000m (RVS 2 1mm Max physical bandwidth can reach 500Mbps Support power over cable technology (0-220V) Plug and play, transparent transmission, no adjustment and no need to change the upper software Low power consumption, communication channel dynamic adjustment and high performance error correction coding technology Telephone Line: Cat 3 or above Power Line: RVV, RVS,...
Page 3 Category Description Available Voltage Range 12VDC 10% Power Power Consumption / PC Standard Compliance IEEE1901, IEEE802.3 Up Down Agreement CSMA/CA Transmission / Rate Physical Speed 500Mbps Encryption Way 128-bit AES Encryption Dimensions (L × W × H) 98mm×86.5mm×25mm Physical Characteristic Material Aluminum Net Weight...
Page 4 Master Slave Step Installation Instruction Step Installation Instruction Local network equipment is connected to RJ45 The connection terminal of A line of 2-wire (8) port of master unit (1) The connection terminal of A line of 2-wire (2) The connection terminal of B line of 2-wire (9) Connect the UTP cable of network equipment to The connection terminal of B line of 2-wire (3) RJ45 port of slave unit (10)
Page 5 Figure 1 - Typical Installation Most installations that use the OT-PLC602 involve the replacement of old analog equipment with new IP devices, while reusing the installed wire. In generally, there are two connections types. One is typical connection (Figure 1 above). And the other is Bus-architecture and Daisy Chain Connection (Figure 2 and 3 Below).
Page 6 Figure 3 - Daisy Chain Connection OT-PLC602 supports multicast function which can realize one point to multi-point data forwarding, to improve transmission efficiency. Figure 4- Multicast Tips: For a lot of front-end network equipment, you can use a network switch to collect, when more network devices are connected, you can choose 16-Channel Ethernet Extender Hub.
Page 7 When you use OT-PLC602, please follow the below tips as a reference, in order to reduce the fault in the process of using and the inspection work. 1. The device supports auto-negotiation allocation master and slave. It also can be set master-slave side and grouped by software.
