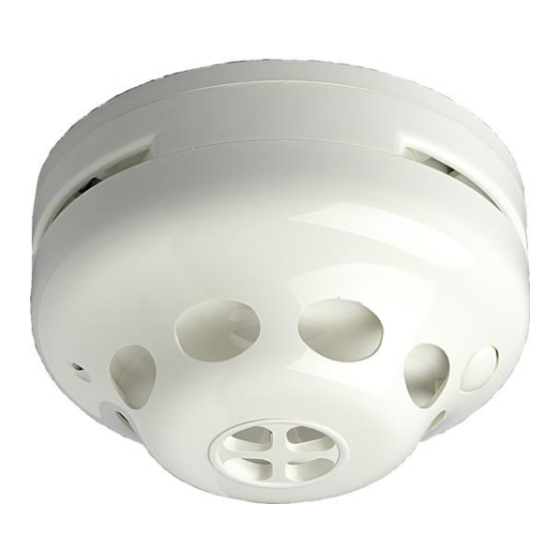

EDA-D6000 Radio Combined Heat Detector and Sounder
The EDA-D6000 Radio Combined Heat Detector and Sounder is used as part of the Zerio Plus Radio Fire Alarm
System. It cannot be used with other ranges of Electro-Detectors products.
The unit is rated to IP21C and should only be used for indoor use.
To fix the base to the ceiling
The heat detector should be fitted in an appropriate position as detailed in BS5839 Part 1. The base plate should be
separated from the unit by rotating the detector anti-clockwise and pulling apart. The base should be screwed to a flat
surface using 2 x No 6 screws of appropriate length for the material that the unit is being mounted on. It is
recommended that the base should be used as a template for the screw holes. If the surface is not flat, the unit may
buckle and cause tamper conditions, when screwed tightly to the surface. It is recommended that the units not be
secured too tightly or a rigid mounting plate be fixed to the wall first. The units should not be fitted covering holes in
ceilings where water could possibly drip through. Any hole should be made good prior to installing the detector. The
unit should be fitted away from any metal objects or electrical items to avoid radio interference and a radio survey for
the position should have been carried out prior to installation.
Adding the device to the system
Before the unit will operate on a system, it must be programmed via the control panel. To program the unit the panel
must be set in the appropriate mode to add a device to the system. If a device is being added or replaced on the system
then the appropriate menu option should be selected on the control panel. Please refer to the panel manual for further
information. Before adding/replacing the device on the system you will need to know what unit number/address the unit
is to be programmed to. The zone number, sensitivity, volume, area and text location information should also be to
hand but this can be added/changed later. Some of this information is left at default.
EDA-D6000 Installation Manual
www.acornfiresecurity.com
Zerio Plus
Installation Instructions
Electro Detectors Ltd.
Page 1 of 6
www.acornfiresecurity.com
Electro-Detectors
EN54-3:2001+A1:2002+A2:2006
EN54-5:2000+A1:2002
EN54-25:2008
0359-CPR-00228 (2014)
0359
DOP_EDA_D6000
EDA-D6000
Radio combined heat detector
Electro House
and sounder for use in fire
Edinburgh Way
detection and fire alarm systems
Harlow, Essex
for buildings.
CM20 2EG, UK
Type:
Ref: EDA_D6000_Install_V107.doc
A1S
A-for in-door use.
Advertisement
Table of Contents
Related Manuals for Electro Detectors Zerio Plus EDA-D6000
Summary of Contents for Electro Detectors Zerio Plus EDA-D6000

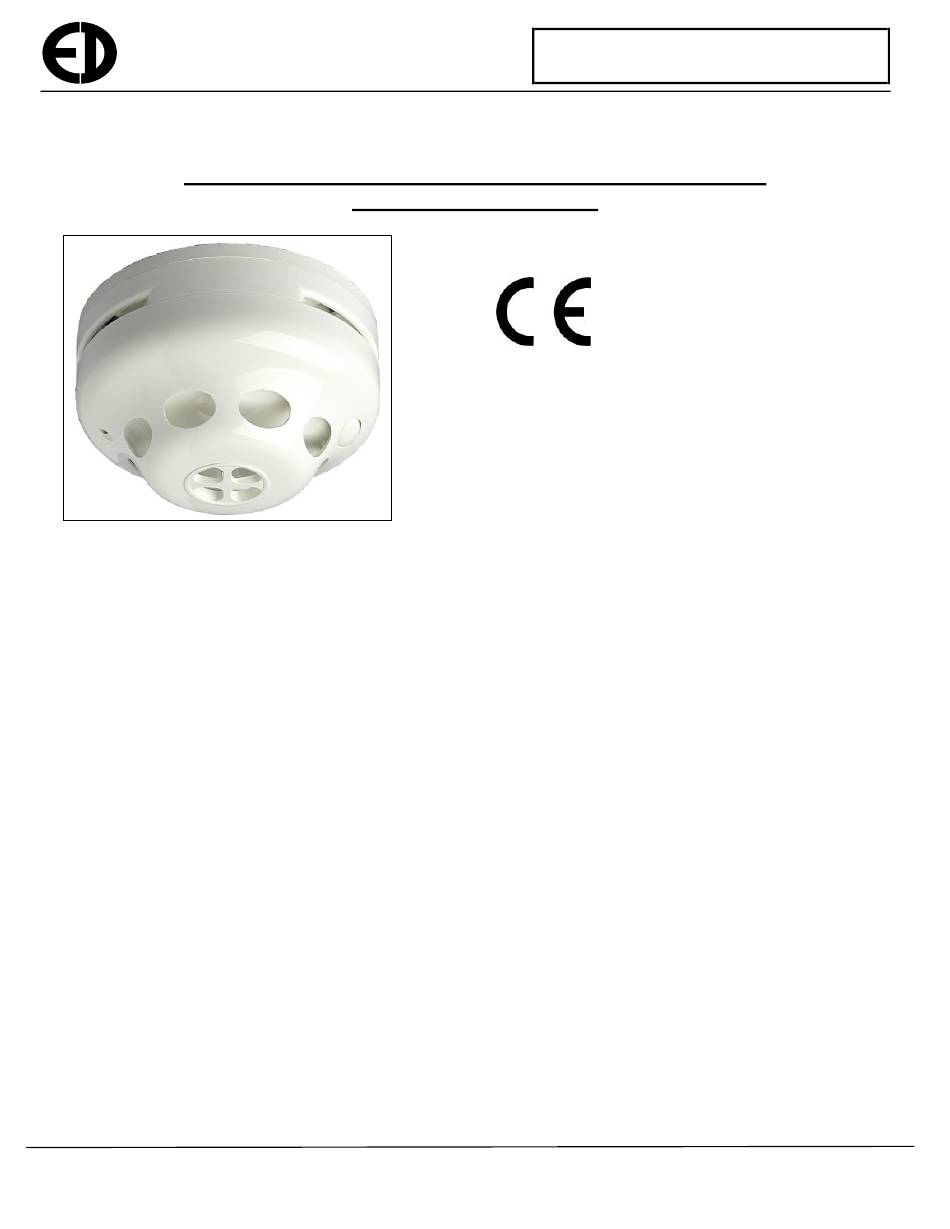

- Page 1 EDA-D6000 Radio Combined Heat Detector and Sounder Installation Instructions EN54-3:2001+A1:2002+A2:2006 EN54-5:2000+A1:2002 EN54-25:2008 0359-CPR-00228 (2014) 0359 DOP_EDA_D6000 EDA-D6000 Electro Detectors Ltd. Radio combined heat detector Electro House and sounder for use in fire Edinburgh Way detection and fire alarm systems Harlow, Essex for buildings. CM20 2EG, UK Type: A-for in-door use.
- Page 2 www.acornfiresecurity.com Electro-Detectors Zone Number The zone number is a logical way of grouping devices and is used as a way of indicating where the alarm is in a building. Careful attention to BS5839 should be exercised when allocating devices to zones and would usually be defined when the system is designed.
- Page 3 www.acornfiresecurity.com Electro-Detectors Output Timeout This controls how long the unit will sound before automatically silencing. Once automatically silenced the panel will remain indicating the alarm but the unit will be silenced. Should another alarm condition occur then the unit will resound.
- Page 4 To change the battery in the detector:- replacement part: 1 x EDA-Q690 The battery should last approximately five years in the heat detector. Always use batteries supplied by Electro Detectors otherwise this will invalidate the certification. Many similar battery technologies are available but only the ones that meet certain properties can be used with these units.
- Page 5 www.acornfiresecurity.com Electro-Detectors Remove the detector from the base by rotating the detector anti-clockwise and separating the unit. Remove the power link. Remove the back plate by removing the two screws Remove the old battery pack. Fit the new battery pack making sure the battery’s pins are lined up and pressed down. Re-fit the back plate.
- Page 6 www.acornfiresecurity.com Electro-Detectors Polar Diagram for swept tone at maximum volume EDA-D6000 Installation Manual Page 6 of 6 Ref: EDA_D6000_Install_V107.doc www.acornfiresecurity.com...
