Summary of Contents for Technicolor MEDIA TOUCH 2.0

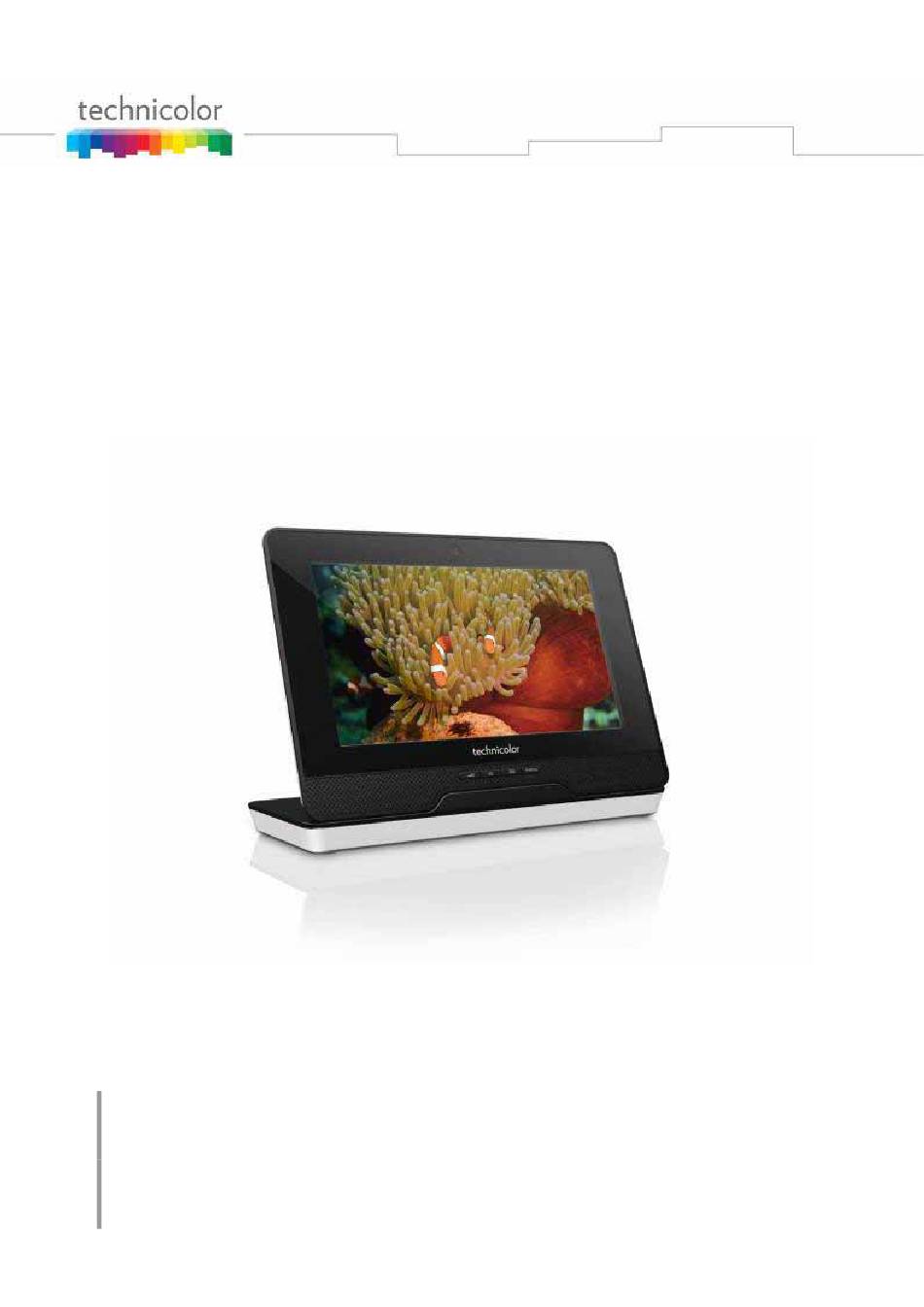

- Page 1 MEDIA TOUCH 2.0 TVA201 User Guide...
- Page 3 Technicolor. The content of this document is furnished for informational use only, may be subject to change without notice, and should not be construed as a commitment by Technicolor. Technicolor assumes no responsibility or liability for any errors or inaccuracies that may appear in this document.
-
Page 4: Table Of Contents
Contents About this User Guide ..................3 Your MEDIA TOUCH ................... 4 Getting started ....................11 Trouble shooting ....................13 Technical specifications ..................14... -
Page 5: About This User Guide
Terminology Generally, the Technicolor MEDIA TOUCH will be referred to as Tablet in this User Guide. Typographical Conventions Following typographical convention is used throughout this manual: This sample text indicates a hyperlink to a Web site. -
Page 6: Your Media Touch
Your MEDIA TOUCH 2. Your MEDIA TOUCH Your box Your box contains the following items: Item Description One User Guide One safety and regulatory notices booklet One MEDIA TOUCH Tablet One A/V cable One AC-DC power adaptor One lithium polymer rechargeable battery One charging dock When one of these items is missing contact your local reseller. - Page 7 Your MEDIA TOUCH Your Tablet Item Description Camera Notification LED Speaker SEARCH key HOME key BACK key MENU key...
- Page 8 Your MEDIA TOUCH Item Description Volume UP key Volume DOWN key Microphone Power ON/OFF key Battery cover Stand Power connector on charging dock Power connector on Tablet Audio/Video connector SD card connector USB connector...
- Page 9 Your MEDIA TOUCH Item Description Function To charge the battery of the tablet when connected Charging contact with the power adaptor plugged in the charging dock.
- Page 10 Your MEDIA TOUCH Setting up your Tablet Connecting the battery For safety reasons, the rechargeable battery of the Tablet is disconnected during the shipment. Please follow the steps below to connect the battery. Make sure the Tablet is powered off before removing the sliding cover. Remove the battery cover from the Tablet Connect the battery connector and insert the battery in its compartment...
- Page 11 Your MEDIA TOUCH Make sure the polarity of the battery match the polarity of the Tablet connector. For safety reason do not replace the battery by an incorrect type. If your battery is damaged, please contact your local reseller. Slide the battery cover back on up to a locking “click”.
- Page 12 Your MEDIA TOUCH Charging the battery Plug the jack connector of power adaptor into the power connector of the charging dock and put the Tablet on it. Plug the power adaptor on a power outlet. Plug the jack connector of the power plug directly into the power connector of the Tablet.
-
Page 13: Getting Started
Getting started 3. Getting started Language selection Press on power button shortly to boot up the Tablet. Select the HOME page you want to access by touch on it. Go to the APPLICATION page by: Push the MENU key Select “Settings”... - Page 14 Getting started Wi-Fi network connection Enter the “Settings” page. Select “Wireless & networks”. Turn on WIFI by selecting “Wi-Fi”. Select “Wi-Fi settings”. The Tablet is searching and displays all detected access points SSID. Select the Wi-Fi network you want to connect. For non-secured network: Select “Connect”...
-
Page 15: Trouble Shooting
Trouble shouting 4. Trouble shooting Problem What to do The battery may not be properly connected inside the tablet. Remove the cover from the back of the tablet to verify that the battery is inserted the right way. The battery may not be fully charged. It is recommended to charge the tablet for at least 8 hours My tablet won’t turn when using it for the first time or when it is fully... -
Page 16: Technical Specifications
Technical specifications 5. Technical specifications IEEE 802.11n / 130Mbps Standard / IEEE 802.11g / 54Mbps Throughput rate IEEE 802.11b / 11Mbps WiFi Frequency band 2.4 to 2.5 GHz Channel bandwith 20 MHz Up to 100m outside / Range Wireless 20m inside standard Frequency band 1920 to 1930 MHz... - Page 17 FCC RF Exposure requirements: The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. This model (FCC ID: G95-TVA201) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use when properly worn on the body is 0.668 W/kg.
- Page 18 Media touch 2.0 PRT UG 1.1.doc. © Technicolor 2010. All rights reserved. Reproduction prohibited. The manufacturer reserves the right to modify the characteristics of its products to make technical improvements or to comply with new regulations. Printed in China. UPTVA201PRT310011...
