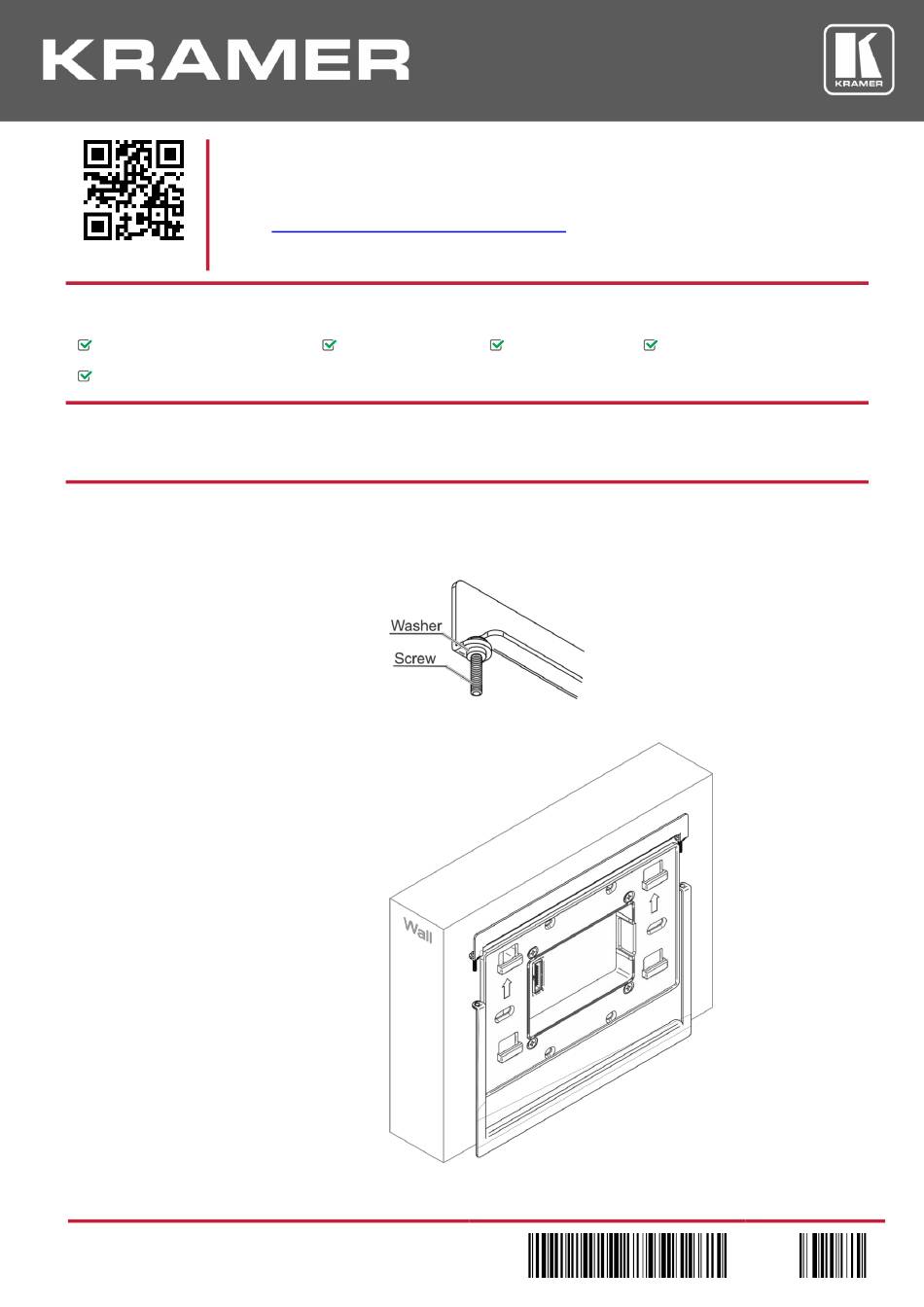

KT-107-OWLK Quick Start Guide
This guide helps you install and use your KT-107-OWLK for the first time.
Go to
firmware upgrades are available.
Scan for full manual
Step 1: Check what's in the box
KT-107-OWLK On-Wall Lock
Kramer screwdriver
Step 2: Get to know your KT-107-OWLK
The KT-107-OWLK On-Wall Lock secures KT-107, KT-107RB and KT-107S touch panels safely to a wall.
Step 3: Secure KT-107-OWLK to a wall:
The following diagrams illustrate attaching the On-Wall Lock mechanism with the short part above and the long part below. You
can also attach the other way around.
1. Insert the 2 screws (supplied)
into the screw openings and
insert the washers from below.
2. Place the short part (together
with the screws) over the
installed on-wall mount unit.
3. From below, slide the long
frame part towards the short
frame part.
KT-107-OWLK Quick Start (P/N: 2900-300795QS REV 2)
www.kramerav.com/downloads/KT-107-OWLK
2 Installation screws
to download the latest user manual and check if
3 washers
P/N:
2 9 0 0 - 3 0 0 7 9 5 Q S
1 Quick start guide
Rev:
2
