Summary of Contents for Sekotech GRANAT-2

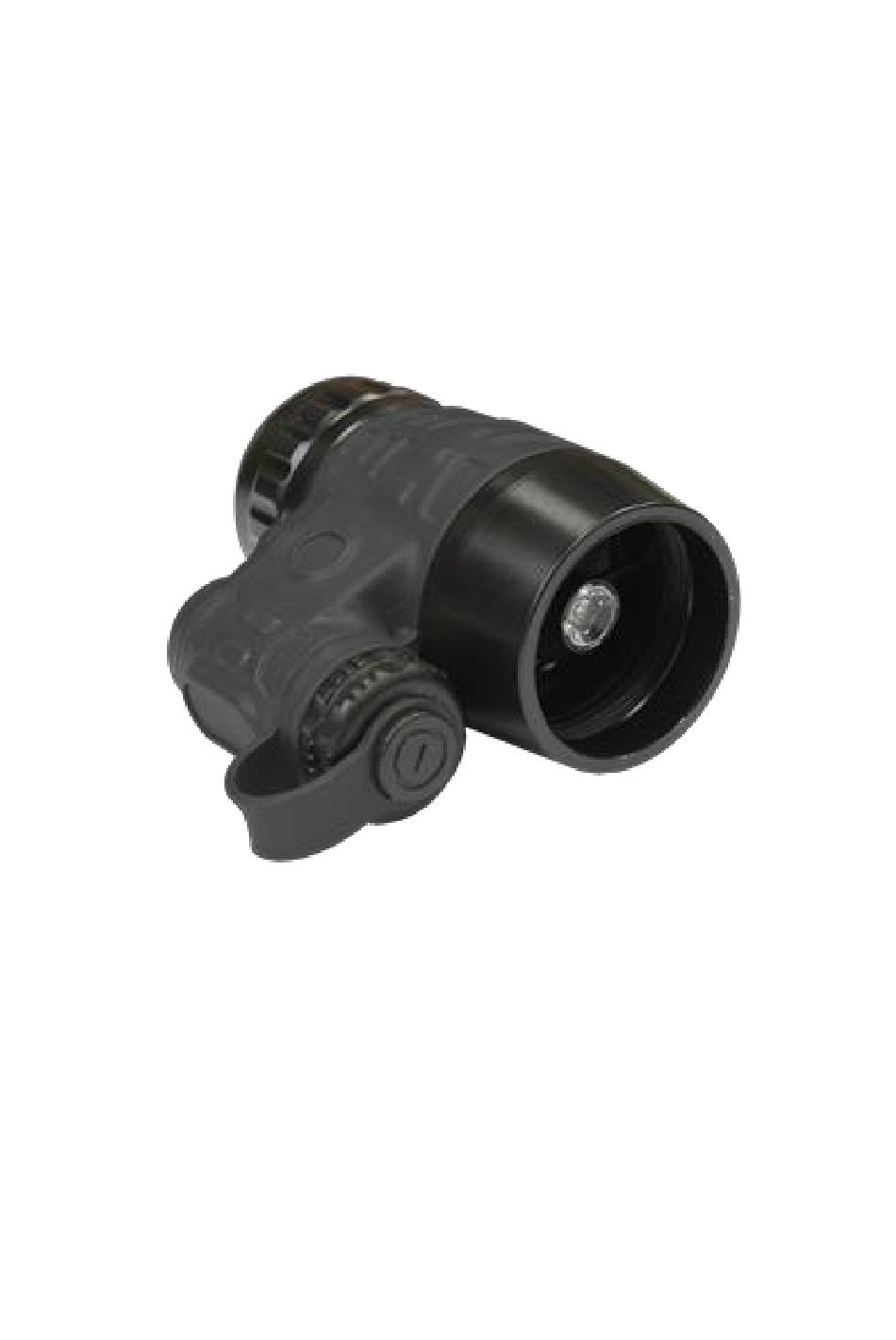

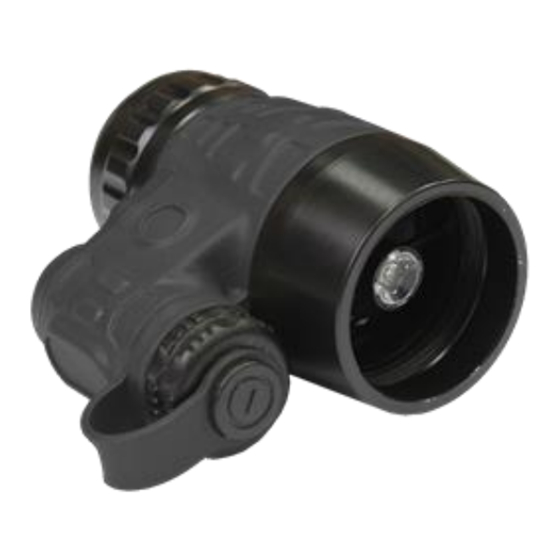

- Page 1 Detector of Hidden Television Surveillance Systems GRANAT-2 Operating manual...
- Page 2 CONTENT Page DESCRIPTION AND PRINCIPLE OF OPERATION 1.1 Area of application 1.2 Technical parameters 1.3 Delivery set 1.4 Principal of operation 1.5 Marking 1.6 Packing PROPER USE 2.1 Operational restrictions 2.2 Getting started 2.3 Product use 2.4 Safety measures MAINTENANCE SERVICE REPAIR STORAGE TRANSPORTATION...
- Page 3 Operating manual (OM) worked out to provide correct and safe operation of device for observation hidden television systems GRANAT-2 (further in the text “device” or “instrument”) and to carry out the evaluation of the Instrument technical condition with the goal to make decision whether it should be sent for repair.
- Page 4 1.3. Delivery Set. 1.3.1. Product Delivery Set is specified in Table 1. Table 1 Name Pcs Note GRANAT-2 CR123А battery Cloth for cleaning optics Operation Manual Data sheet Delivery package (cover) 1.4. Principal of operation. 1.4.1. The main components of the device and control layout are shown in Figure 1.
- Page 5 1.4.2. Control of the operation of the device is performed using two buttons. 1.4.3. The eyepiece has a diopter adjustment of ± 5 diopters available by rotating the settings' ring. 1.4.4. The device operates in two modes: continuous and pulsed radiation. Application of LED emitter with pulse radiation mode allows to increase the accuracy of detection of hidden cameras as compared to conventional detectors.
- Page 6 2.2.4. Install a new CR123A battery into the battery compartment of the device with "-" up, carefully observing polarity. 2.2.5. Close the battery compartment cover tight to prevent the penetration of foreign objects and water into the case while operating the device. 2.3.
- Page 7 4. REPAIR 4.1. Current repair of the product is carried in accordance with Table 2. Table 2 Failure and damage Possible Reasons Eliminating consequences of consequences failure and damage No LED when pressing Batteries - Replace batteries the buttons depleted - Contacts in battery - Clean contacts in battery compartment...
- Page 8 railway wagons, the shipment should be small low-tonnage. After transportation and before using, keep the product in standard climatic conditions for at least 12 hours. 6.2. The procedure to prepare the product for transportation and methods of attachment during transportation. 6.2.1.
