PLEASE READ BEFORE PLUGGING IN THE UNIT
Welcome!
The Wright Audio Integrated Amplifiers incorporate advanced circuit characteristics and parts, which have
been chosen based on sonic quality and reliability.
Please take a few moments to read this manual. Doing so will enable you to thoroughly enjoy your new
amplifier's sonic quality and fully utilize its versatility. First, a few cautions. Most are common sense, but are
here as reminders. These apply to all tube and most solid-state amplifiers and are not specific only to your
Wright Audio Amplifier.
1. Never operate the amplifier unless speakers are attached to its outputs.
2. Do not attempt to connect a subwoofer crossover / amplifier directly to the speaker terminals.
Do not attach the main speakers to a subwoofer crossover plate where it is marked 'Speaker Terminals'.
3. Never switch or disconnect input cables while the amplifier is on AND the volume turned up.
Doing so may damage your speakers.
4. Any modifications to the amplifier's circuitry or operation with other than Wright Audio recommended
tube types voids the warranty.
5. Tubes must be replaced at the end of their useful listening life, which is about 2000 hours, or
approximately every 2 to 3 years of 'average' use. Operation past this point increases the risk of
complete tube and possible amplifier failure. See our website for suitable replacement tubes.
6. The tubes get hot in normal operation. Touching one can result in a minor burn.
7. Do not attempt to change or remove a tube while the amplifier is on.
8. This amplifier utilizes a vacuum tube rectifier, the GZ34 / 5AR4. Whenever the amplifier has been turned
off, wait at least 5 minutes before turning the amplifier on again to allow it to cool. Not doing so stresses
the tube.
9. Always install tubes of the identical numbers as shown on the enclosed sheet, on the amplifier's top
surface or on the sticker on the amplifier's bottom plate. Inserting ANY other tube number will cause
unsatisfactory operation and may damage the amplifier and tube. Tube numbers are always shown on
the tube and tube box.
10. Do not open the bottom cover of the amplifier. Lethal voltages exist within, even when the power cord is
disconnected from the socket. It should be returned to Wright Audio if there is a malfunction.
11. Connect the unit to an electrical outlet providing 50 to 60 cycles AC and the voltage as marked.
Wright Audio

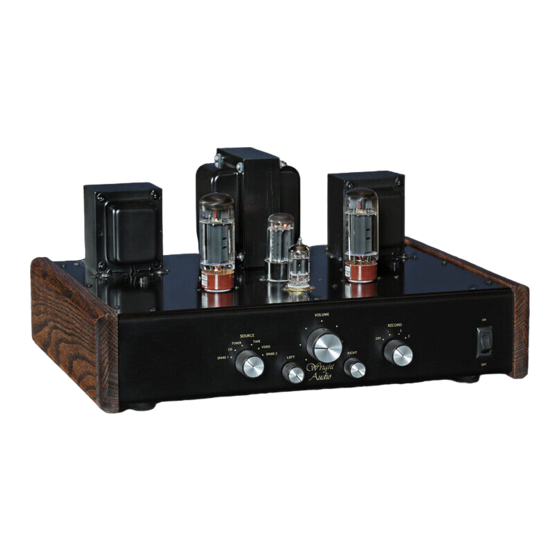

Royale SE6 and SE610
Single-Ended Triode Integrated Amplifiers
INSTRUCTIONS FOR OPERATION
Advertisement
Table of Contents
Related Manuals for Wright Audio Royale SE610
Summary of Contents for Wright Audio Royale SE610
- Page 1 10. Do not open the bottom cover of the amplifier. Lethal voltages exist within, even when the power cord is disconnected from the socket. It should be returned to Wright Audio if there is a malfunction. 11. Connect the unit to an electrical outlet providing 50 to 60 cycles AC and the voltage as marked.
- Page 2 The 6 source inputs are all electrically identical, are interchangeable and compatible with all standard analog line-level inputs. A record turntable will require a separate preamplifier such as the Wright Audio Phono Stage. MODEL SE610 ONLY: For use with a stereo pair of separate self-powered subwoofers, the stereo output marked PREAMP is connected to the line input of the subwoofer crossover.
- Page 3 Operate your Wright Audio amplifier only when you are actively listening to it. Unlike solid-state equipment, Wright Audio amplifiers reach their optimum listening quality only in about 10 minutes, and it is simply a waste of power and tube life to leave the amplifier on continuously.
- Page 4 UNDER NO CIRCUMSTANCES SHOULD YOUR UNIT BE SHIPPED TO WRIGHT AUDIO WITHOUT AUTHORIZATION OR WITHOUT THE ORIGINAL PACKING. An attempted delivery to us without a Return Authorization Number will be refused.
