Cisco Linksys WPC300N User Manual

Cisco Linksys WPC300N User Manual

Wireless-n
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
2.4
GHz
Wireless-N
Notebook Adapter
User Guide
WIRELESS
WPC300N
Model No.

Advertisement

Table of Contents
loading

Related Manuals for Cisco Linksys WPC300N

Summary of Contents for Cisco Linksys WPC300N

  • Page 1 Wireless-N Notebook Adapter User Guide WIRELESS WPC300N Model No.
  • Page 2 Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco Systems, Inc. and/or its affiliates in the U.S. and certain other countries. Copyright © 2006 Cisco Systems, Inc. All rights reserved. Other brands and product names are trademarks or registered trademarks of their respective holders.

  • Page 3: Table Of Contents

    Wireless-N Notebook Adapter Table of Contents Chapter 1: Introduction Welcome What’s in this User Guide? Chapter 2: Planning your Wireless Network Network Topology Roaming Network Layout Chapter 3: Getting to Know the Wireless-N Notebook Adapter The LED Indicators Chapter 4: Setting up and Connecting the Wireless-N Notebook Adapter Starting the Setup Connecting the Adapter Setting up the Adapter...
  • Page 4 Wireless-N Notebook Adapter Appendix G: Warranty Information Appendix H: Regulatory Information Appendix I: Contact Information...
  • Page 5 Wireless-N Notebook Adapter List of Figures Figure 3-1: Front Panel Figure 4-1: Setup Wizard’s Welcome Screen Figure 4-2: Setup Wizard’s License Agreement Figure 4-3: Connecting the Adapter Figure 4-4: Available Wireless Networks Figure 4-5: WEP Key Needed for Connection Figure 4-6: PSK Personal Needed for Connection Figure 4-7: PSK2 Personal Needed for Connection Figure 4-8: Congratulations Figure 4-9: Available Wireless Network...
  • Page 6 Wireless-N Notebook Adapter Figure 5-7: PSK Personal Needed for Connection Figure 5-8: PSK2 Personal Needed for Connection Figure 5-9: Profiles Figure 5-10: Creating a Profile Figure 5-11: WEP Key Needed for Connection Figure 5-12: PSK Personal Needed for Connection Figure 5-13: PSK2 Personal Needed for Connection Figure 5-14: Congratulations Figure 5-15: Available Wireless Networks Figure 5-16: Network Settings...

  • Page 7: Chapter 1: Introduction Welcome

    Wireless-N Notebook Adapter Chapter 1: Introduction Welcome adapter: a device that adds network functionality Thank you for choosing the Wireless-N Notebook Adapter. Setting up your network and your Wireless-N Notebook to your PC. Adapter is easier than ever. How does the Adapter do this? Like all wireless products, the Adapter allows for greater range and mobility network: a series of computers or devices within your wireless network, whether it’s using the Wireless-G (802.11g) or Wireless-B (802.11b) standard.
  • Page 8 Wireless-N Notebook Adapter • Chapter 5: Using the Wireless Network Monitor This chapter show you how to use the Adapter’s Wireless Network Monitor. • Appendix A: Troubleshooting This appendix describes some problems and solutions, as well as frequently asked questions, regarding installation and use of the Adapter.

  • Page 9: Chapter 2: Planning Your Wireless Network

    Wireless-N Notebook Adapter Chapter 2: Planning your Wireless Network Network Topology topology: the physical layout of a network. A wireless network is a group of computers, each equipped with one wireless adapter. Computers in a wireless network must be configured to share the same radio channel. Several PCs equipped with wireless cards or access point: a device that allows wireless- adapters can communicate with one another to form an ad-hoc network.

  • Page 10: Network Layout

    Wireless-N Notebook Adapter Network Layout Linksys wireless access points and wireless routers have been designed for use with 802.11a, 802.11b, and 802.11g products. With 802.11g products communicating with the 802.11b standard and some products incorporating both “a” and “g”, products using these standards can communicate with each other. Access points and wireless routers are compatible with 802.11a, 802.11b and 802.11g adapters, such at the PC Cards for your laptop computers, PCI Card for your desktop PC, and USB Adapters for when you want to enjoy USB connectivity.

  • Page 11: Chapter 3: Getting To Know The Wireless-N Notebook Adapter

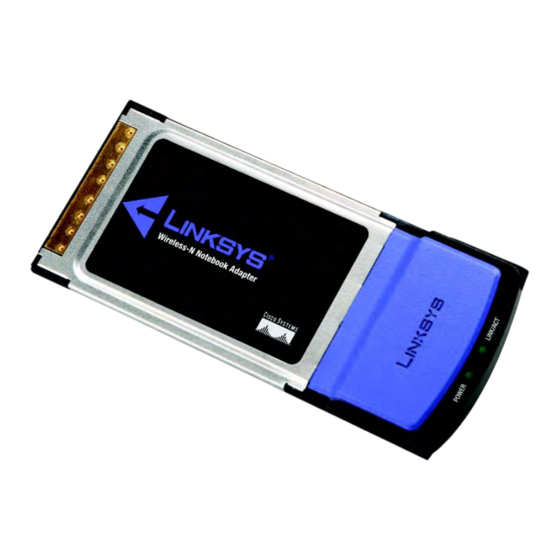

    Wireless-N Notebook Adapter Chapter 3: Getting to Know the Wireless-N Notebook Adapter The LED Indicators The Network Adapter's LEDs display information about network activity. Link/Act Power Figure 3-1: Front Panel Power Green. The Power LED lights up when the Adapter is powered on. Link/Act Green.

  • Page 12: Chapter 4: Setting Up And Connecting The Wireless-N Notebook Adapter

    Wireless-N Notebook Adapter Chapter 4: Setting up and Connecting the Wireless-N Notebook Adapter Starting the Setup The Wireless-N Notebook Adapter Setup Wizard will guide you through the installation procedure. The Setup Wizard will install the driver and Wireless Network Monitor, as well as connect and configure the Adapter. IMPORTANT: Do not connect the Adapter until you are instructed to do so or the setup will not work.

  • Page 13: Connecting The Adapter

    Wireless-N Notebook Adapter Connecting the Adapter 1. Locate an available CardBus slot on your notebook PC. 2. With the connector pin end facing the CardBus slot and the label facing up, slide the Adapter into the CardBus slot until it locks in place. 3.

  • Page 14: Figure 4-5: Wep Key Needed For Connection

    Wireless-N Notebook Adapter 2. If your network has WEP, PSK, or PSK2 wireless security enabled, then that security screen will appear. Continue to the screen for your wireless security. • WEP (Wired Equivalent Privacy) If you have WEP enabled, this screen will appear. Select 64-bit or 128-bit. Then enter a passphrase or WEP key.

  • Page 15: Figure 4-7: Psk2 Personal Needed For Connection

    Wireless-N Notebook Adapter • PSK2 If your network has the wireless security PSK2 enabled, this screen will appear. Pre-shared Key - Enter a Pre-shared Key of 8-63 characters in the Pre-shared Key field. Then click Connect and proceed to Step 3. Figure 4-7: PSK2 Personal Needed for Connection 3.

  • Page 16: Figure 4-9: Available Wireless Network

    Wireless-N Notebook Adapter Advanced Setup If your network is not listed with the available networks, you can use Manual Setup. 1. Click Advanced Setup on the Available Wireless Network screen to set up the adapter manually. 2. The Network Settings screen from the Wireless Network Monitor will appear. If your network has a router or other DHCP server, click the radio button next to Obtain network settings automatically (DHCP).

  • Page 17: Figure 4-12: Ad-Hoc Mode Settings

    Wireless-N Notebook Adapter 4. If you chose Infrastructure Mode, go to Step 5 now. If you chose Ad-Hoc Mode, the Ad-Hoc Mode Settings screen will appear. Network Mode - Select the Network Mode in which your wireless network will operate. In Mixed mode, Wireless-N, Wireless-B and Wireless-G devices can operate on the same network.

  • Page 18: Figure 4-14: Wireless Security - Psk

    Wireless-N Notebook Adapter WEP Key - The WEP key you enter must match the WEP key of your wireless network. For 64-bit encryption, enter exactly 10 hexadecimal characters. For 128-bit encryption, enter exactly 26 hexadecimal characters. Valid hexadecimal characters are “0” to “9” and “A” to “F”. Advanced Users TX Key - The default transmit key number is 1.

  • Page 19: Figure 4-16: Wireless Security - Psk+Radius - Eap-Tls

    Wireless-N Notebook Adapter PSK+RADIUS PSK+RADIUS features PSK security used in coordination with a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.) PSK Enterprise offers two authentication methods, EAP- TLS and PEAP, as well as two encryption methods, TKIP and AES, with dynamic encryption keys. Authentication - Select the authentication method your network is using, EAP-TLS or PEAP.

  • Page 20: Figure 4-18: Wireless Security - Psk2+Radius - Eap-Tls

    Wireless-N Notebook Adapter PSK2+RADIUS PSK2+RADIUS features PSK2 security used in coordination with a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.) PSK2+RADIUS offers two authentication methods, EAP- TLS and PEAP. Authentication - Select the authentication method your network is using, EAP-TLS or PEAP. EAP-TLS If you selected EAP-TLS, enter the login name of your wireless network in the Login Name field.

  • Page 21: Figure 4-20: Wireless Security - Radius - Eap-Tls

    Wireless-N Notebook Adapter RADIUS RADIUS features use of a RADIUS server. (This should only be used when a RADIUS server is connected to the Router.) RADIUS offers two authentication types: EAP-TLS and PEAP. Authentication - Select the authentication method your network is using, EAP-TLS or PEAP. EAP-TLS If you selected EAP-TLS, enter the login name of your wireless network in the Login Name field.

  • Page 22: Figure 4-22: Confirm New Settings

    Wireless-N Notebook Adapter 4. The Confirm New Settings screen will appear next and show the new settings. To save the new settings, click the Save button. To edit the new settings, click the Back button. To exit the Advanced Setup through the Wireless Network Monitor, click Exit.

  • Page 23: Chapter 5: Using The Wireless Network Monitor

    Wireless-N Notebook Adapter Chapter 5: Using the Wireless Network Monitor Use the Wireless Network Monitor to check the link information, search for available wireless networks, or create profiles that hold different configuration settings. Accessing the Wireless Network Monitor After installing the Adapter, the Wireless Network Monitor icon will appear in the system tray of your computer. If the Wireless Network Monitor is enabled, then the icon will be green.

  • Page 24: Figure 5-3: More Information - Wireless Network Status

    Wireless-N Notebook Adapter Wireless Network Status The Wireless Network Status screen provides information on your current network settings. Radio Band - This shows the radio band used on the network. Wireless Network Name- This is the unique name (SSID) of the wireless network. Wireless Mode - The mode of the wireless network currently in use is displayed here.

  • Page 25: Figure 5-4: More Information-Network Statistics

    Wireless-N Notebook Adapter Wireless Network Statistics The Wireless Networks Statistics screen provides statistics on your current network settings. Transmit Rate - This is the data transfer rate of the current connection. (In Auto mode, the Adapter dynamically shifts to the fastest data transfer rate possible at any given time.) Receive Rate - This is the rate at which data is received.

  • Page 26: Connect

    Wireless-N Notebook Adapter Connect The Connect screen displays a list of available networks in the table on the left. The table shows each network’s Wireless Network Name, Channel, and the quality of the wireless signal the Adapter is receiving. You may click Wireless Network Name, CH (Channel), or Signal, to sort by that field.

  • Page 27: Profiles

    Wireless-N Notebook Adapter • If the network has PSK2 wireless security enabled, then you will see the PSK2 Needed for Connection screen. Enter the network’s Pre-shared Key in the Pre-shared Key field. To connect to the network, click Connect. To cancel the connection, click Cancel. Profiles The Profiles screen lets you save different configuration profiles for different network setups.

  • Page 28: Create A New Profile

    Wireless-N Notebook Adapter Create a New Profile The next screen to appear will be the Available Wireless Networks screen. This screen provides two options for setting up the Adapter. • Available Wireless Networks. (For most users.) Use this option if you already have a network set up. The networks available to this Adapter will be listed on this screen.

  • Page 29: Figure 5-12: Psk Personal Needed For Connection

    Wireless-N Notebook Adapter the passphrase of your other wireless network devices and is compatible with Linksys wireless products only. (If you have any non-Linksys wireless products, enter the WEP key manually on those products.) WEP Key - The WEP key you enter must match the WEP key of your wireless network. For 64-bit encryption, enter exactly 10 hexadecimal characters.

  • Page 30: Figure 5-15: Available Wireless Networks

    Wireless-N Notebook Adapter Advanced Setup If your network is not listed with the available networks, you can use Advanced Setup. 1. Click Advanced Setup on the Available Wireless Networks screen to set up the adapter manually. Figure 5-15: Available Wireless Networks 2.

  • Page 31: Figure 5-17: Wireless Mode

    Wireless-N Notebook Adapter 3. The Wireless Mode screen shows a choice of two wireless modes. Click the Infrastructure Mode radio button if you want to connect to a wireless router or access point. Click the Ad-Hoc Mode radio button if you want to connect to another wireless device directly without using a wireless router or access point.

  • Page 32: Figure 5-19: Wireless Security - Wep

    Wireless-N Notebook Adapter 5. If your wireless network doesn’t have wireless security, select Disabled and then click the Next button to continue. Proceed to Step 6. If your wireless network has wireless security, select the method of security used: WEP, PSK, PSK2, PSK+RADIUS, PSK2+RADIUS, or RADIUS.
