Summary of Contents for Trilogy Touch Technology T3-HB17A1

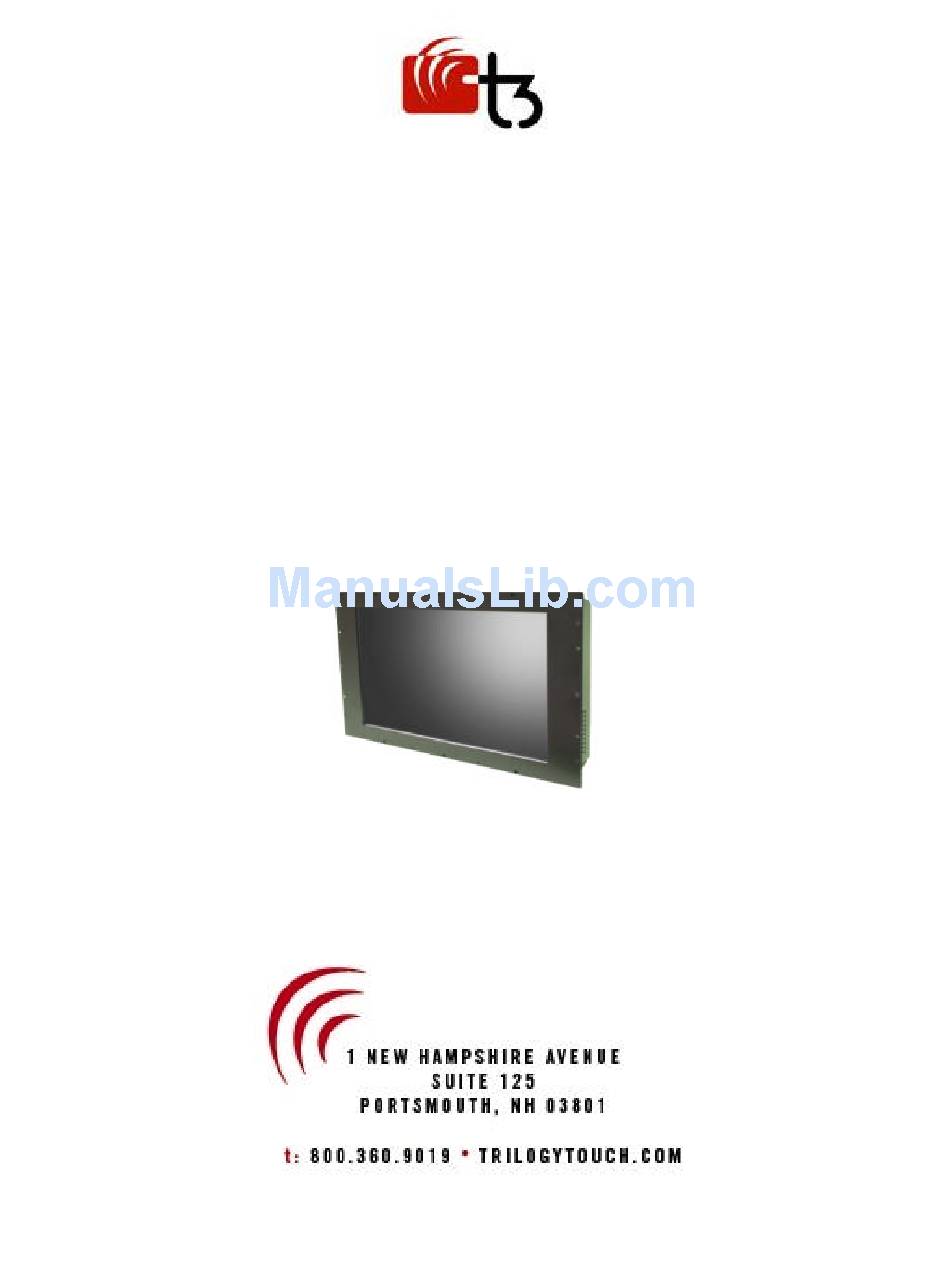

- Page 1 Trilogy Touch Technology 17” Chassis Touch Screen Monitor T3-HB17A1...
-
Page 2: Table Of Contents
GETTING STARTED Introduction Features Unpacking and Checking of the Package Contents Accessories Included System Requirements Mounting Using Input INSTALLING THE MONITOR Connecting the Monitor OPERATING THE MONITOR Adjusting the Viewing Angle Operating Procedure Additional information about the On-Screen-Display Menu Table FOR YOUR SAFETY SPECIAL NOTES ON LCD MONITORS Cleaning... - Page 3 Nor does the contained information constitute a warranty, either expressed or implied or as an obligation by Trilogy Touch Technology. Trilogy Touch Technology shall not be liable for the accuracy of the information, fitness for purpose or direct or indirect consequential damages.
-
Page 4: Getting Started
INTRODUCTION Thank your for your selection of this Trilogy Touch Technology product. Bright and sharp images of text and graphics are what you will find with your LCD Monitor. This product provides multiple resolutions with a flicker-free, sharp, and vibrant color display, without the radiated emission and hazards of CRT monitors. -
Page 5: System Requirements
SYSTEM REQUIREMENTS The following are basic requirements for using the Monitor. Please check the specifications and Supported Video Timing section of this Users Guide for specifics. This monitor requires connection to a personal computer. Both industry standard architecture and Macintosh hardware is supported. -
Page 6: Installing The Monitor
INSTALLING THE MONITOR DO NOT install the monitor in areas where sudden temperature changes may occur, or in humid, dusty, or smoky environments as it may cause fire, electric shock or damage. DO NOT expose this product to rain, water, moisture, or sunlight MAINTAIN good ventilation;... -
Page 7: Operating The Monitor
OPERATING THE MONITOR Users can adjust the picture to the desired brightness and sharpness by following these instructions. The adjustment buttons utilize a security feature that required the use of a paper clip or pin to activate each selection. This is accomplished through pinholes in each button except the power on/off. -
Page 8: Operating Procedure
HOW TO USE THE OSD (ON SCREEN DISPLAY) The OSD function allows the user to easily adjust the display to the desired requirements. The OSD menu includes a main menu and sub-menus. OPERATING PROCEDURE Use the buttons on the right side control panel to adjust the OSD (see Operating the Monitor). Color Temp. - Page 9 made in the “Settings” submenu. Any changes made are automatically saved in the Monitor memory when the OSD disappears. Turning off the power should be avoided while using the OSD, as this may not allow changes to be saved. Adjustments for clock, phase and positions are saved for each signal timing or screen resolution. Except for these adjustments, all other adjustments have only one setting that applies to all signal timing.
-
Page 10: Menu Table
MENU TABLE Primary Secondary Directory Directory Image Brightness Contrast Clock Phase H. Position V. Position Sharpness Audio Volume Mute Color 9300K 7500K 6500K User/Red User/Green User/Blue Language English Français Italiano Deutsch Español Settings OSD Timeout OSD Position Auto Setting Recall Input Analog Source... -
Page 11: For Your Safety
FOR YOUR SAFETY WARNING ALWAYS OPERATE UNDER KNOWN POWER SUPPLY Usage of incorrect voltage will cause malfunctions and may cause fire or electric shock. PROTECT and CORRECTLY USE THE SIGNAL CABLES Do not pull or bend the power cable and signal cable or place the monitor or any heavy objects on the cables. If the cables are damaged, they may cause fire or electric shock. -
Page 12: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following are normal with LCD Monitors and do not indicate a problem. When the LCD Monitor is first powered on, the picture may not fit in the display area. This is because of the type of computer graphics system that is used. -
Page 13: Power Management
POWER MANAGEMENT This LCD Monitor complies with the VESA DPMS (version 1.0p) power management specification. DPMS provides four types of power saving modes by detecting the horizontal or vertical sync signal. As well, the computer graphic card also needs to be DPMS compliant to utilize these modes. Item DPMS Mode Display Normal... - Page 14 PROBLEM No Display. a) Power indicator does not light up. b) Power indicator is green. c) Power indicator is amber. Display is too dark or too bright. Display is not in the center. Display is shaking. Display is not synchronized. CHECK TO SEE: Is the power cord is firmly plugged in the socket.
-
Page 15: Conformity And Compliance
CONFORMITY AND COMPLIANCE FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. -
Page 16: Product Service And Support
PRODUCT SERVICE AND SUPPORT Should this product fail or require service, please contact your Dealer or Distributor for service or support. The Dealer or Distributor may have specific programs for support of this product, or may provide specific services outside the scope of the manufacturer’s original warranty. - Page 17 TOUCH MONITOR LIMITED WARRANTY A. Limited Warranty Trilogy Touch Technology, Inc. (“Trilogy”) warrants the TFT-LCD touch monitor(s) (“the Monitor”) or (“product”) you have purchased from Trilogy or from a Trilogy Authorized Reseller, to be free from defects in materials and workmanship under normal use for a period of three (3) years.
- Page 18 The serial number (S/N) and model number are located on the back of the monitor. 3. Products must be out of specification for service. Trilogy Touch Technology is the sole judge. 4. Trilogy Technical Support will attempt to help you resolve your problem over the telephone. During problem resolution, Trilogy will require your assistance in performing routine diagnostic procedures.
- Page 19 17” Chassis Monitor T3-HB17A1 Dimension Drawing Trilogy Touch Technology Dimensions in mm...
