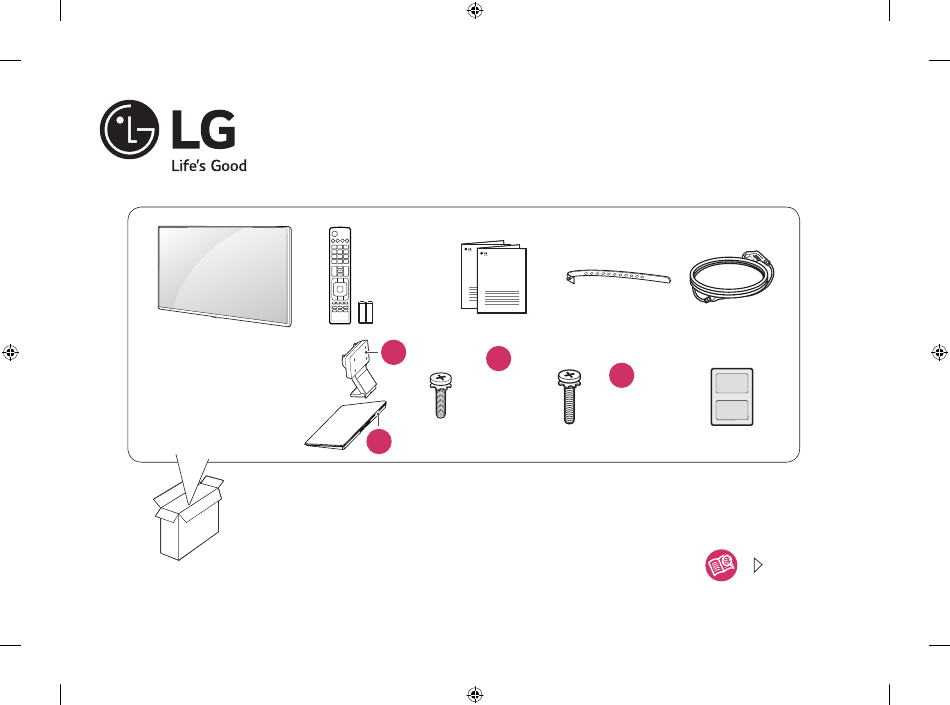

- Page 1 LED TV 43LX761H 49LX761H 55LX761H 65LX761H (M4 x L14) (M4 x L16) 43LX76** 49LX76** 65LX76** 55LX76** www.lg.com P/NO : MFL68925993(1512-REV00)
- Page 3 H/P OUT...
- Page 4 LEFT RIGHT LEFT RIGHT + UP - DOWN ANTENNA / CABLE IN...
- Page 7 43LX761H-CA 49LX761H-CA 含底座 (毫米) 973 x 625 x 193 1,106 x 697 x 220 With stand (mm) 尺寸 (寬 x 高 x 深) Dimensions (W x H x D) 不含底座 (毫米) 973 x 573 x 55.1 1,106 x 647 x 55.1 Without stand (mm) 含底座...
- Page 9 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TVs are LCD TVs with LED backlighting. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com...
-
Page 10: Safety Instructions
Safety instructions Please read these safety precautions carefully before using the product. Insert power cable plug completely into wall socket. If not secured completely into socket, fire may break out. WARNING Ensure the power cord does not come into contact with hot objects such as a heater. - Page 11 Keep the anti-moisture packing material or vinyl packing out of the Do not spray water on the product or scrub with an inflammable reach of children. Anti-moisture material is harmful if swallowed. If substance (thinner or benzene). Fire or electric shock accident can swallowed by mistake, force the patient to vomit and visit the nearest occur.
- Page 12 Only use an authorized AC adapter and power cord approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product deformation. If you install the TV on a stand, you need to take actions to prevent the product from overturning.
- Page 13 We recommend that you maintain a distance of at least 2 to 7 times Do not turn the product On/Off by plugging-in or unplugging the power the diagonal screen size when watching TV. If you watch TV for a long plug to the wall outlet.
- Page 14 Do not press strongly upon the panel with a hand or sharp object such Contact the service centre once a year to clean the internal parts of the as nail, pencil or pen, or make a scratch on it, as it may cause damage product.
-
Page 15: Separate Purchase
Generated Sound CAUTION Cracking noise A cracking noise that occurs when watching or • Do not use any unapproved items to ensure the safety and product turning off the TV is generated by plastic thermal contraction due to life span. tempera-ture and humidity. -
Page 16: Lifting And Moving The Tv
Lifting and moving the TV Using the joystick button Please note the following advice to prevent the TV from being scratched (Image shown may differ from your TV.) or damaged and for safe transportation regardless of its type and size. You can simply operate the TV functions, pressing or moving the joystick • ... -
Page 17: Mounting On A Table
LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. The LG wall mount is easy to adjust or to connect the cables. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. -
Page 18: Connections (Notifications)
• If you install the TV on a ceiling or slanted wall, it may fall and another rate, or adjust the brightness and contrast on the PICTURE result in severe injury. Use an authorised LG wall mount and menu until the picture is clear. - Page 19 Speaker Output Setup Wired network connection (Depending on model) This TV can be connected to a Pro:Centric server via the LAN port. After making the physical connection, the TV needs to be set up for network communication. Connect the LAN port of the Modem or Router from Pro:Centric server to the LAN port on the TV.
-
Page 20: Remote Control
Remote control (Depending on model) The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the ends to the label inside the compartment, and close the battery cover. - Page 21 Licenses Supported Video Codec Supported licenses may differ by model. For more information about licenses, visit www.lg.com. Extenstion Codec VC-1 Advanced Profile (WMVA excluded), Video VC-1 Simple and Main Profiles .asf Manufactured under license from Dolby Laboratories. .wmv WMA Standard (WMA v1/ WMA Speech...
-
Page 22: Open Source Software Notice Information
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. Channels Mono, stereo LG Electronics will also provide open source code to you on CD-ROM Sample freq. ~384 kHz for a charge covering the cost of performing such distribution (such... -
Page 23: Specifications
Specifications Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % Digital TV Analogue TV Television System DTMB PAL D/K/B/G/I, NTSC-M PAL D/K : VHF/UHF 1 ~ 69, CATV 1~47 Programme Coverage DTMB : 21 ~ 69 PAL B/G/I : VHF/UHF 1 ~ 69, CATV 1 ~ 47... - Page 24 HDMI-DTV supported mode Vertical Horizontal Resolution Frequency Frequency (kHz) (Hz) 15.73 59.97 15.75 720 x 480 31.47 59.94 31.5 15.625 720 x 576 31.25 44.96 59.94 1280 x 720 37.5 28.125 33.72 59.94 33.75 26.97 23.976 27.00 24.000 1920 x 1080 33.71 29.97 33.75...
-
Page 25: External Control Device Setup
External Control Device Setup Key Codes • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR +, R/C Button LIST R/C Button CH -, PR -, R/C Button EXIT R/C Button R/C Button PIP(AD) R/C Button... - Page 26 Λ (Arrow Key / Cursor Up) R/C Button Soccer R/C Button V (Arrow Key / Cursor R/C Button (REC) R/C Button Down) My Apps R/C Button R/C Button 選單 SETTINGS / Settings R/C Button AutoConfig R/C Button Ok/ Enter, OK R/C Button App / * R/C Button...
- Page 27 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0 x 0557, Product ID : 0 x 2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals.
- Page 28 Type of connector : D-Sub 9-Pin male Pin name 3.5V RXD (Receive data) TXD (Transmit data) IR OUT from TV No Connection 5V available RS-232C No Connection (Serial port) 12V available RS-232C configurations 7-Wire Configurations 3-Wire Configurations (Standard RS-232C cable) (Not standard) D-Sub 9 D-Sub 9...
- Page 29 Command reference list (Depending on model) DATA DATA COMMAND1 COMMAND2 COMMAND1 COMMAND2 (Hexadecimal) (Hexadecimal) 01. Power* 00 to 01 15. Balance 00 to 64 16. Color 02. Aspect (p.23) (Colour) 00 to 64 Ratio Temperature 17. ISM 03. Screen (p.23) Method (Only (p.25) Mute...
- Page 30 Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] First command to control the TV. (j, k, m or x) [Command 2] Second command to control the TV. [Set ID] You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
- Page 31 01. Power (Command: k a) 03. Screen Mute (Command: k d) ▶ To control Power *On or Off of the set. ▶ To select screen mute on/off. Transmission[k][a][ ][Set ID][ ][Data][Cr] Transmission [k][d][ ][Set ID][ ][Data][Cr] Data 00 : Screen mute off (Picture on) Data 00 : Power Off 01 : *Power On Video mute off...
- Page 32 07. Brightness (Command: k h) 12. Remote control lock mode (Command: k m) ▶ To adjust screen brightness. ▶ To lock the front panel controls on the monitor You can also adjust brightness in the PICTURE and remote control. menu. Transmission [k][m][ ][Set ID][ ][Data][Cr] Transmission [k][h][ ][Set ID][ ][Data][Cr] Data 00 : Lock off...
- Page 33 16. Color (Colour) Temperature (Command: x u) 19. Energy Saving (Command: j q) ▶ To adjust colour temperature. You can also adjust ▶ To reduce the power consumption of the TV. You itor Color (Colour) Temperature in the PICTURE menu. can also adjust Energy Saving in PICTURE menu.
- Page 34 * Tune Command Examples: Data 00 : xx (Don't care) 1. Tune to the Analog antenna (PAL) Channel 10. Set ID = All = 00 [Data 01][Data 02]: Major Channel Number Data 00 & 01 = Channel Data is 10 = 00 0a Data 01 : High byte Channel Data Data 02 = Analog Antenna TV = 00 Data 02 : Low byte Channel Data...
- Page 35 22. Key (Command: m c) [Data 01][Data 02]: Major Channel Number Data 01: High byte Channel Data ▶ To send IR remote key code. Data 02: Low byte Channel Data Transmission [m][c][ ][Set ID][ ][Data][Cr] - 00 01 ~ 27 0F (Decimal: 1 ~ 9999) [Data 03][Data 04]: Minor/Branch Channel Data Key code - p.17.
- Page 36 25. 3D(Command: x t) (only 3D models) 26. Extended 3D(Command: x v) (only 3D models) (Depending on model) (Depending on model) ▶ To change 3D mode for TV. ▶ To change 3D option for TV. Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01] Transmission [x][v][ ][Set ID][ ][Data 00][ ] [ ][Data 02][ ][Data 03][Cr] [Data 01][Cr]...
- Page 37 dels) 27. Auto Configure (Command: j u) (Depending on model) ▶ To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : To set Ack [u][ ][Set ID][ ][OK/NG][Data][x] and is...
- Page 40 Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
