Summary of Contents for Tenma ST-980

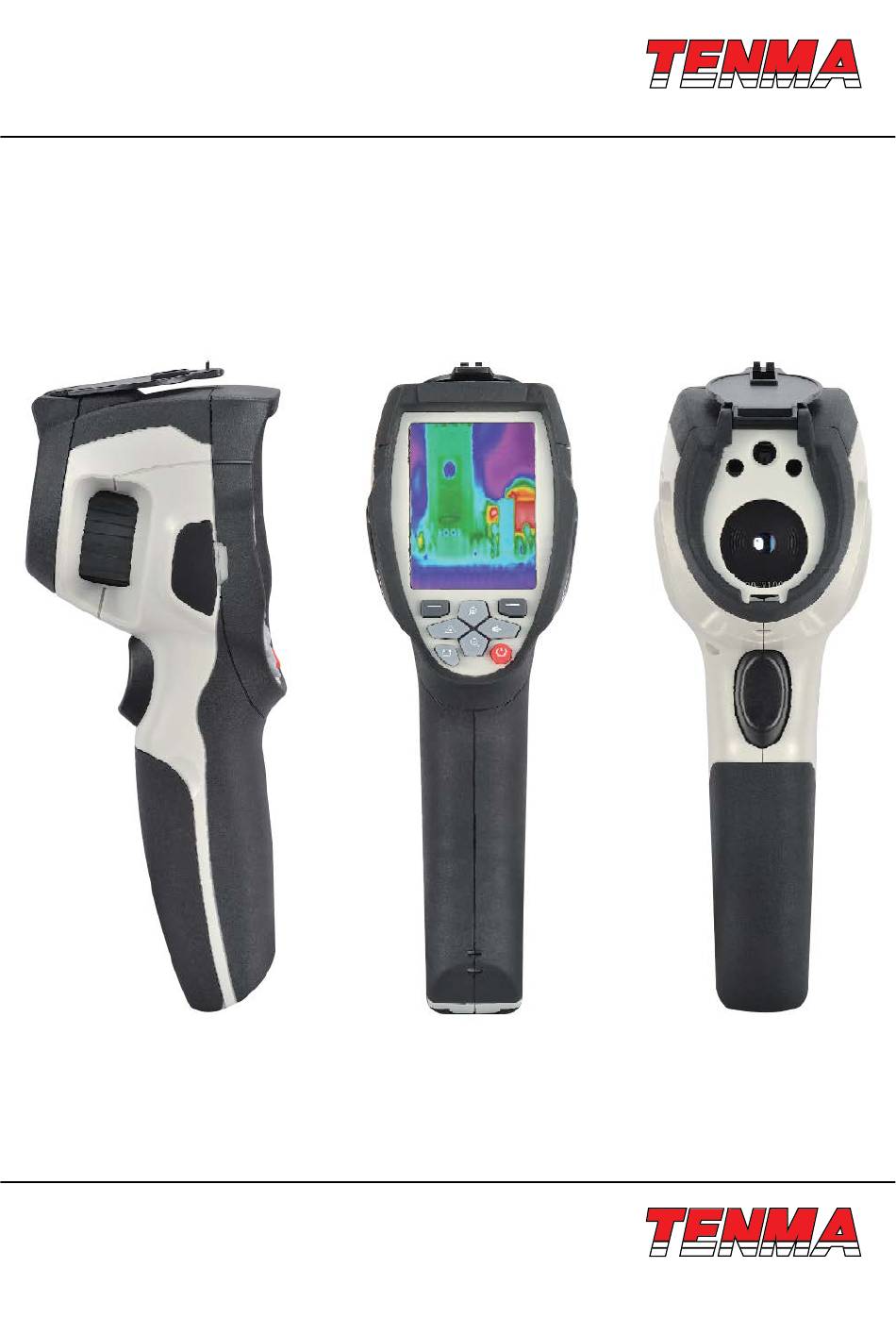

- Page 1 Thermal Imager User Manual Part Number: ST-980 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 26/04/18 V1.0...
-
Page 2: Table Of Contents
Table of Contents 1 - Introduction..................................... 4 2 - Safely Information .................................. 4 3 - Packing Lists ..................................5 4 - Specifications ..................................5 5 - Structure Description ................................7 5.1 - Back View................................... 7 5.2 - Front View .................................. 8 5.3 - Interface .................................. - Page 3 7.3.7 - Temperature Unit ............................19 7.3.8 - Factory Set ..............................20 7.3.9 - Set Time ............................... 21 7.3.10 - Information ..............................21 7.4 - Alignment ................................. 22 7.5 - Power off .................................. 22 7.6 - Volume ..................................23 7.7 - Camera Menu ................................23 7.7.1 - Save Image ..............................
-
Page 4: Introduction
1 - Introduction Overview The Thermal Imager is handheld imaging camera used for predictive maintenance, equipment troubleshooting, and verification. Thermal and visual images are displayed on the LCD and can be saved to a Micro SD Memory card. Transferring Images to a PC is accomplished by removing the SO memory card and connecting it to a PC through the included card reader. -
Page 5: Packing Lists
3 - Packing Lists Standard Accessories Item Quantity Description Thermal Imager Lens Field of view = 17°× 17°, f = 9mm Li-ion battery 3.7V, 2600mAH Input AC Volts:100V to 240V, 50/60HZ, 0.3A Adaptor Output DC Volts: 5V 2400mA Micro SD 8GByte USB Cable USB OTG cable... - Page 6 ±2°C (±3.6°F) or ±2% of reading (Environment Accuracy temperature 10°C to +35°C, object temperature > 0°C.) Measurement Analysis Spot Center Spot Automatic Hot / Cold Detection Auto hot or cold markers Emissivity Correction Variable from 0.01 to 1.0 Measurement Corrections Emissivity, Reflected temperature Storage of Videos Storage Media...
-
Page 7: Structure Description
Environmental Data Operating Temperature Range -15°C to +50°C (5°F to +122°F) Storage Temperature Range -40°C to +70°C (-40° F to +158°F) Humidity (Operating and Storage) 10% to 90% Drop Test Bump 25g (IEC60068-2-29) Vibration 2g (IEC60068-2-6) Physical Data Camera Weight incl. Battery <500g Camera Size (L ×... -
Page 8: Front View
5.2 - Front View 8 - LED light 9 - Visual Camera 10 - Laser Pointer 11 - Infrared Camera lens 12 - Hole for Tripod Insertion 5.3 - Interface 13 - Charge light 14 - USB Cable Connection /Charger Input Terminal 15 - Audio/Microphone 16 - HDMI Output 17 - Micro SD card... -
Page 9: Before You Start
6 - Before You Start 6.1 - How to Charge the Battery Before you use tile Thermal Imager for tile first time, charge the battery for minimum of one and one-half hours. The battery status shows on the four-segment charge Indicator. To charge the battery, use follow before: 1 - Connect the ac power adapter into an ac wall outlet and connect the dc output to the Thermal Imager’s ac power socket, the charge light is on. -
Page 10: Lens
6.4 - Lens The Thermal Imager has a Lens. FOV is the largest area that your imager can see at a set distance. This table lists the horizontal FOV. Vertical FOV and IFOV for lens. Focal Length Horizontal FOV Vertical FOV IFOV 17°... -
Page 11: Shutter
onto the pixels of the detector. Without the correct focus, the thermal image can be blurry and the radiometric data will be inaccurate. Out-of-focus infrared images are frequently unusable or of little value. 6.6 - Shutter The thermal image of the Thermal Imager becomes blurry, when the Thermal Imager no correcting after some minutes or the Thermal Imager changes target. -
Page 12: Temperature Measurement
6.10 - Temperature Measurement All objects radiate infrared energy. The quantity of energy radiated is base on the actual surface temperature and the surface emissivity of the object. The Thermal Imager senses the infrared energy from the surface of the object and uses this data to calculate an estimated temperature value. -
Page 13: Reflected Temperature
6.12 - Reflected Temperature Using the offset factor, the reflection is calculated out due to the low emissivity and the accuracy of the temperature measurement with Infrared Instruments is improved. In most cases, the reflected temperature is identical to the ambient air temperature. Only when objects with strong emissions with much higher temperature are in the proximity of the object being measured should be determined and used. -
Page 14: Image Mode
7.2 - Image Mode 1 - In main menu, press ″up″ and ″down″ button, highlight ″Image″. 2 - Press ″select″ button, popup Image submenu which contains infrared image, visual image and fusion. 3 - Press ″up″ and “down″ button, highlight the Image mode which you want to choose. 4 - Press ″Select″... -
Page 15: Image Adjustment
Standard Palette 1 - In main menu, press ″up″ and ″down″ button, highlight ″Palette″. 2 - Press ″select″ button, popup the Image palette submenu. It shows four kinds of palettes, they are IRON, Rainbow, Grey, Grey Inverted. 3 - Press ″up″ and ″down″ button, highlight the palette which you want to choose. 4 - Press ″select″... -
Page 16: Measurement Menu
7.3 - Measurement Menu In main menu, highlight ″Measure″ and press ″select″ button, popup Measure submenu which contains Spot, Hot, Cold. Spot: Measure tile center point temperature. Hot: Capture maximum temperature. Cold: Capture minimum temperature. 7.3.1 - Open and Close Press ″Select″... -
Page 17: Emissivity
7.3.2 - Emissivity In Object parameter submenu, press ″up″ and ″down″ button, highlight ″Emiss″, press ″select″ button, popup emissivity submenu. ″Emiss″ sets object emissivity, the value range is 0.01 to 1.00; 7.3.3 - Reflective Temperature The reflective temperature is important tor radiometric temperature measurement Thermal Imager has temperature compensation for reflective temperature. -
Page 18: Temperature Ranges
7.3.4 - Temperature Ranges The temperature measurement ranges have ″-20°C to 150°C″ and ″0°C to 350°C″ to choose. The overlap temperature of the two ranges is more accurate to choose ″-20°C to 150°C″. 1 - In main menu, press ″up″ and ″down″ button, highlight ″Range″. 2 - Press ″select″... -
Page 19: Language
7.3.6 - Language 1 - In Settings submenu, press ″up″ and ″down″ button, highlight ″Language″. 2 - Press ″select″ button, popup language submenu. 3 - Press ″up″, ″down″, ″left″ and ″right″ button, highlight the language which you want to choose. 4 - Press ″Select″... -
Page 20: Factory Set
7.3.8 - Factory Set 1 - In Settings submenu, press ″up″ and ″down″ button, highlight ″Factory Set″. 2 - Press ″Select″ button, popup ″Factory Set″ submenu. 3 - Press ″OK″ to restore factory setting, ″Cancel″ to exit without change. Factory Settings of the Thermal Imager is as follow: Item Parameter Value... -
Page 21: Set Time
7.3.9 - Set Time 1 - In Settings submenu, press ″Up″ and ″Down″ button, highlight ″Set time″. 2 - Press ″select″ button, popup ″Set time″ submenu. 3 - Press ″Left″ and ″Right″ button, highlight the item which you want to choose. 4 - Press ″Up″... -
Page 22: Alignment
7.4 - Alignment 1 - In Settings submenu, press ″Up″ and ″Down″ button, highlight ″Alignment″. 2 - Press ″select″ button, popup ″Alignment″ submenu. 3 - Press ″up″ and ″down″ button, highlight the item which you want to choose. 4 - Press ″Select″ to confirm, ″Close″ to exit without change 7.5 - Power off 1 - In Settings submenu, press ″Up″... -
Page 23: Volume
7.6 - Volume 1 - In Settings submenu, press ″up″ and ″down″ button, highlight ″Volume″ 2 - Press ″select″ button, popup Volume submenu. 3 - Press ″left″ and ″right″ button, change the volume level. 4 - Press ″Select″ to confirm,″Close″ to exit without change. 7.7 - Camera Menu Thermal Imager has photo and video functions. -
Page 24: Video Menu
7.8 - Video Menu The Thermal Imager has .mp4 video capture. 1 - In desktop, press Trigger button and hold for about 2 seconds, start video capture with voice. 2 - Insert earphone with microphone, voice can be recorded too. 3 - To stop video capture, press Trigger button again. -
Page 25: Open An Image
7.9.1 - Open an Image 1 - Press ″up″, ″down″ , ″left″ and ″right″ button, highlight an Image which you want to choose. 2 - Press ″Open″ key to open an image. 3 - Press ″Up″ button to zoom out, ″Down″ button to zoom in. 4 - Press ″Left″... -
Page 26: Delete A File Or All Files
7.9.3 - Delete a File or all Files 1 - Press ″up″, ″down″, ″left″ and ″right″ button, highlight an image and a video which you want to choose. 2 - Press ″Option″ key, popup ″Option″ submenu. • Press ″Up″ and ″Down″ button, highlight “Delete″, Press ″OK″ key Delete the selected file. •... -
Page 27: Hdmi Output
• Storage Browse flies stored on the so card on your computer. If select Storage mode, will display a picture as follow: • PC Camera The device is a USB camera for your computer. If select this mode, will display a picture as follow: 7.11 - HDMI Output The video output available in the Thermal Imager enables displaying the thermal image (not includes operator menu) on an external monitor or video recording device capable of managing HDMI systems. -
Page 28: Android/Ios App Thermview
9 - Android/iOS APP Thermview Software install and uninstall 9.1 - System required Android mobile phone: Android 4.0 above, with USB OTG Support iOS: iPhone4 above 9.2 - Thermoview App install Android: Search “Thermview” on Google Play and install it. iOS: Search “Thermview”... -
Page 29: Analyse
10.2 - Analyse Select a IR Picture and click ″ ″ icon ID analyse it. 10.3 - Image mode Click ″ ″ icon to select image mode, there are four mode for you to select • IR mode: only infrared picture displayed •... -
Page 30: Analyse
10.5 - Analyse Click ″ ″ icon to analyse the IR pictures. There are three analyse tools: • Point analyse: Add a point to the picture, it will display the temperature of the point. • Line analyse: Add a line to the picture, will display the highest, lowest and average temperature of the line. •... -
Page 31: Share
11.2 - Share Click ″ ″ icon to share the Infrared picture with Email, Cloud or Message and so on. 12 - PC Software Software Install and Uninstall 12.1 - System required Window XP or higher version of Windows system, please make sure you have installed Net Framework 2.0 or Net Framework 3.5(include 2.0)when you install PCI Meter software. -
Page 32: Running
Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Tenma is the registered trademark of the Group. © Premier Farnell Limited 2016.
