Summary of Contents for Kasda KS108
- Page 1 KS108 Switch User Manual...
- Page 2 Package Contents The following items should be found in your box: One KS108 Switch One Power Adapter One Ethernet Cable One CD Note: Make sure that the box contains the above items. If any of the listed items are damaged...
- Page 3 Content Chapter 1. Introduction of the Product ............4 1.1 Overview of the Product ..............4 1.2 Features ..................4 Chapter 2. Installation ................... 4 2.1 Mounting the Switch on a Desk ............4 2.2 Power On ..................5 Chapter 3. Identifying External Components ..........5 3.1 Front Panel ..................
- Page 4 The KS108 is poised to drive the unmanaged and Smart switch, WLAN router, and CPE/Gateway markets with its comprehensive Layer 2 feature set, support for both DSL/cable modem and WLAN connectivity, and an industry-leading switching capacity—all on a single chip.

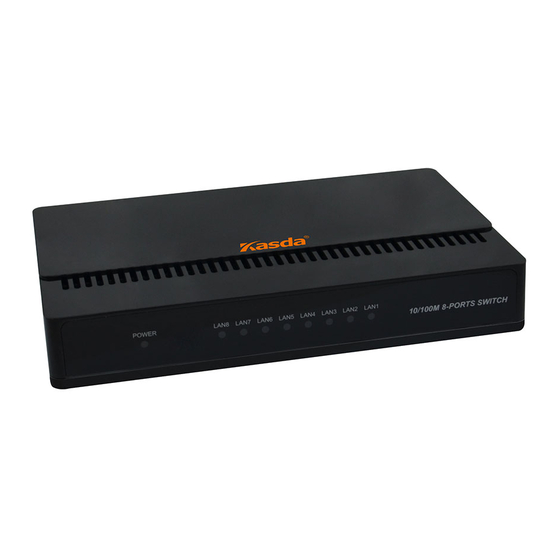

- Page 5 Chapter 3. Identifying External Components This Chapter describes the front panel, rear panel and LED indicators of the Switch. 3.1 Front Panel Figure 3-1 KS108 Switch Front Panel The Switch’s LEDs are located on the front panel. Power LED: This indicator will light up when the Switch powers on.
- Page 6 The Power socket is where you will connect the power adapter. Please use the power adapter provided with this KS108 Switch. The KS108 Switch is equipped with 8 10/100 Auto-Negotiation RJ45 ports where you will Port (1-8): connect your network devices.
- Page 7 Appendix A：Specifications Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x CSMA/CD, TCP/IP Basic Function Wire-speed Performance MAC Address Auto-learning and Auto-aging IEEE 802.3x flow control for full-duplex mode and backpressure for half-duplex mode Backbound Bandwidth 10Gbps MAC Address Table Forwarding Rate 10BASE-T: 14880pps/port 100BASE-TX: 148800pps/port Transmission Method...
- Page 8 Appendix B: Troubleshooting 1. The Power LED is not lit Check to see if the power cord is connected to the Switch properly, and make sure the power source is ON. 2. The Link/Act LED is not lit when a device is connected to the corresponding port Check to see if the cable connectors are firmly plugged into the Switch and the device, and verify the connected device is turned on and working well.
