ASSEMBLY AND MOUNTING INSTRUCTION

Ple ase read the Assembly lnstr
identify all parts prior to building the unit. Each part is identified on the drawing for reference.
DO NOT DISCARD THE ORIGINAL PACKAGING. If after careful inspection and you must return the item
for any reason. Please repack the unit using the original carton and inserts.

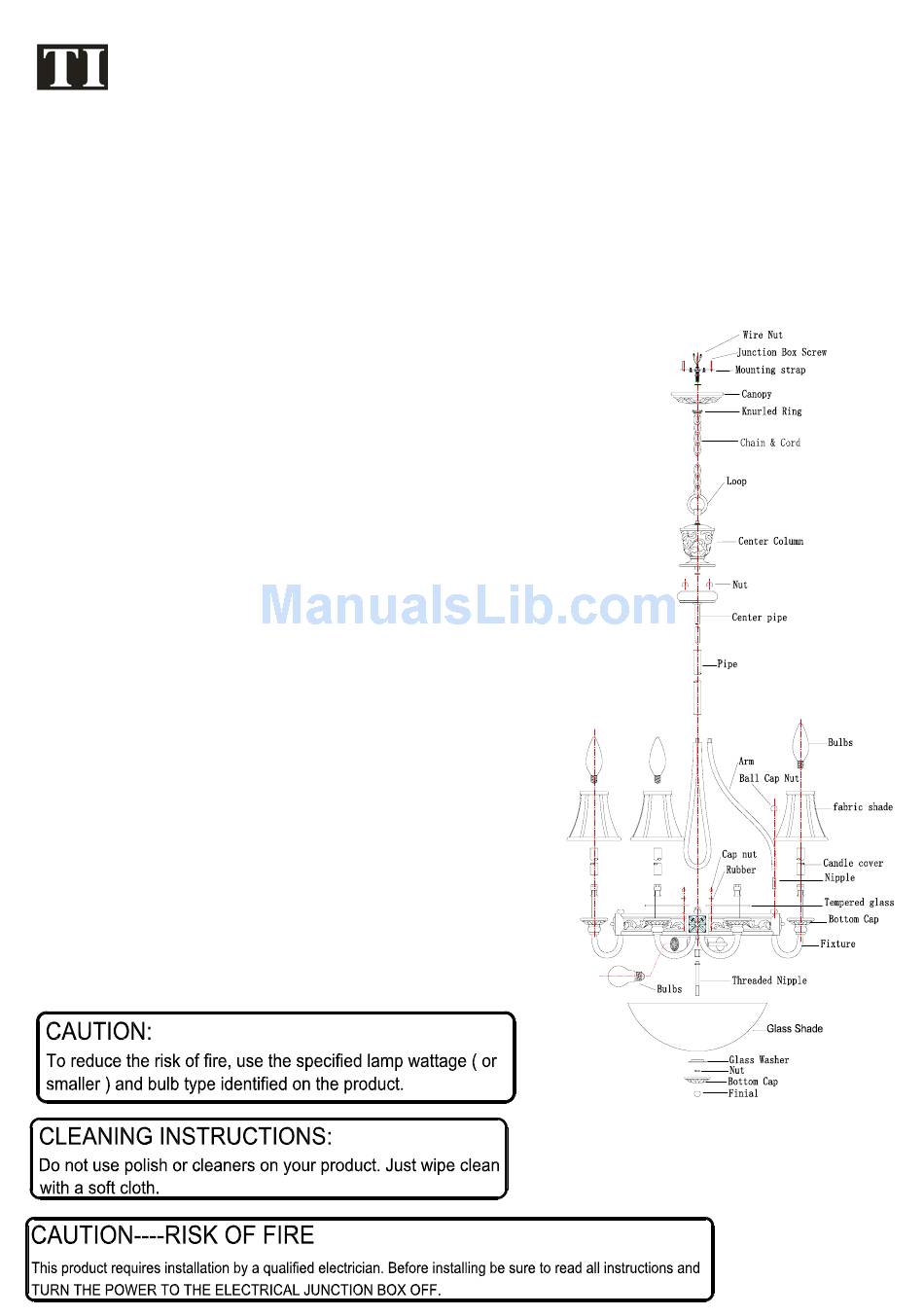

STEP 1: Unpack all the parts and classify them according to the illustration shown at
the side. Place the parts on a scratch free surface;
STEP 2: Make sure the power is turned off at the the
junction box where the fixture is to be installed.
S ecure the mounting strap to the ceiling junction box
using junction box screws;
STEP 3: Use the wire nuts to connect the positive
and negative wires. Connec
ju nction box ground port;
STEP 4: Secure the canopy to the ceiling with the
knurled ring;
STEP 5: lnstall the loop to the colum;
S TEP 6: lnstall center pipe and arms to the fixture
with nut and ball nut as shown;
STEP 7:Install the tempered glass by using the rub
washer and the cap nut screw in position;
S TEP 8: Install the correct bulb(not pr
STEP 9: Install threaded nipple to the fixtur
Shade ,glass washer and nut . secure with botto
c ap and finial
STEP 10: Install candle cover and fabric shade
as shown ;
S TEP 11: Insta ll the correct bulbs(not provided).
uction sheet carefully before proceeding.Carefully unpack and
t the ground wire to the
ovided) ;
e glass
