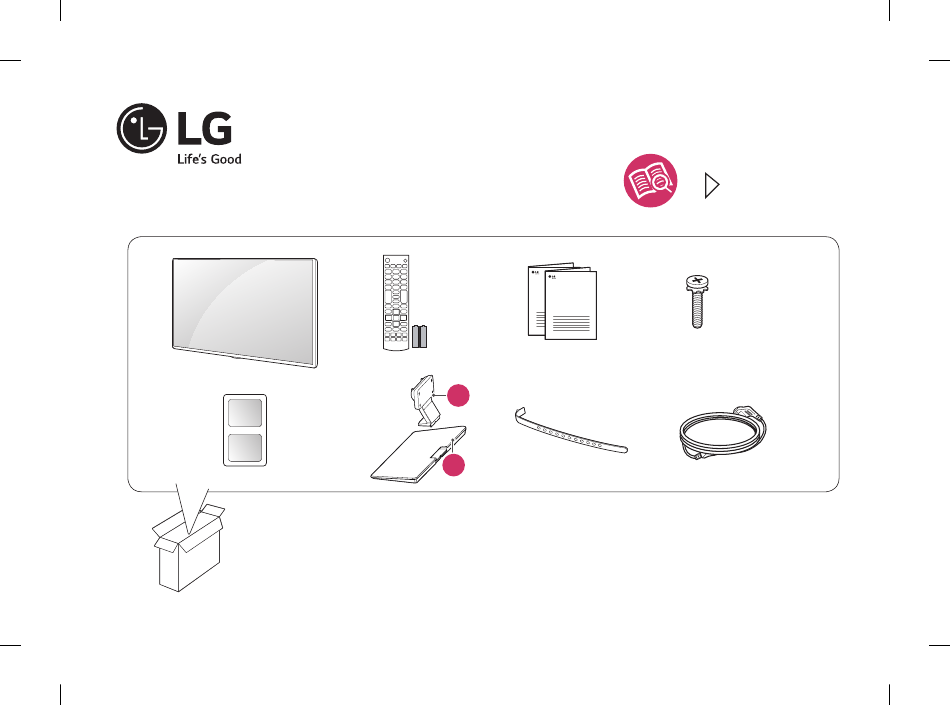

- Page 1 LED TV LF57** www.lg.com (M4 X L14) 40LF57** (M4 X L14) 43LF57** P/No: MFL68703213 (1501-REV00) Printed in Korea...
- Page 3 40LF57** 43LF57** 40LF57** 43LF57**...
- Page 4 40LF57** 43LF57** ANTENNA / CABLE IN...
- Page 5 LF57*T, LF57*Y 43LF57** ANTENNA / CABLE IN OPTICAL DIGITAL AUDIO OUT VIDEO (MONO) AUDIO VIDEO VIDEO (MONO)
- Page 6 LF57*O ANTENNA / CABLE IN OPTICAL DIGITAL AUDIO OUT VIDEO AUDIO VIDEO VIDEO AUDIO AUDIO MONO MONO...
- Page 8 43LF5700-TA 40LF5700-TA 43LF570T-TA 40LF570T-TA 43LF570Y-TA 40LF570Y-TA 43LF5710-TB 40LF5710-TB 40LF571T-TB 43LF571T-TB 40LF571Y-TB 43LF571Y-TB 911 x 581 x 189 973 x 625 x 193 (mm) 911 x 528 x 55.3 973 x 573 x 55.1 (mm) 12.7 (kg) 10.2 (kg) Power requirement / AC 100-240 V ~ 50 / 60 Hz...
- Page 9 OWNER’S MANUAL Safety and Reference Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL68761004* P/NO : MFL68761004 (1501-REV00) Printed in Korea...
-
Page 10: Safety Instructions
Safety instructions Please read these safety precautions carefully before using the product. Make sure to connect Mains cable to compliant AC mains socket with WARNING Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured. Do not place the TV and/or remote control in the following Insert power cable plug completely into wall socket otherwise if not environments:... - Page 11 Do not drop the product or let it fall over when connecting external Do not drop metallic objects such as coins, hair pins, chopsticks or wire devices. Otherwise, this may result in injury or damage to the product. into the product, or inflammable objects such as paper and matches. Children must pay particular attention.
- Page 12 Only use an authorized AC adapter and power cord approved by technician. If not installed by a qualified technician, this may create a LG Electronics. Otherwise, this may result in fire, electric shock, fire hazard or an electric shock hazard.
- Page 13 We recommend that you maintain a distance of at least 2 to 7 times Do not turn the product On/Off by plugging-in or unplugging the power the diagonal screen size when watching TV. If you watch TV for a long plug to the wall outlet.
- Page 14 Do not press strongly upon the panel with a hand or sharp object such When moving or unpacking the product, work in pairs because the as nail, pencil or pen, or make a scratch on it, as it may cause damage product is heavy.
-
Page 15: Viewing 3D Imaging (Only 3D Models)
- When watching 3D contents, take 5 - 15 minute breaks every hour. Viewing 3D contents for a long period of time may cause * LG LED TVs are LCD TVs with LED backlighting. headache, dizziness, fatigue or eye strain. - Page 16 • If you do not use a certified HDMI cable, the screen may not display • Make sure to use LG 3D glasses. Otherwise, you may not be able to or a connection error may occur. (Recommended HDMI Cable Types) view 3D videos properly.
-
Page 17: Separate Purchase
AG-F*** AG-F***DP Cinema 3D glasses Dual play glasses LG Audio Device • Hold the top and bottom of the TV frame firmly. Make sure not to Maintenance hold the transparent part, speaker, or speaker grill area. Cleaning your TV Clean your TV regularly to keep the best performance and to extend the product lifespan. -
Page 18: Lifting And Moving The Tv
Using the joystick button NOTE • When your finger over the joystick button and push it to the up, down, left or right, be careful not to press the joystick button. If you (Image shown may differ from your TV.) press the joystick button first, you may not be able to adjust the volume level and saved programmes. -
Page 19: Adjusting The Menu
We recommend the kensington.com. Connect the Kensington security system cable between use of LG’s wall mount bracket. When you do not use LG’s wall mount the TV and a table. bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. -
Page 20: Securing The Tv To A Wall
Connections (notifications) • If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorised LG wall mount and contact the local dealer or qualified personnel. • Do not over tighten the screws as this may cause damage to the TV Connect various external devices to the TV and switch input modes to and void your warranty. -
Page 21: Connections (Notifications)
Antenna connection 4K @ 50/60 Hz Support Format Connect the TV to a wall antenna socket with an RF cable (75 Ω). Colour Depth / Frame rate • Use a signal splitter to use more than 2 TVs. Chroma Sampling Resolution (Hz) • ... -
Page 22: Antenna Connection
(POWER) Turns the TV on or off. Selects Radio, TV and DTV programme. Recalls your preferred subtitle in digital mode. Teletext buttons ( ) These buttons are used for Resizes an image. (Depending on model) teletext. Shows programme guide. (Depending on model) Views the information of the current programme and screen. - Page 23 Laboratories. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.com.
-
Page 24: Open Source Software Notice Information
• Super Resolution : [Depending on model] • Expert 1, 2 : Menu for adjusting picture quality that allows experts and amateurs to enjoy the best TV viewing. This Adjusts the resolution to make dim and blurred images clearer. is the adjustment menu provided for ISF-certified picture tuning • ... - Page 25 [Depending on model] • Off : ULTRA HD Deep Colour not support Connect LG audio device with the logo to the optical digital audio output port. LG audio device allows you to enjoy rich powerful To use TV speaker sound easily. SETTINGS...
- Page 26 To use SIMPLINK To set password SETTINGS LOCK Set Password [Depending on model] SIMPLINK is a feature that enables you to control and manage various multimedia devices conveniently via the SIMPLINK menu. Sets or changes the TV password. The initial password is set to ‘0000’ . 1 Connect the TV’s HDMI IN terminal and the SIMPLINK device’s HDMI output terminal using an HDMI cable.
- Page 27 My Media supporting file • .mpg, .mpeg, .mpe [Video] MPEG-1, MPEG-2 • Maximum data transfer rate : 20 Mbps (Mega bit per second) [Audio] MPEG-1 Layer I, MPEG-1 Layer II, Dolby Digital, LPCM • External supported subtitle formats : *.srt (SubRip), *.smi (SAMI), • ...
-
Page 28: Supported Video Formats
When connecting to the PC (HDMI), ‘No signal’ or ‘Invalid Format’ is displayed. • Turn the TV off/on using the remote control. To obtain detailed User Guide information, please visit www.lg.com. • Reconnect the HDMI cable. • Restart the PC with the TV on. -
Page 29: To See Web Manual
Specifications Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % Satellite Digital TV Digital TV Analogue TV (Depending on Model) (Depending on Country & Model) (Depending on Country) PAL B/B, PAL B/G, PAL D/K, PAL-I, DVB-T... -
Page 30: Specifications
HDMI-DTV supported mode HDMI-PC supported mode Use HDMI IN 1 for PC mode (Except for UF67**) Vertical Horizontal Resolution Frequency Frequency (kHz) (Hz) Horizontal Vertical Resolution 31.469 59.94 Frequency (kHz) Frequency (Hz) 640 x 480 31.50 60.00 640 x 350 31.468 70.09 31.469... - Page 32 Record the model number and serial number (Only DTV) of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
- Page 33 OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com...
- Page 34 KEY CODES kEy CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button...
-
Page 35: External Control Device Setup
(TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (PC) (TV) • It can be purchased from computer stores that carry accessories for IT support professionals. -
Page 36: Key Codes
EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &... -
Page 37: Usb To Serial Converter With Usb Cable
EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA... -
Page 38: Customer Computer
EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99. -
Page 39: Communication Parameters
EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD). -
Page 40: Transmission / Receiving Protocol
EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu. - Page 41 EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
- Page 42 EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
- Page 43 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
- Page 44 EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : To set Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
