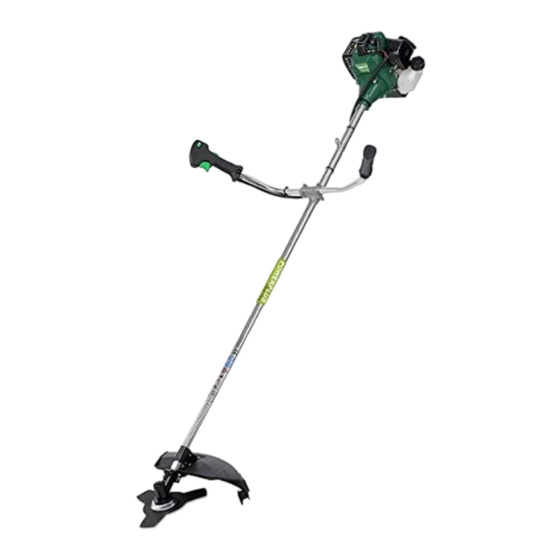

Bush cutter

Advertisement

Quick Links

1
APPLICATION ................................................................................ 3
2
OVERVIEW COMPONENTS (FIG A) ............................................. 3
3
PACKAGE CONTENT LIST ............................................................ 3
4
SYMBOLS ....................................................................................... 4
5
6
PETROL SAFETY WARNINGS ...................................................... 5
7
ASSEMBLY ..................................................................................... 5
7.1
Two-handed fork handle........................................................................................ 5
7.2
Mounting of the protective cover .......................................................................... 6
7.3
Cutting attachment mounting ............................................................................... 6
7.4
Cutting blade mounting ......................................................................................... 6
8
FUEL AND LUBRICATION ............................................................. 7
8.1
Fuel ......................................................................................................................... 7
8.1.1
Mixture of gasoline and oil in the ratio 25:1 .............................................................. 7
9
OPERATION.................................................................................... 7
9.1
Unit operation ........................................................................................................ 7
9.2
Use of the belt ........................................................................................................ 7
9.3
Engine starting (cold engine) ................................................................................ 7
9.4
Engine starting (hot engine) ................................................................................. 8
9.5
Engine shutdown ................................................................................................... 8
9.6
Engine idle check .................................................................................................. 8
9.7
General operating instructions ............................................................................. 8
9.8
Work with the spring spindle ................................................................................ 8
9.8.1
Cutting string extension ........................................................................................... 9
9.9
Work with the metal cutting blade ........................................................................ 9
10
CLEANING AND MAINTENANCE ................................................. 9
10.1
Unit cleaning .......................................................................................................... 9
10.2
Change of the air filter ......................................................................................... 10
10.3
Change/adjustment of the spark plug ................................................................ 10
10.4
Carburetor adjustment ........................................................................................ 10
11
TROUBLESHOOTING .................................................................. 11
Copyright © 2014 VARO
POW60476
P a g e
| 1
EN
www.varo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Powerplus Garden POW60476 and is the answer not in the manual?

Questions and answers

Summary of Contents for VARO Powerplus Garden POW60476

  • Page 1: Table Of Contents

    CLEANING AND MAINTENANCE ..........9 10.1 Unit cleaning ......................9 10.2 Change of the air filter ..................10 10.3 Change/adjustment of the spark plug ..............10 10.4 Carburetor adjustment ..................10 TROUBLESHOOTING ..............11 Copyright © 2014 VARO P a g e www.varo.com...
  • Page 2 POW60476 TECHNICAL DATA ............... 11 NOISE .................... 11 TRANSPORTATION ..............12 STORAGE ..................12 RESETTING IN OPERATION ............12 WARRANTY .................. 13 ENVIRONMENT ................13 DECLARATION OF CONFORMITY ..........14 Copyright © 2014 VARO P a g e www.varo.com...
  • Page 3: Application

    1 x “U” 2-hands support handle 1 x Manual 1 x Shoulder strap 1 x Steel cutting blade protection cover & 1 x Trimmer line flange When parts are missing or damaged, please contact your dealer. Copyright © 2014 VARO P a g e www.varo.com...
  • Page 4: Symbols

    2-cycle engine lubricant. Permanent damage to engine will result, voiding manufacturer’s warranty.  DO NOT SMOKE while refuelling or operating equipment.  DO NOT OPERATE UNIT WITHOUT A SILENCER and properly installed silencer shield. Copyright © 2014 VARO P a g e www.varo.com...
  • Page 5: Petrol Safety Warnings

    Two-handed fork handle  Loosen the handle screws and place the handle into the holder, as depicted in the main figure.  Re-tighten the screws and verify they are properly tightened. Copyright © 2014 VARO P a g e www.varo.com...
  • Page 6: Mounting Of The Protective Cover

    Set the outer holder to the gear shaft with the hollowed face to the blade.  Put the attached bolt cover on the outer holder and secure it with the bolt (left screw)together with the spring washer and the washer. Copyright © 2014 VARO P a g e www.varo.com...
  • Page 7: Fuel And Lubrication

    In order to prevent slack during operation, turn up to ensure the extra length of the band and not loose. Engine starting (cold engine) Attention! Never start the engine near the refueling site. Copyright © 2014 VARO P a g e www.varo.com...
  • Page 8: Engine Starting (Hot Engine)

    During cutting around trees, fence posts or other obstacles slowly proceed with the unit around objects and cut grass with the string tips.  Avoid contact with solid items (stones, walls, wooden fencing etc.). The string may wear out very rapidly. Copyright © 2014 VARO P a g e www.varo.com...
  • Page 9: Cutting String Extension

    The unit must not be sprayed with water or submerged into water.  Do not use any detergents or cleaning solutions. The unit could be damaged. Chemical substances could negatively affect the unit's plastic components. Copyright © 2014 VARO P a g e www.varo.com...
  • Page 10: Change Of The Air Filter

    Reconnect the spark plug cable. 10.4 Carburetor adjustment The carburetor was adjusted to optimum performance already during production. If the carburetor requires readjustment, have it done at a specialized expert repair shop. Copyright © 2014 VARO P a g e | 10 www.varo.com...
  • Page 11: Troubleshooting

    Spark plug L8RTC Weight 7,7 kg (empty) 13 NOISE Noise values measured according to relevant standard. (K=3) Acoustic pressure level LpA 92 dB(A) Acoustic power level LwA 112 dB(A) Copyright © 2014 VARO P a g e | 11 www.varo.com...
  • Page 12: Transportation

    Clean the sparkplug or replace it, if necessary.  Prepare the unit for resetting in operation and fill the tank with the correct mixture of fuel and oil (25:1). Copyright © 2014 VARO P a g e | 12 www.varo.com...
  • Page 13: Warranty

    Please dispose of used motor oil in a manner that is compatible with the environment. We suggest you take it in a sealed container to your local service station for reclamation. Do not throw it in the trash or pour it on the ground. Copyright © 2014 VARO P a g e | 13...
  • Page 14: Declaration Of Conformity

    European harmonized standards (including, if applicable, their amendments up to the date of signature); EN ISO 11806: 2011 EN ISO 14982: 2009 Keeper of the Technical Documentation : Philippe Vankerkhove, VARO – Vic. Van Rompuy N.V. The undersigned acts on behalf of the company CEO, Philippe Vankerkhove Regulatory Affairs –...
